Acceleration/Deceleration Sensor

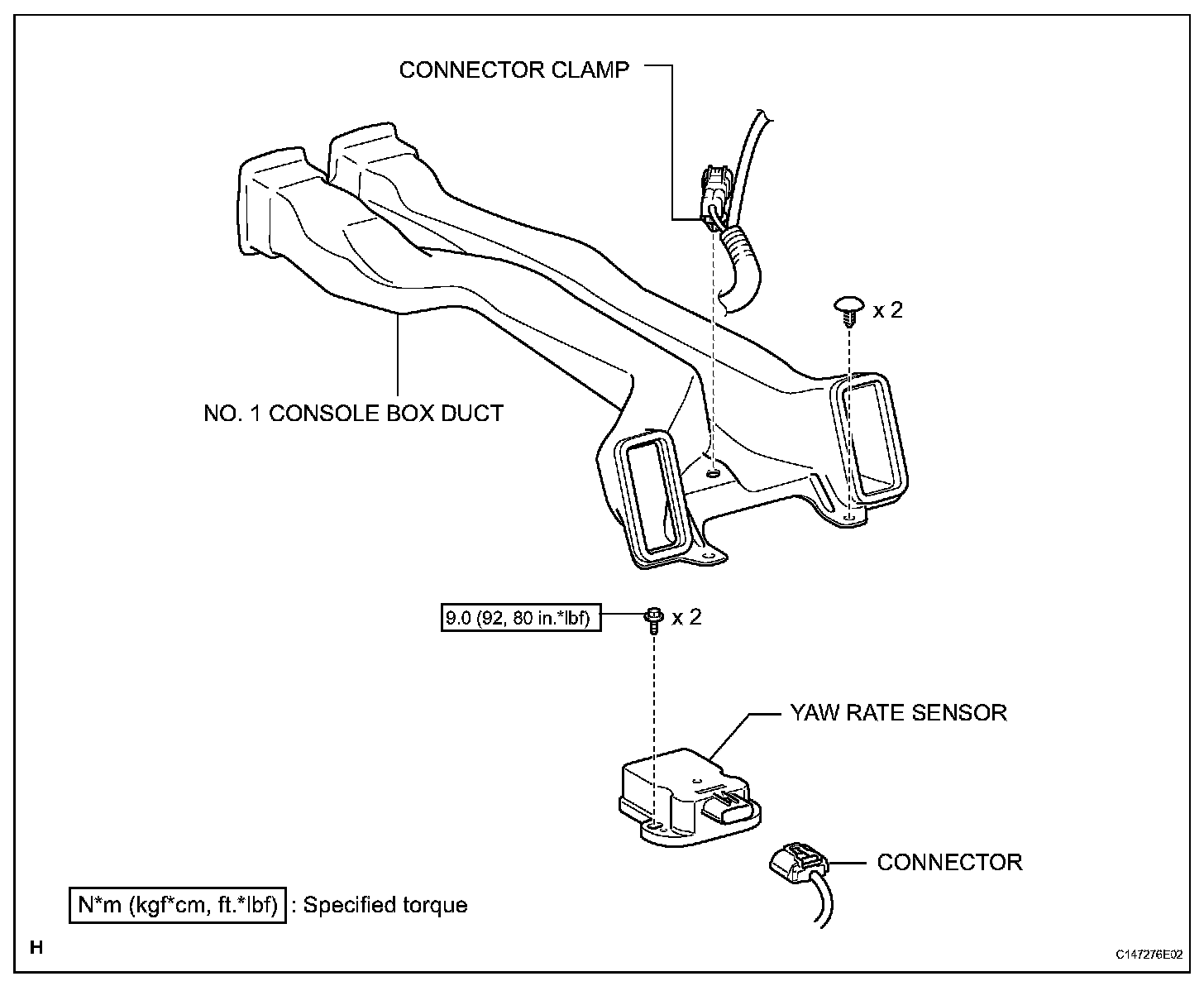

Yaw Rate And Acceleration Sensor:



Yaw Rate And Acceleration Sensor:
