Lumbar Support Adjuster Assembly: Components

Fig 1: Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (1 Of 2)
G05321108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

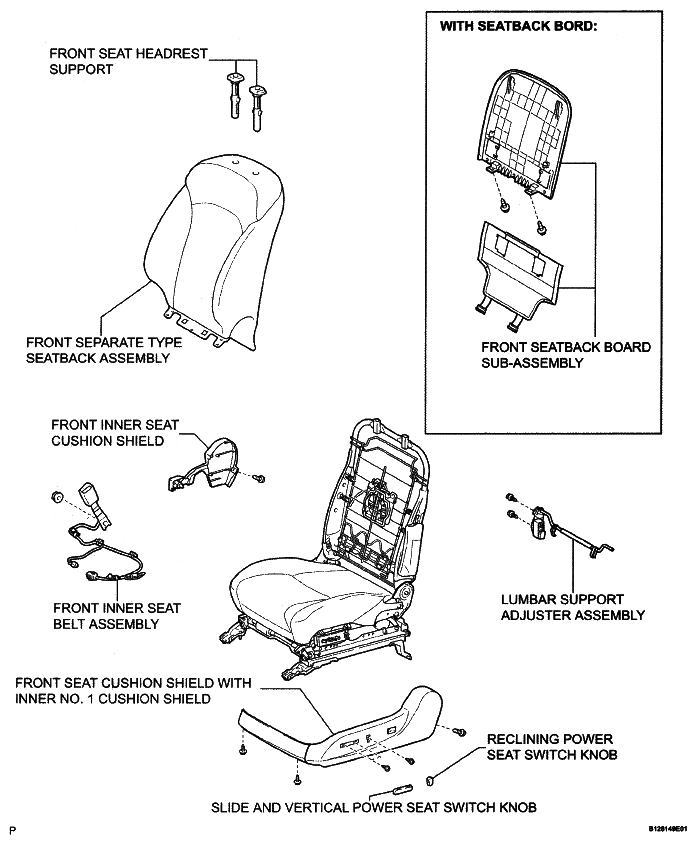

Fig 2: Identifying Lumbar Support Adjuster Assembly Components (2 Of 2)
G05321109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
