Home >> Lexus >> 2007 >> IS 350 V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Variable Valve Timing Actuator Position Sensor

Variable Valve Timing Actuator Position Sensor

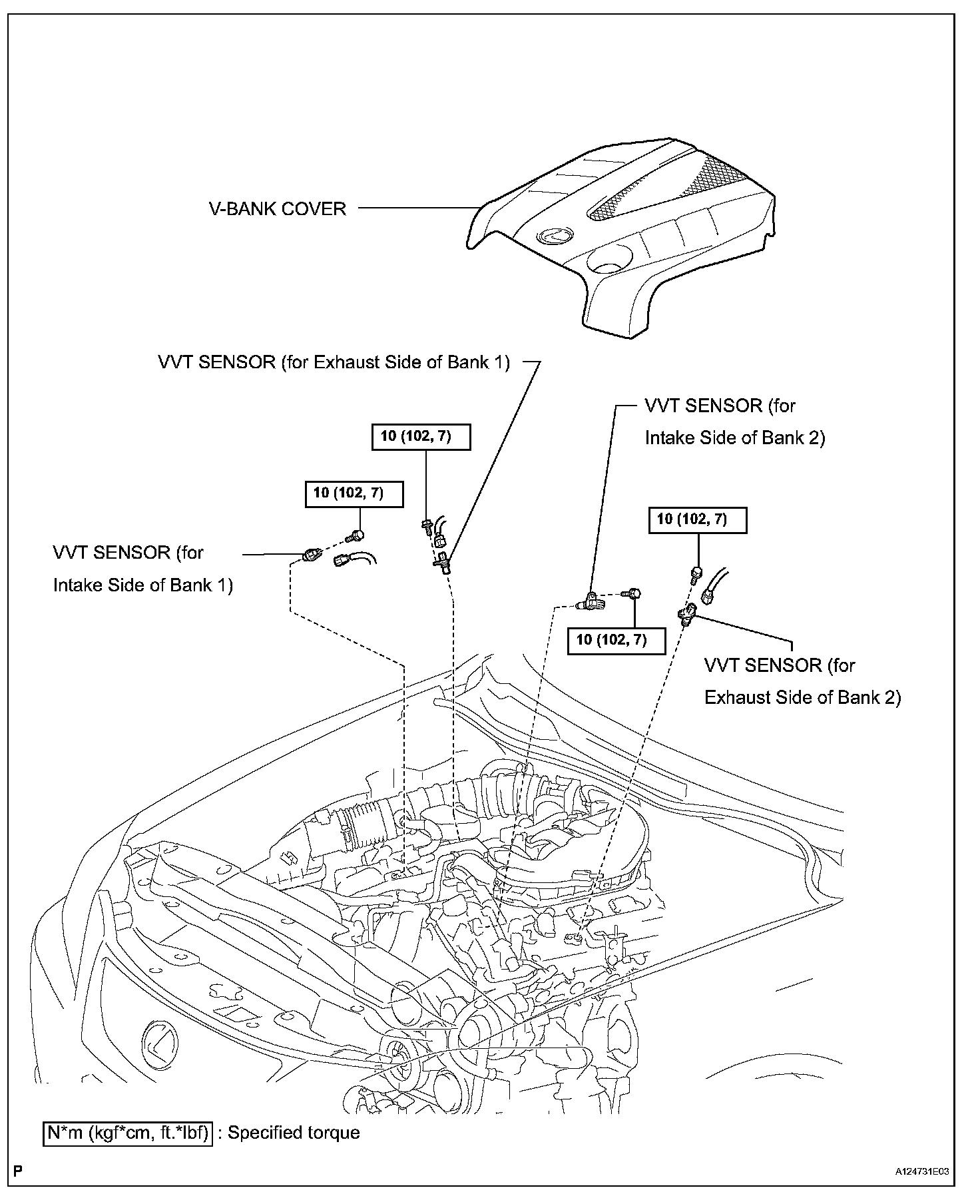

VVT Sensor:
