Engine Control Module

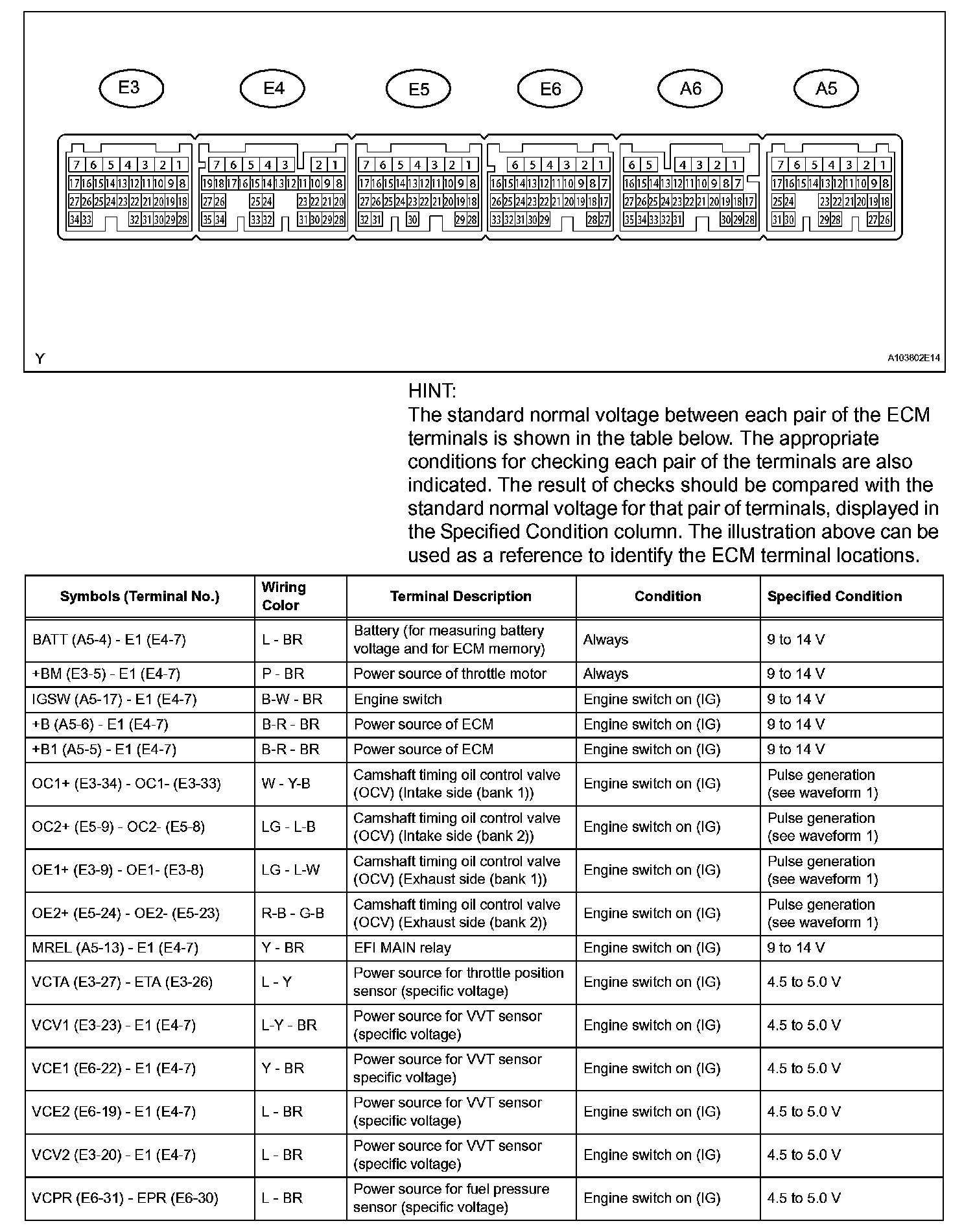

Terminals Of ECM/Pinouts (Part 1):

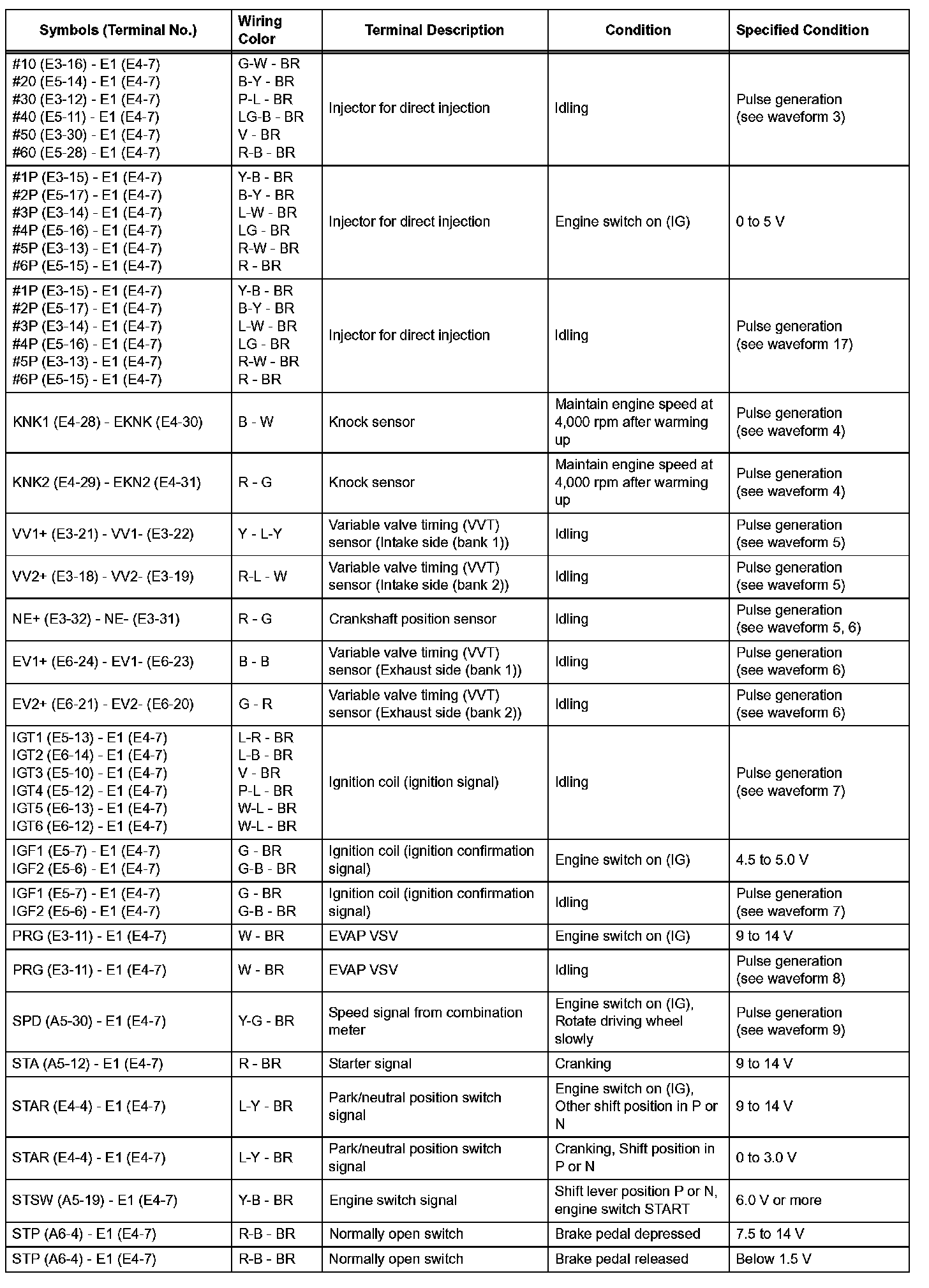

Terminals Of ECM/Pinouts (Part 2):

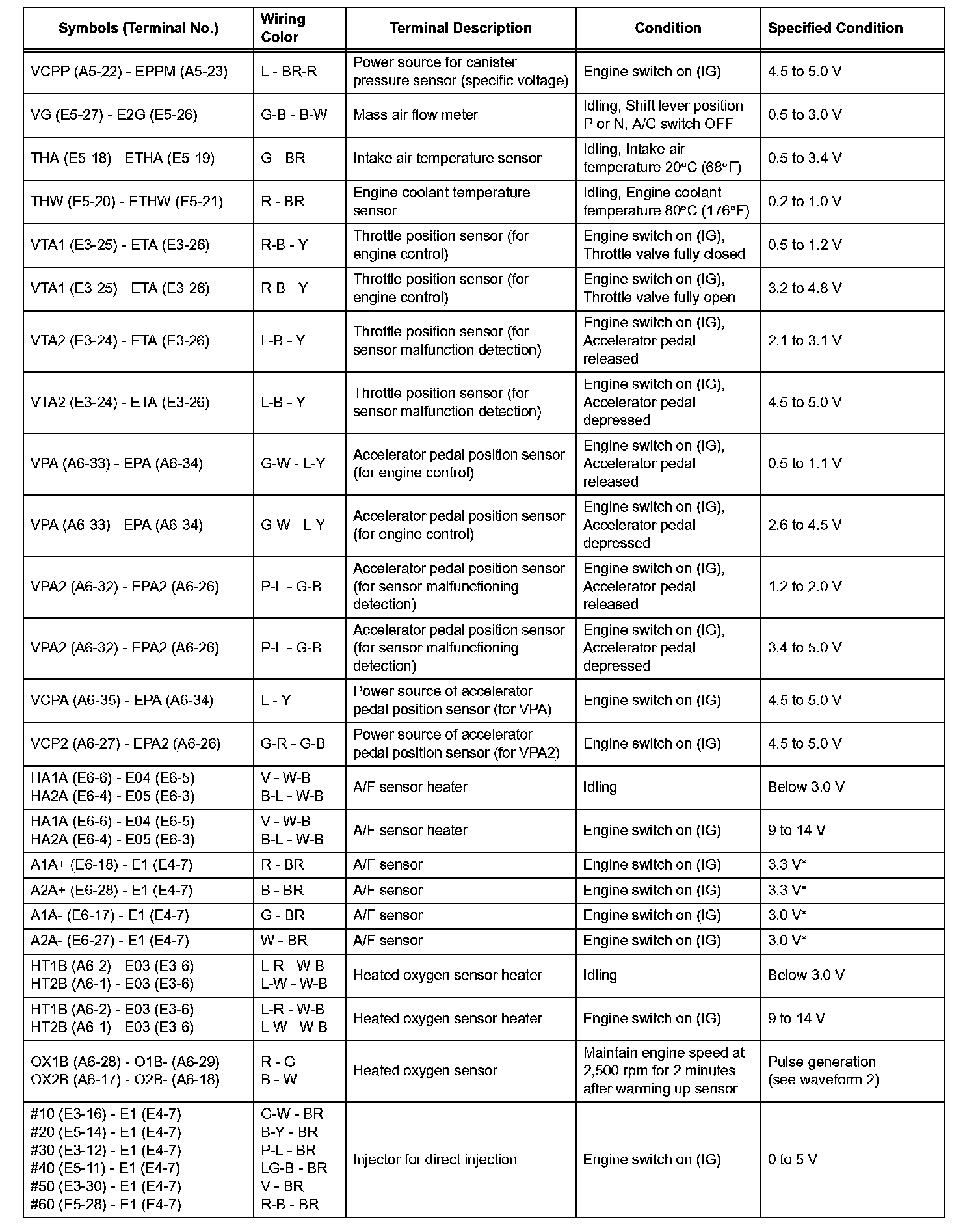

Terminals Of ECM/Pinouts (Part 3):

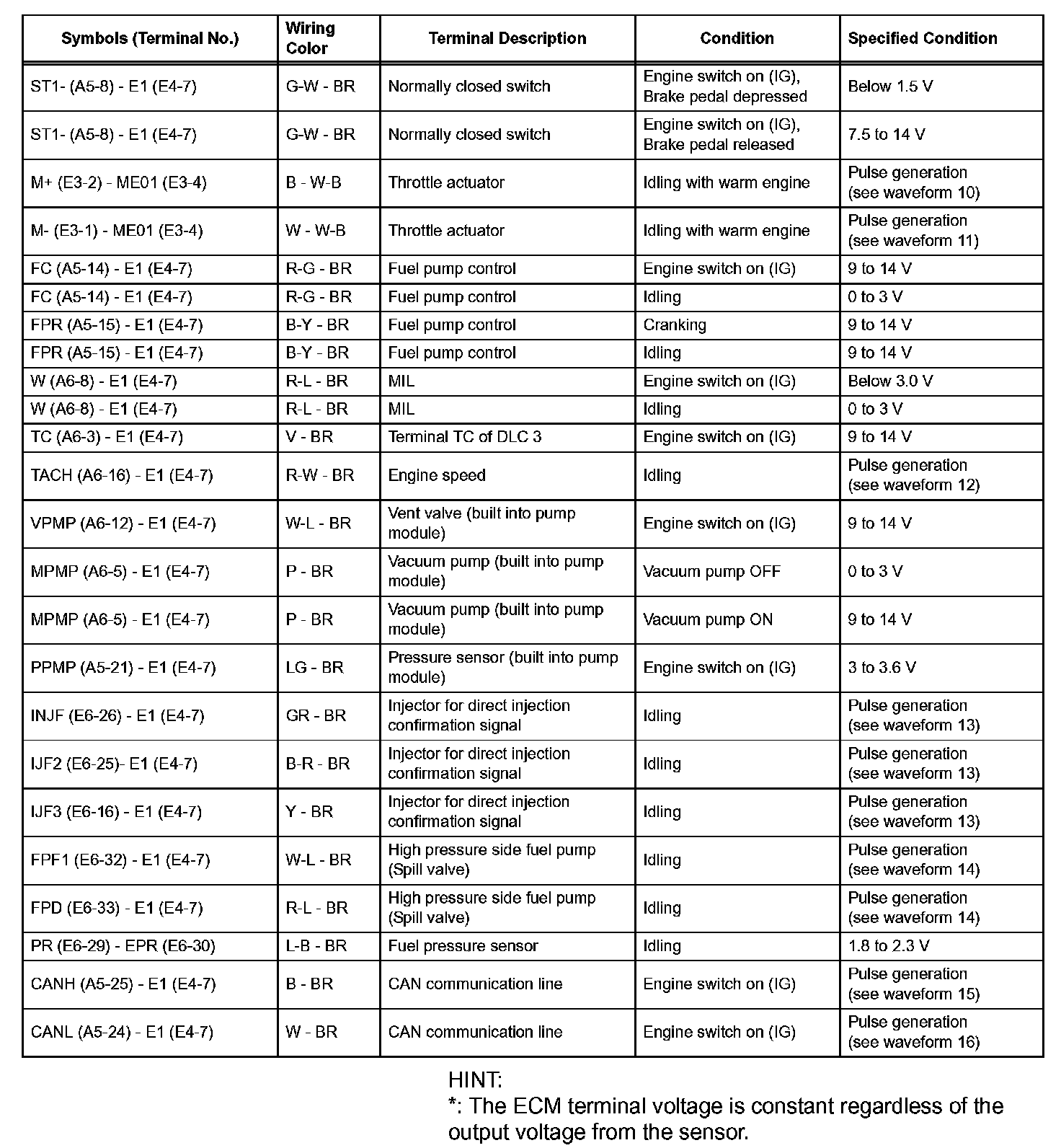

Terminals Of ECM/Pinouts (Part 4):

Oscilloscope Waveform (Part 1):

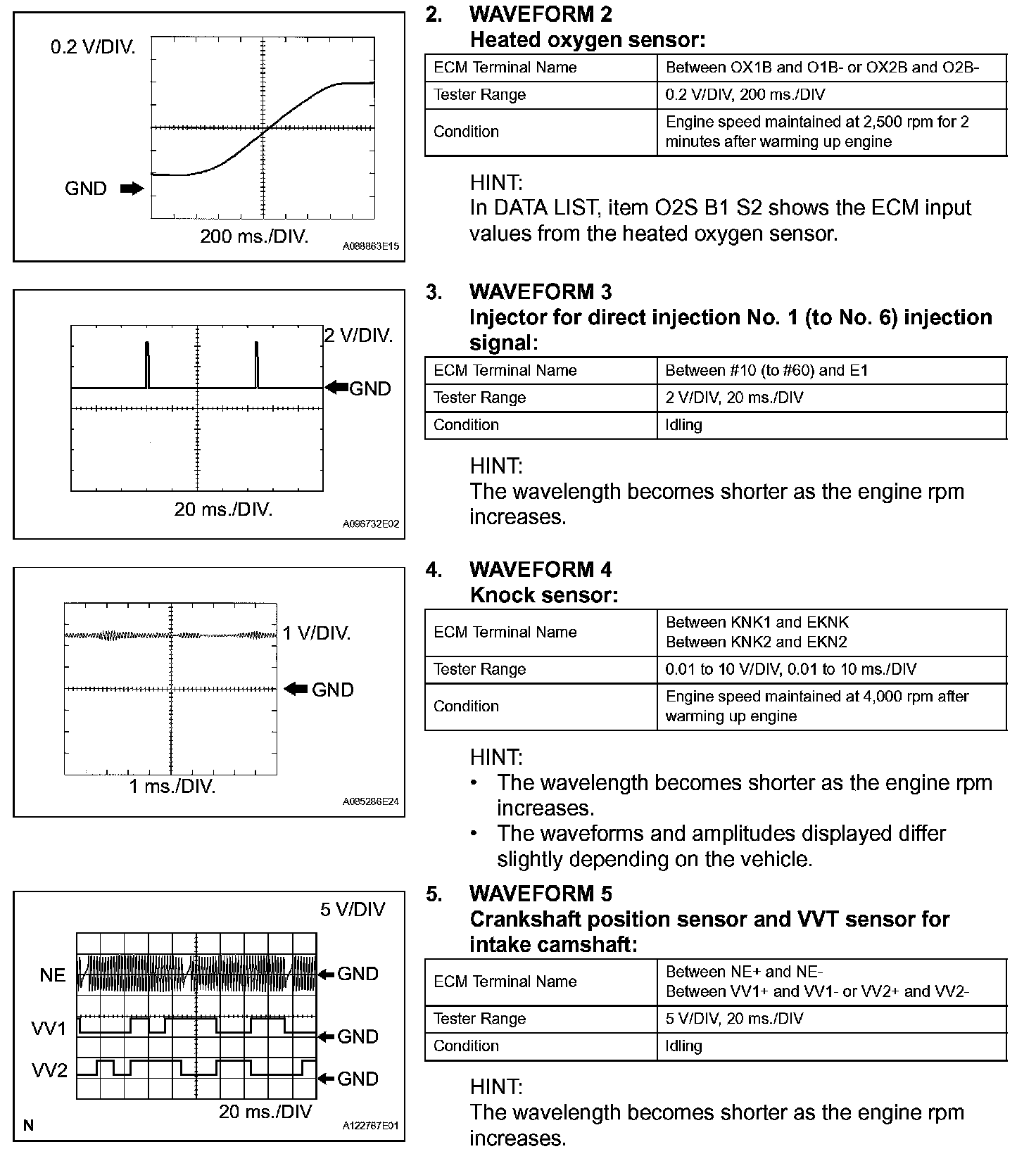

Oscilloscope Waveforms (Part 2):

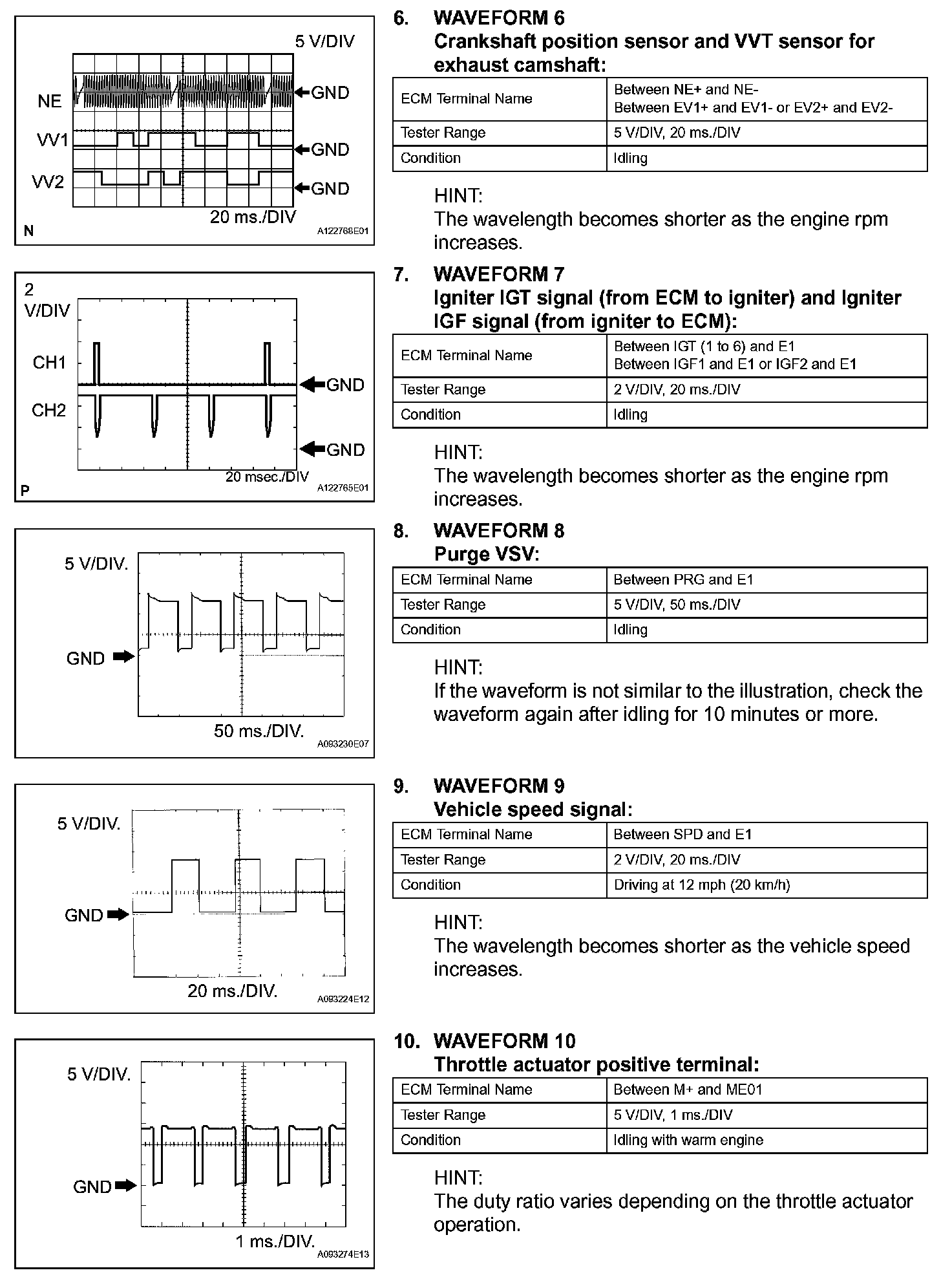

Oscilloscope Waveforms (Part 3):

Oscilloscope Waveforms (Part 4):

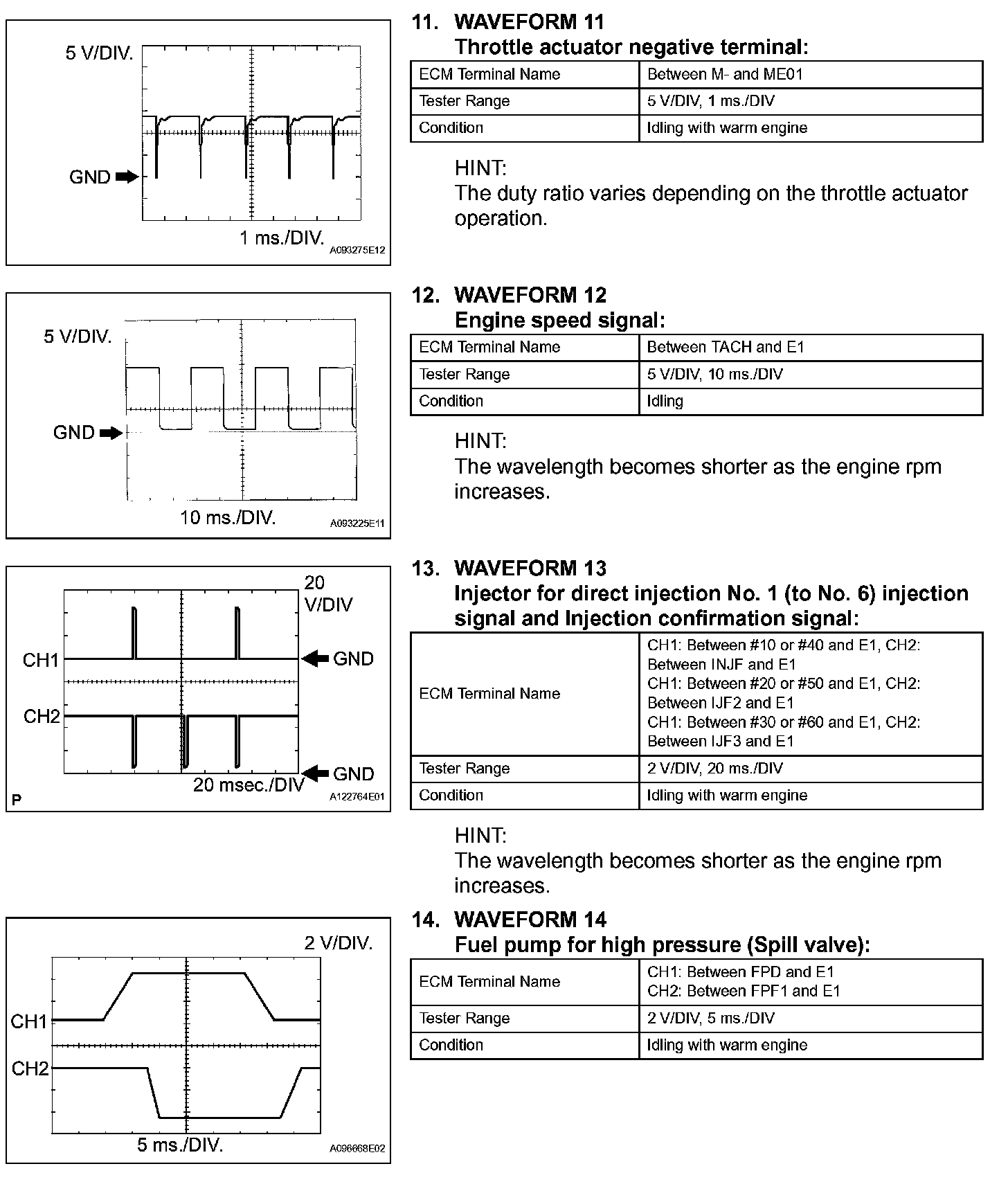

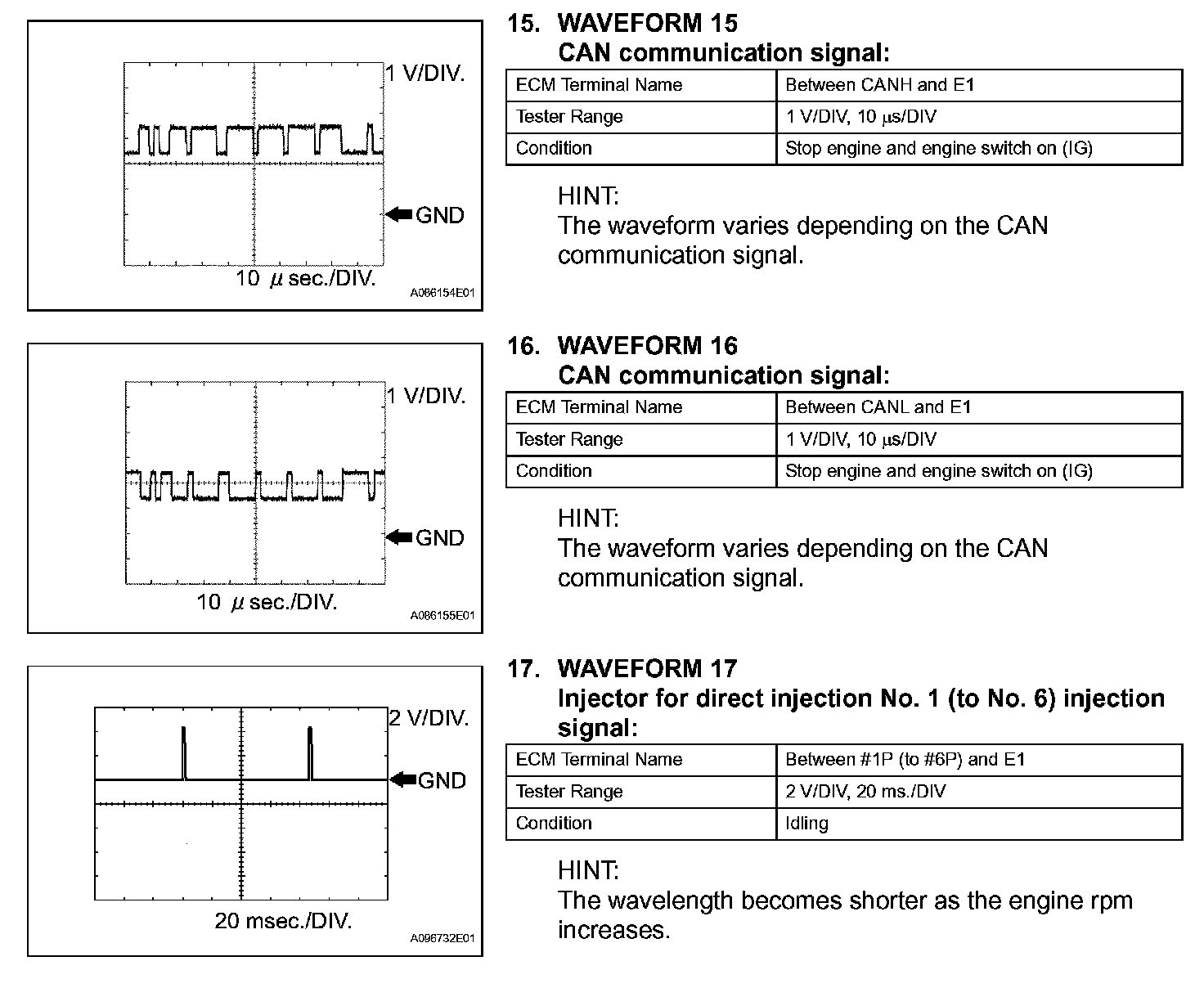

Oscilloscope Waveforms (Part 5):
