Home >> Lexus >> 2007 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Service Data

Service Data

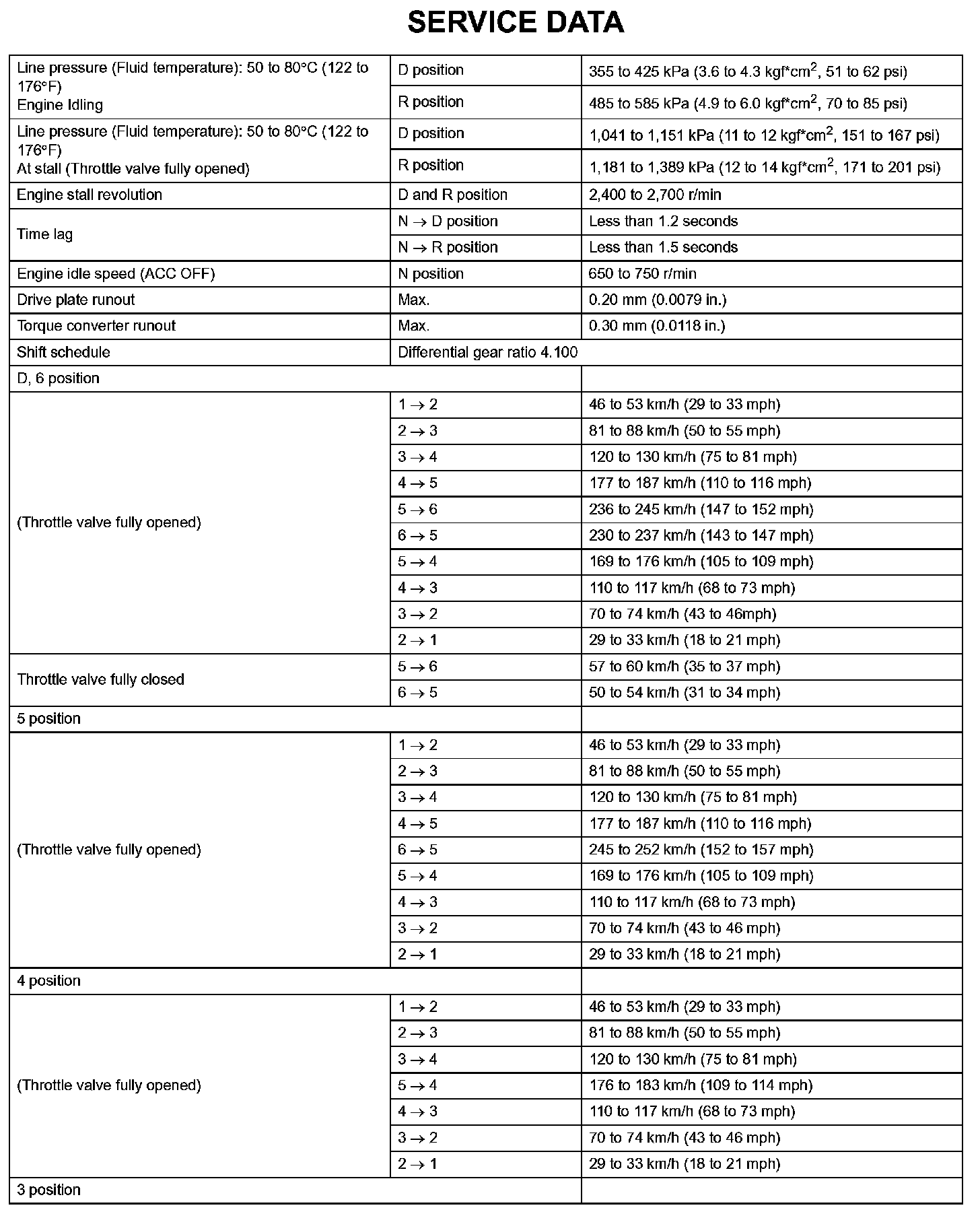

Automatic Transmission-Service Data (Part 1):

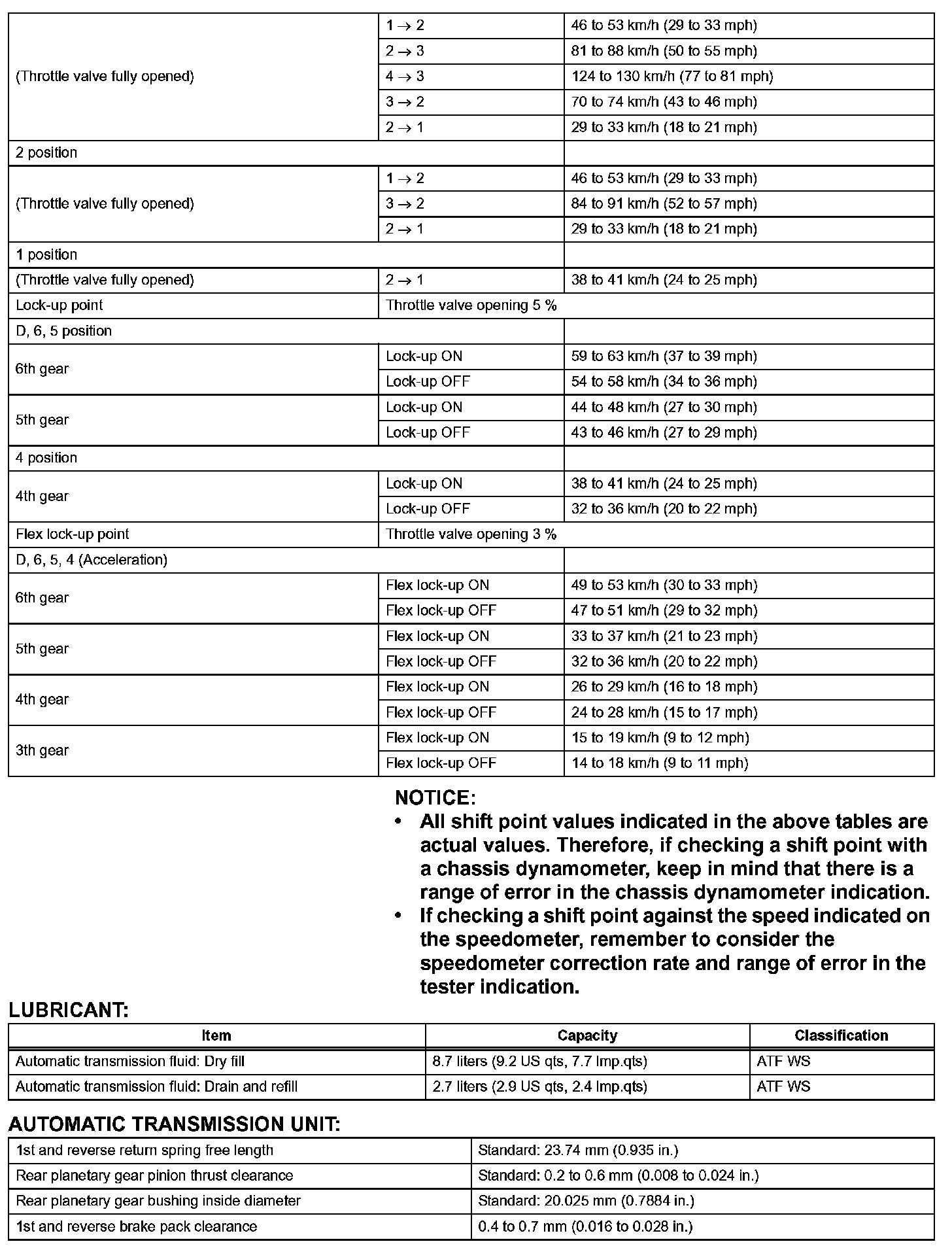

Automatic Transmission-Service Data (Part 2):

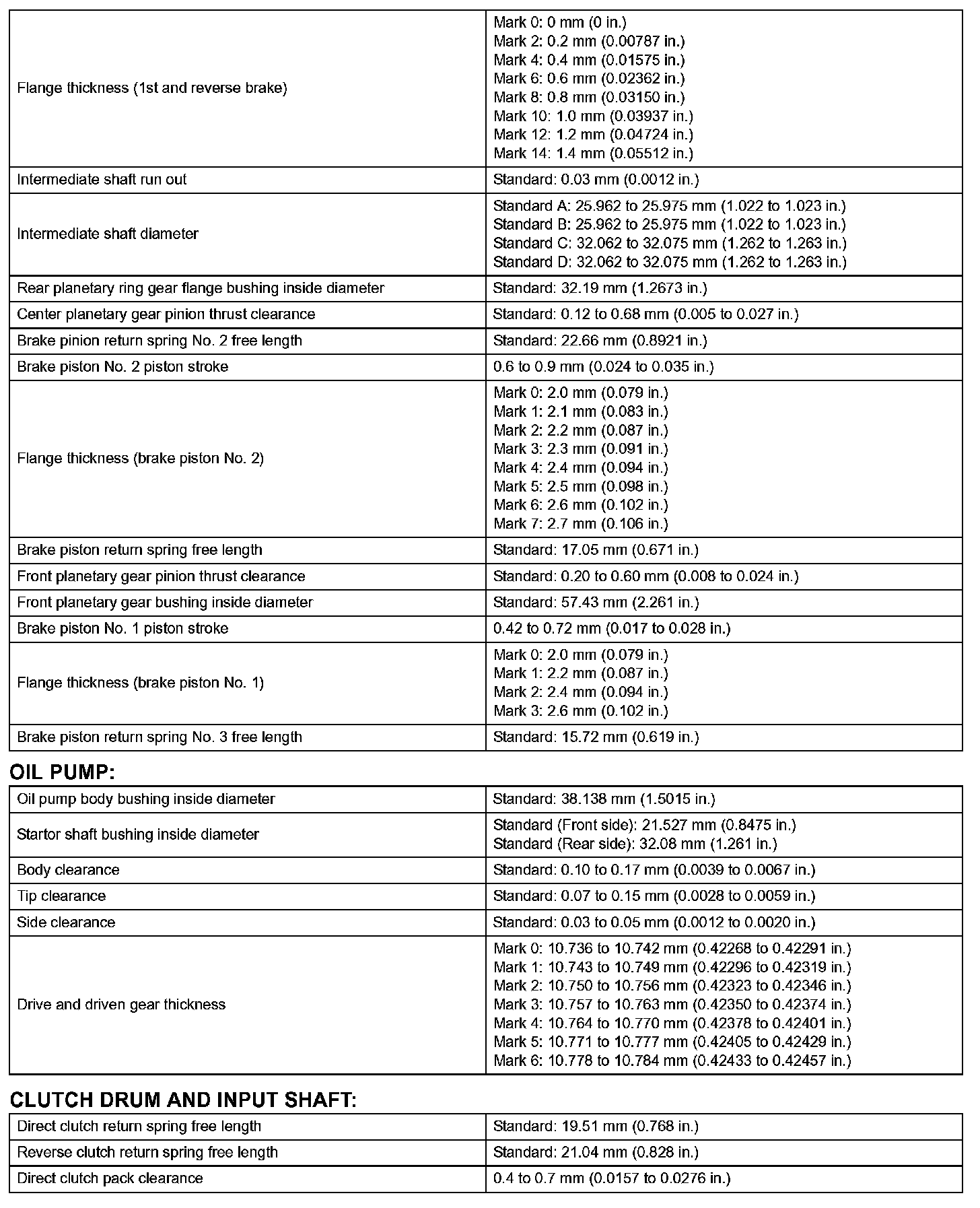

Automatic Transmission-Service Data (Part 3):

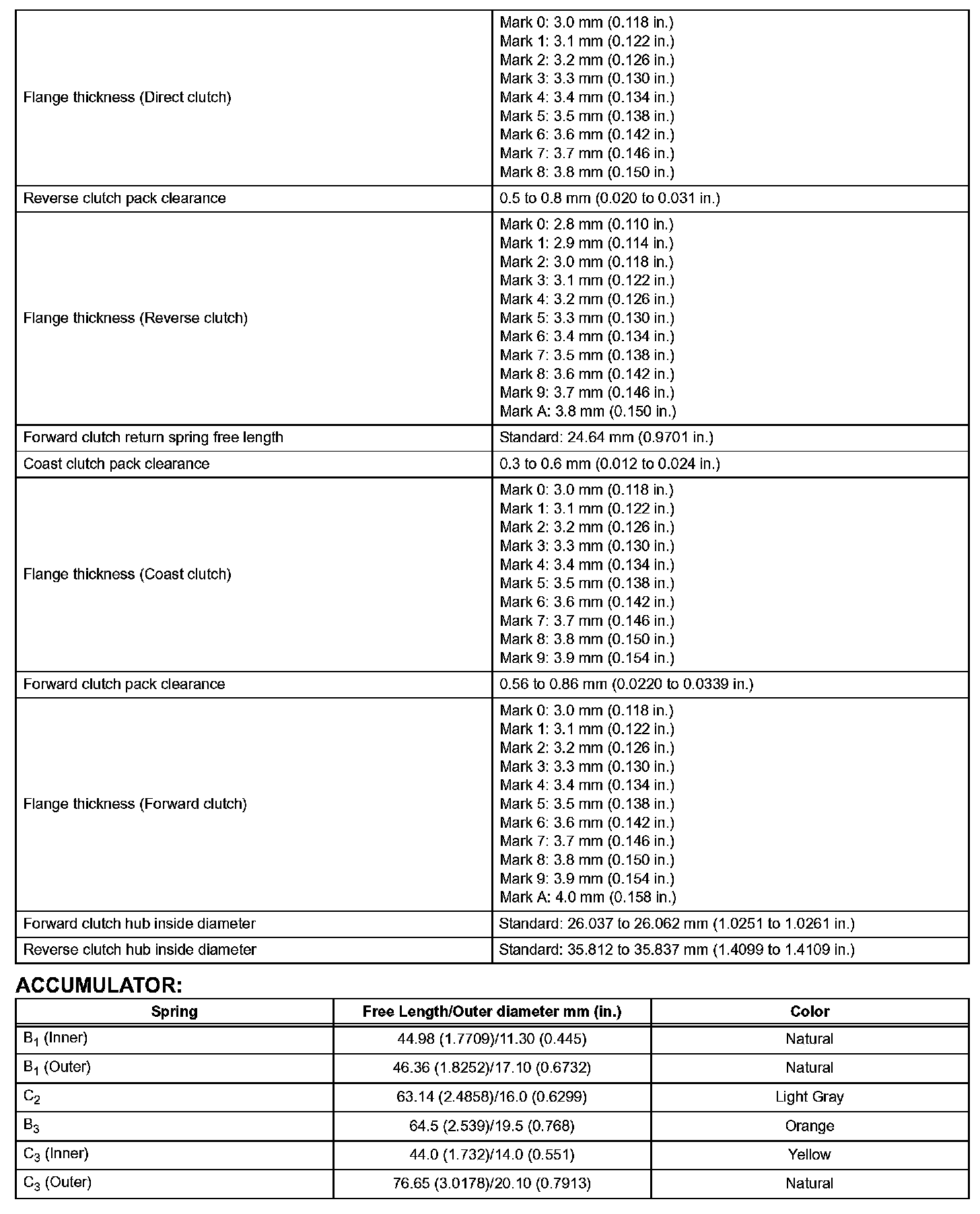

Automatic Transmission-Service Data (Part 4):

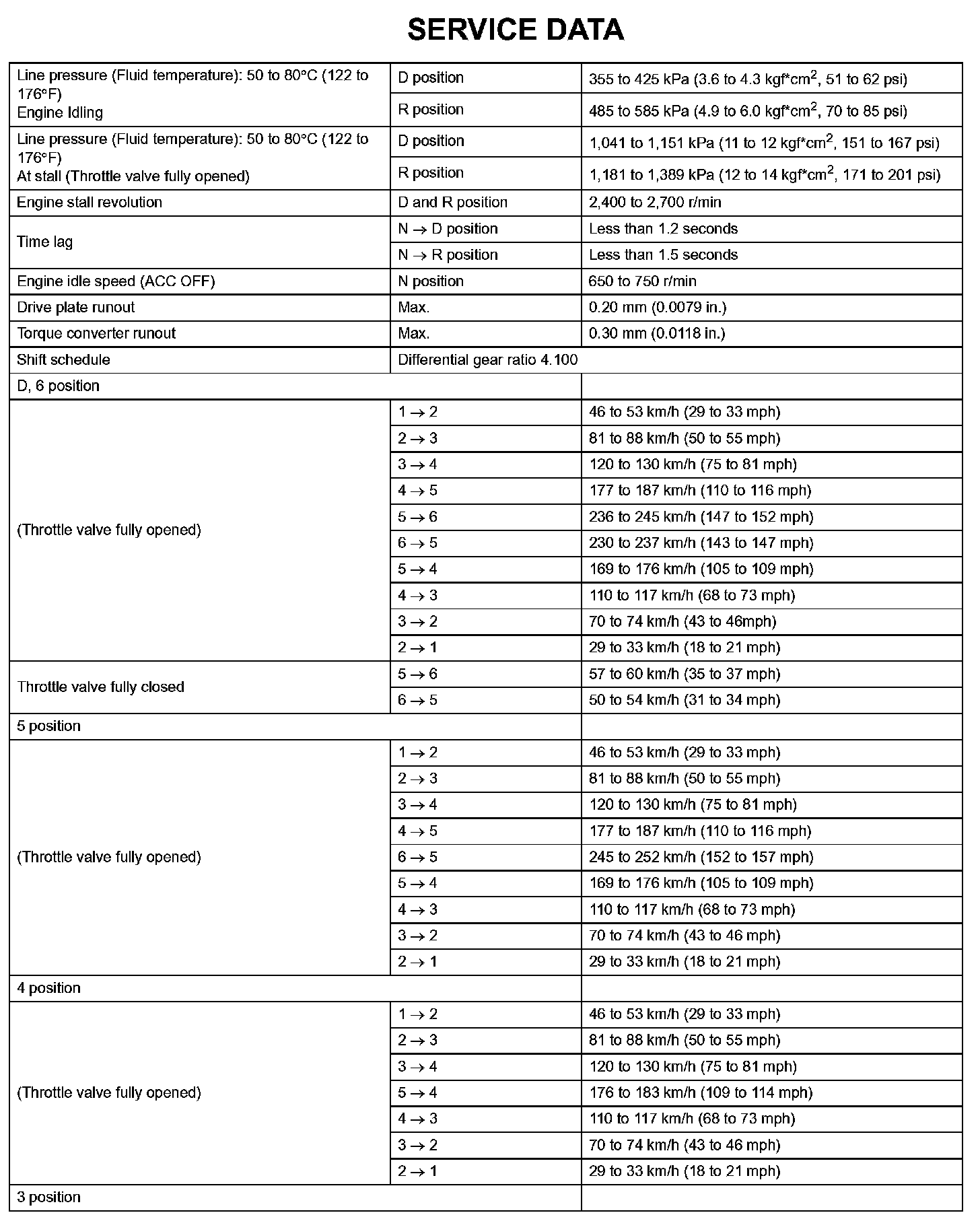

Automatic Transmission - Service Data (Part 1):

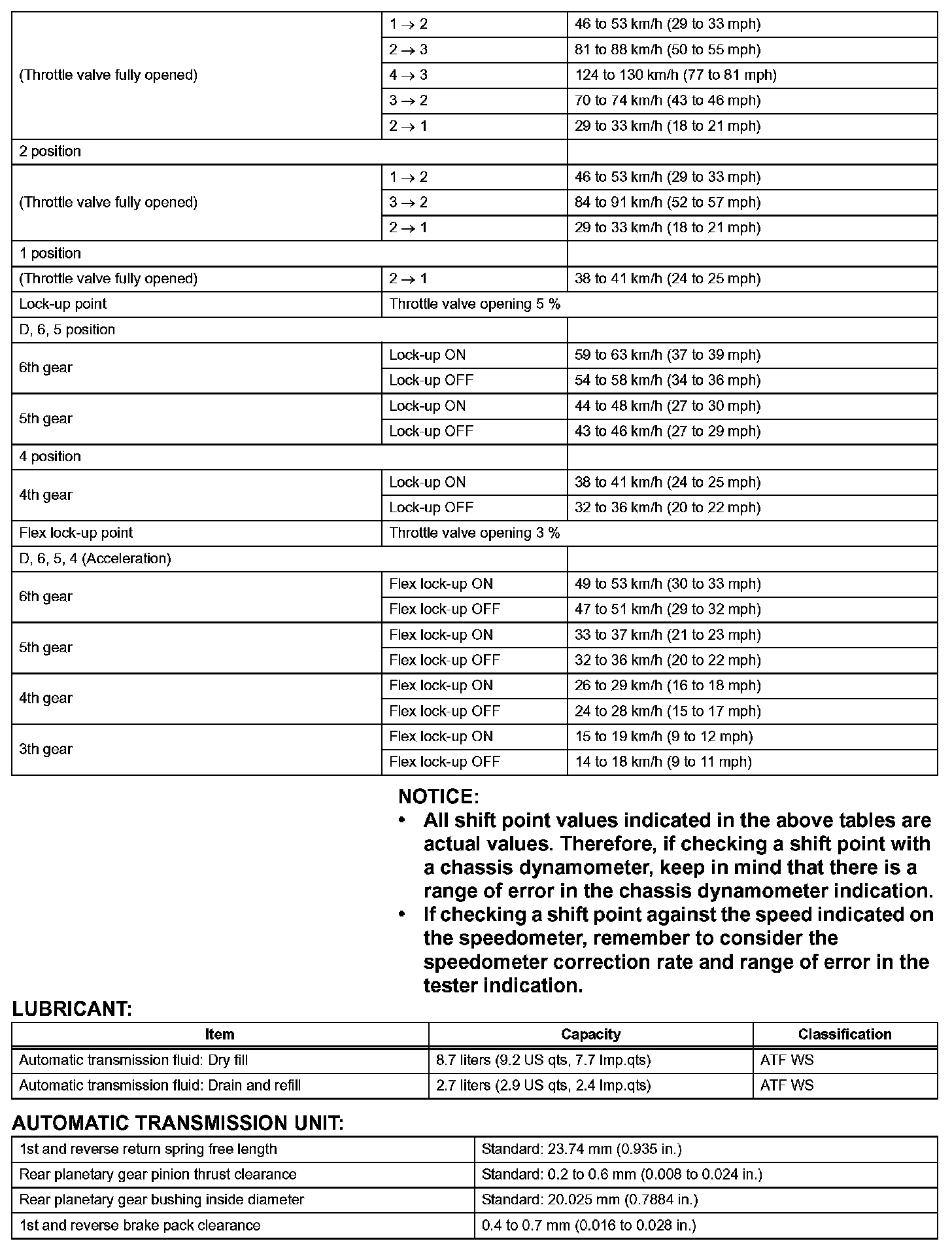

Automatic Transmission - Service Data (Part 2):

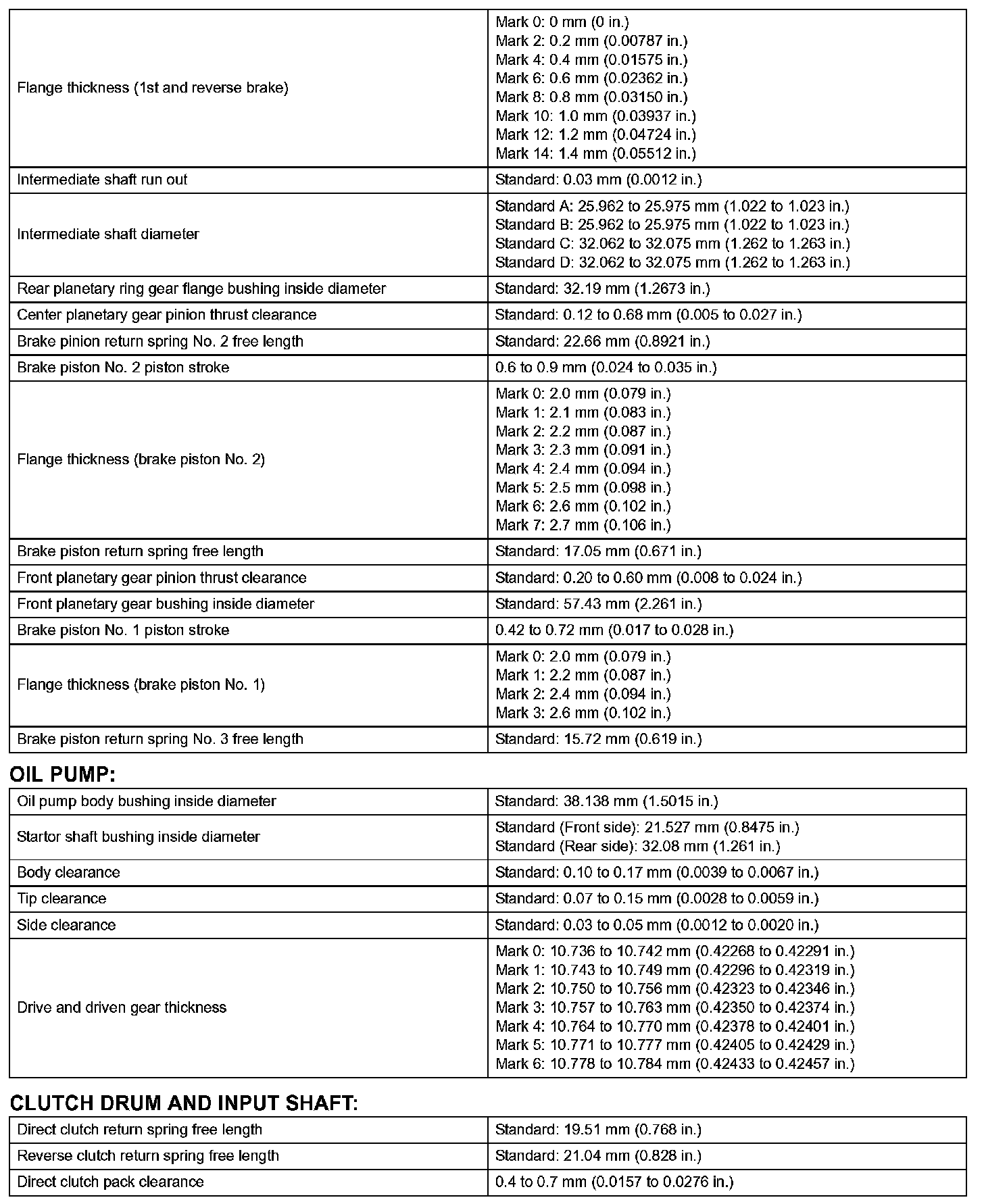

Automatic Transmission - Service Data (Part 3):

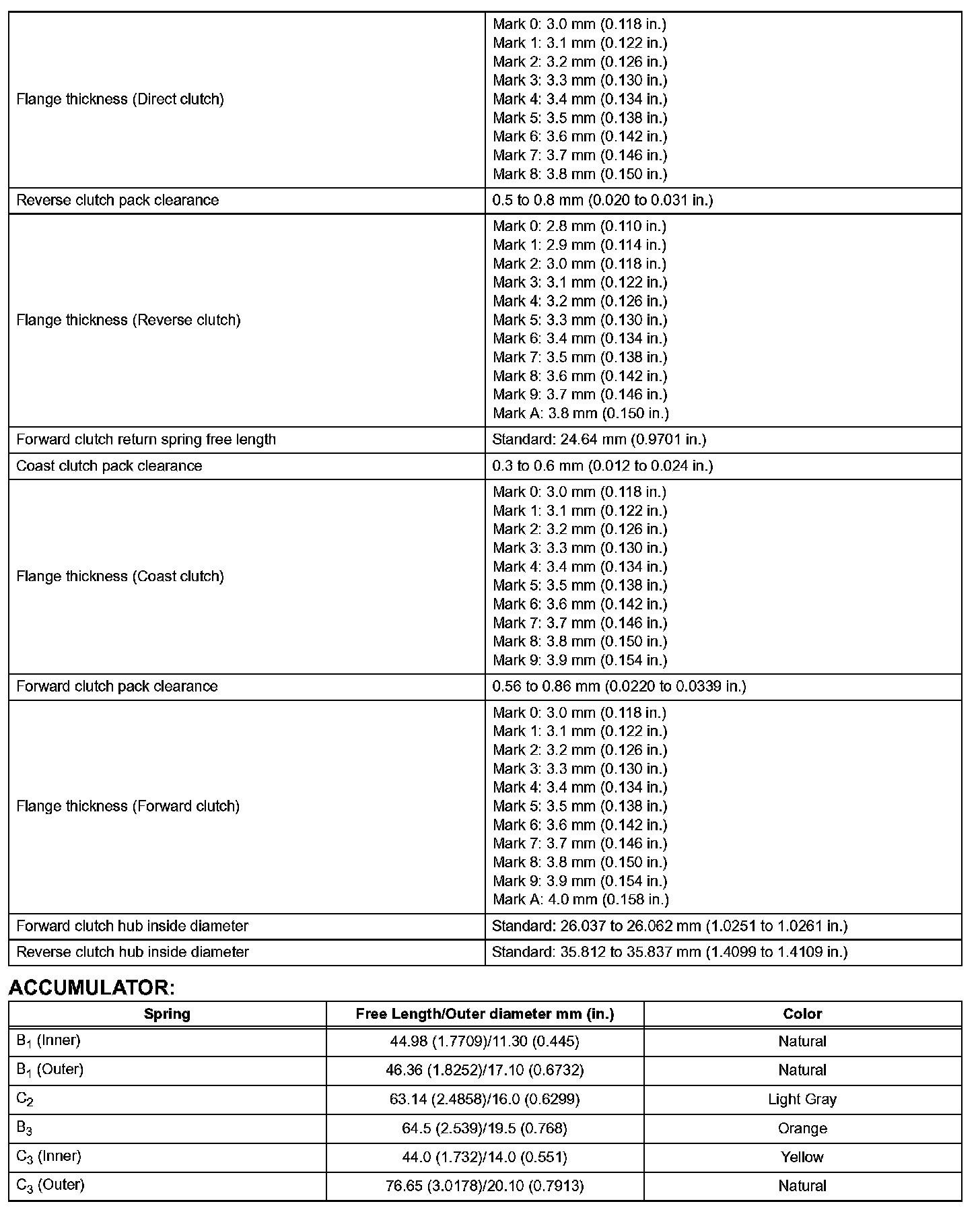

Automatic Transmission - Service Data (Part 4):
