Computers and Control Systems: Description and Operation

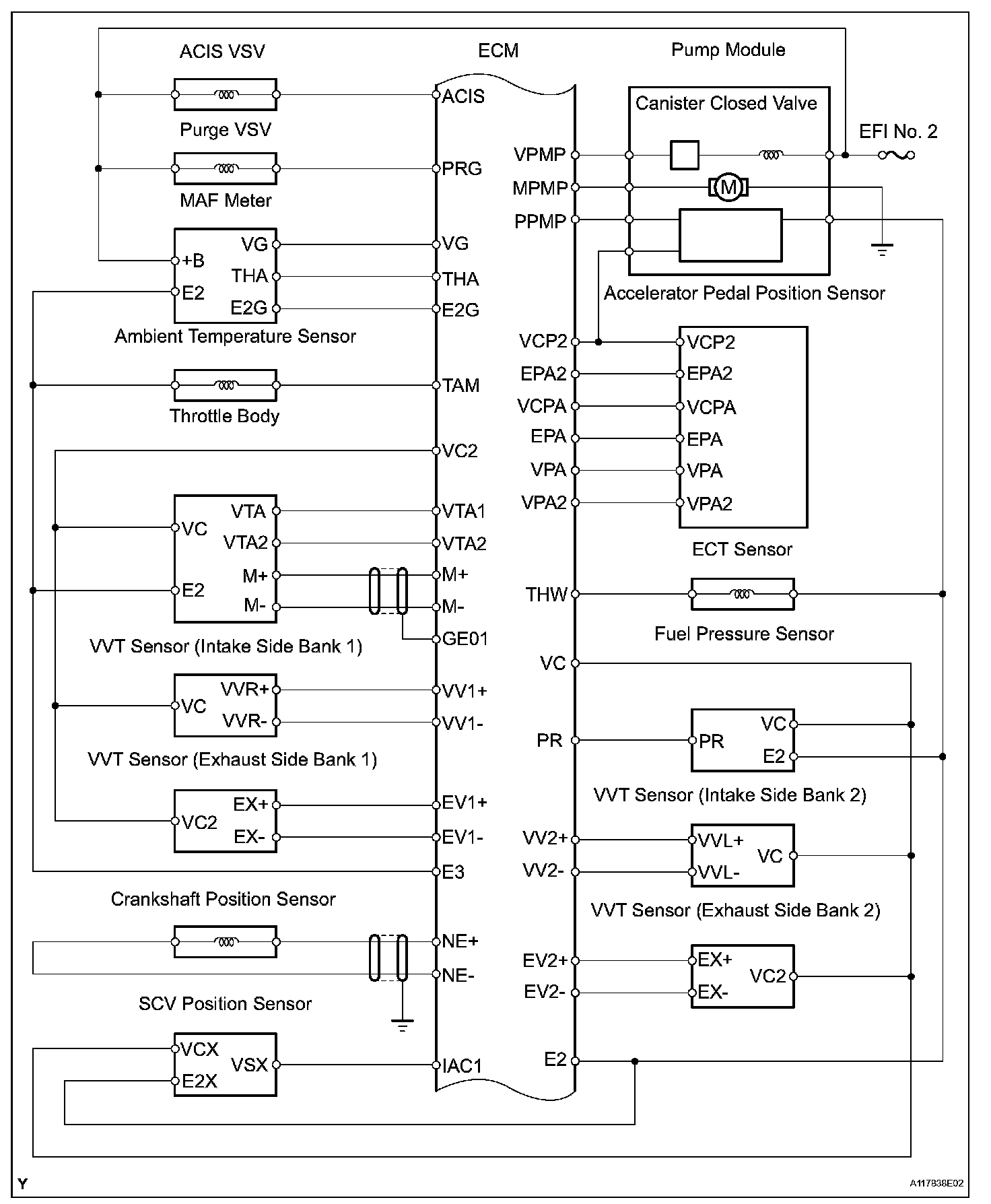

System Diagram (Part 1):

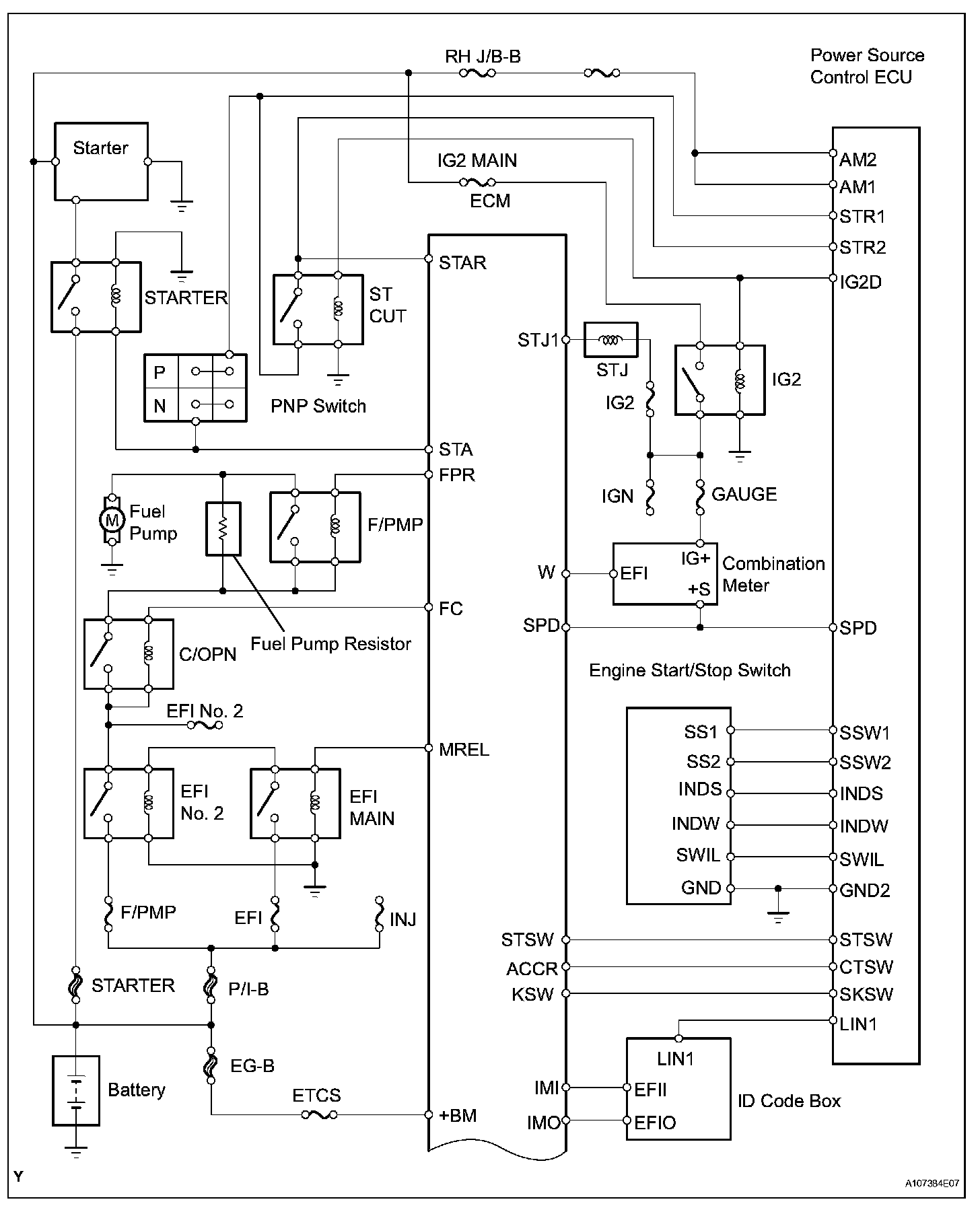

System Diagram (Part 2):

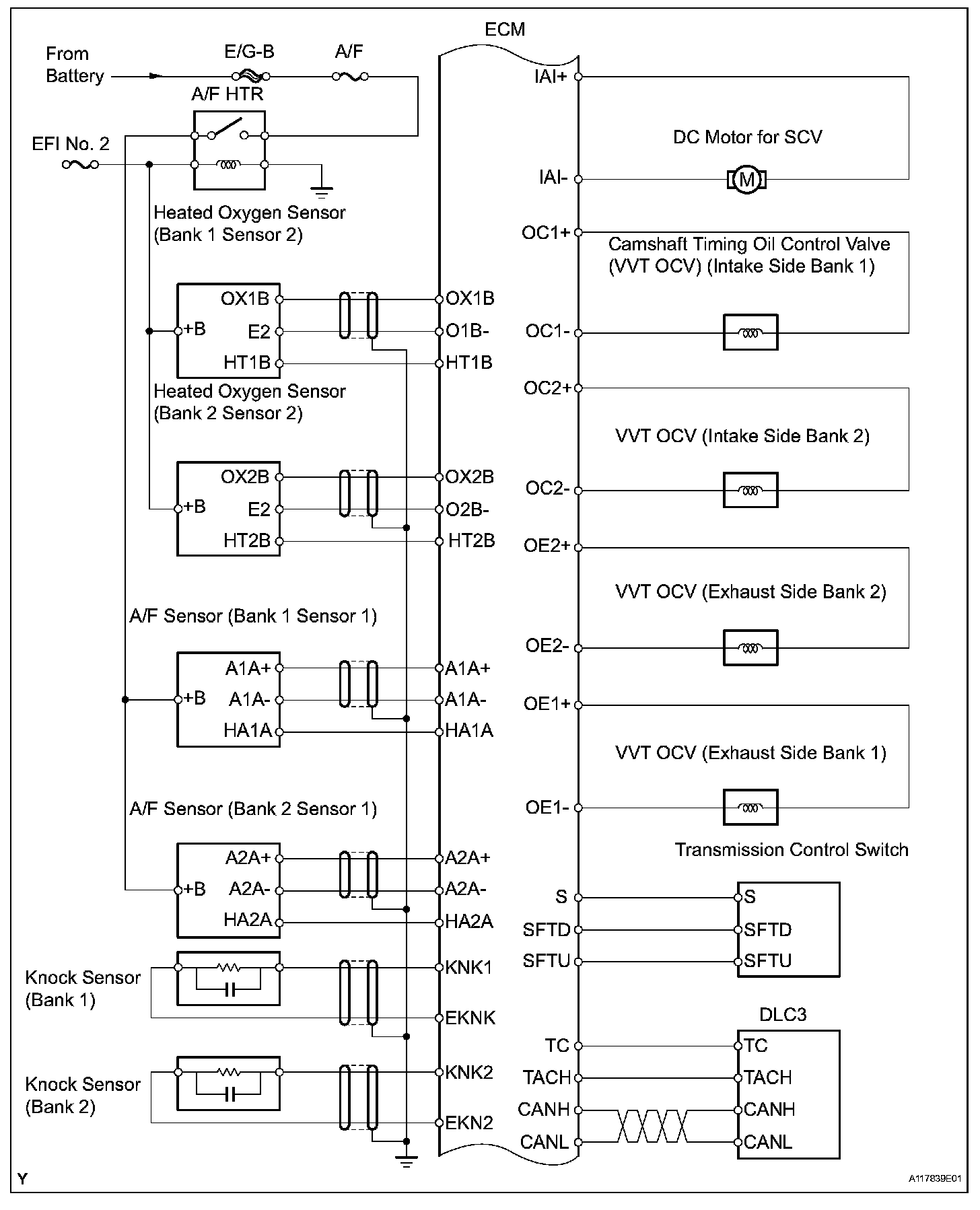

System Diagram (Part 3):

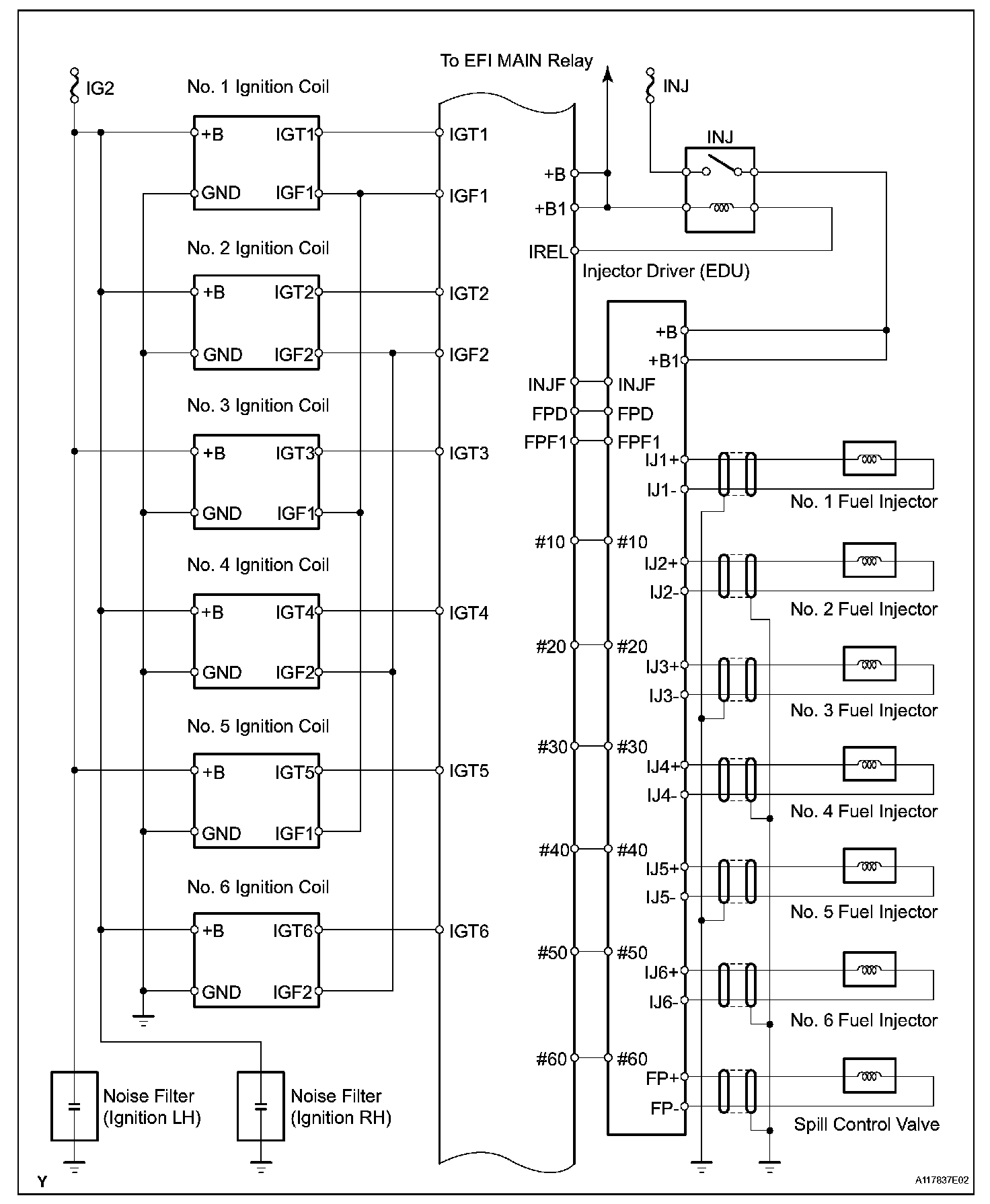

System Diagram (Part 4):
System Diagram (Part 5):
