Home >> Lexus >> 2007 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Door

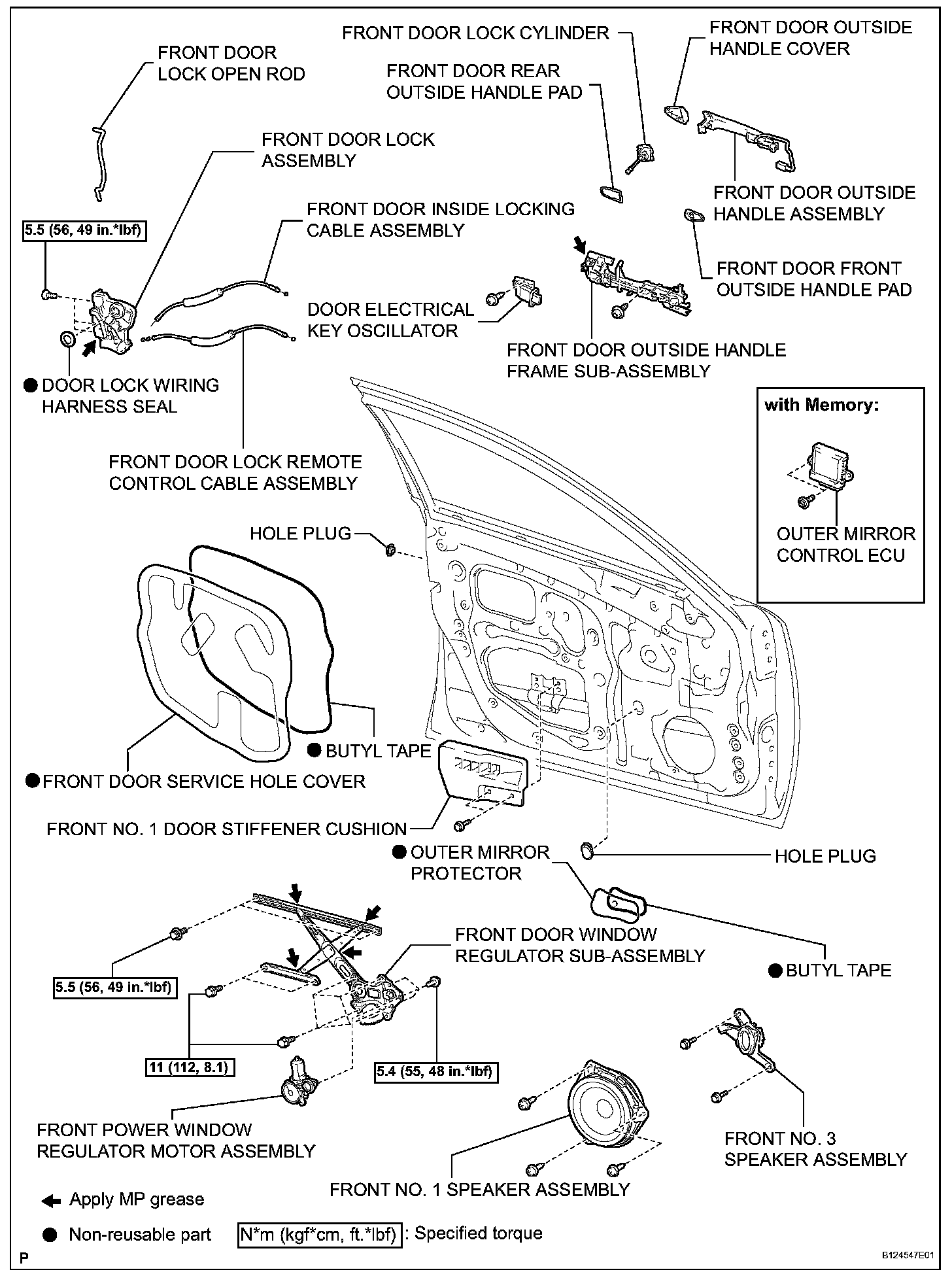

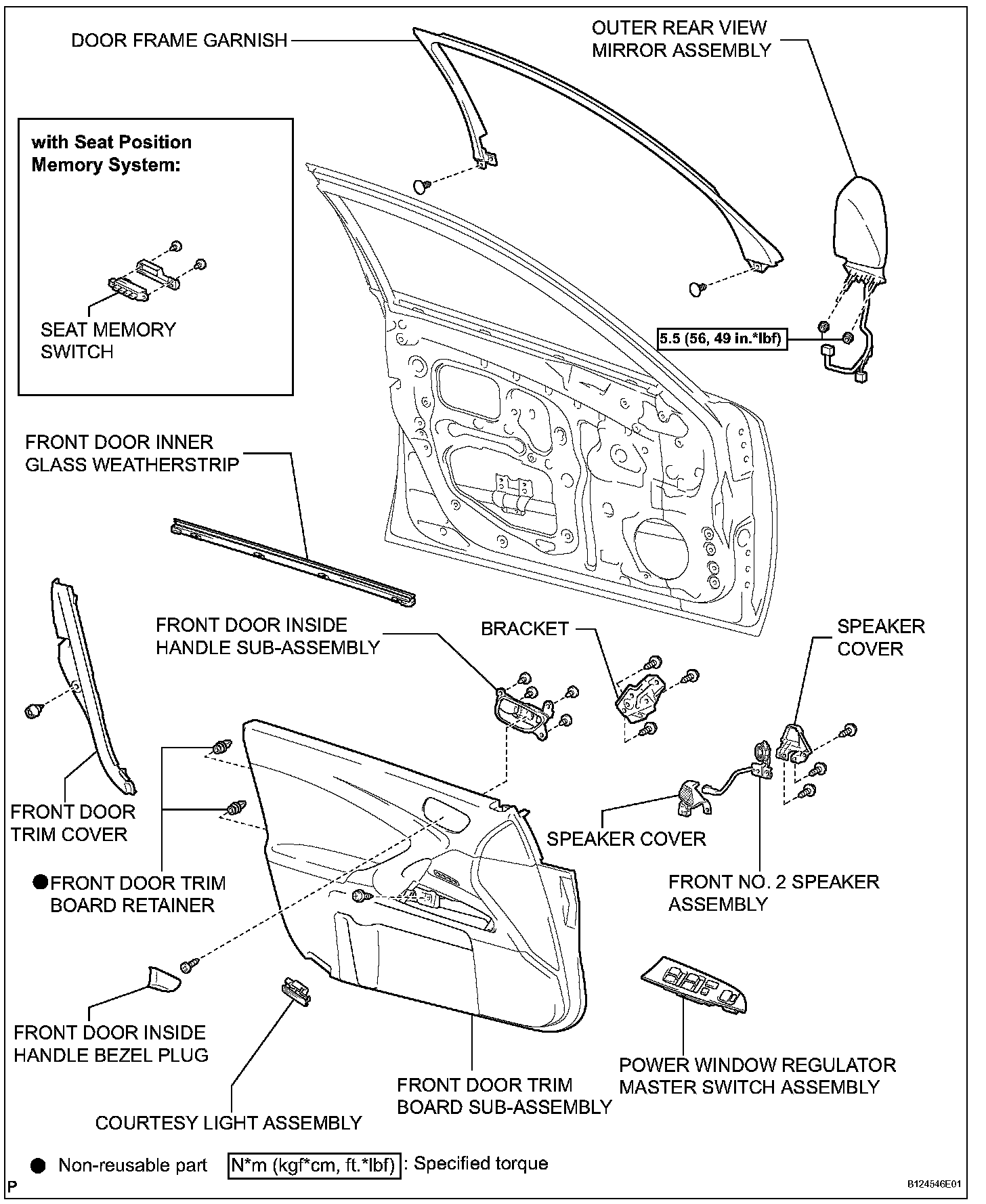

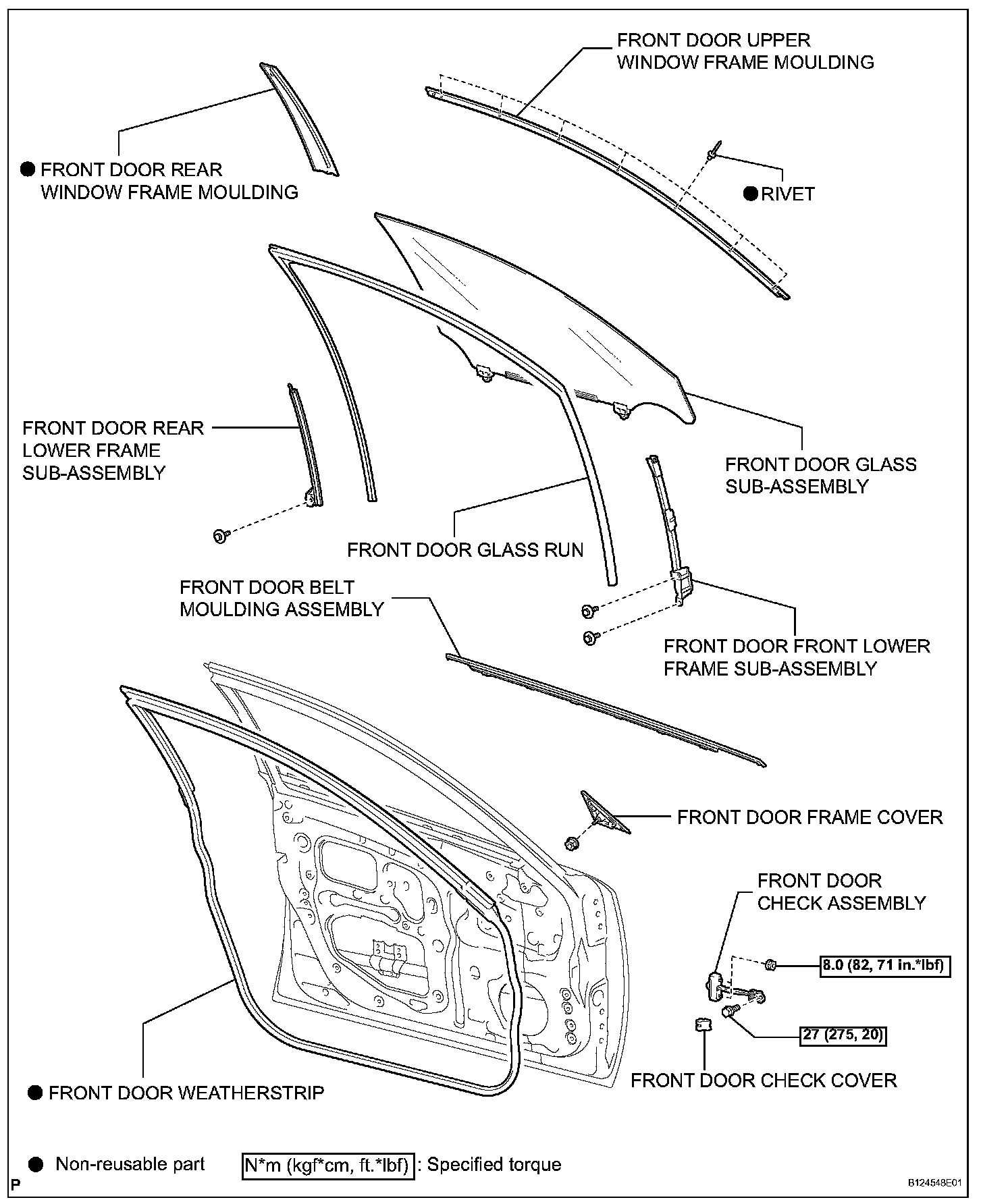

Front Door

Front Door:

Front Door:

Front Door:
