Steering Pad Switch: Components

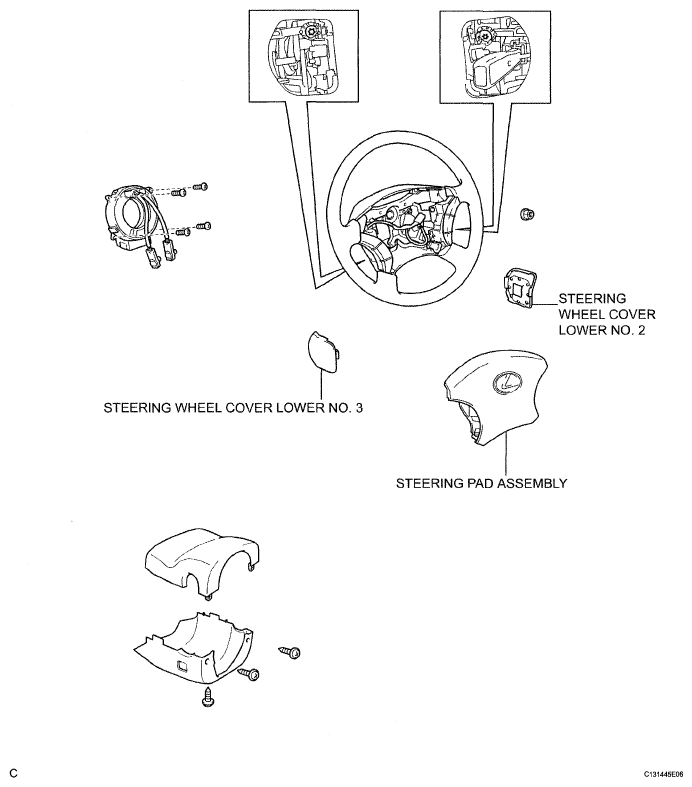

Fig 1: Identifying Steering Pad Switch Replacement Components (1 Of 2)
G05266258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

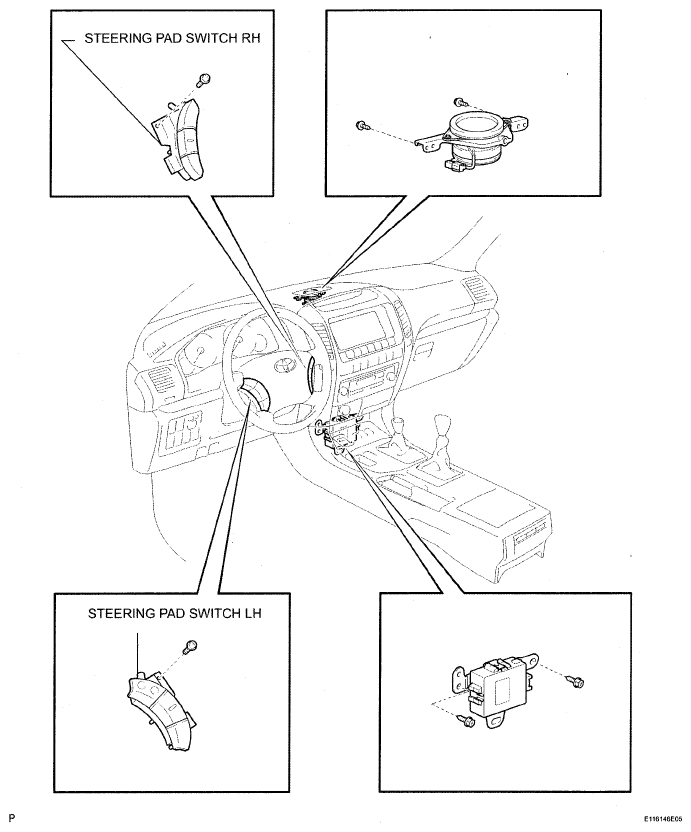

Fig 2: Identifying Steering Pad Switch Replacement Components (2 Of 2)
G05266259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
