Entertainment Systems: Audio/Visual: Multi-Display: Components

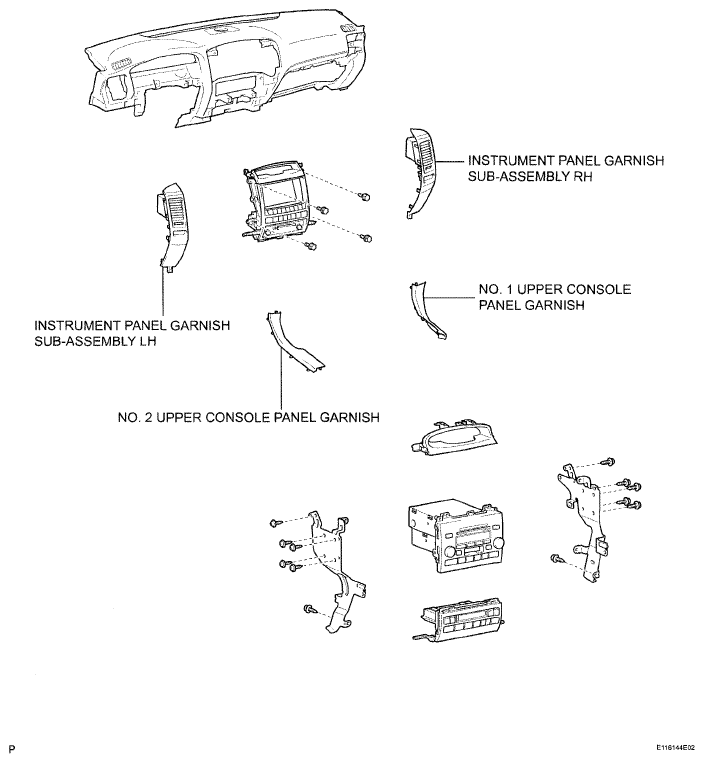

Fig 1: Identifying Multi-Display Replacement Components (1 Of 2)
G05266203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

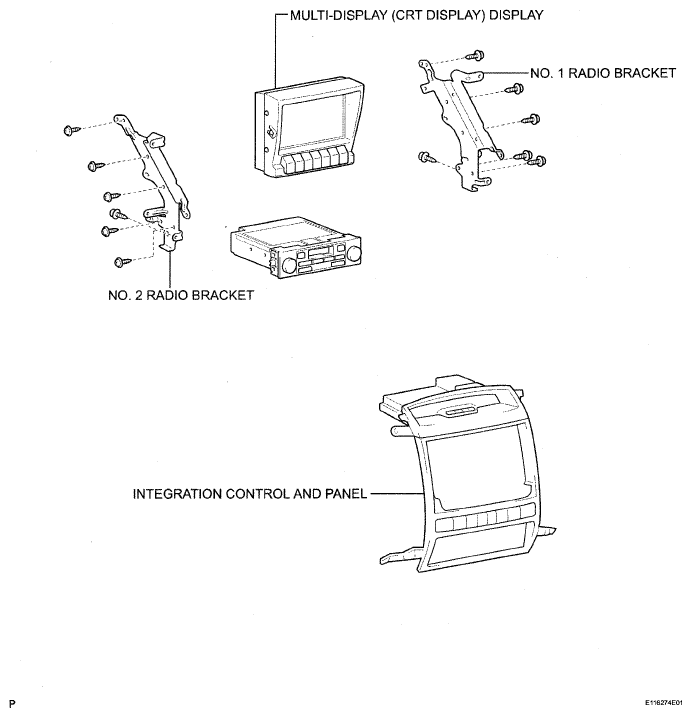

Fig 2: Identifying Multi-Display Replacement Components (2 Of 2)
G05266204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
