Network Gateway Ecu: Components

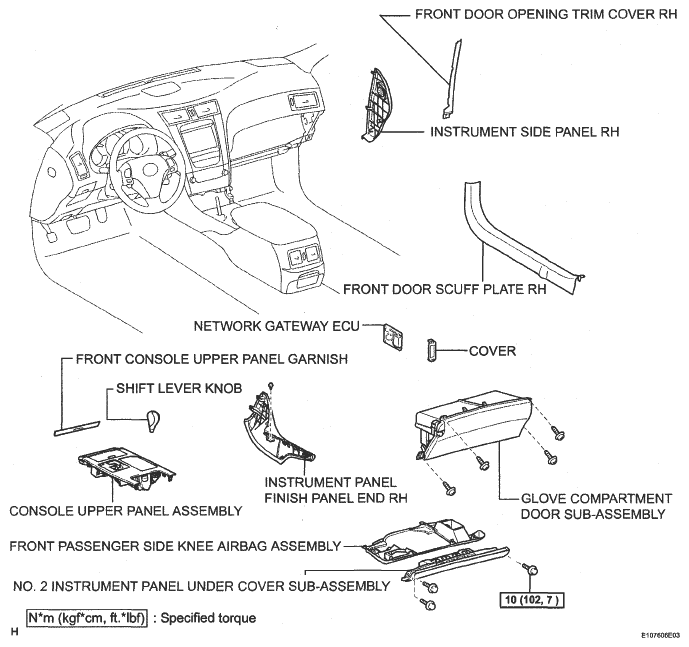

Fig 1: Network Gateway ECU Replacement Components With Torque Specifications

G05311504

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
