Oxygen Sensor

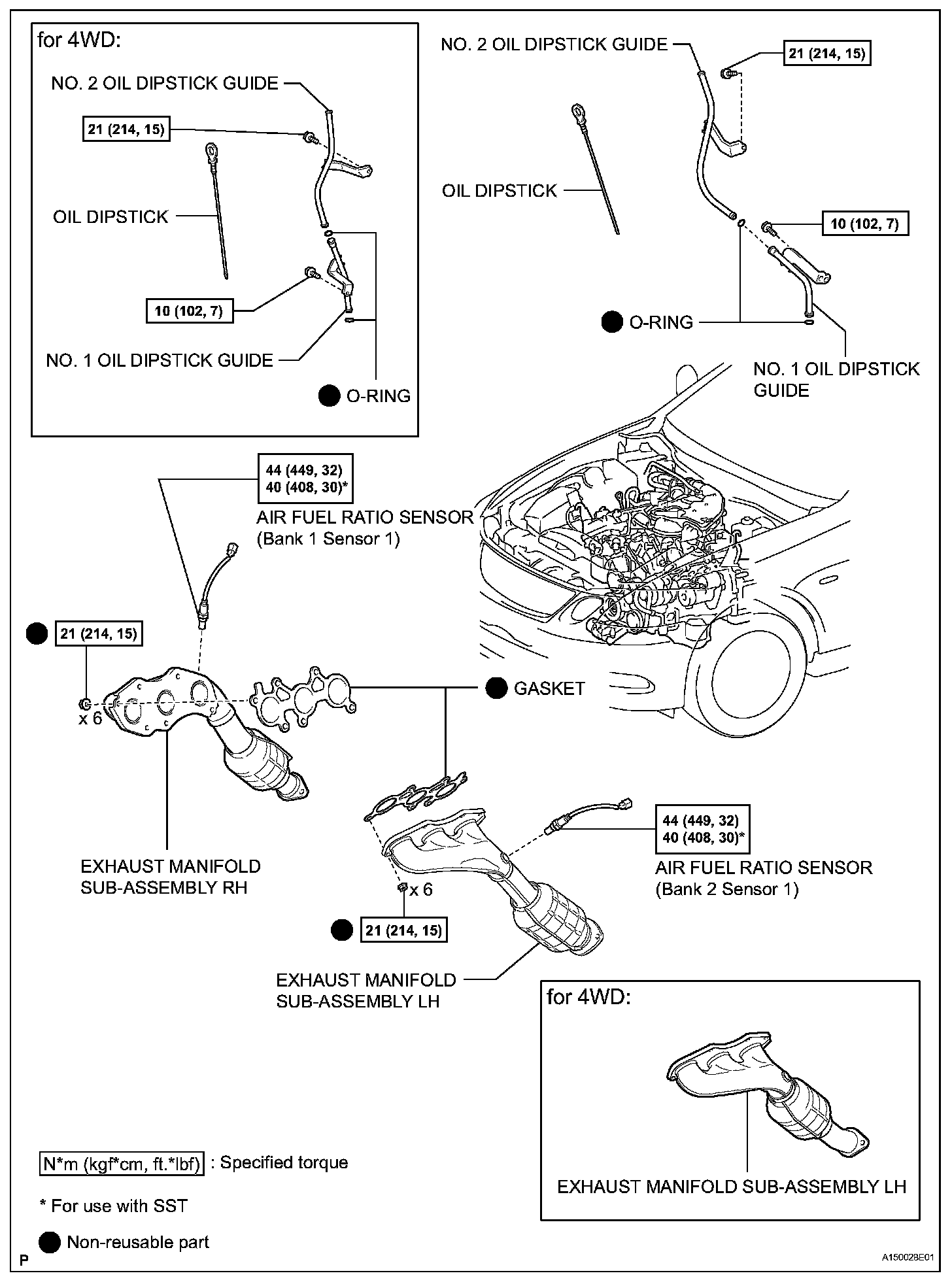

Air Fuel Ratio Sensor:



Air Fuel Ratio Sensor:



Air Fuel Ratio Sensor:



Air Fuel Ratio Sensor:



Air Fuel Ratio Sensor:

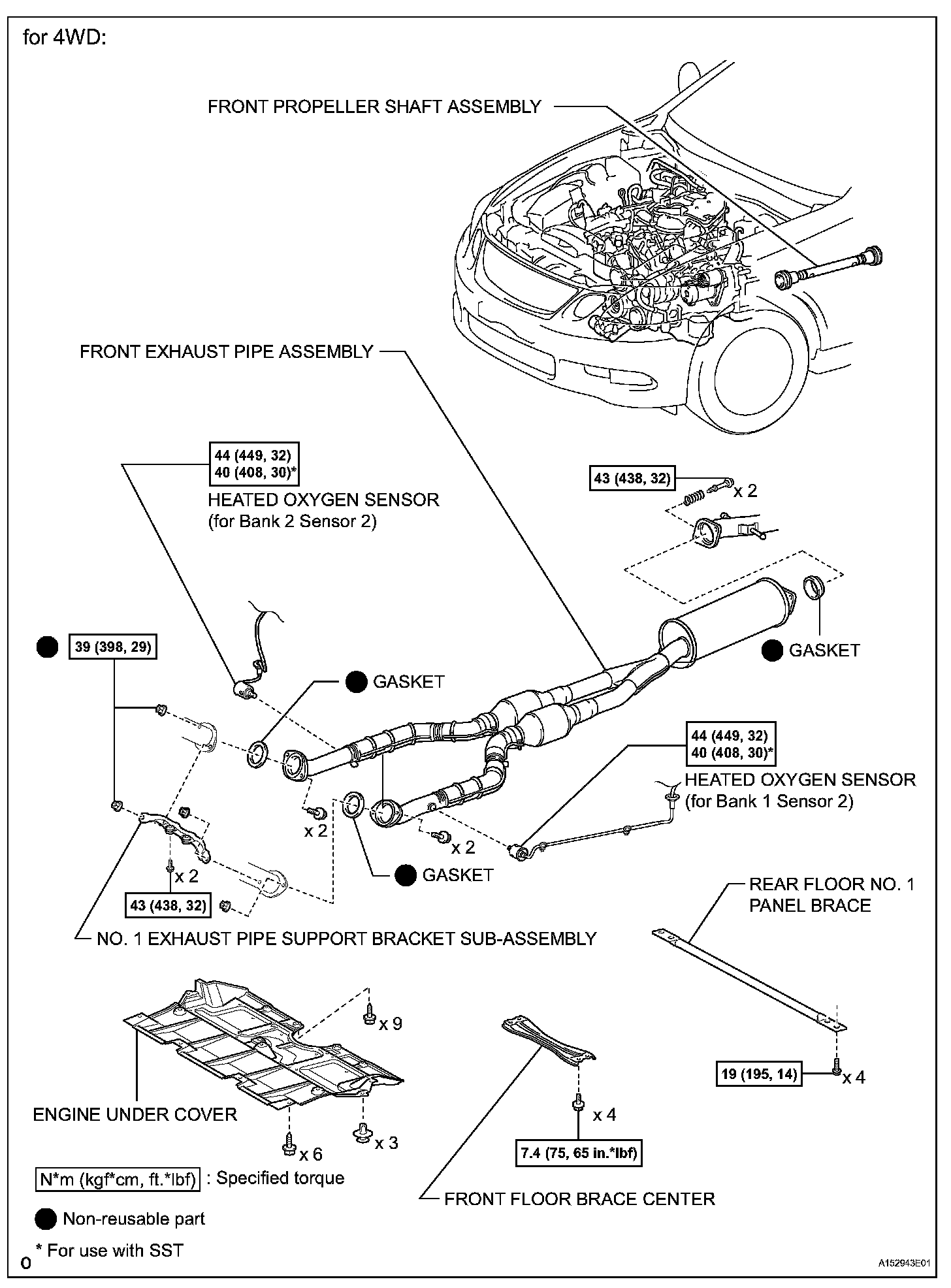

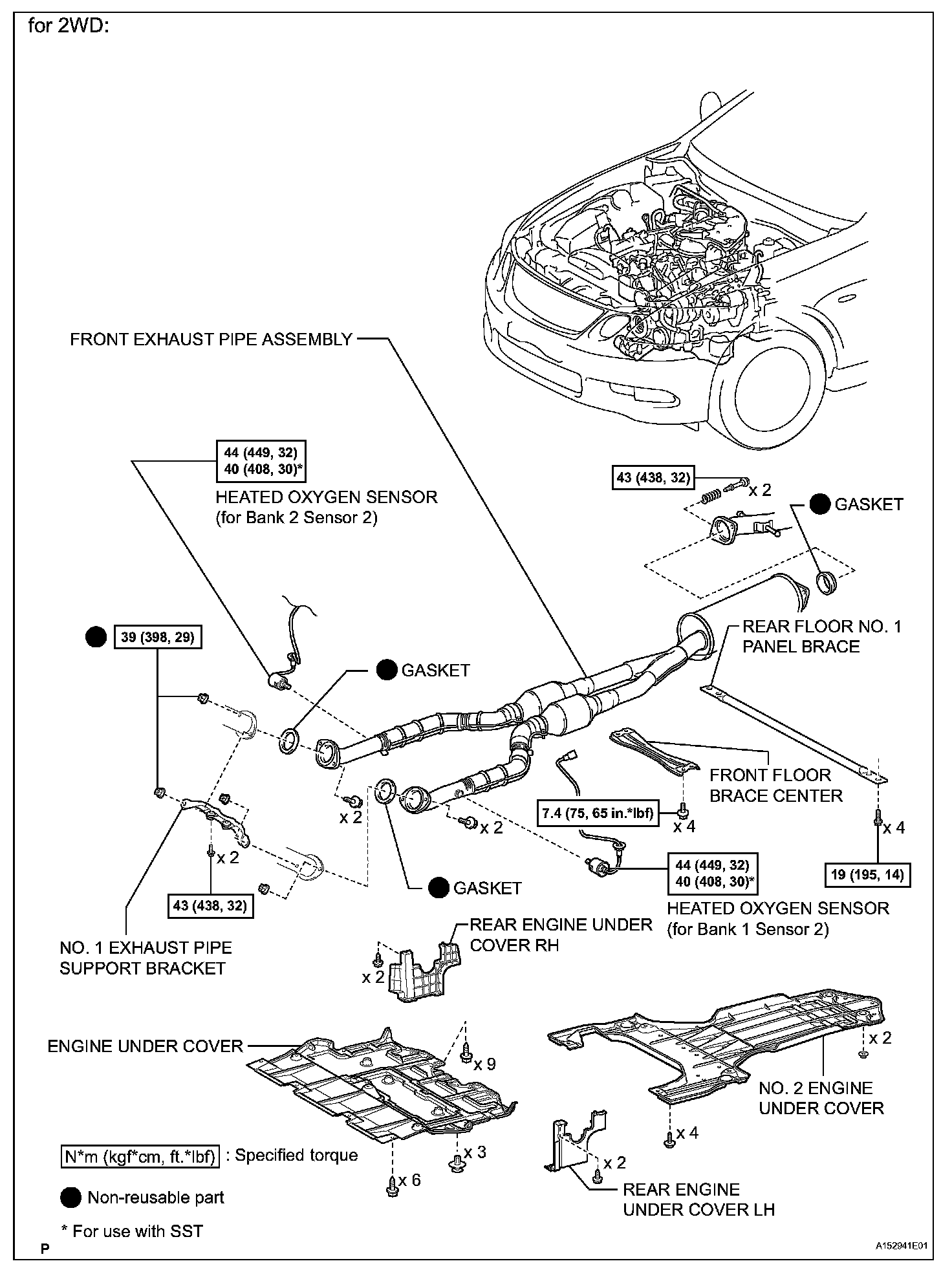

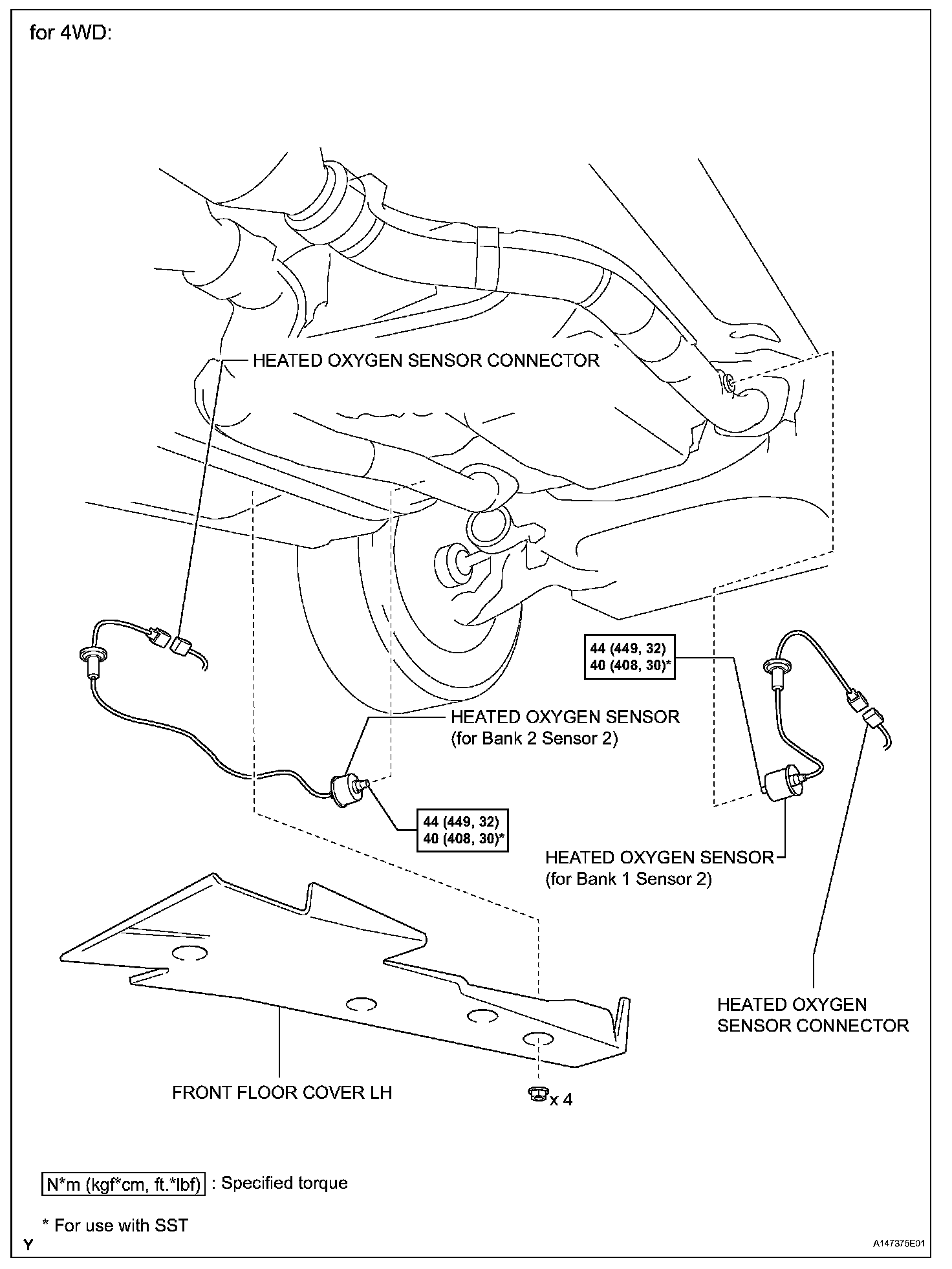

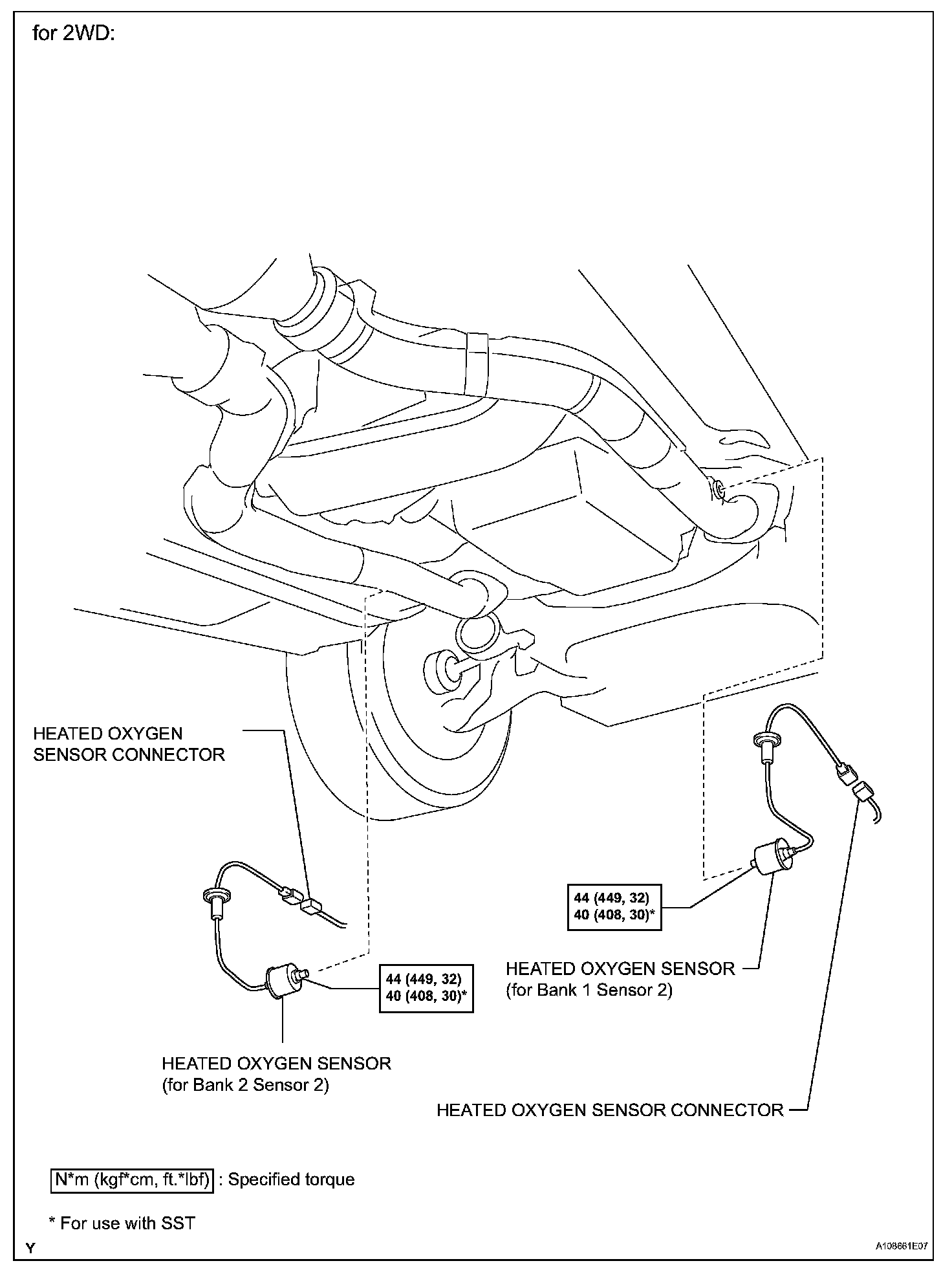

Heated Oxygen Sensor:



Heated Oxygen Sensor:



Heated Oxygen Sensor:



Heated Oxygen Sensor:



Heated Oxygen Sensor:
