Engine Control Module

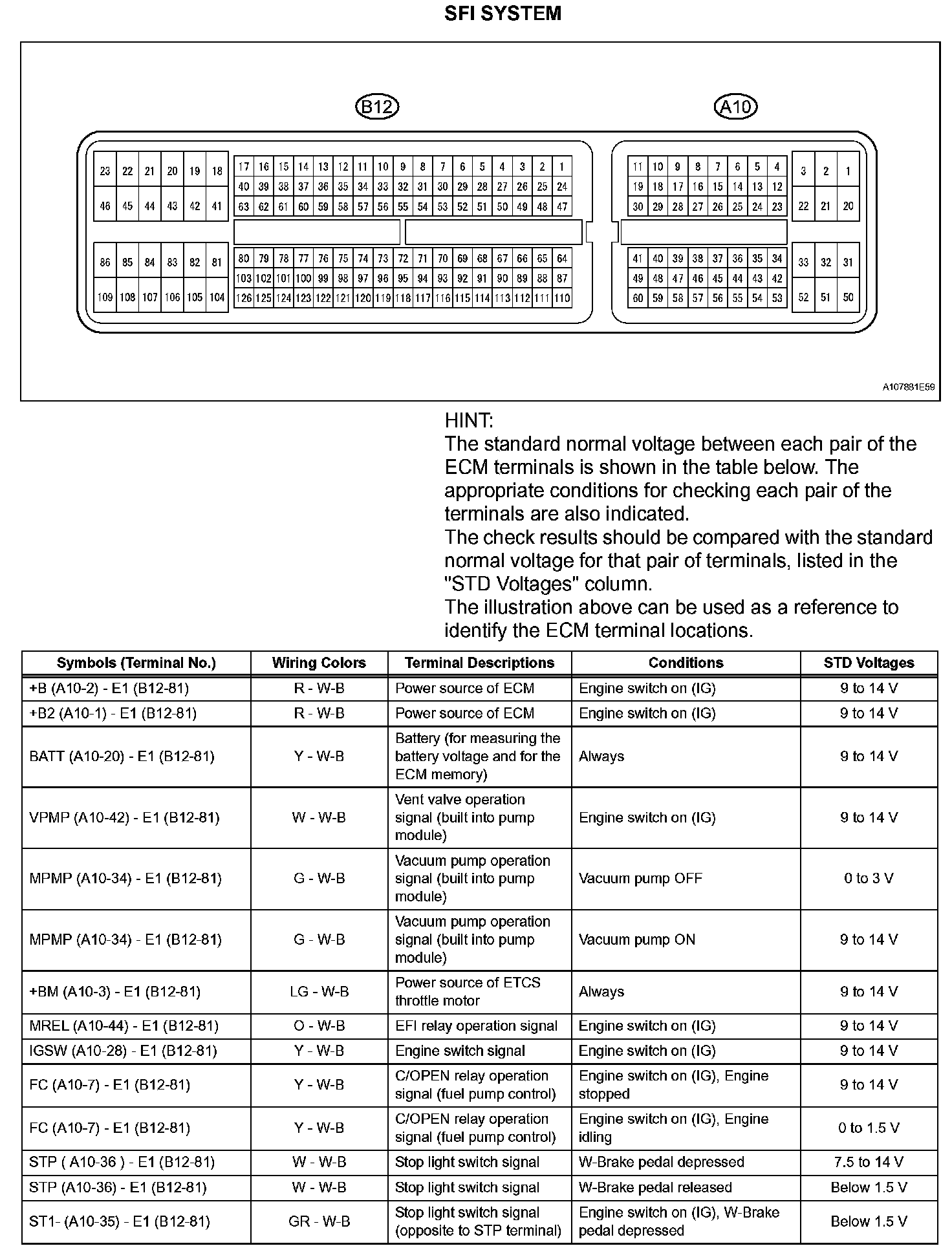

Terminals Of Control Module/Pinouts (Part 1):

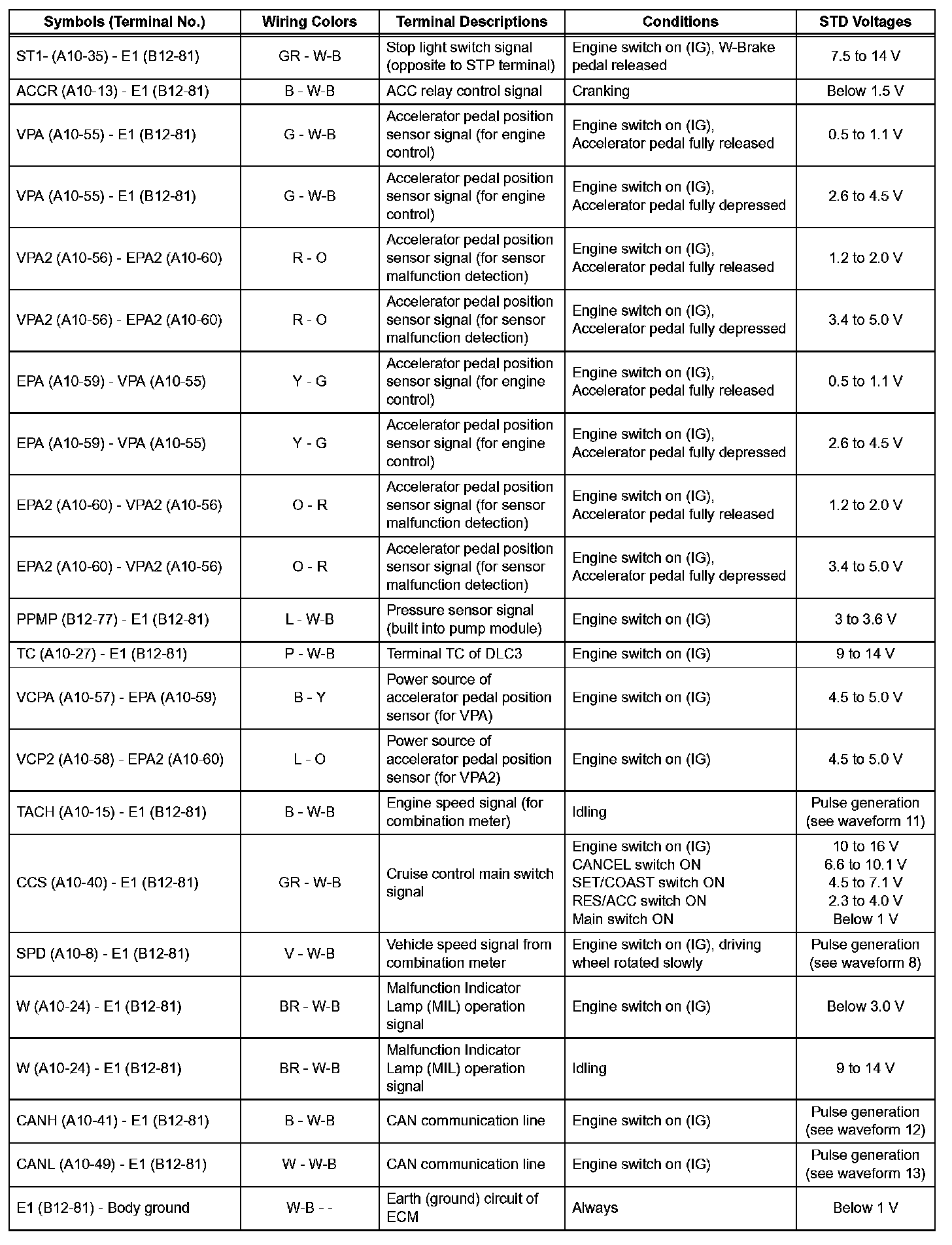

Terminals Of Control Module/Pinouts (Part 2):

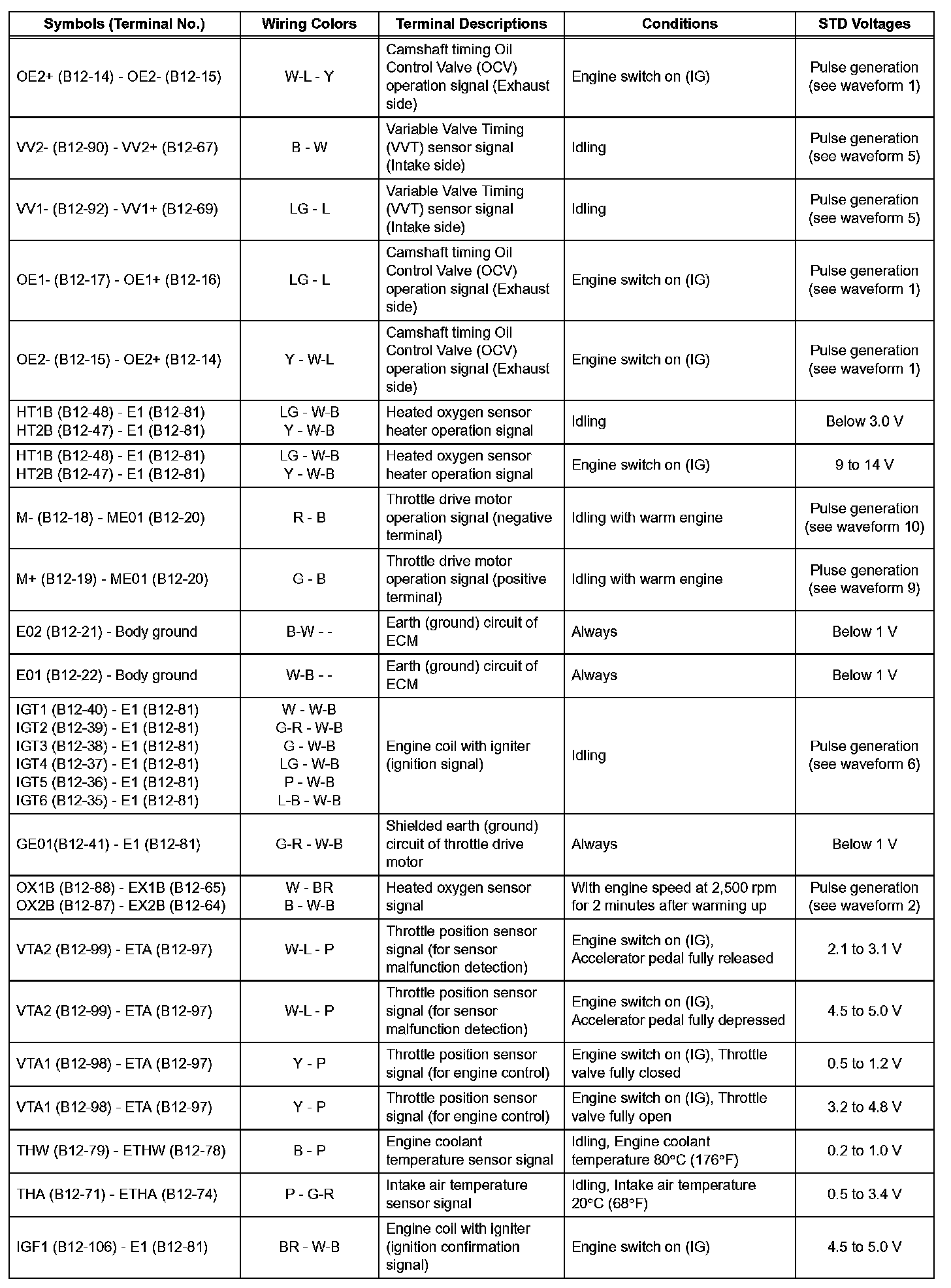

Terminals Of Control Module/Pinouts (Part 3):

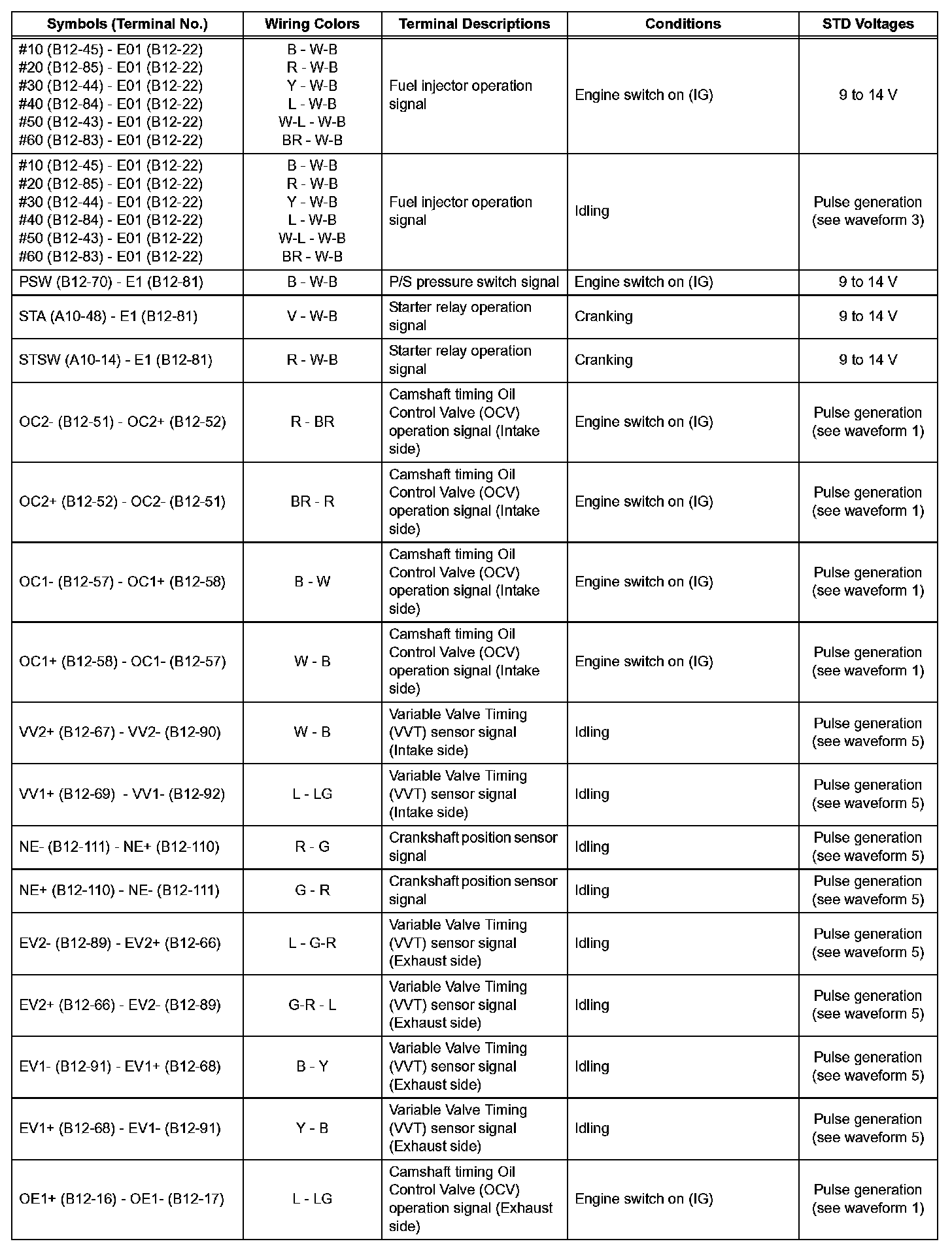

Terminals Of Control Module/Pinouts (Part 4):

Terminals Of Control Module/Pinouts (Part 5):

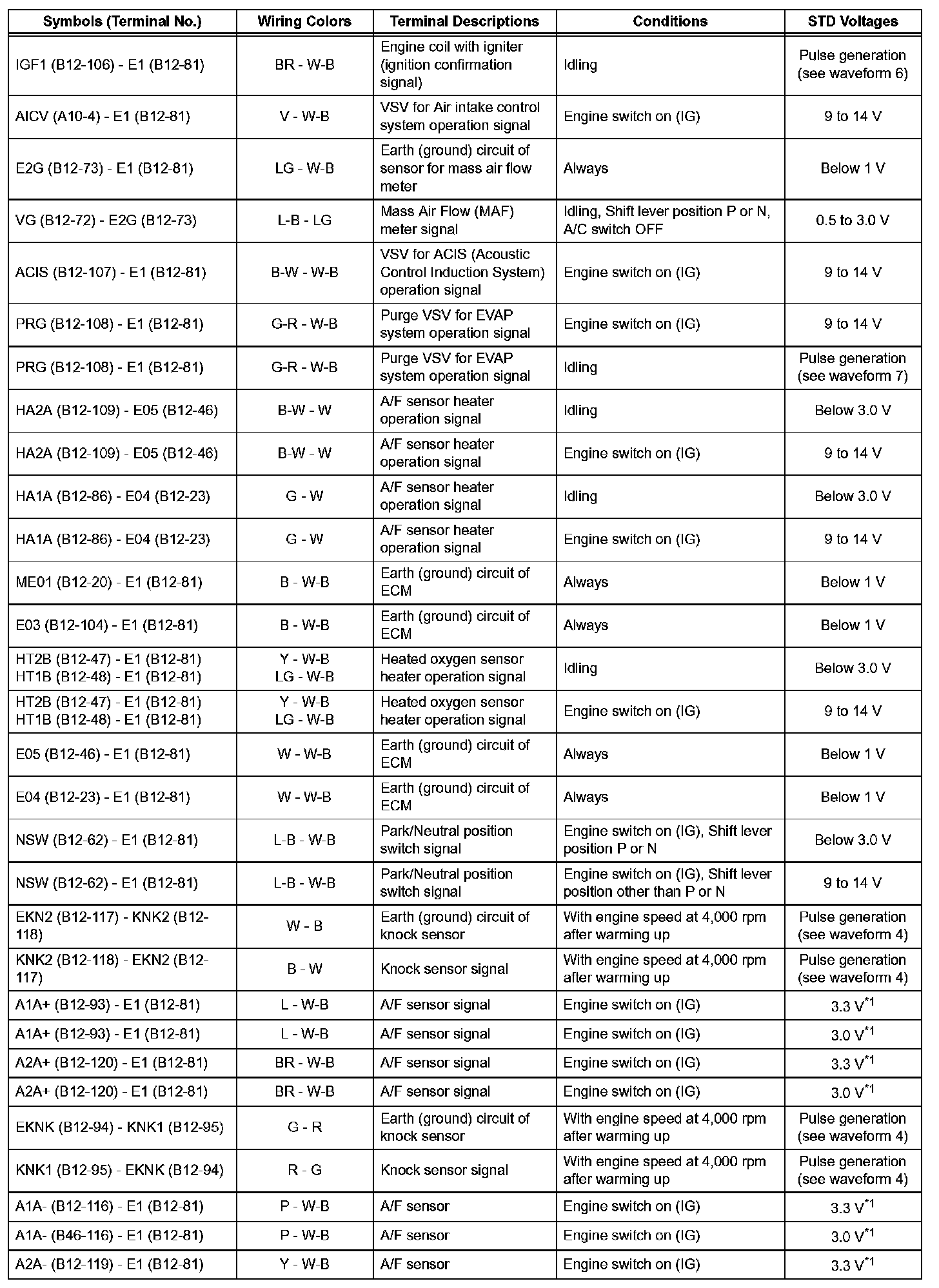

Terminals Of Control Module/Pinouts (Part 6):

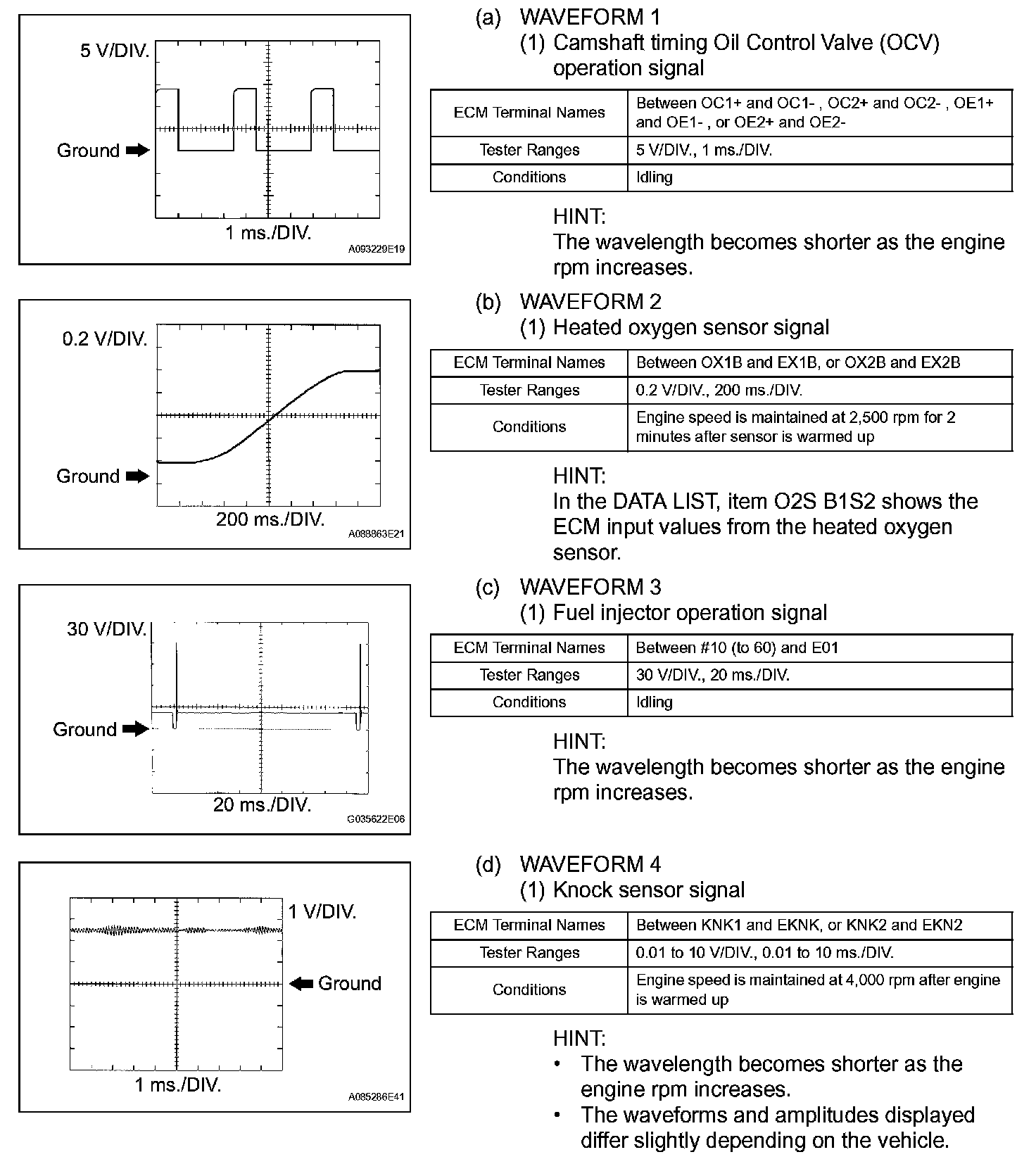

Oscilloscope Waveforms (Part 1):

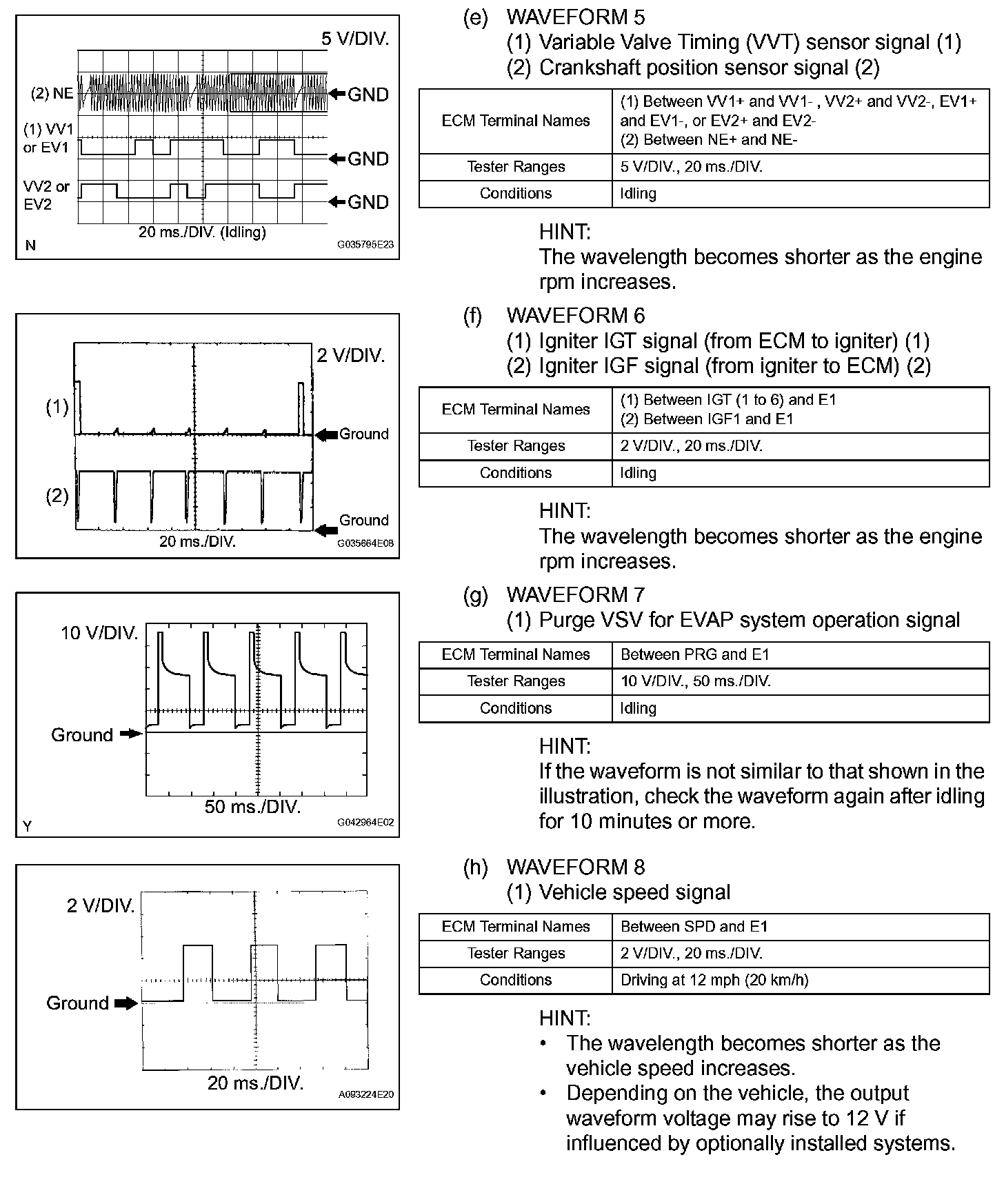

Oscilloscope Waveforms (Part 2):

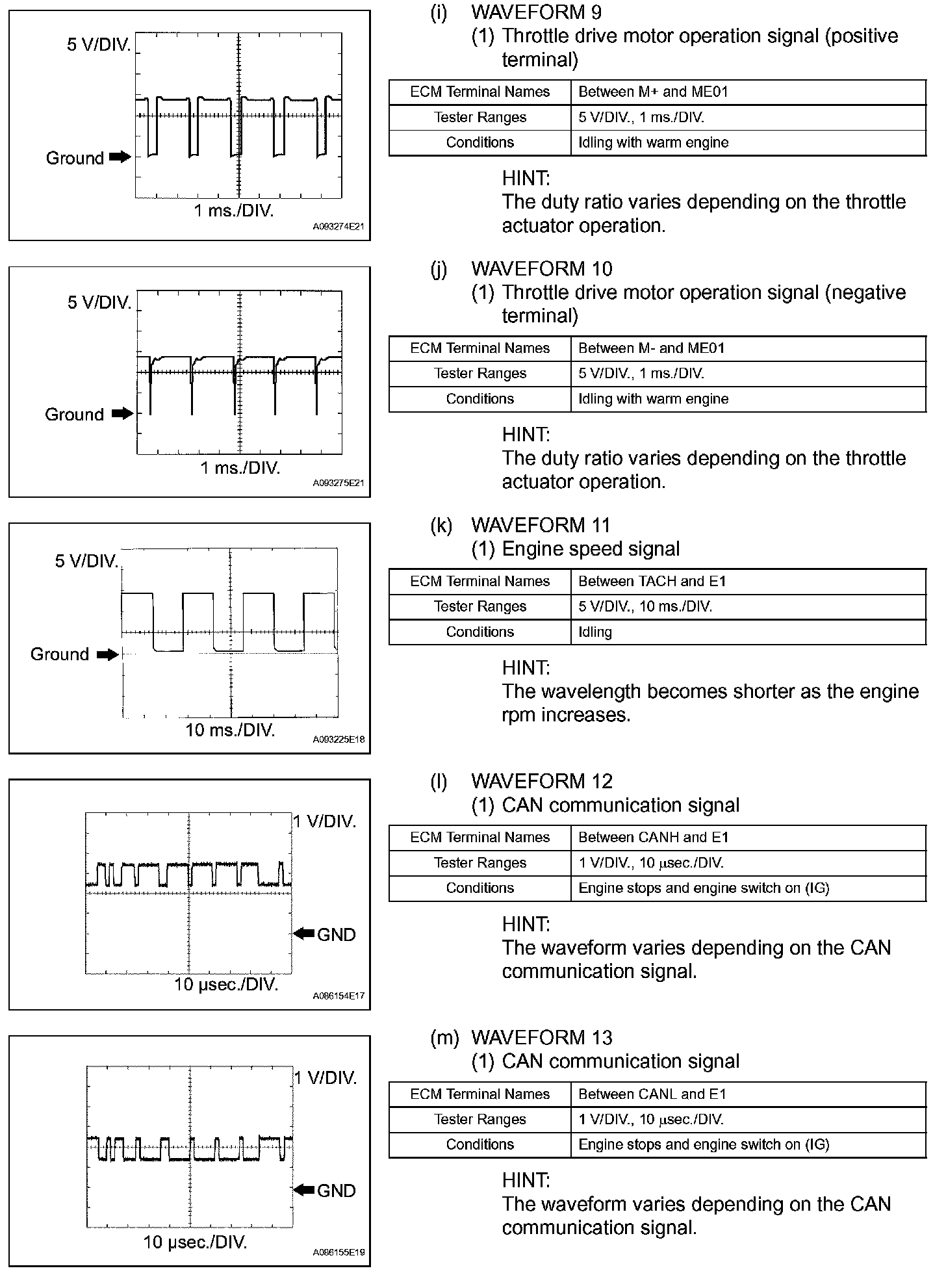

Oscilloscope Waveforms (Part 3):
