Audio & Visual System: Components

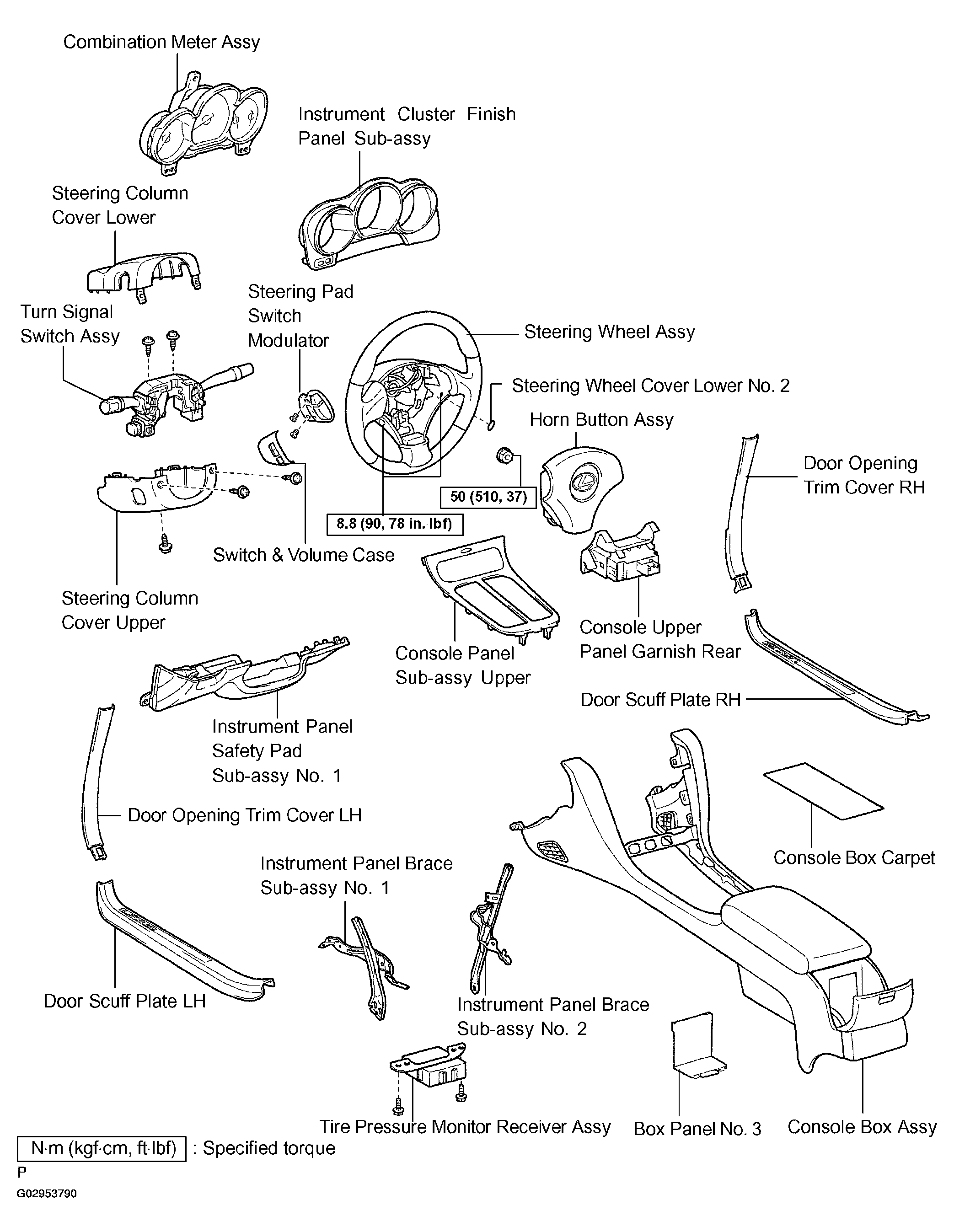

Fig 1: Identifying Audio & Visual System Components (1 Of 2)
G02953790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

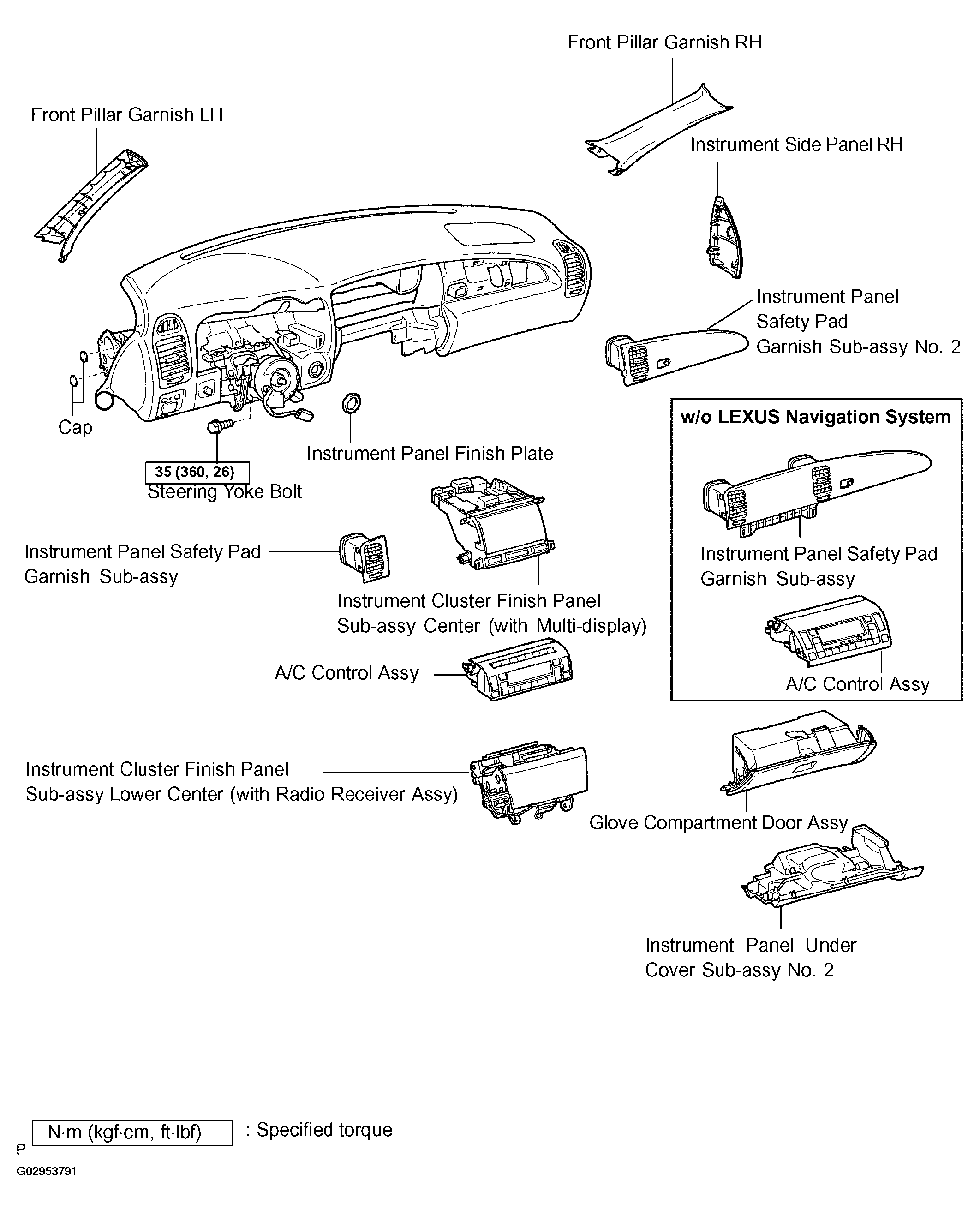

Fig 2: Identifying Audio & Visual System Components (2 Of 2)
G02953791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
