Control Module: Testing and Inspection

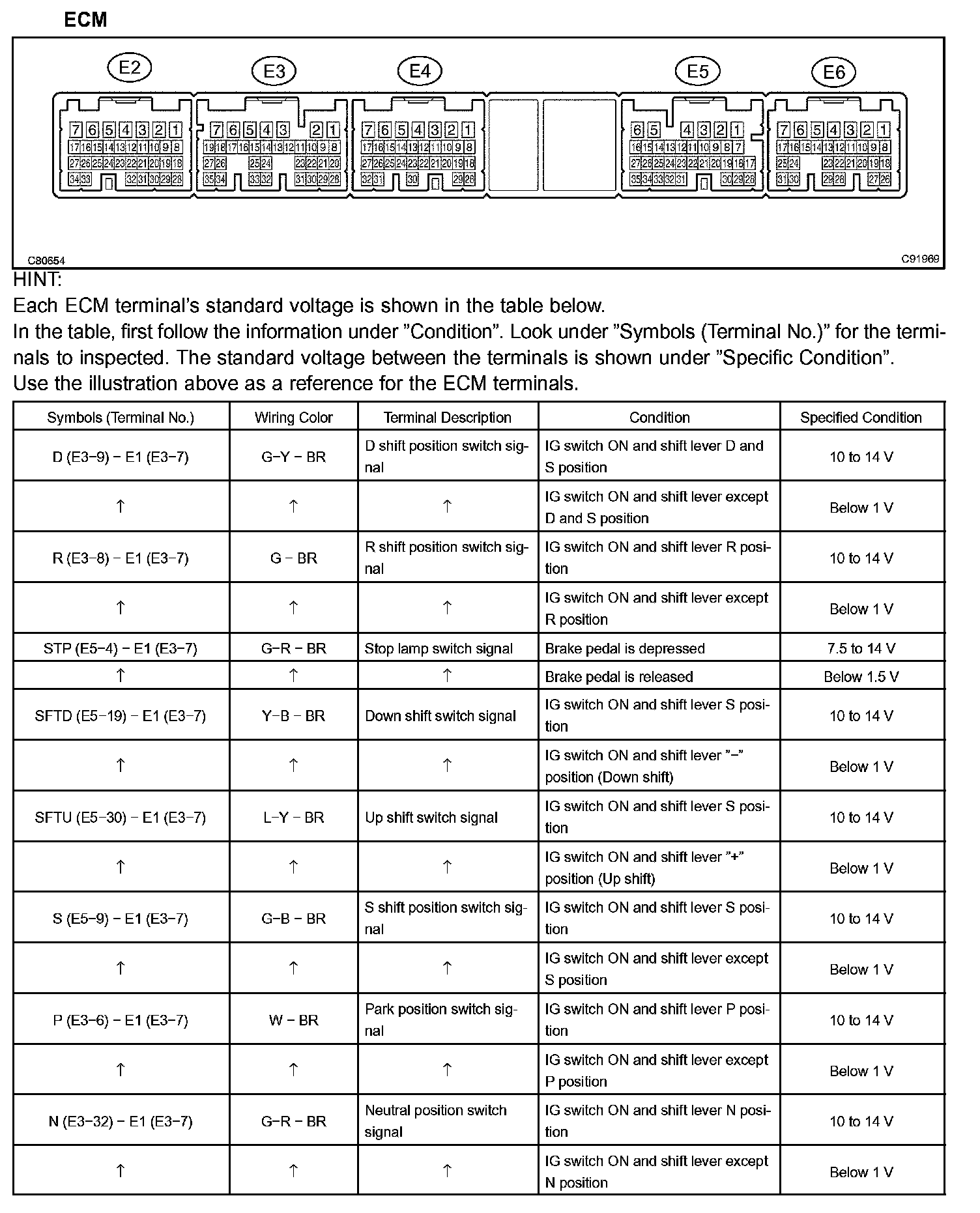

Terminals Of Control Module/Pinouts (Part 1):

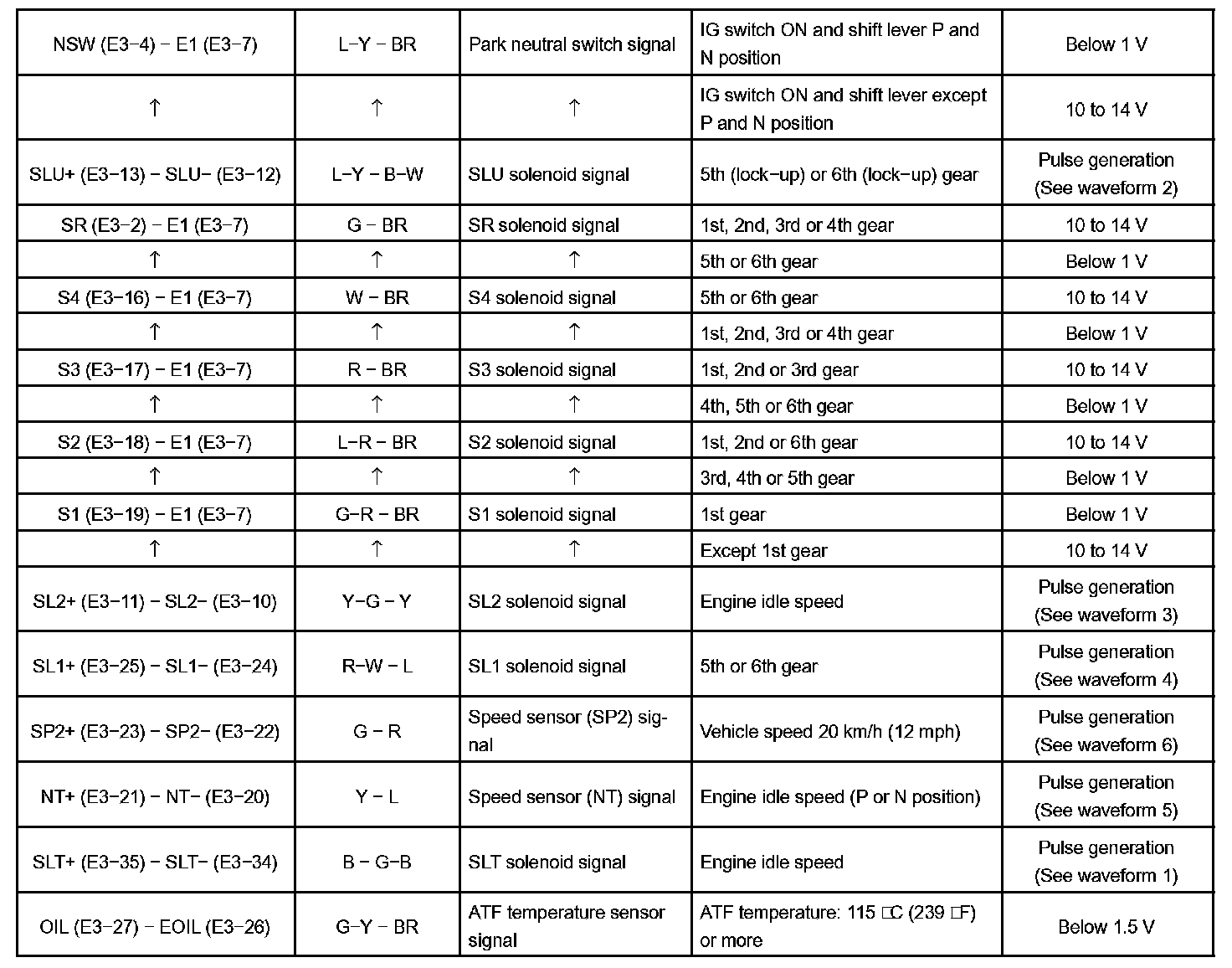

Terminals Of Control Module/Pinouts (Part 2):

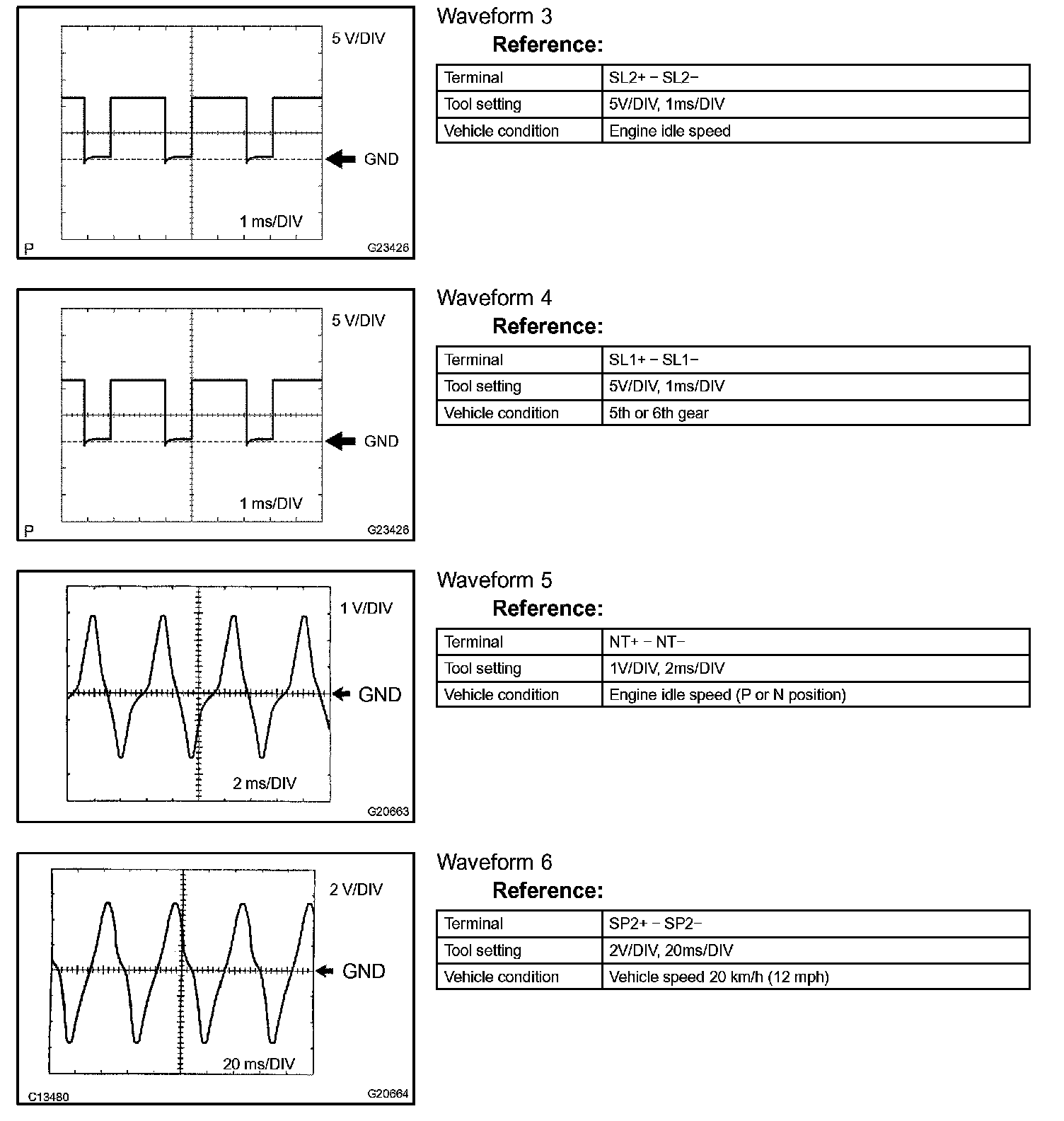

Oscilloscope Waveforms:



Oscilloscope Waveforms (Part 2):

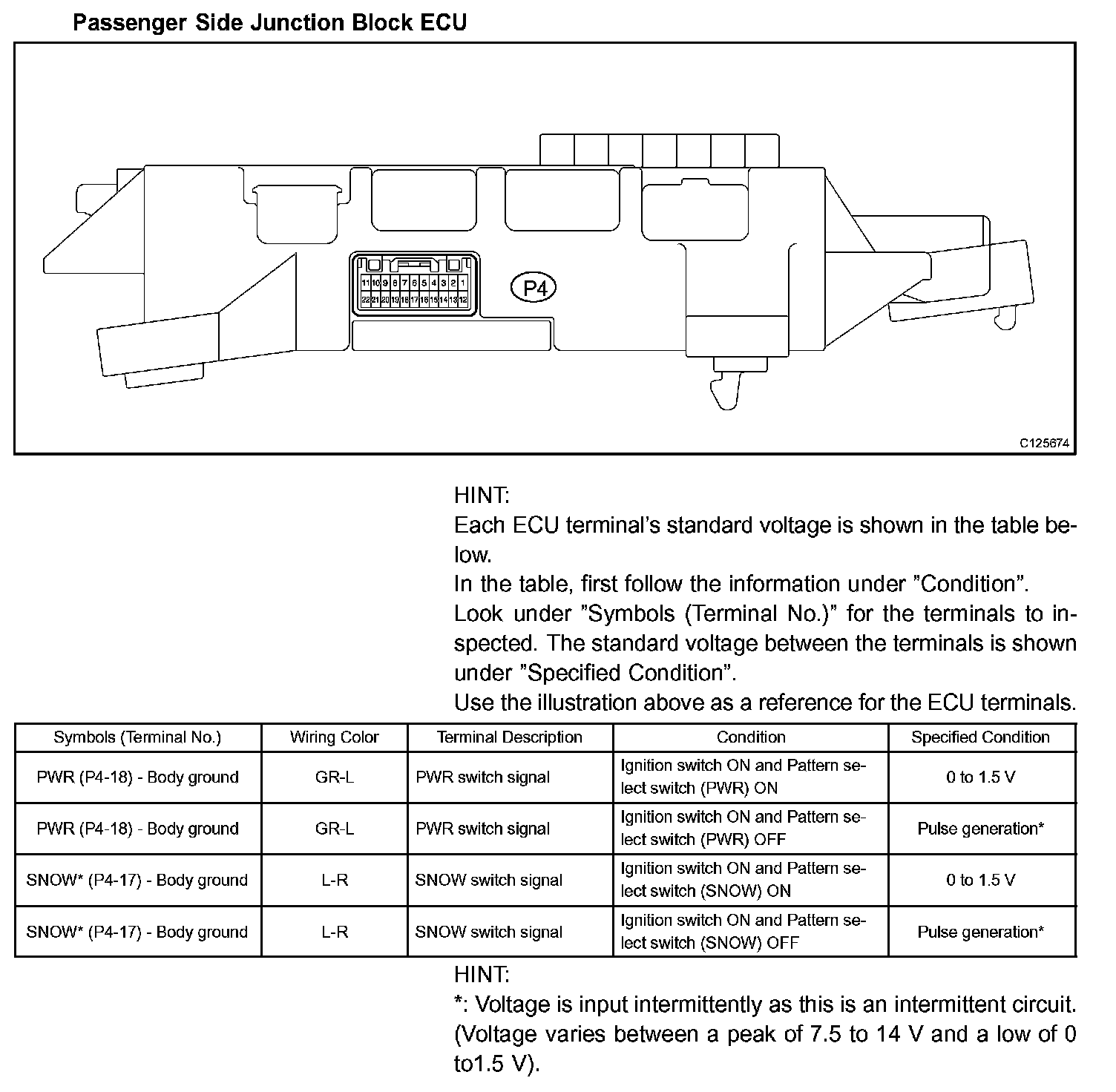

Terminals Of Control Module/Pinouts:
