How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING

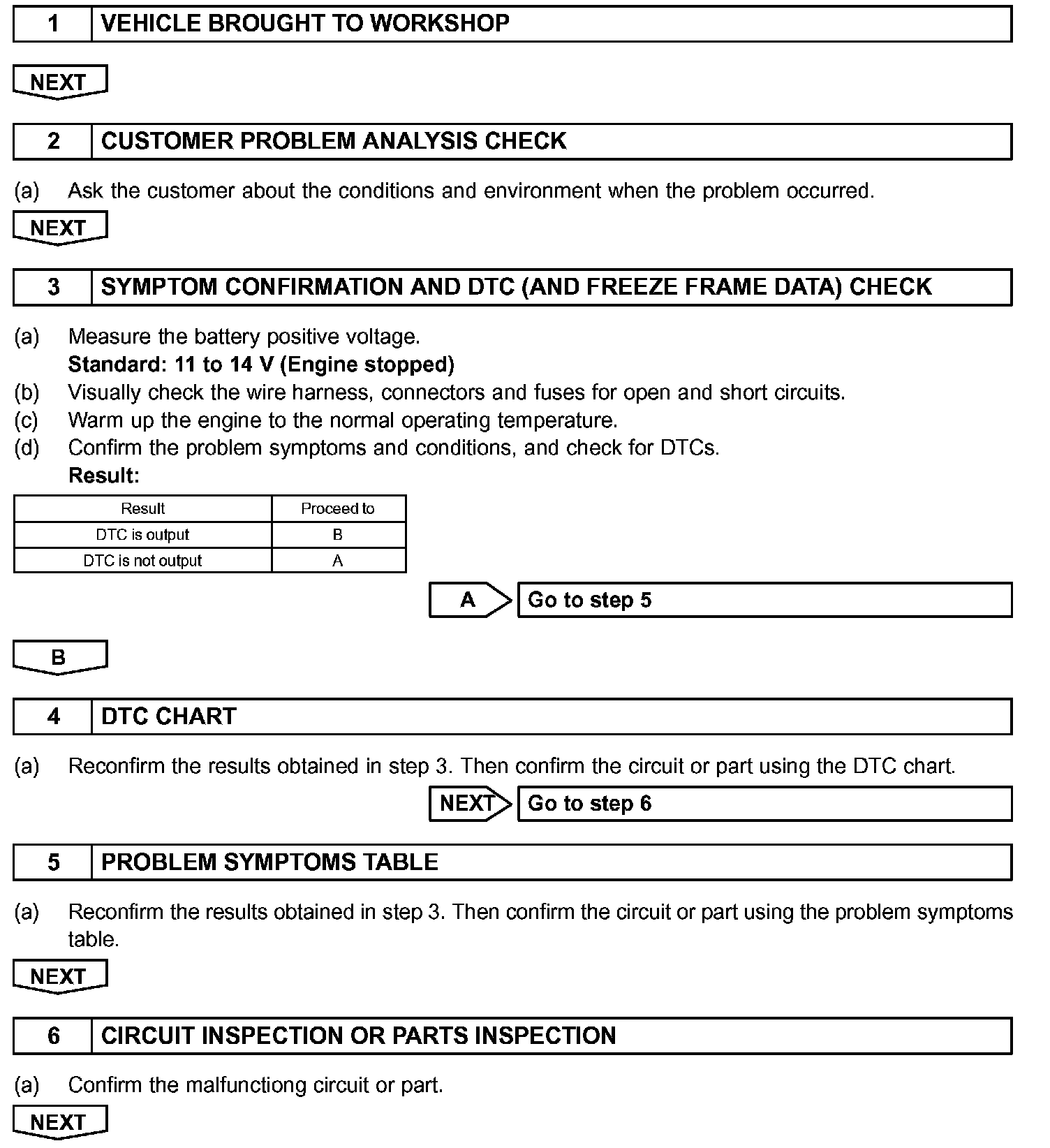

Step 1 - 6:




Step 7 - 8:






HINT: Perform troubleshooting in accordance with the procedures. The following is an outline of basic troubleshooting procedures. Details in the "Diagnostics" section show the most effective methods for each circuit. Confirm the troubleshooting procedures for the circuit you are working on before beginning troubleshooting.
