Home >> Lexus >> 2006 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Radio/Stereo

Radio/Stereo

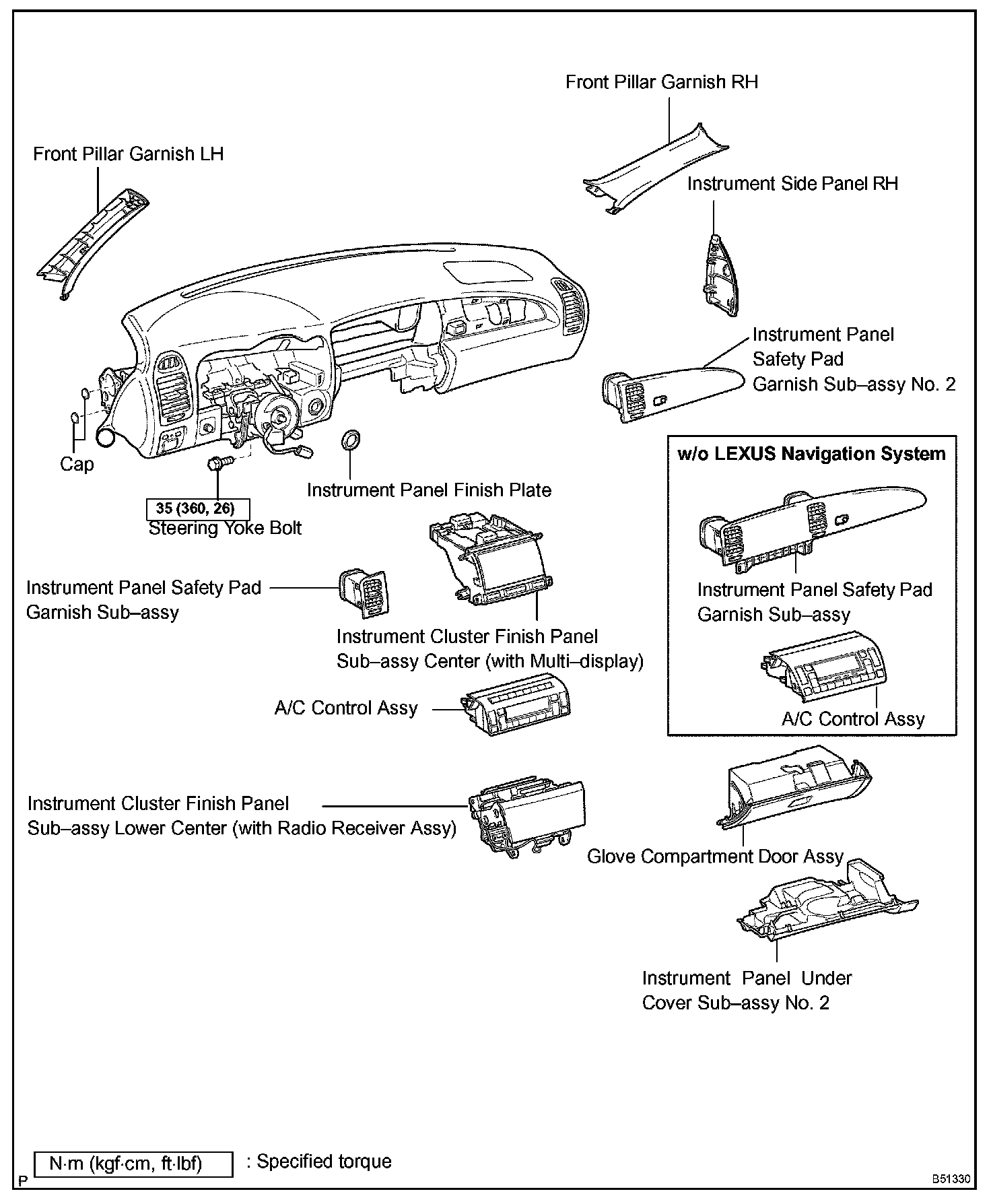

Radio Receiver Assy Part 1:

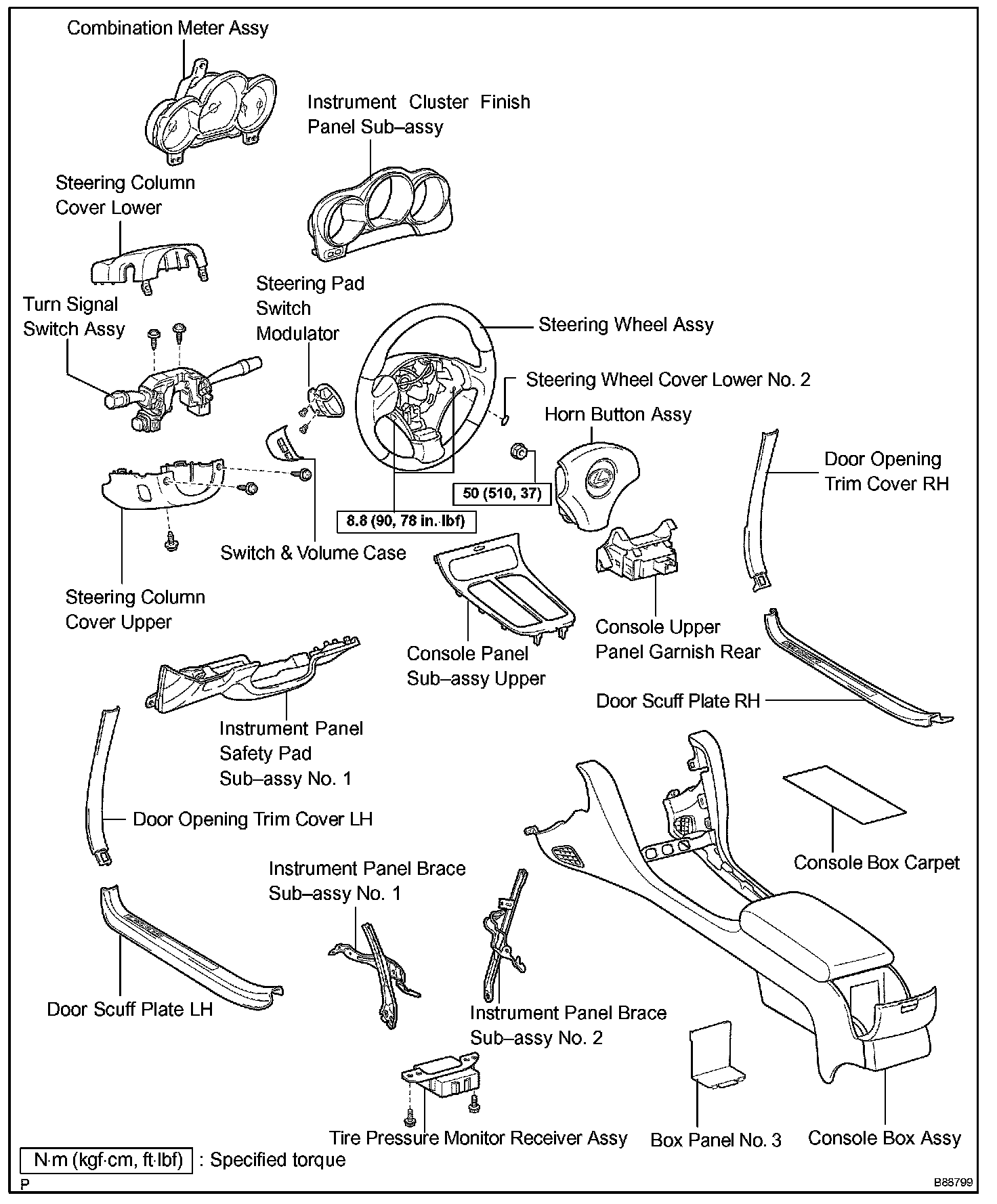

Radio Receiver Assy Part 2:
