Parts Location

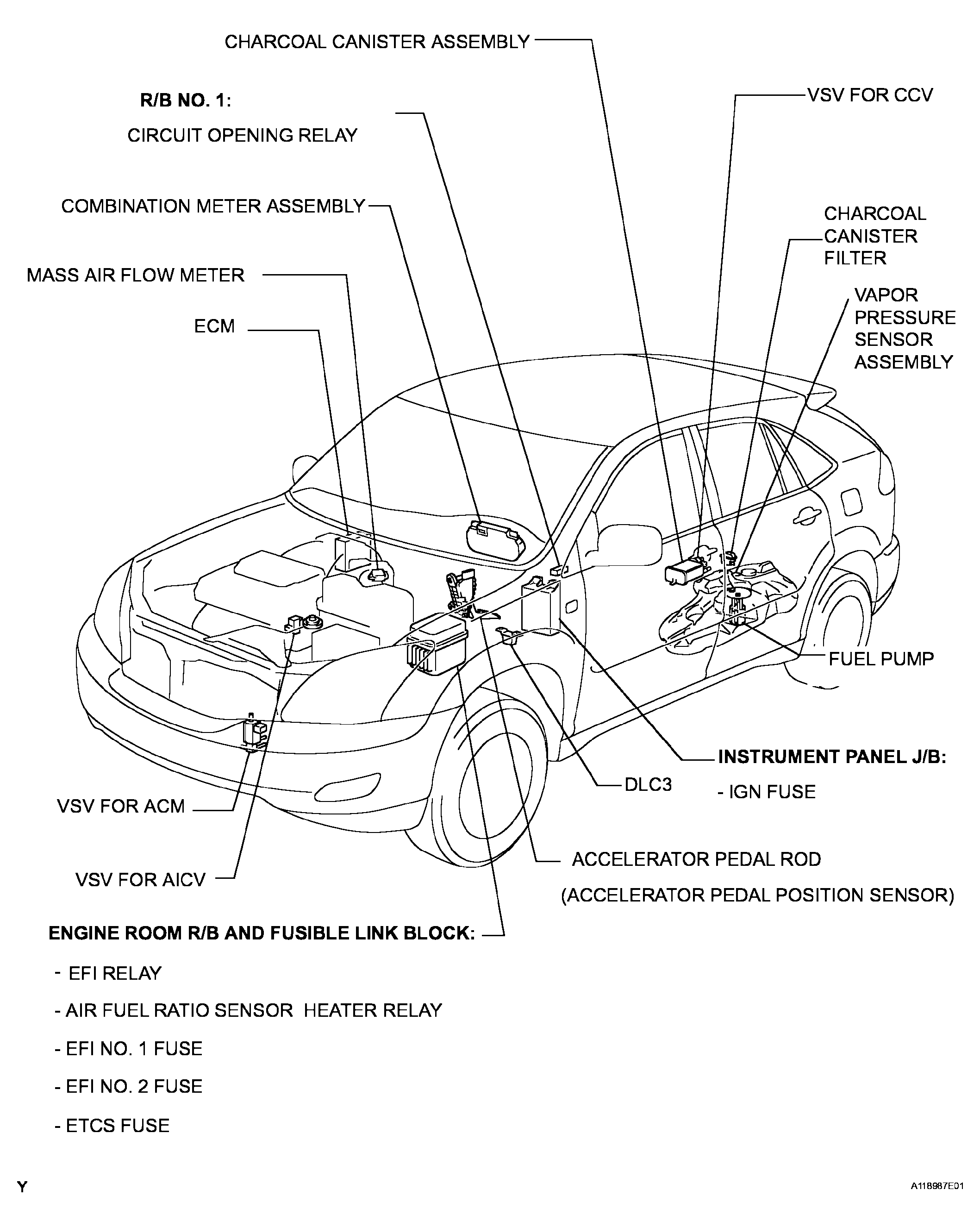

Fig 1: Identifying 3MZ-FE Engine Control System Parts Location (1 Of 2)
G04087101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

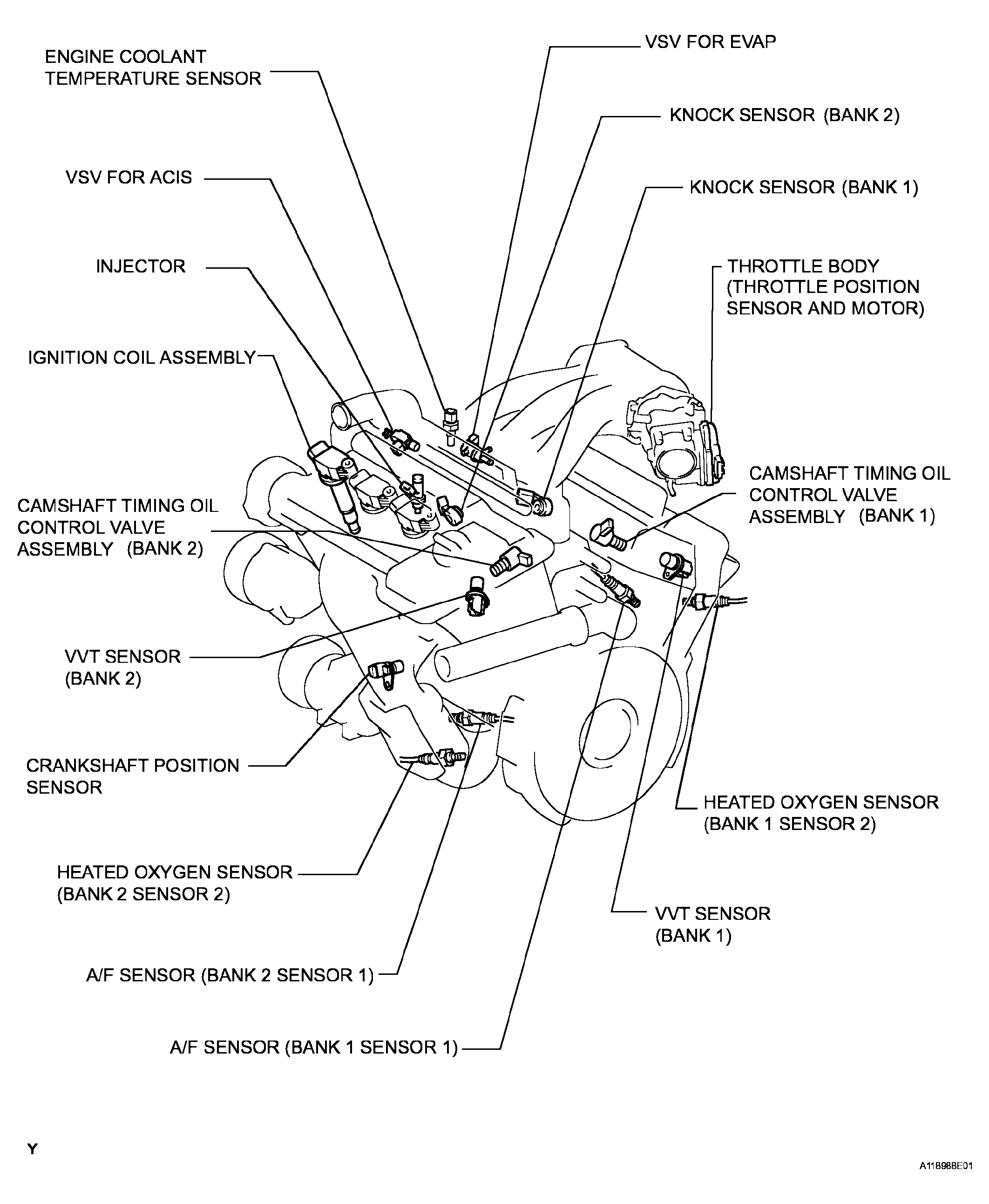

Fig 2: Identifying 3MZ-FE Engine Control System Parts Location (2 Of 2)
G04087102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
