Home >> Lexus >> 2006 >> RX 330 AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Memory Positioning Module >> Locations

Memory Positioning Module: Locations

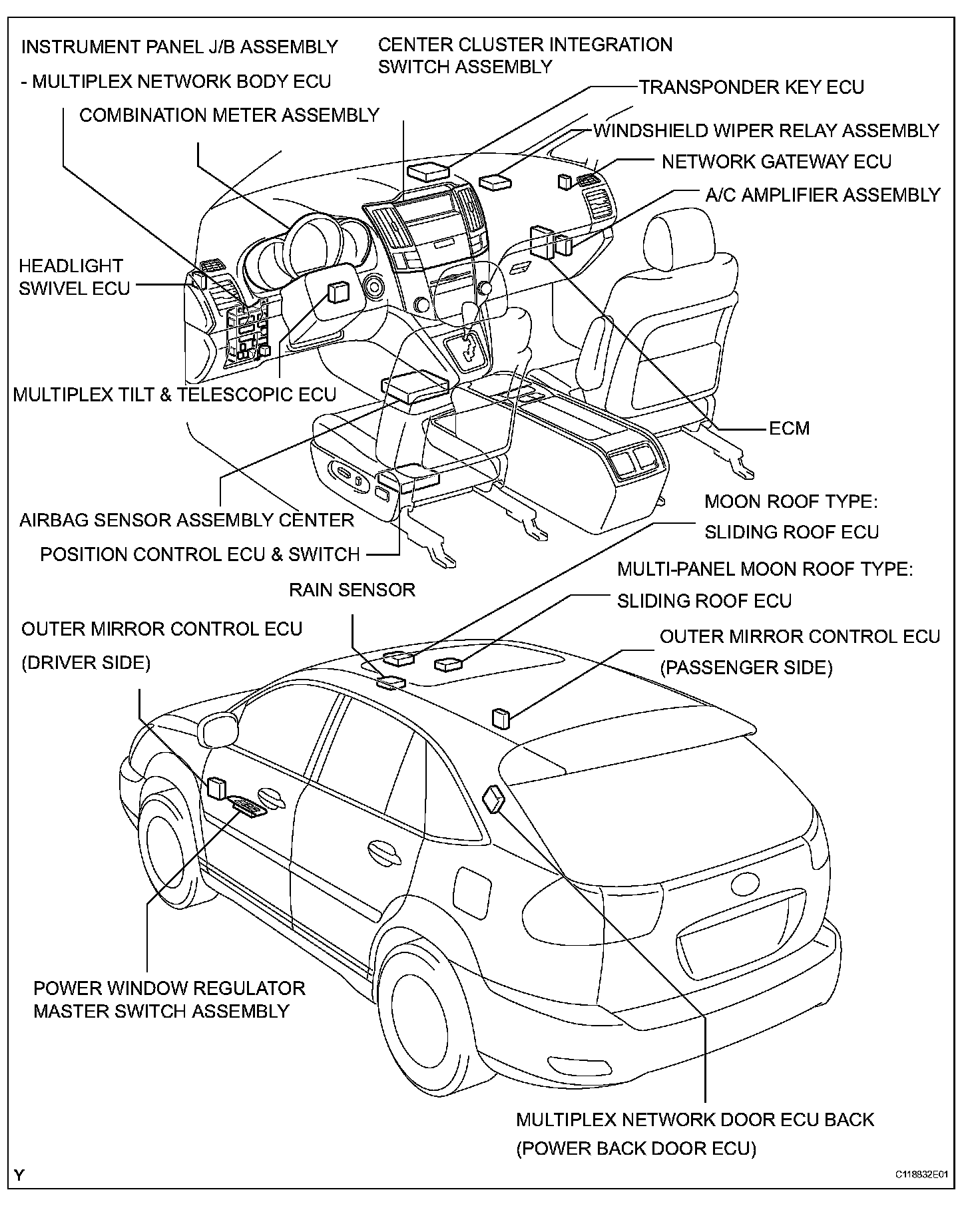

Multiplex Communication System:

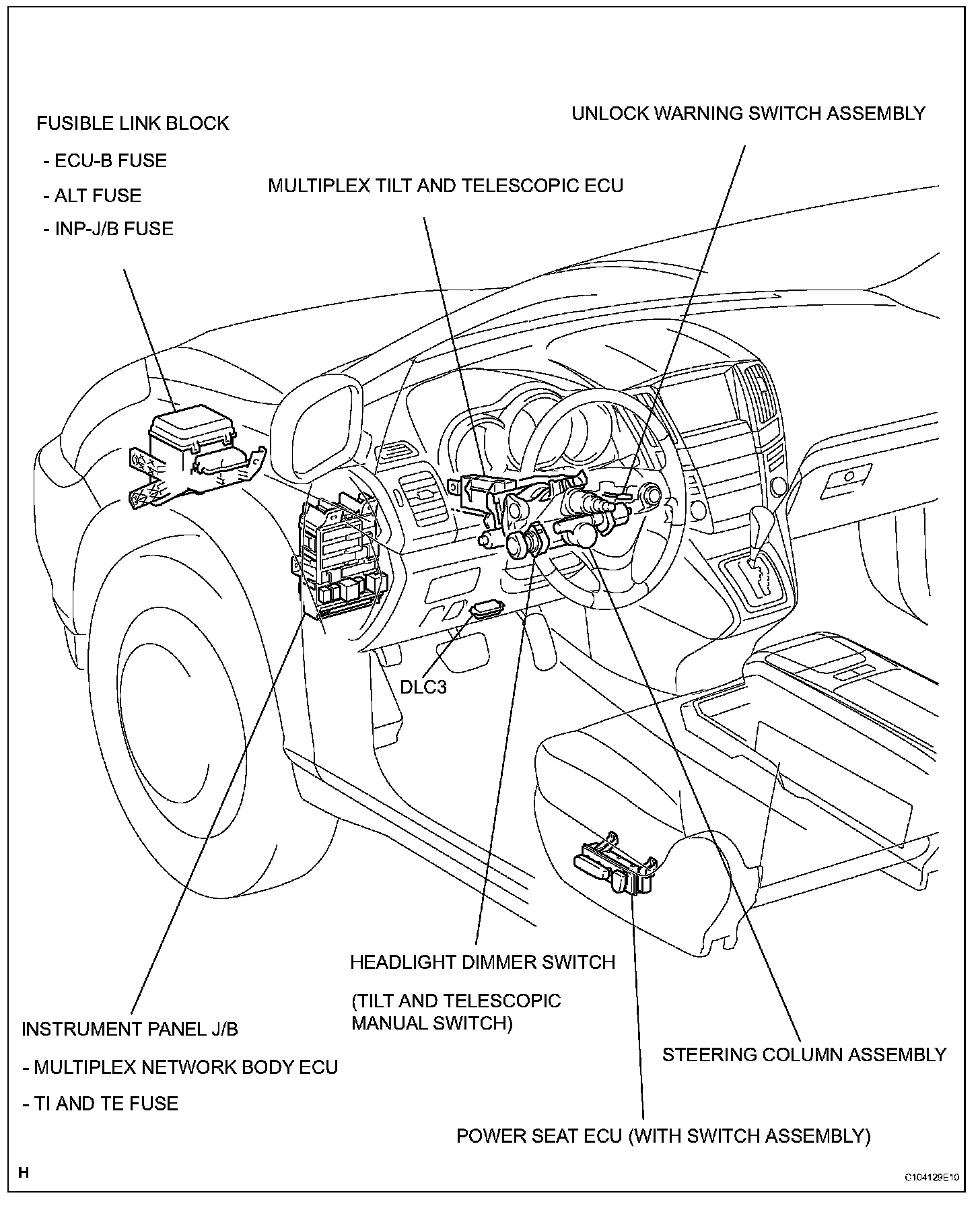

Parts Location:

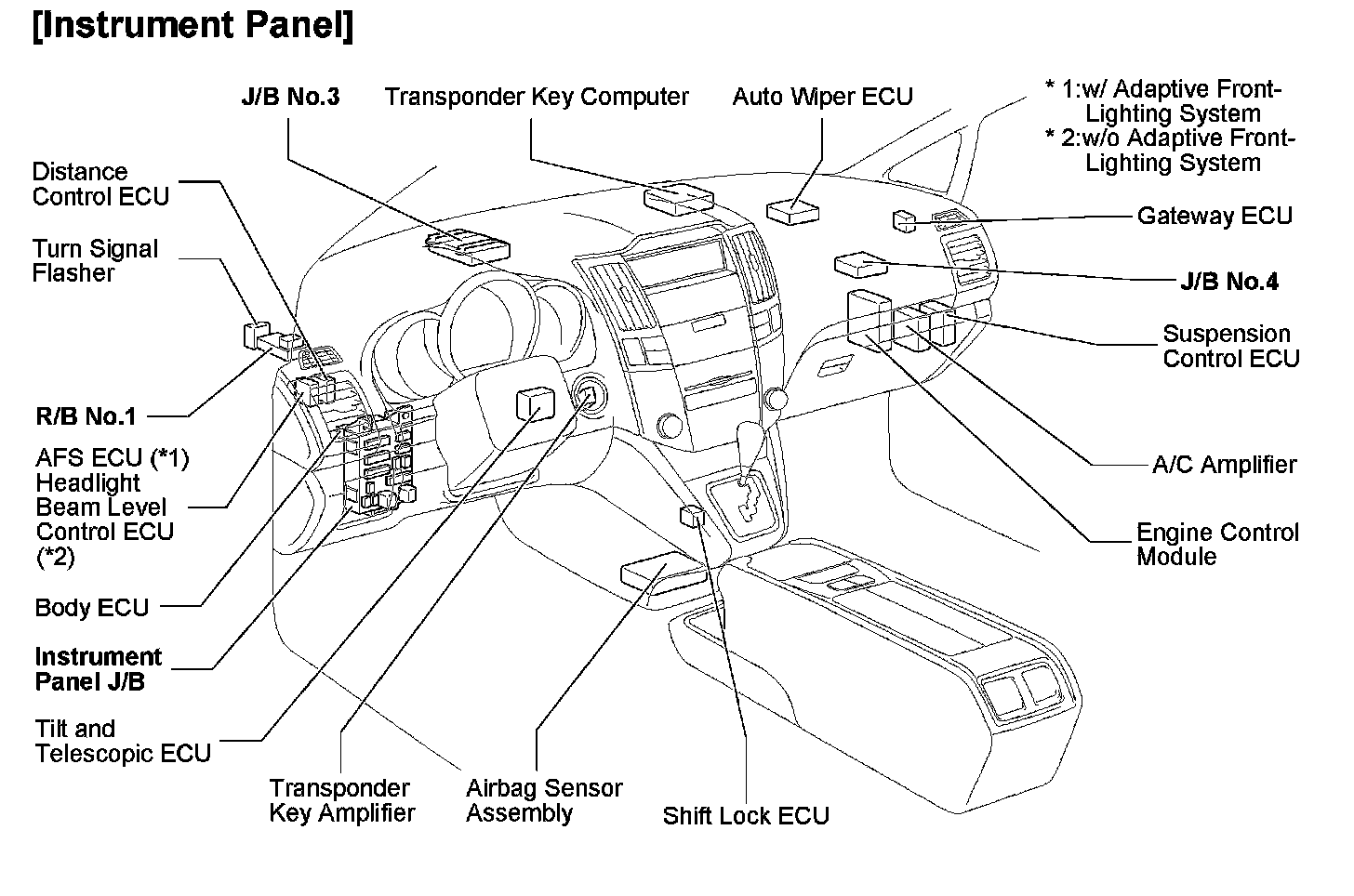

Instrument Panel:
