Home >> Lexus >> 2006 >> RX 330 AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Starting System >> System Diagram

System Diagram

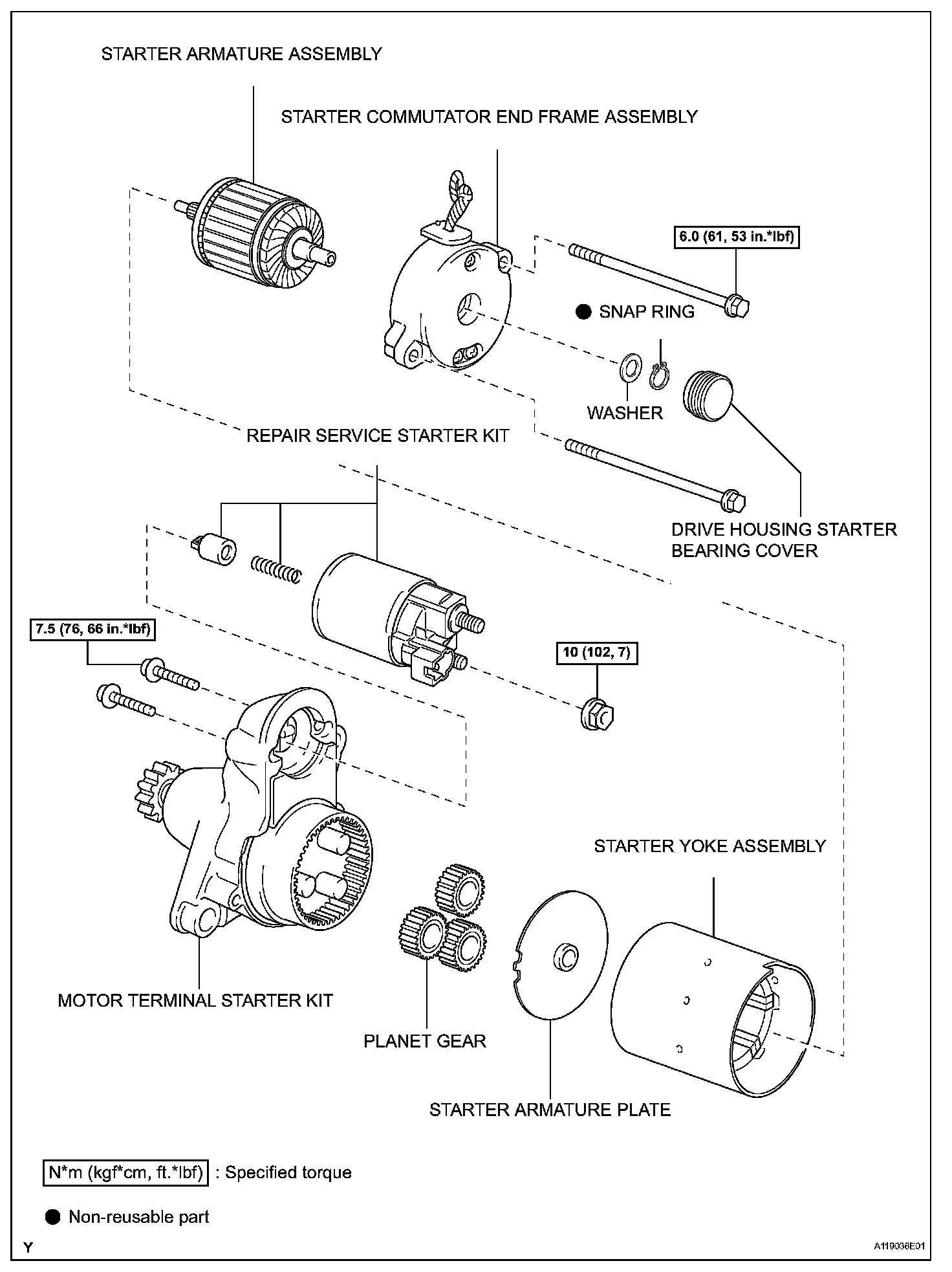

Starter:

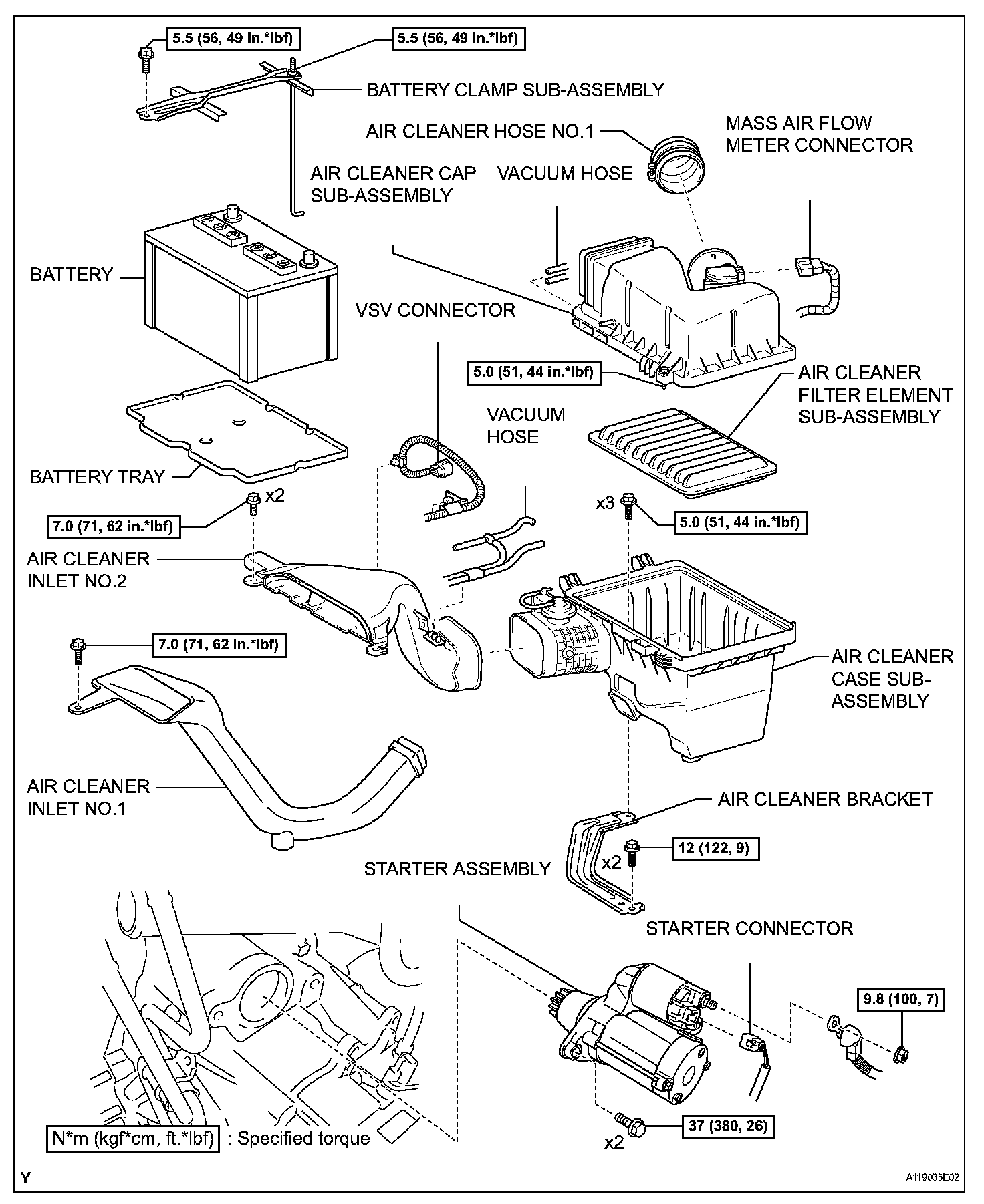

Starter:
