Home >> Lexus >> 2006 >> RX 330 AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seats

Seats

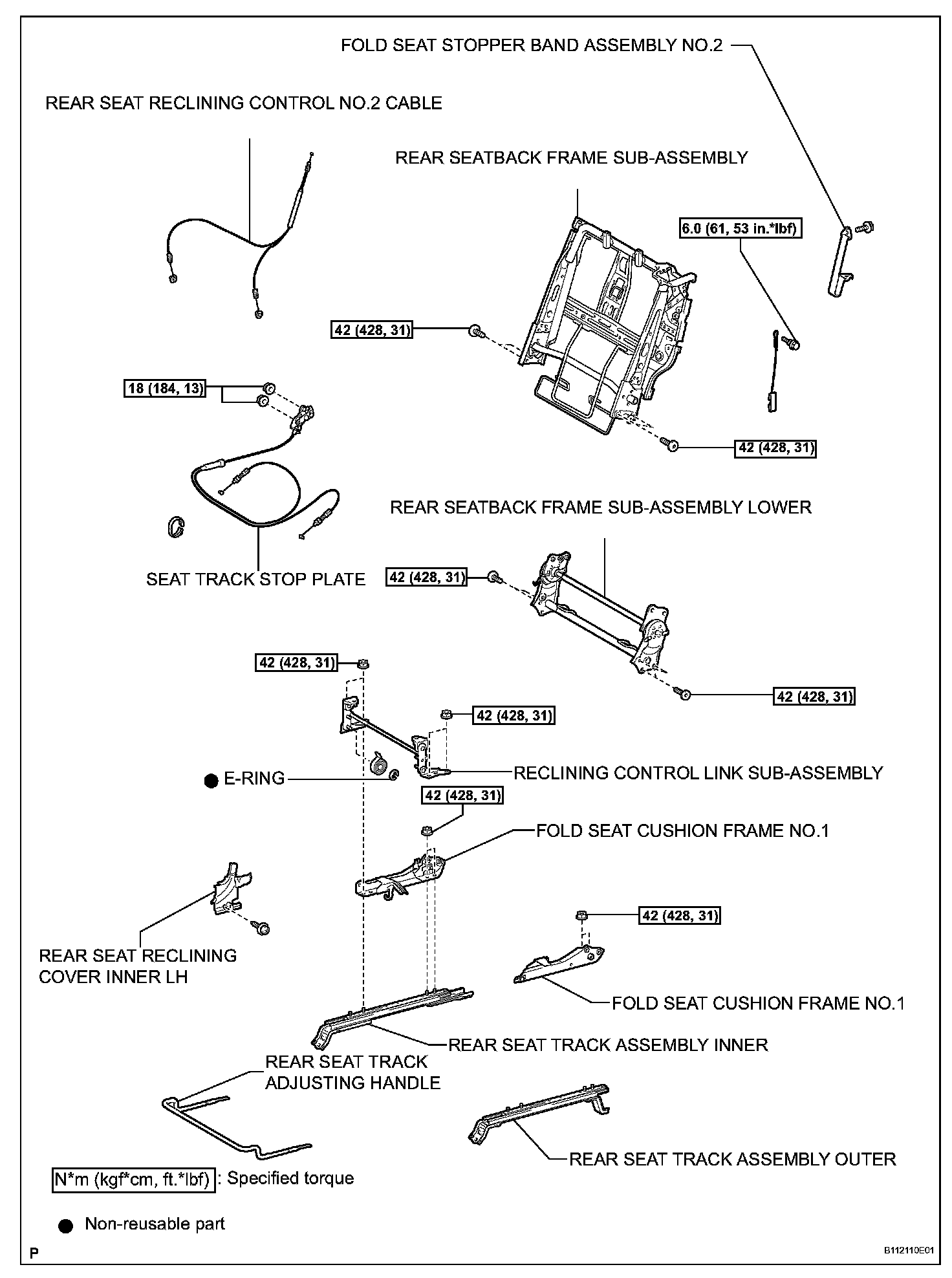

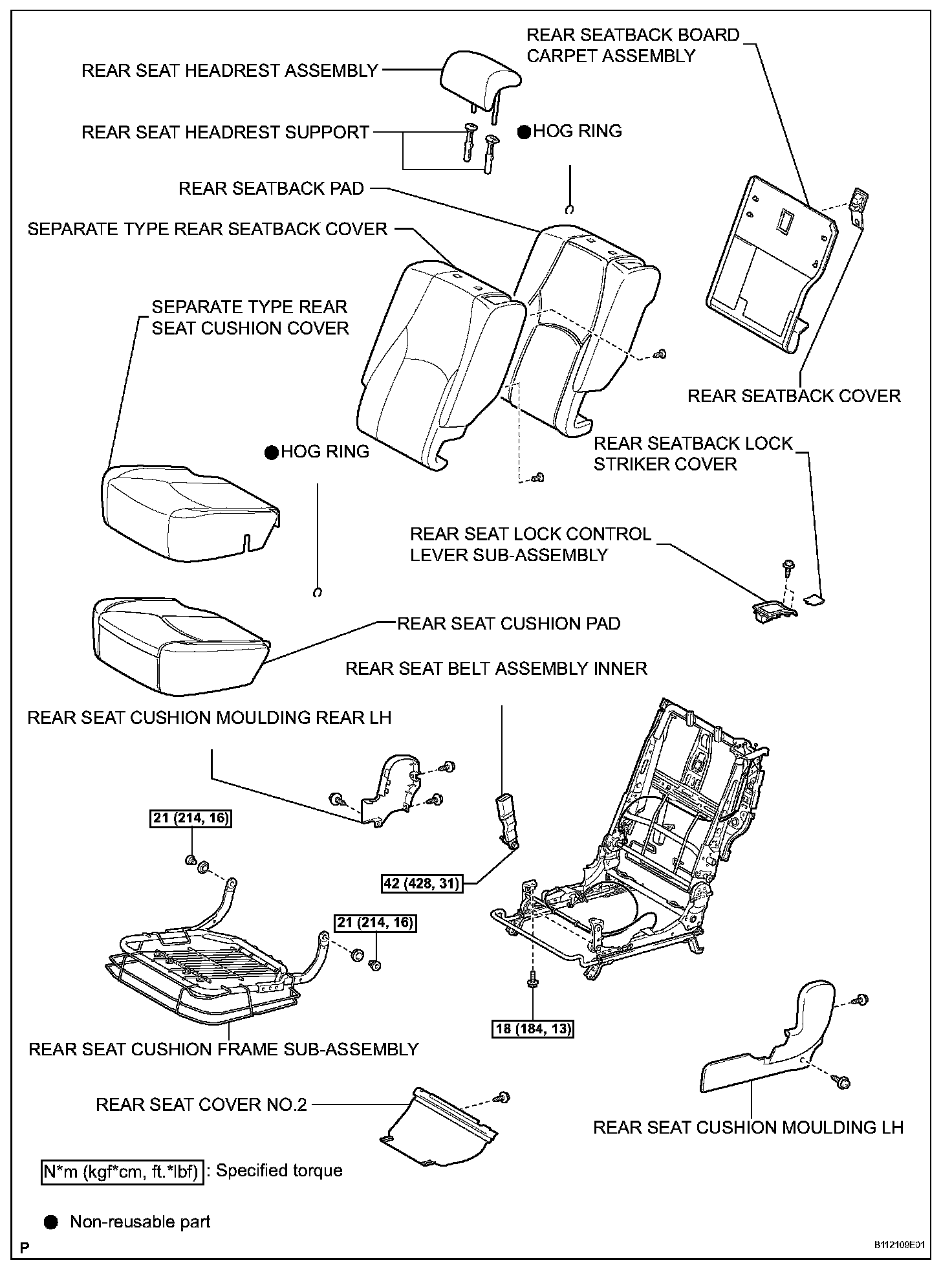

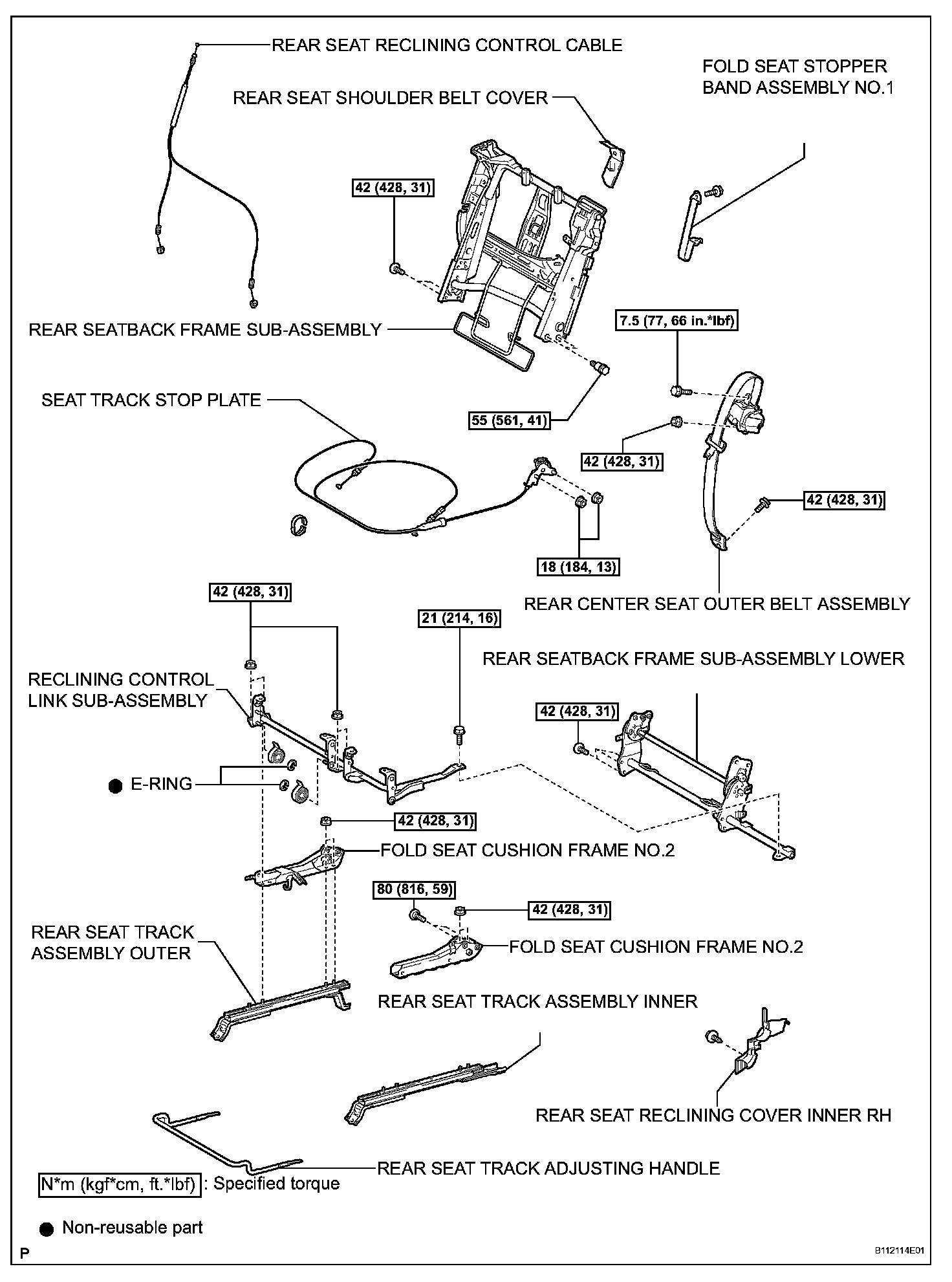

Rear Seat Assembly (for LH Side):



Rear Seat Assembly (for LH Side):



Rear Seat Assembly (for LH Side):

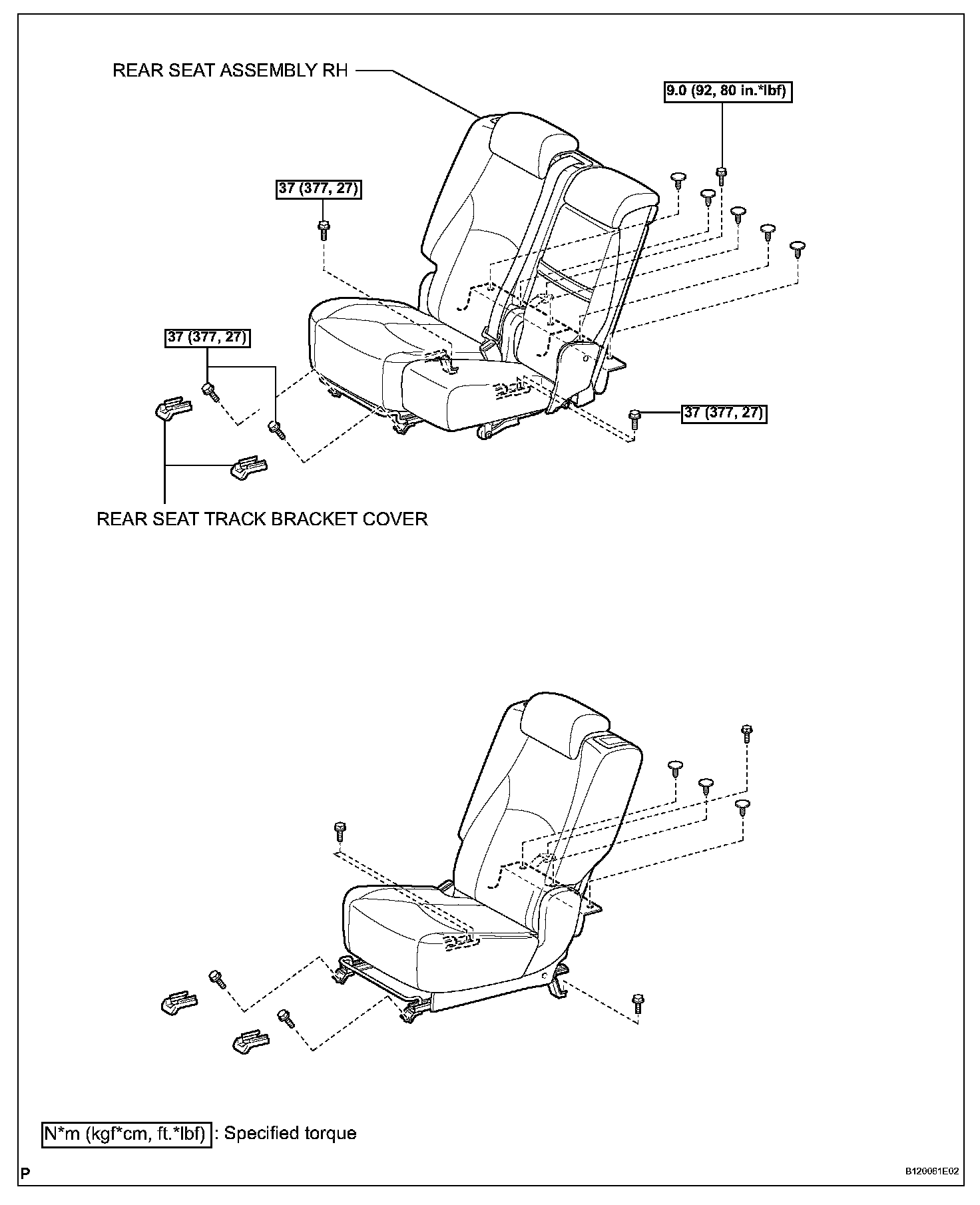

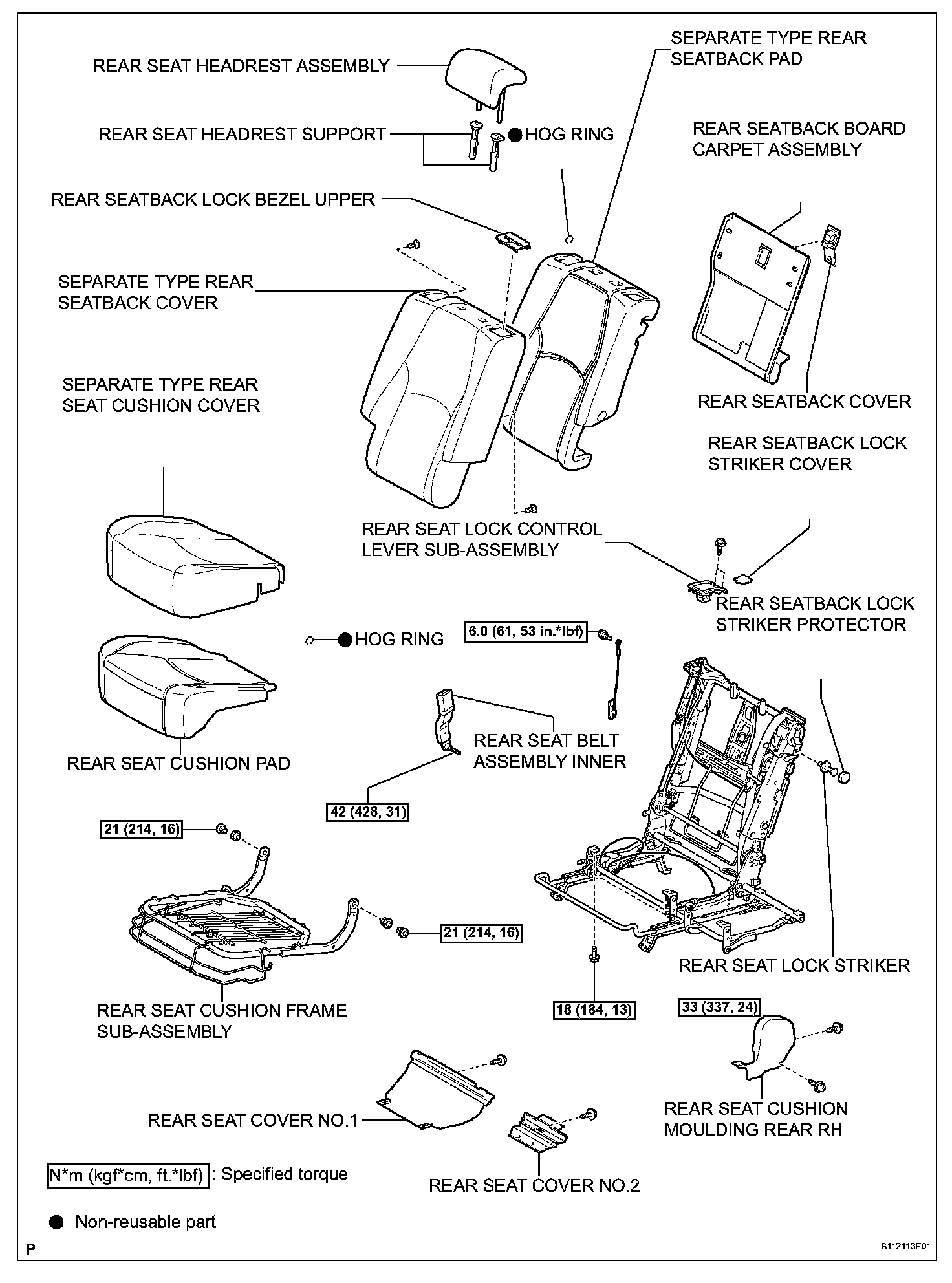

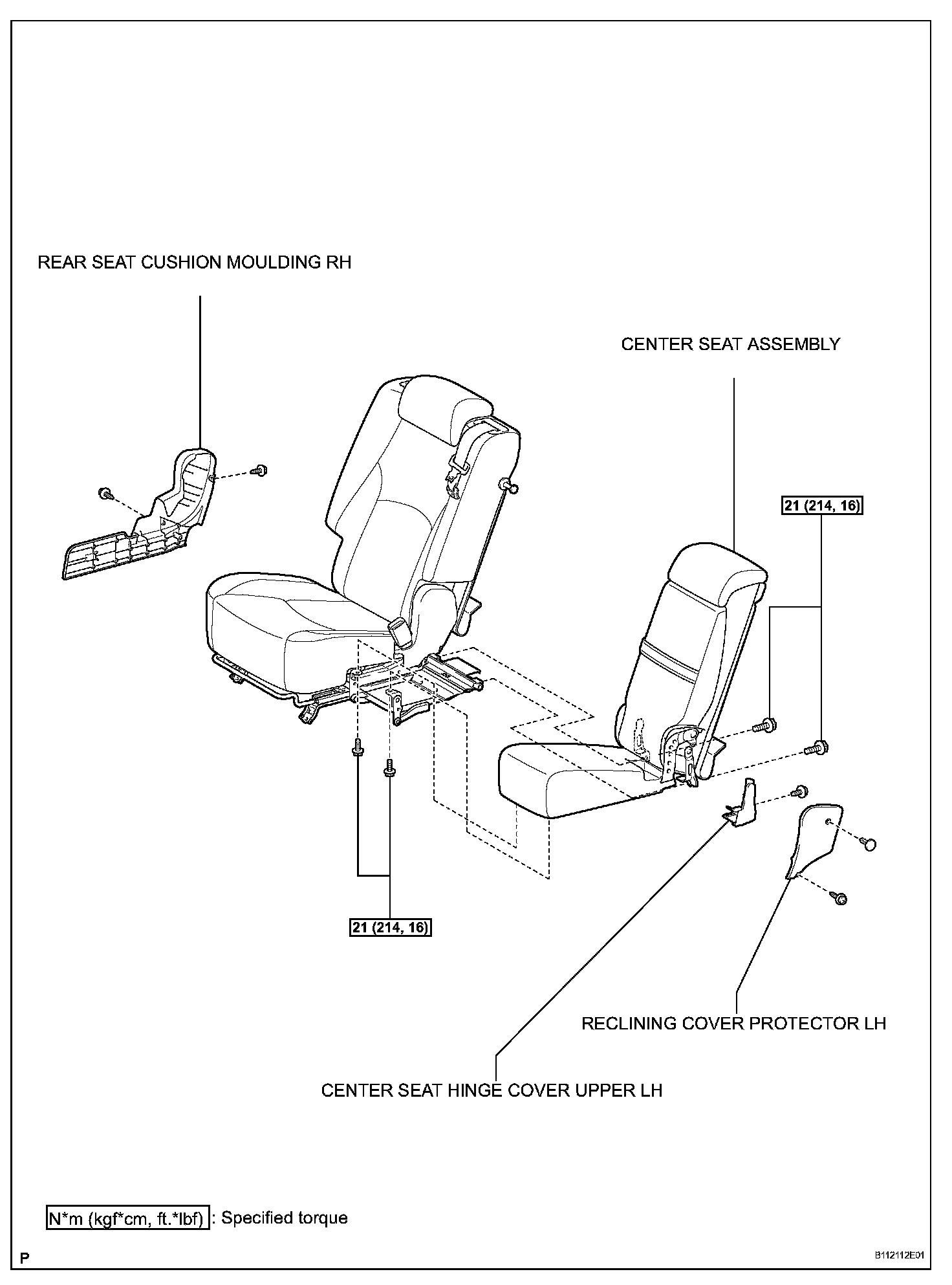

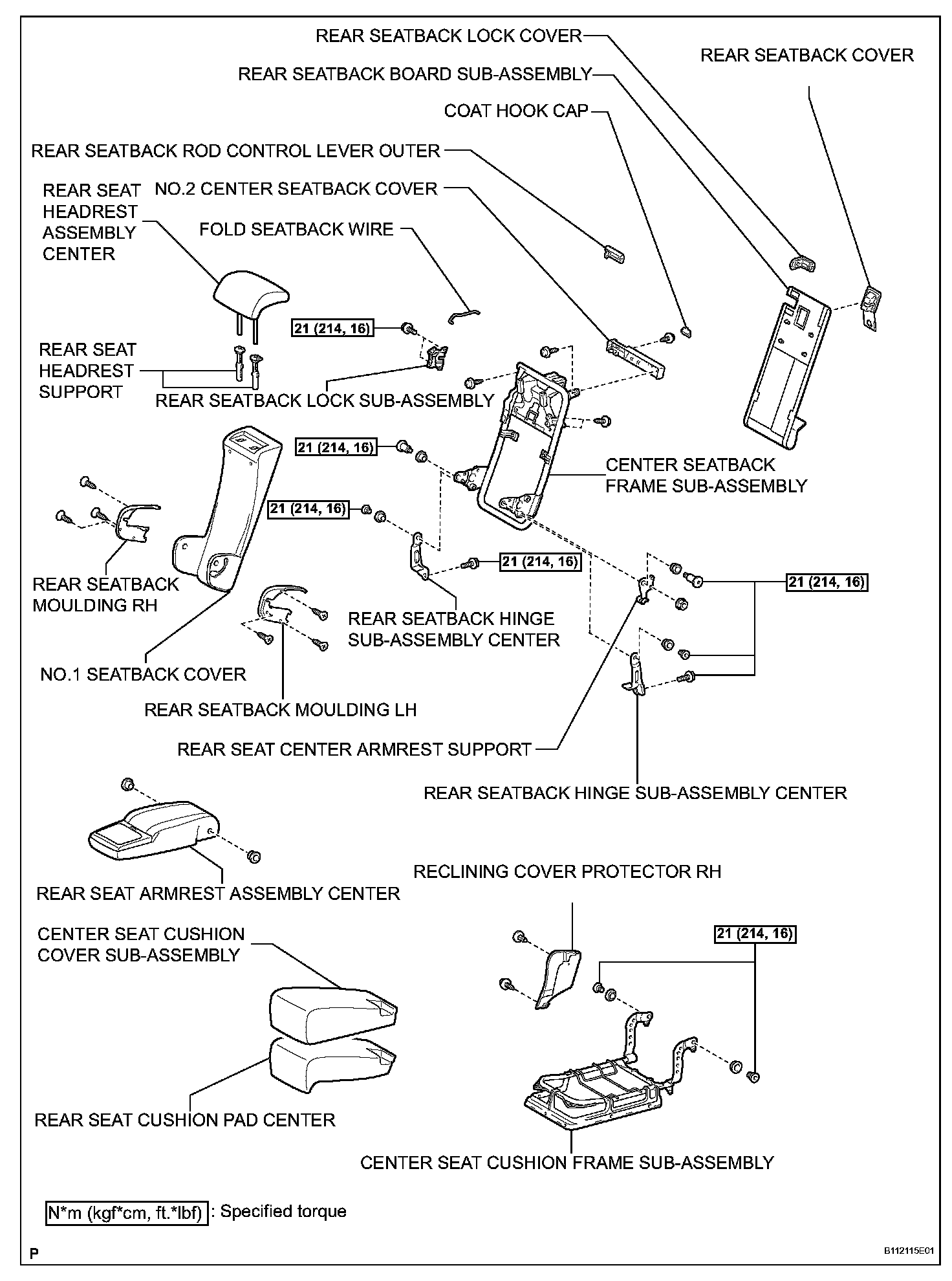

Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):

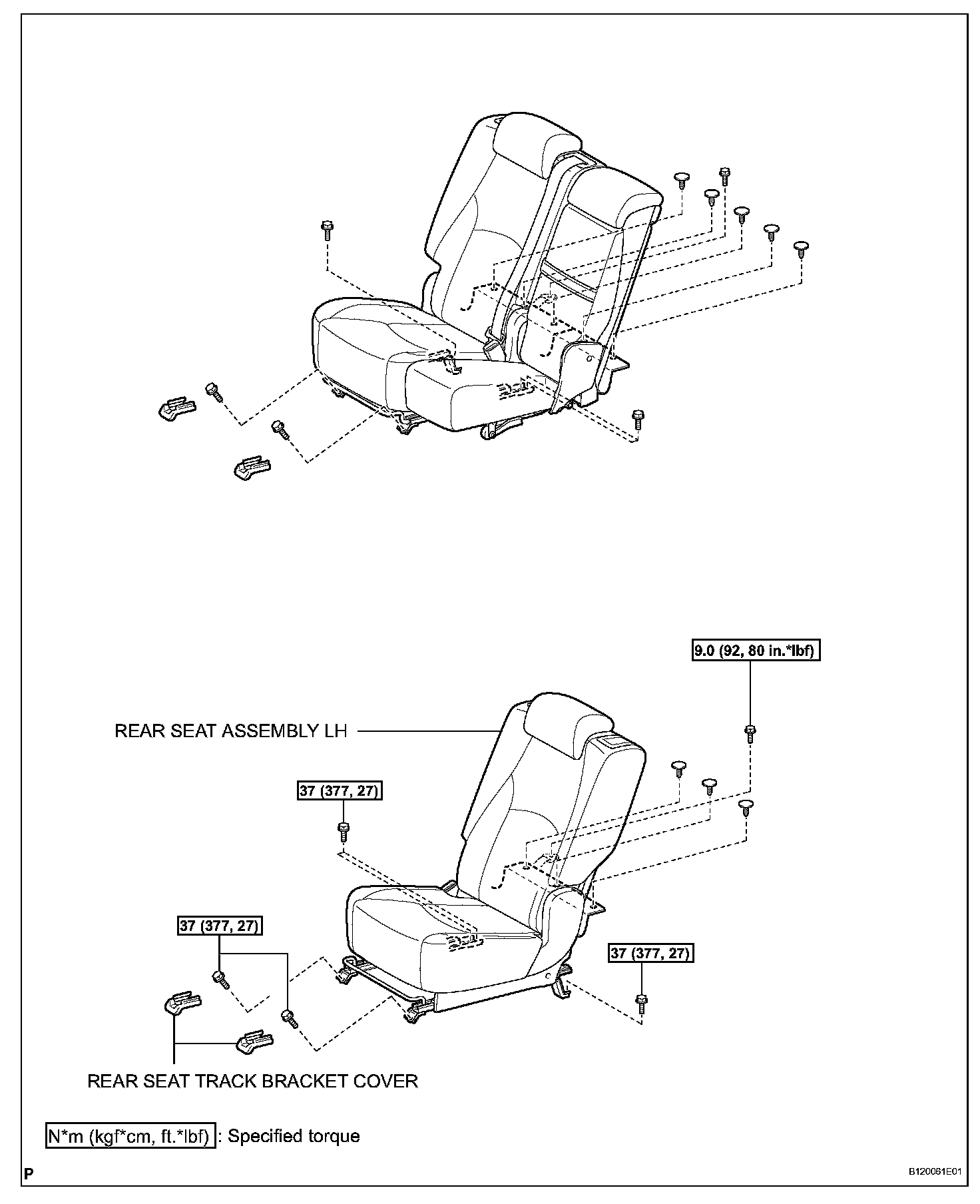

Rear Seat Assembly (for RH Side):



Rear Seat Assembly (for RH Side):

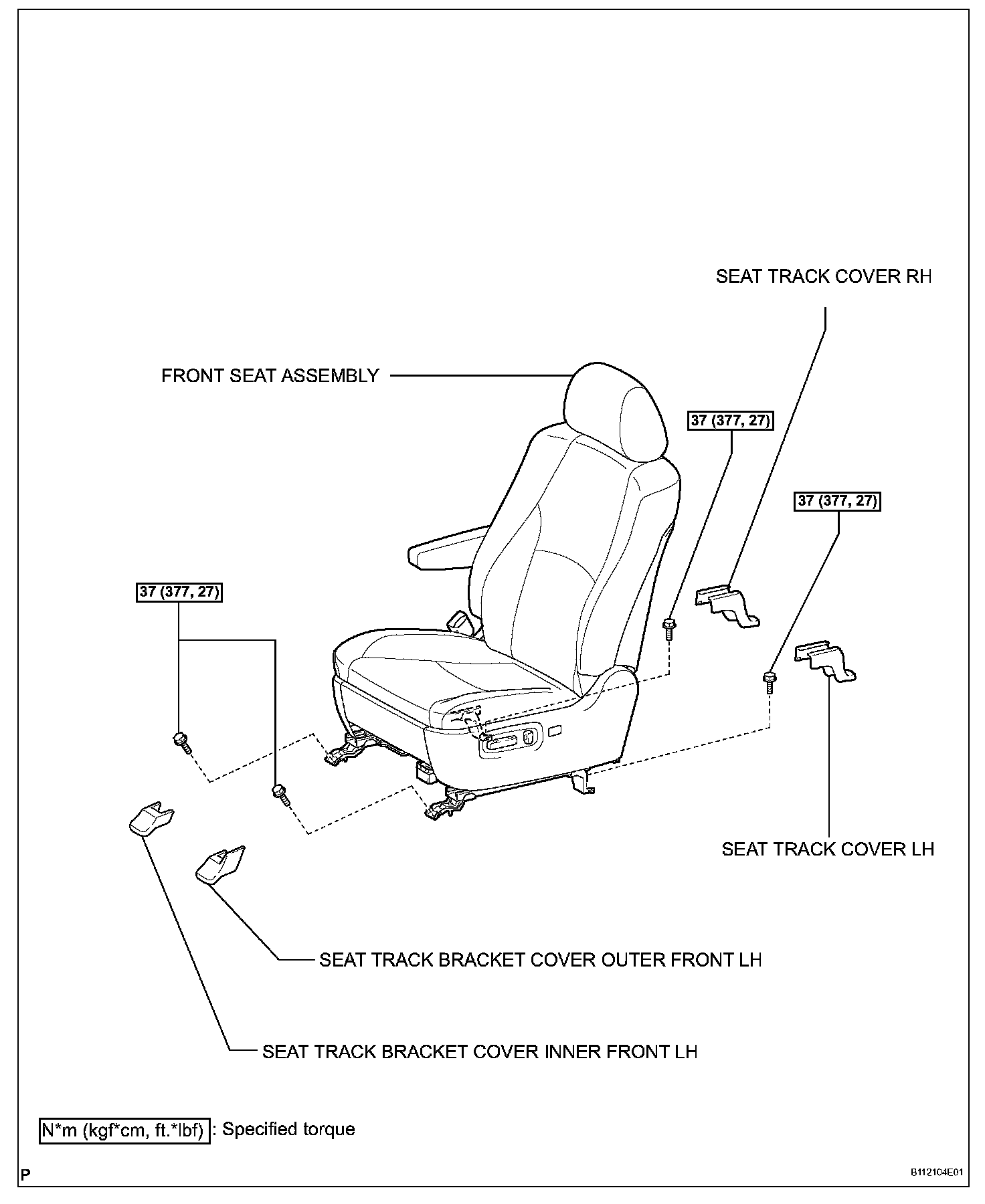

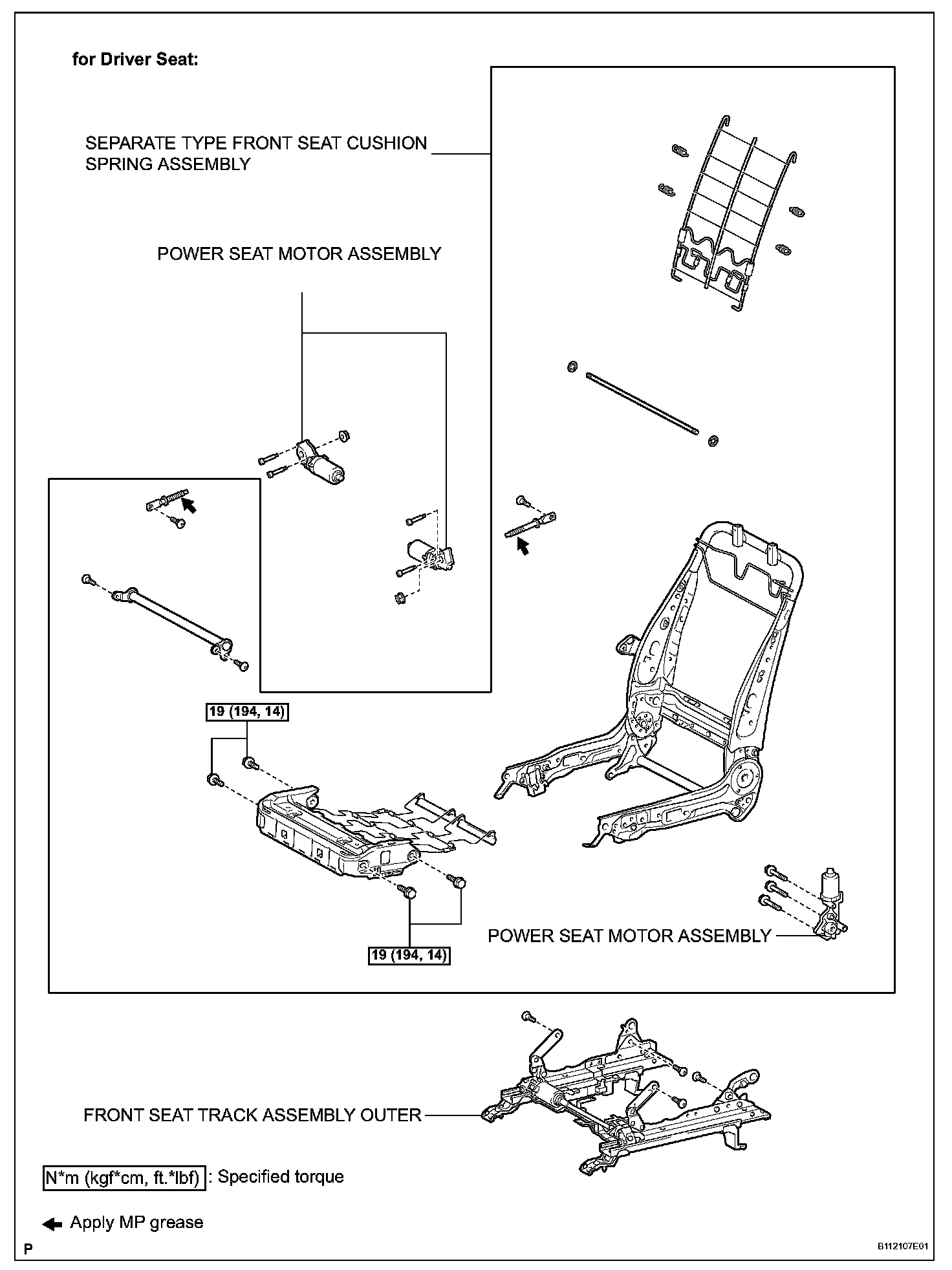

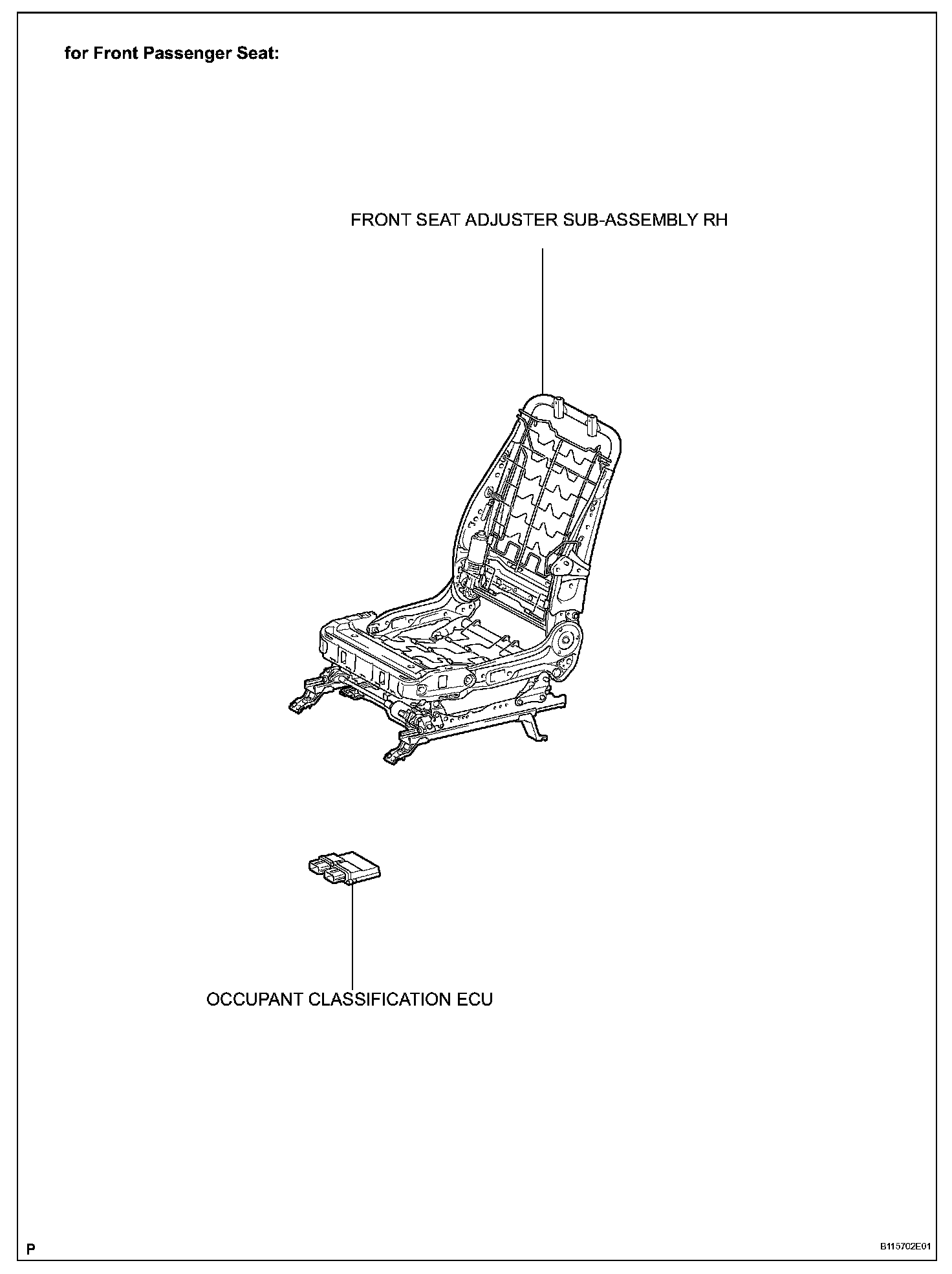

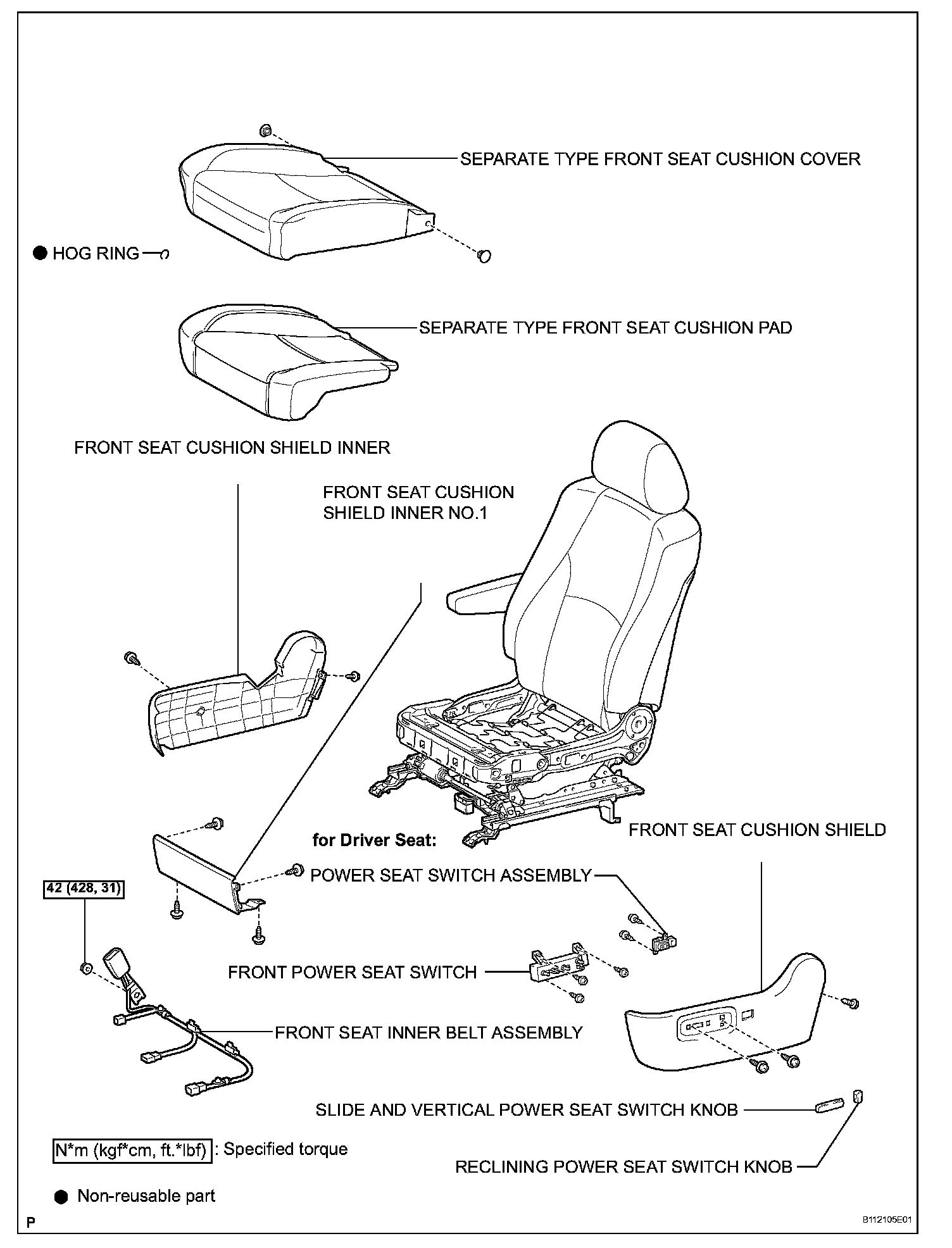

Front Seat Assembly:



Front Seat Assembly:

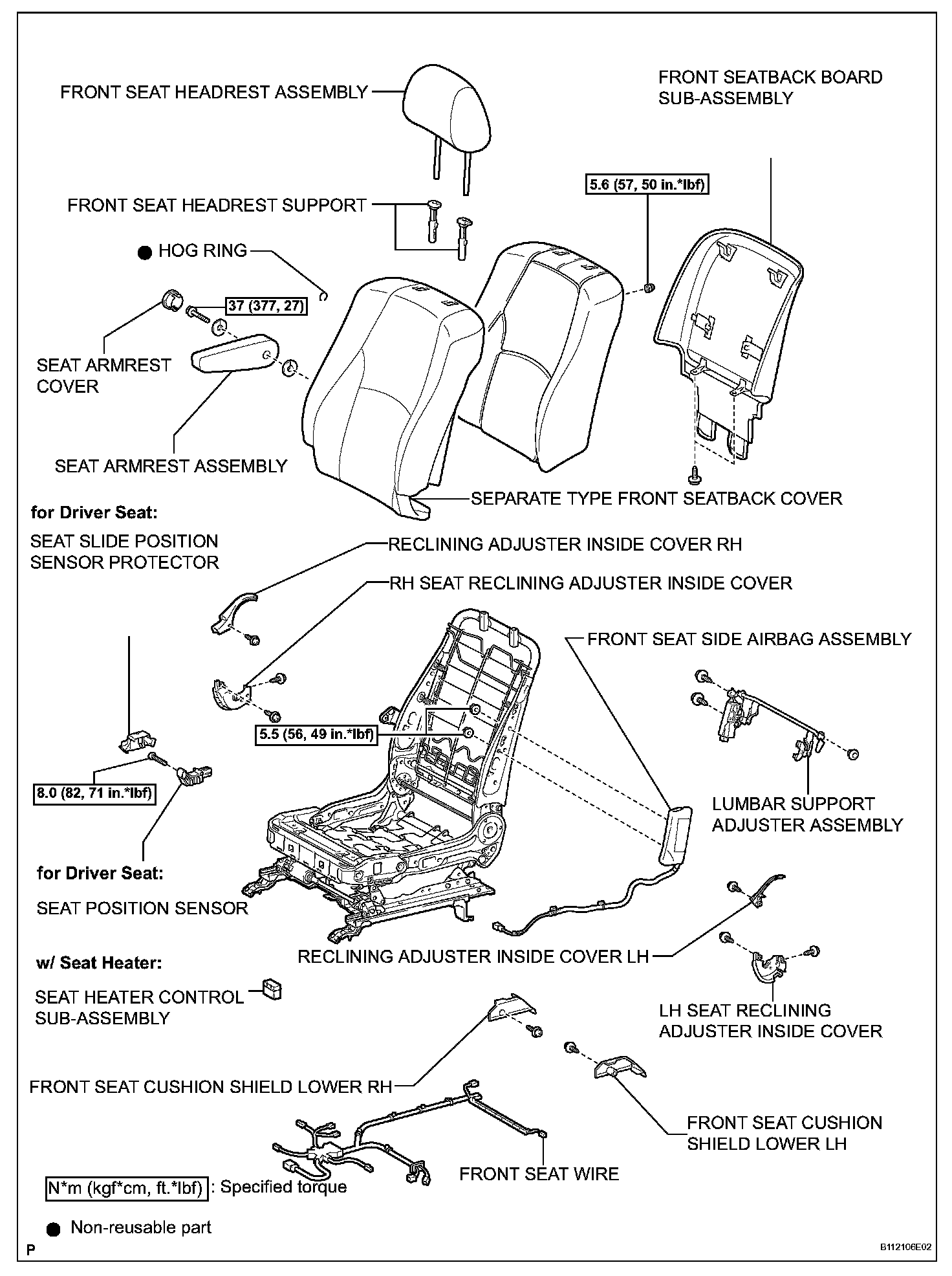

Front Seat Assembly:



Front Seat Assembly:



Front Seat Assembly:
