Home >> Lexus >> 2006 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transfer Case >> Service Data

Service Data

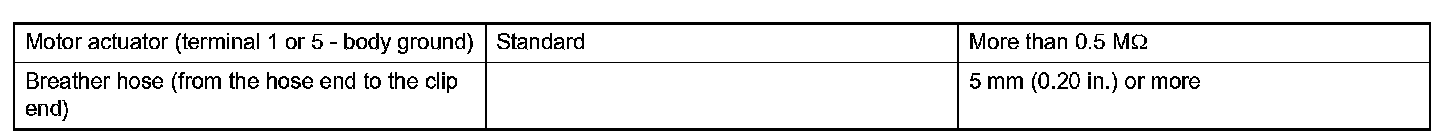

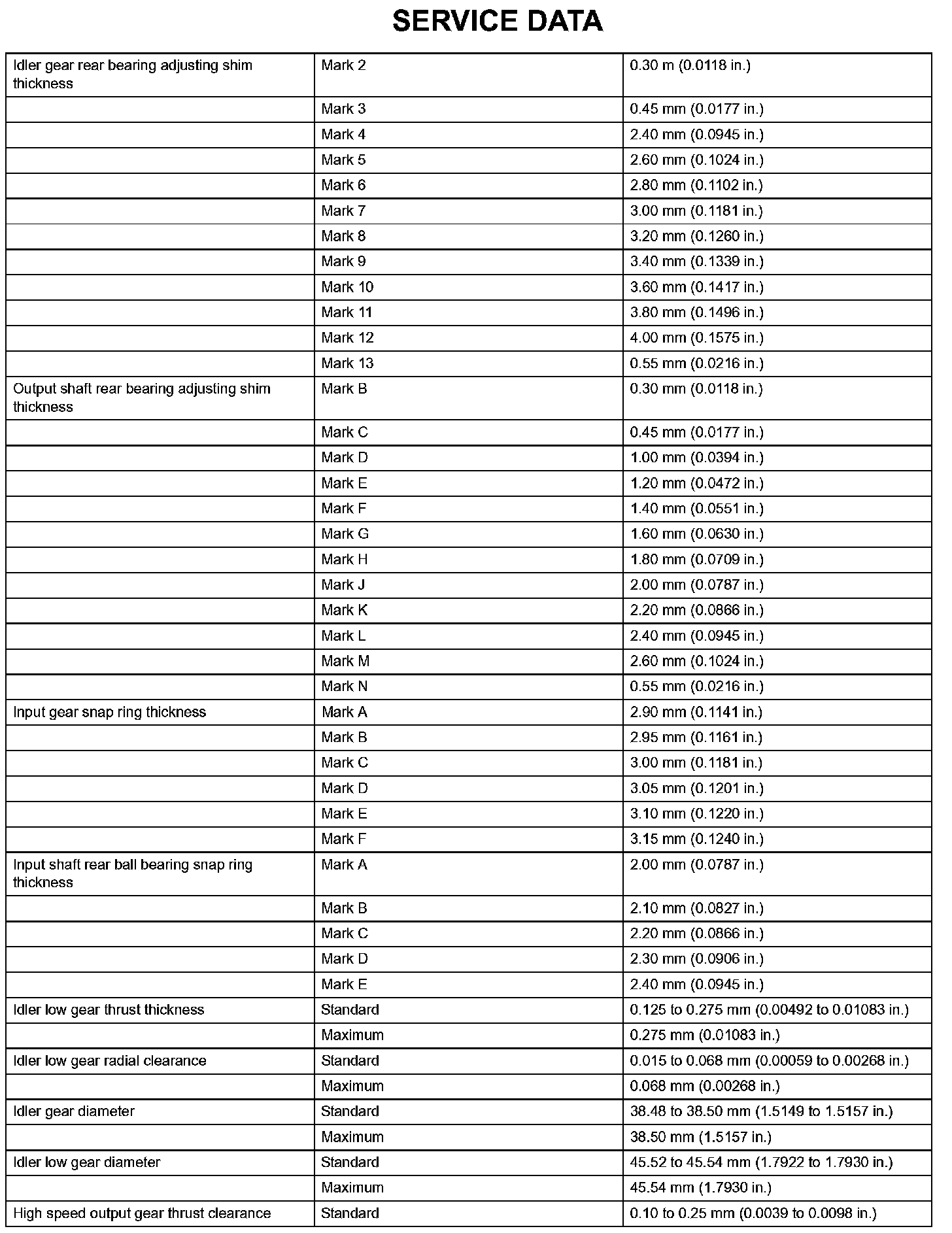

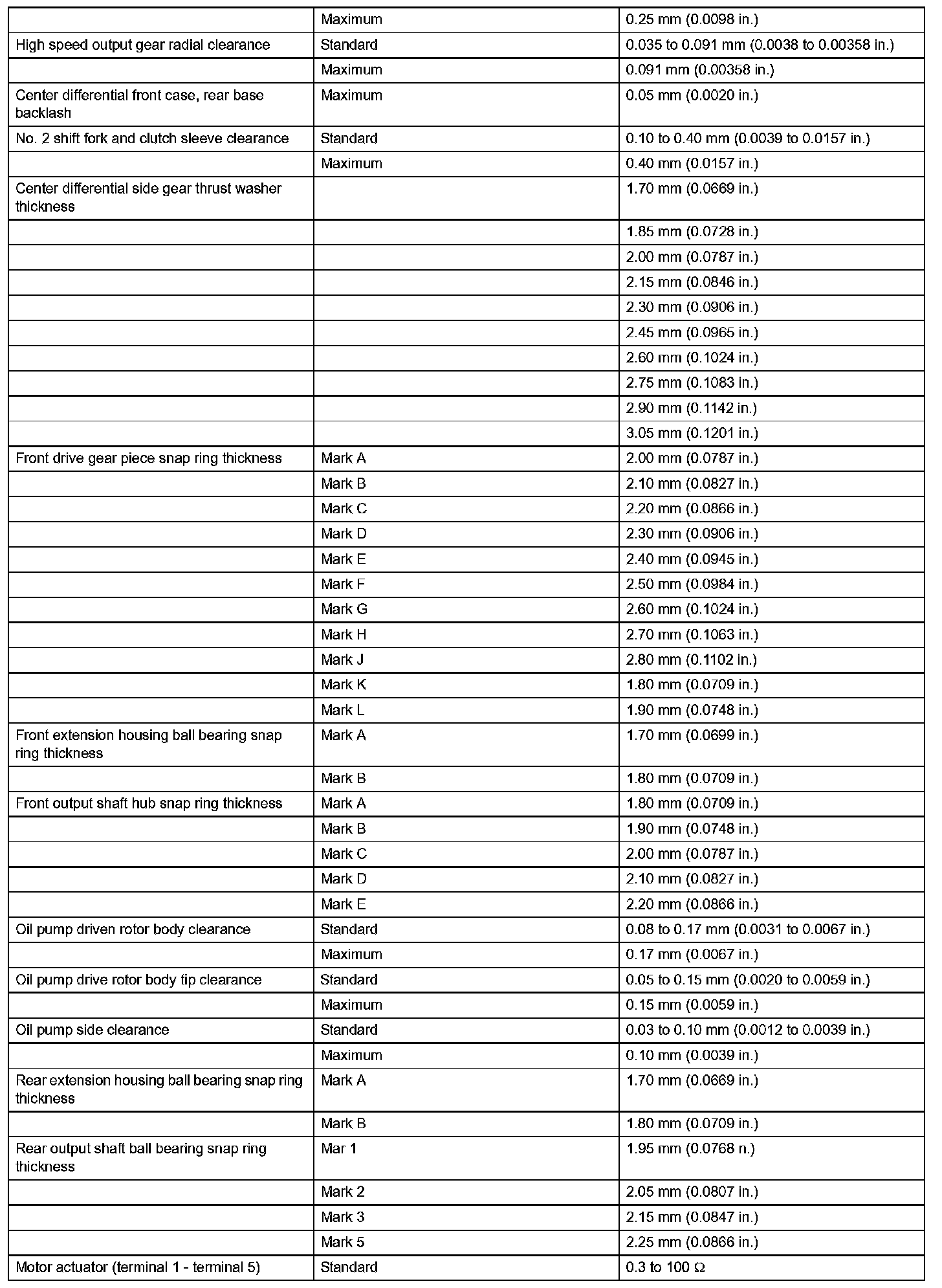

Transfer-Service Data (Part 1):



Transfer-Service Data (Part 2):



Transfer-Service Data (Part 3):
