Service Data

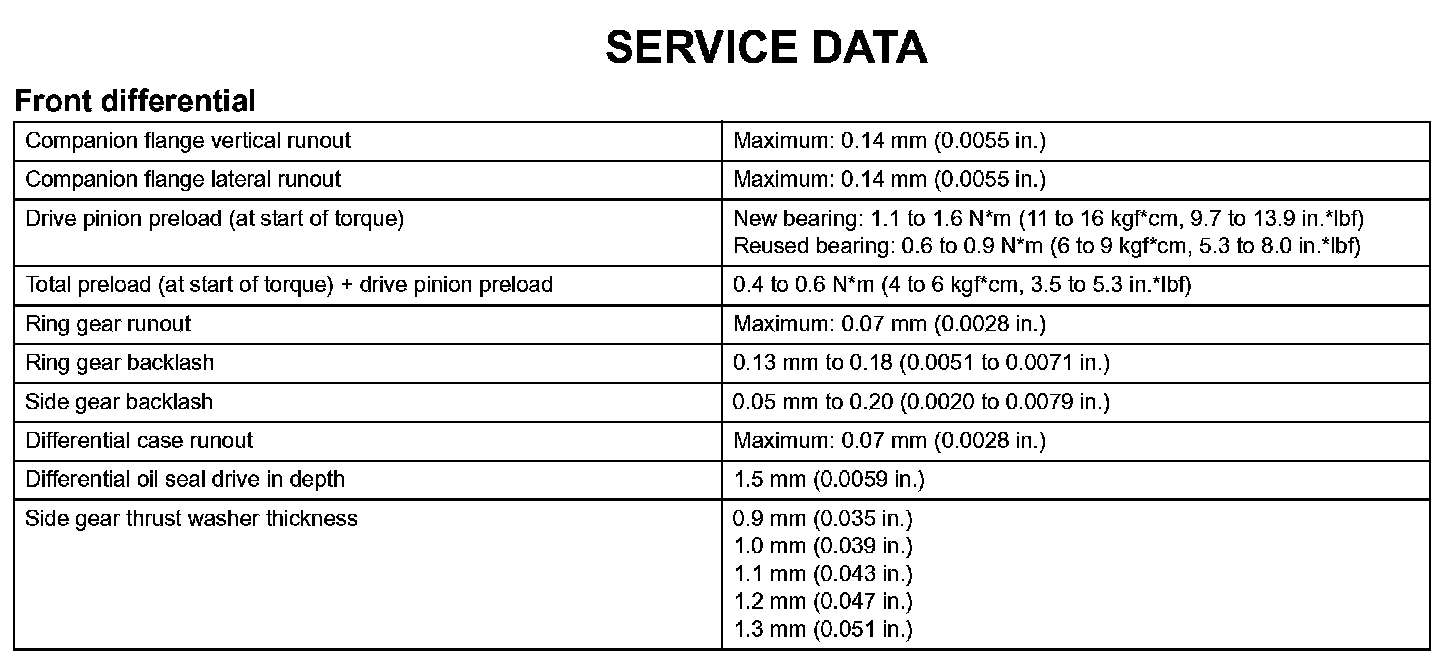

Differential-Service Data (Part 1):

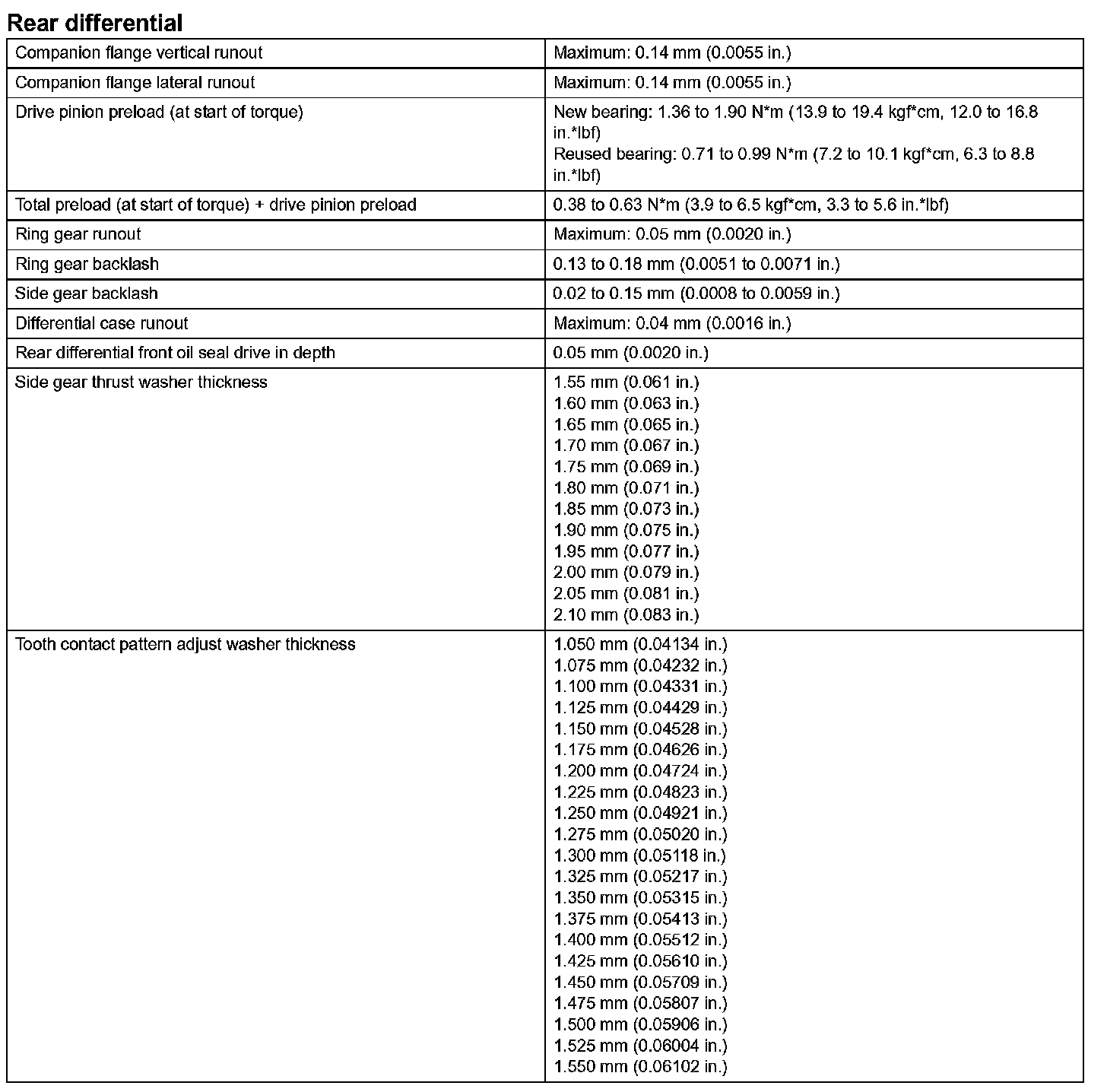

Differential-Service Data (Part 2):

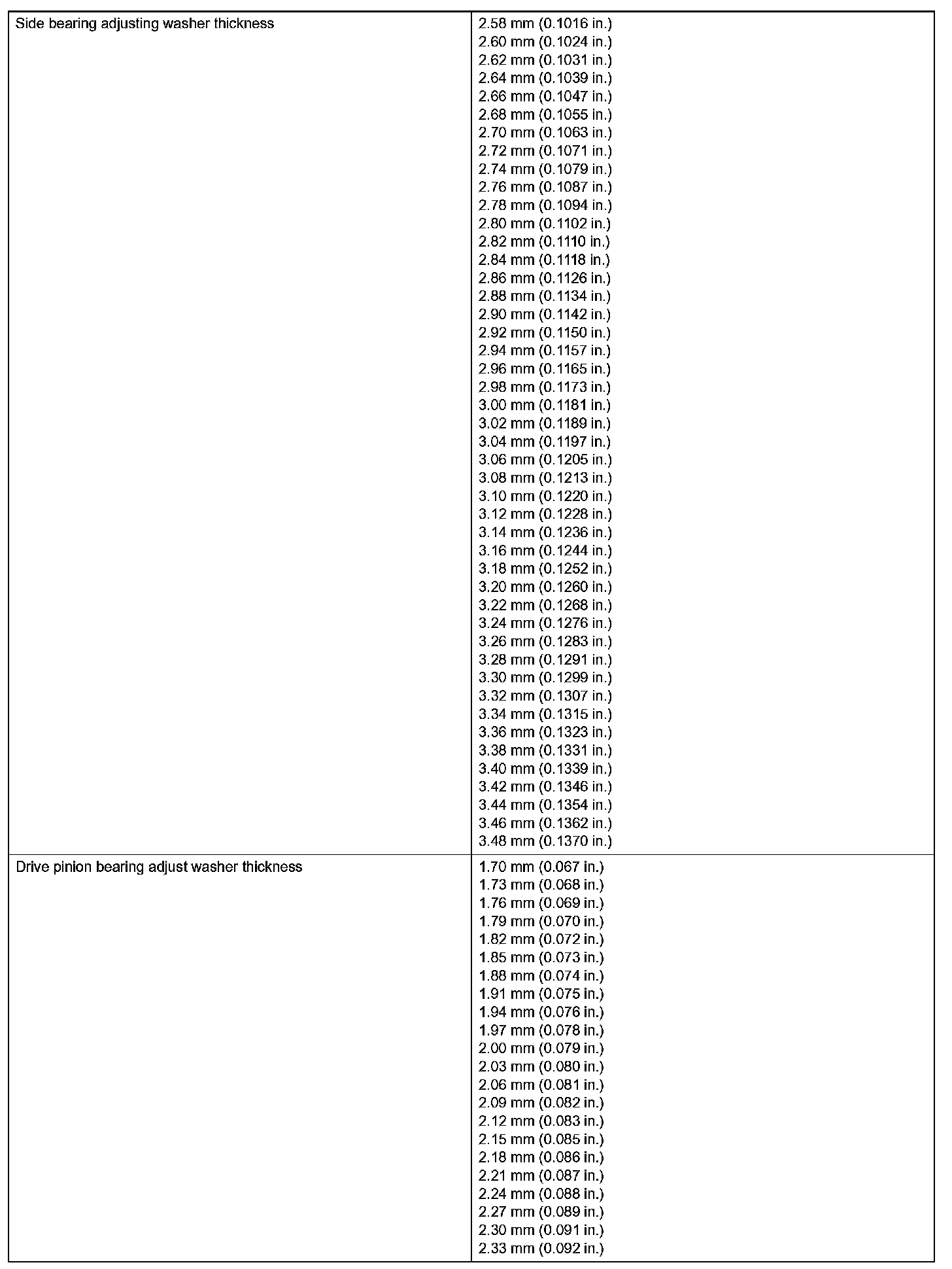

Differential-Service Data (Part 3):
