Steering Column Control Module

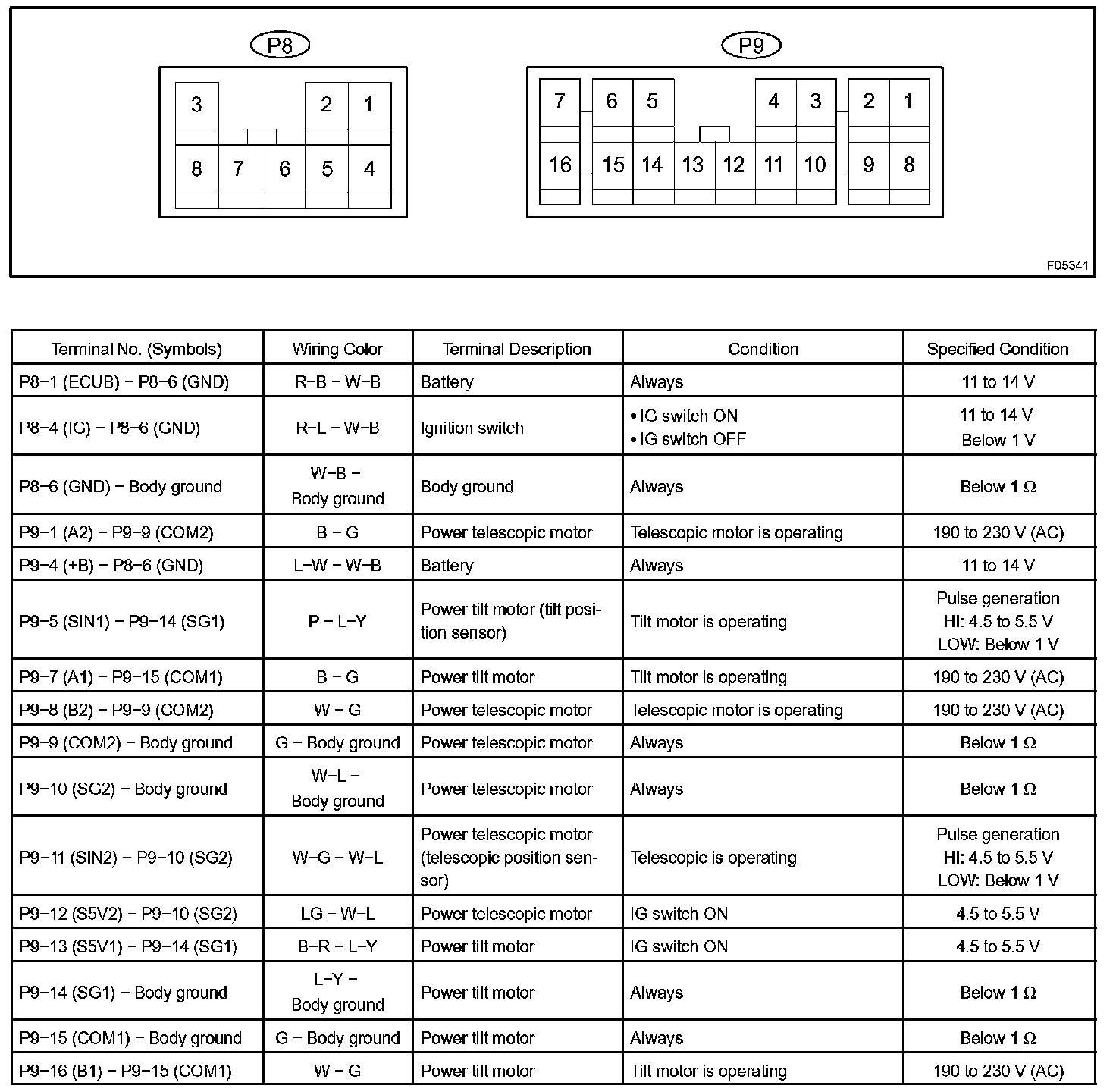

Terminals Of Control/Module Pinouts-Power Tilt And Power Telescopic Steering Column:
