Control Module HVAC

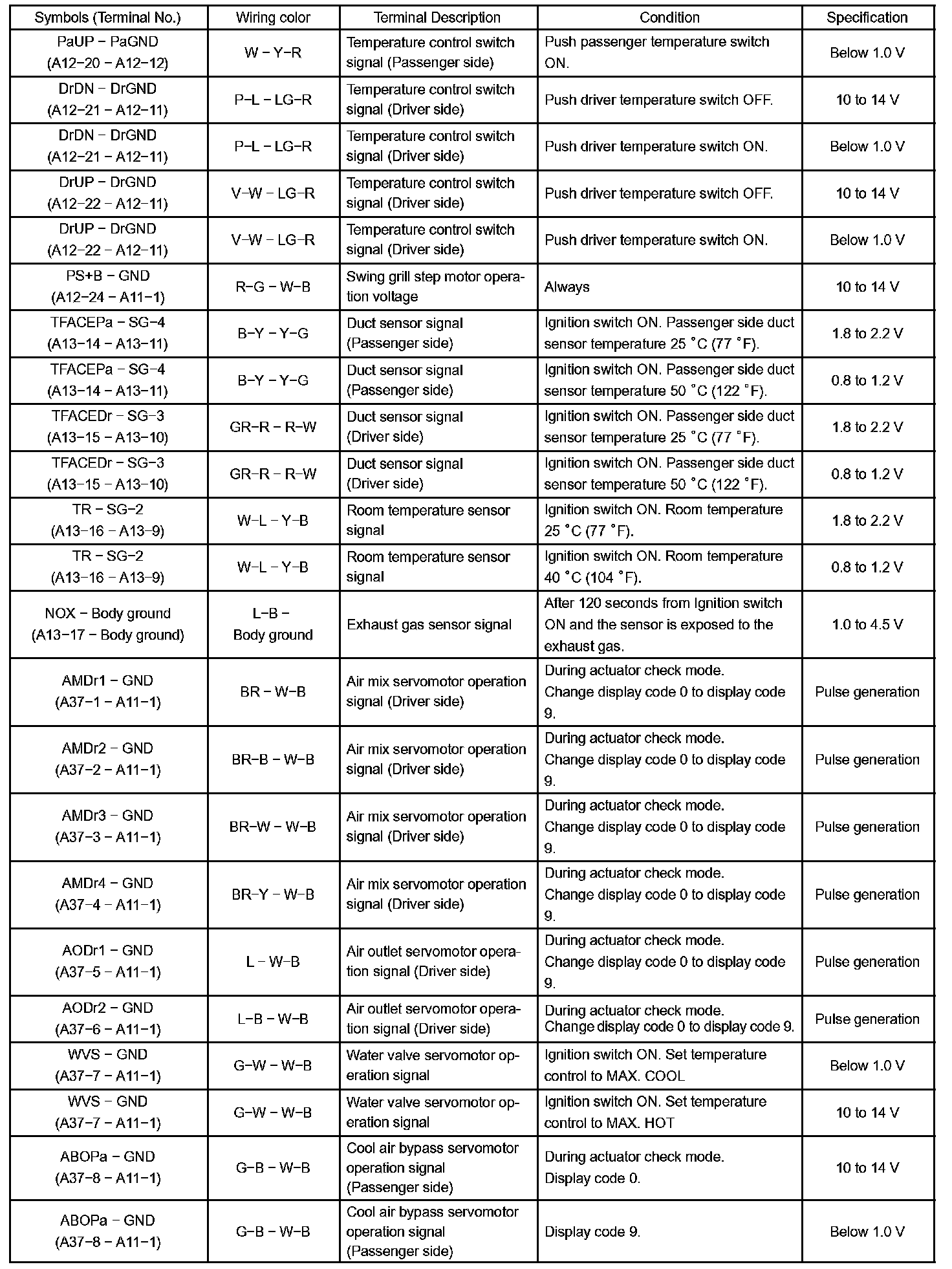

Terminals Of Control Module/Pinouts (Part 1):

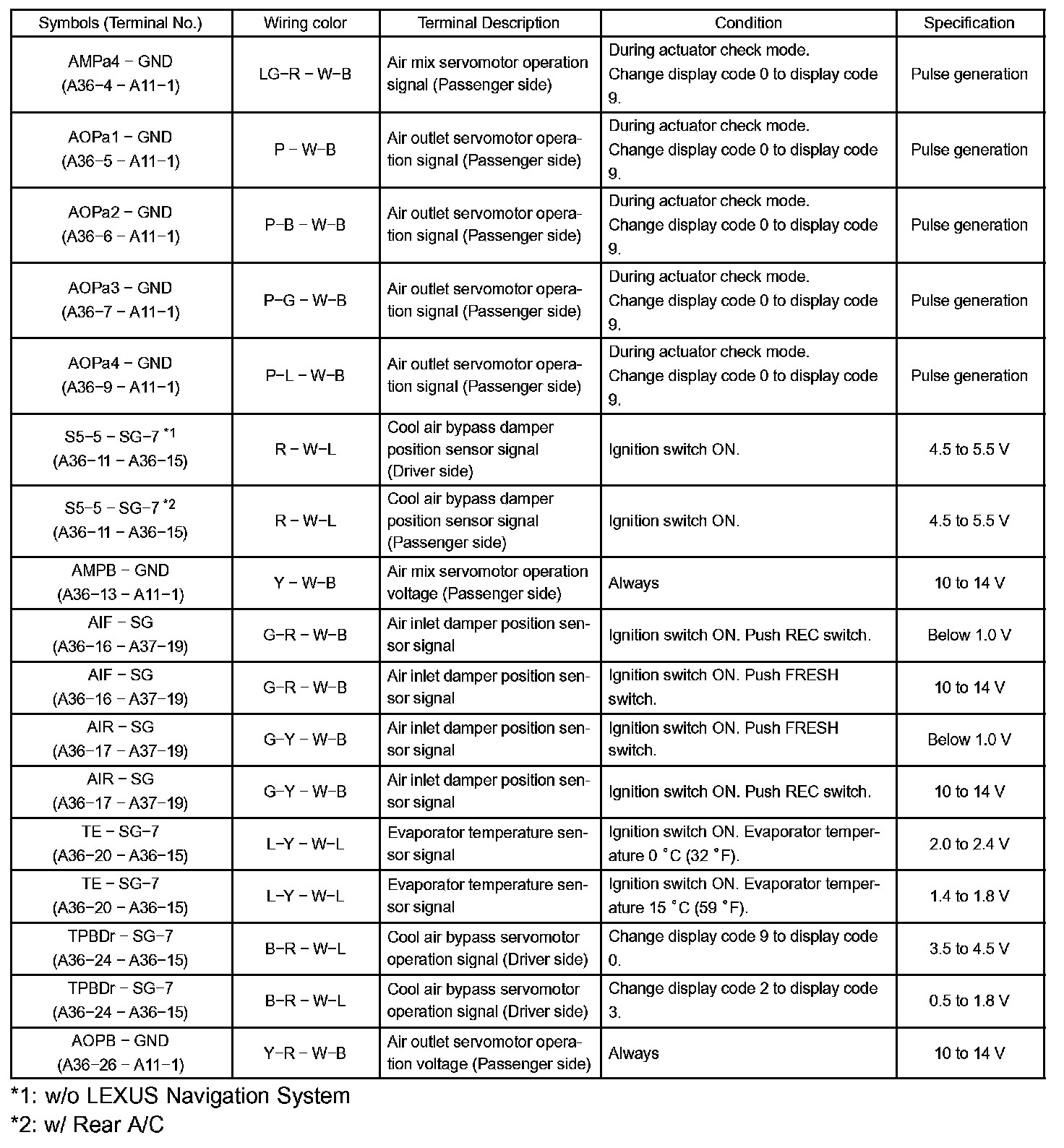

Terminals Of Control Module/Pinouts (Part 2):

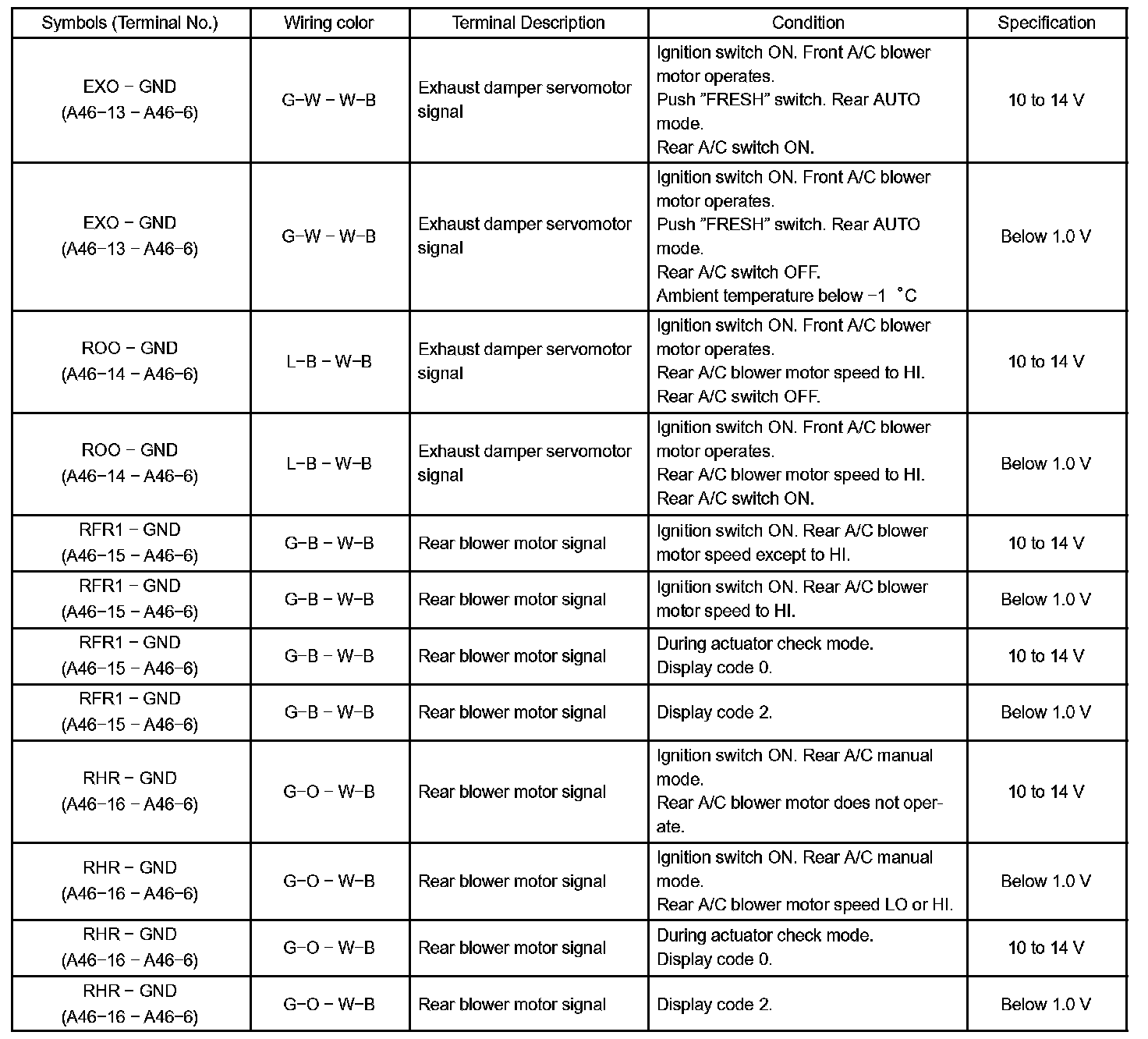

Terminals Of Control Module/Pinouts (Part 3):

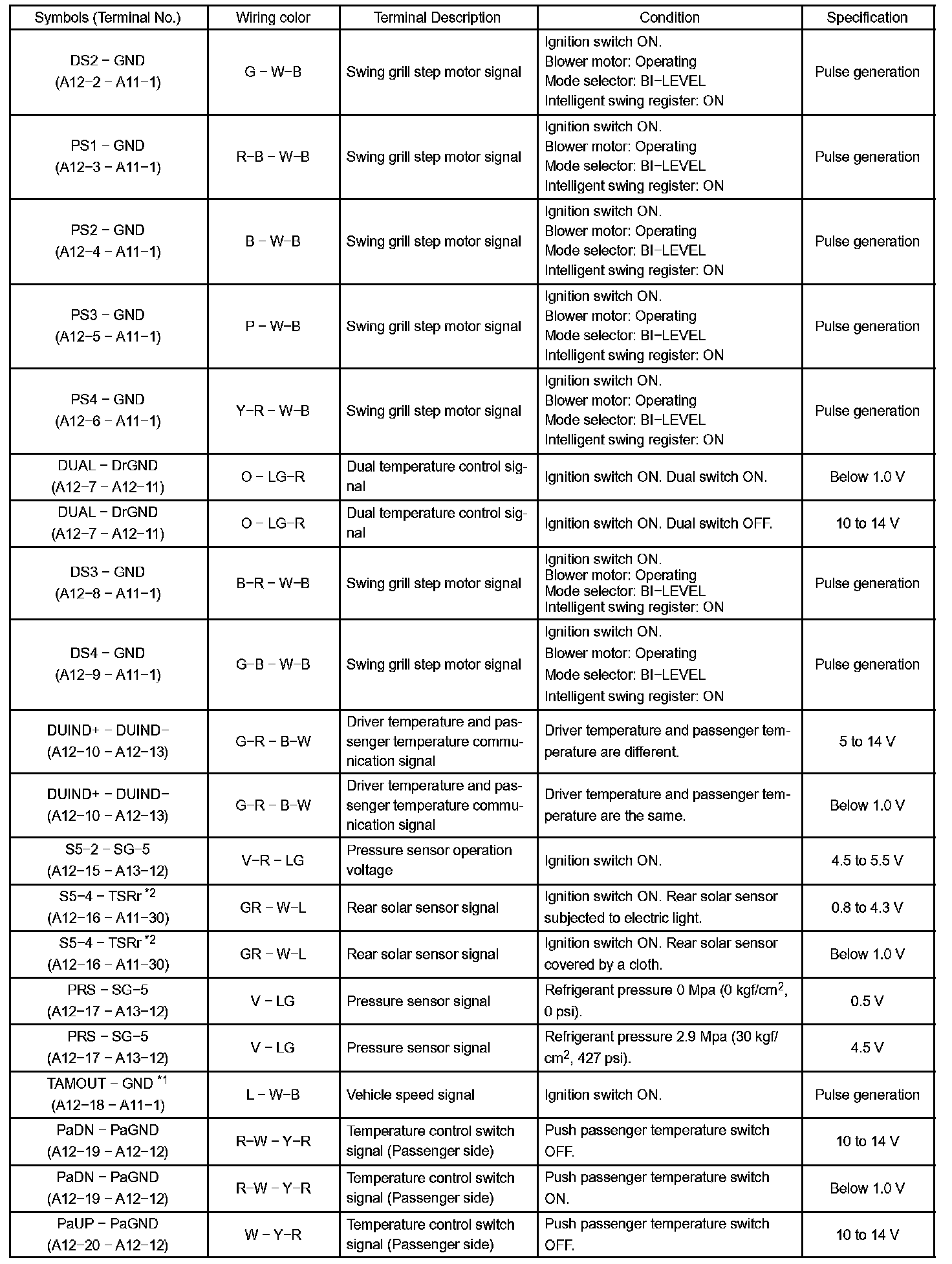

Terminals Of Control Module/Pinouts (Part 4):

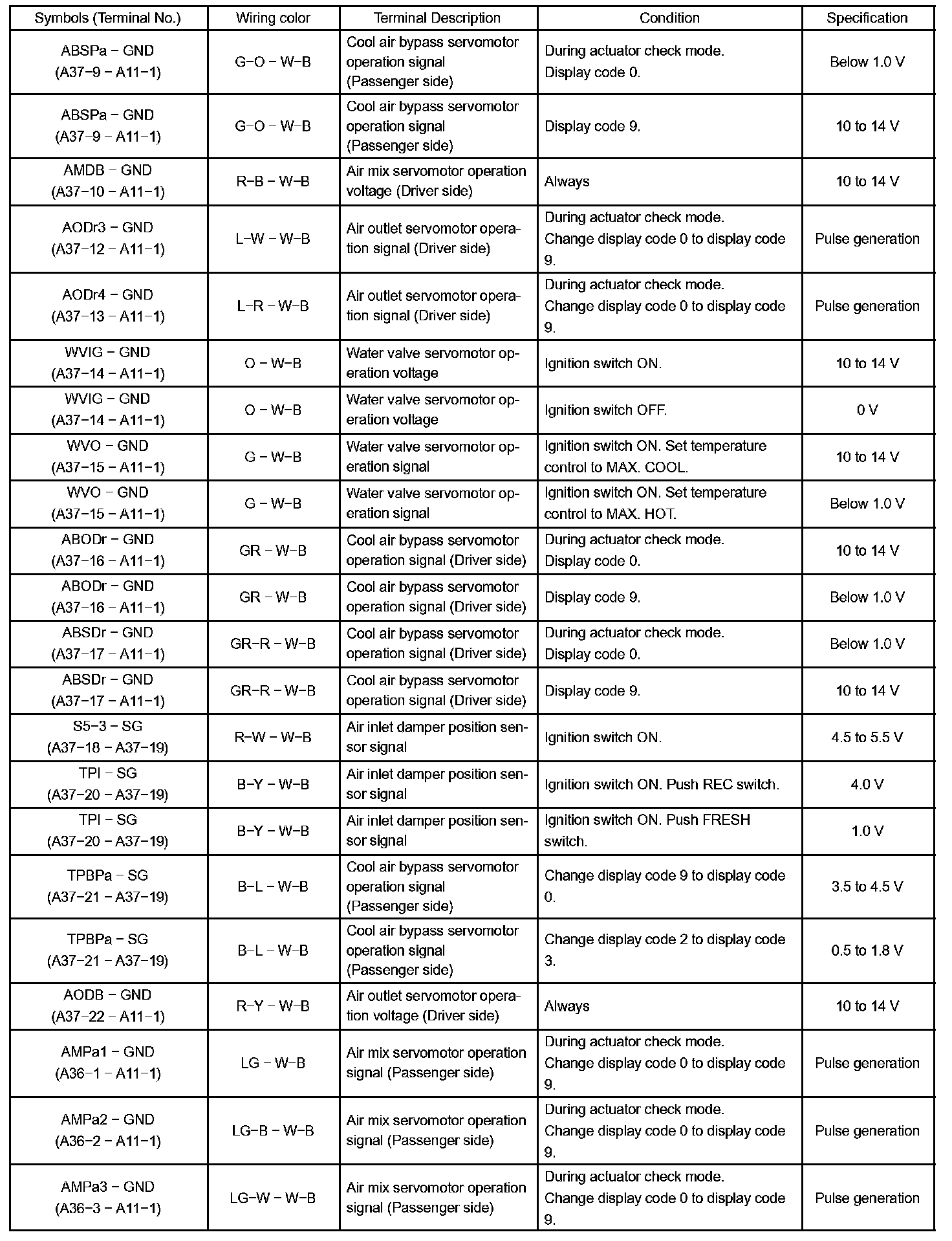

Terminals Of Control Module/Pinouts (Part 5):

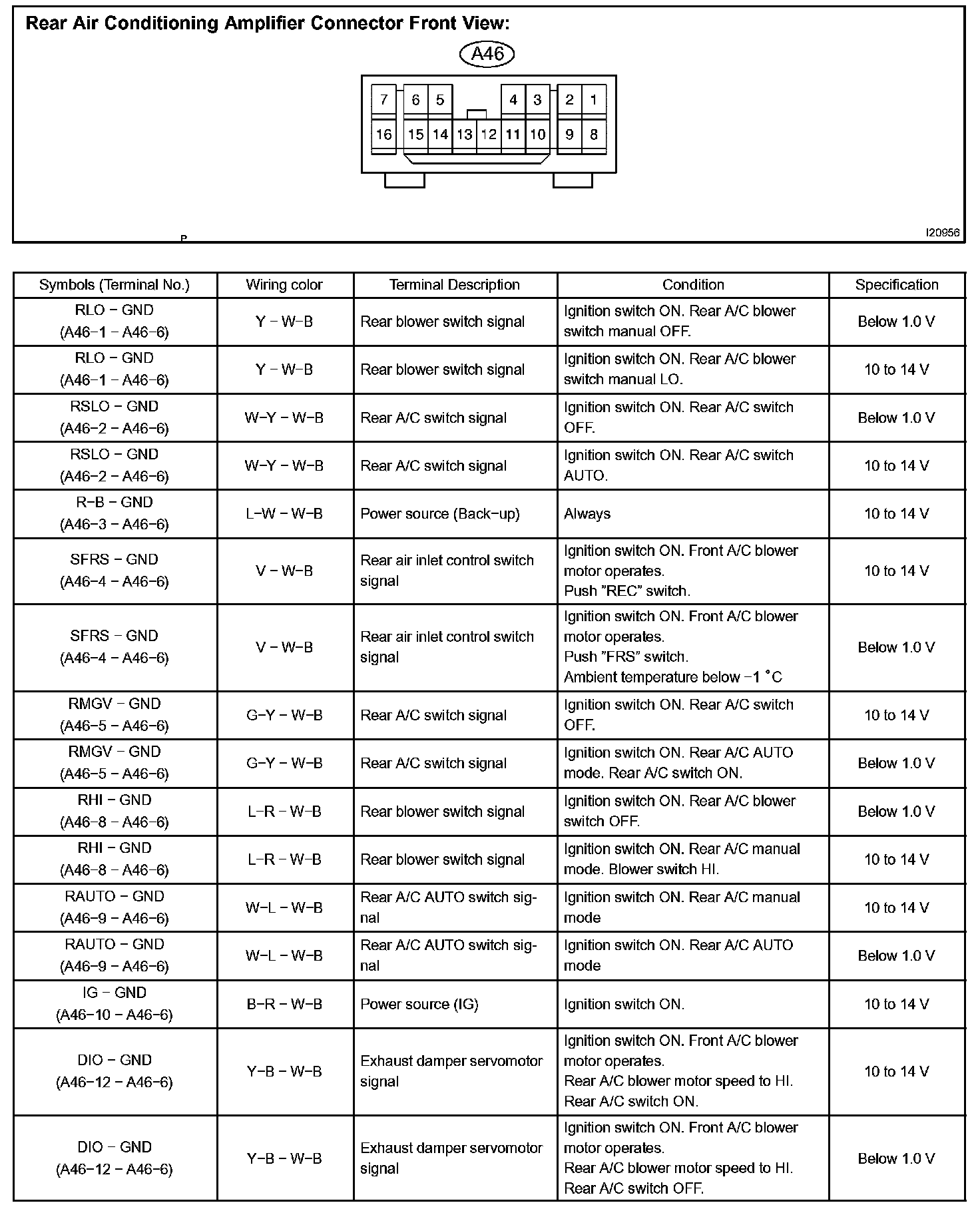

Terminals Of Control Module/Pinouts (Part 1):

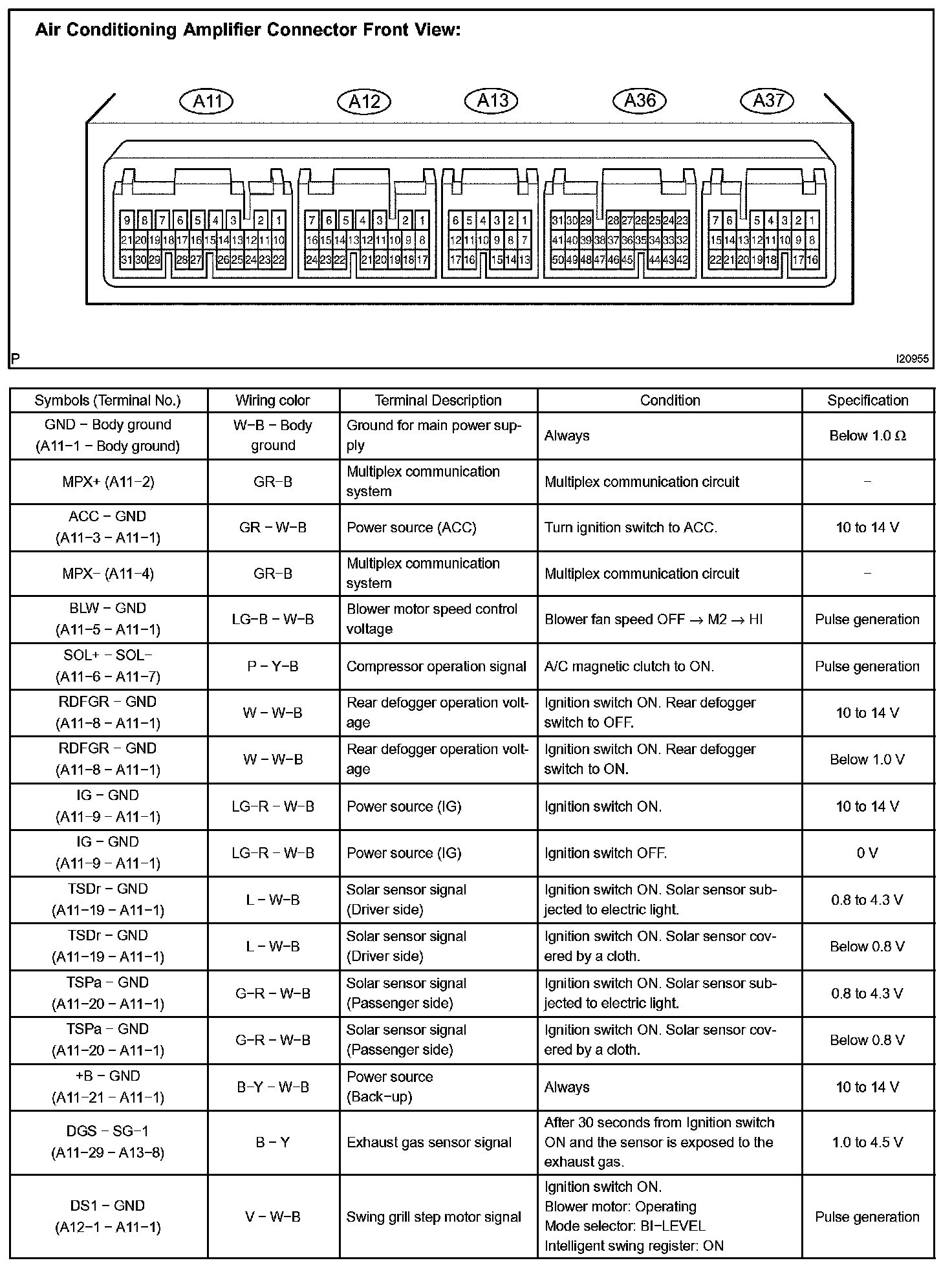

Terminals Of Control Module/Pinouts (Part 2):

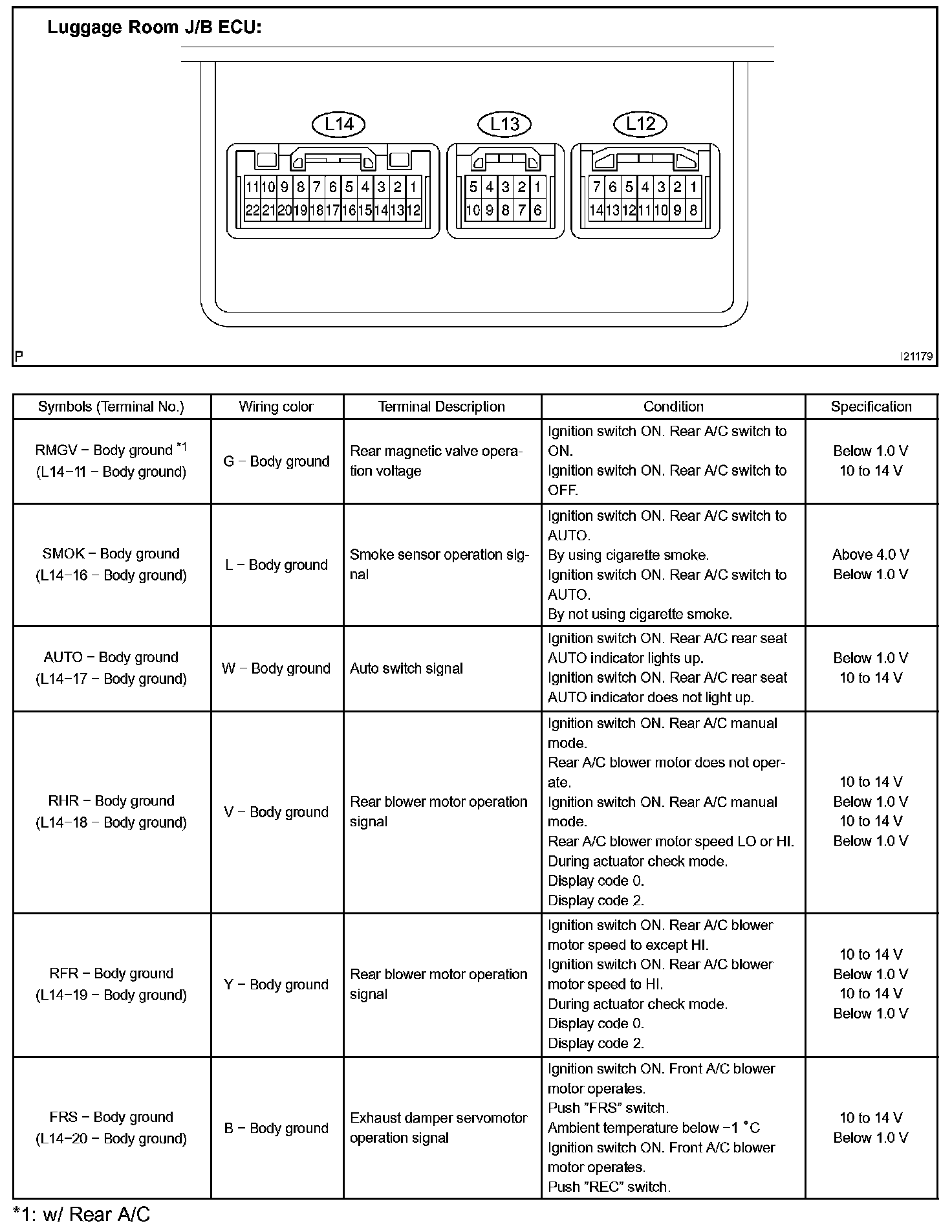

Terminals Of Control Module/Pinouts:
