Home >> Lexus >> 2006 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque

Torque

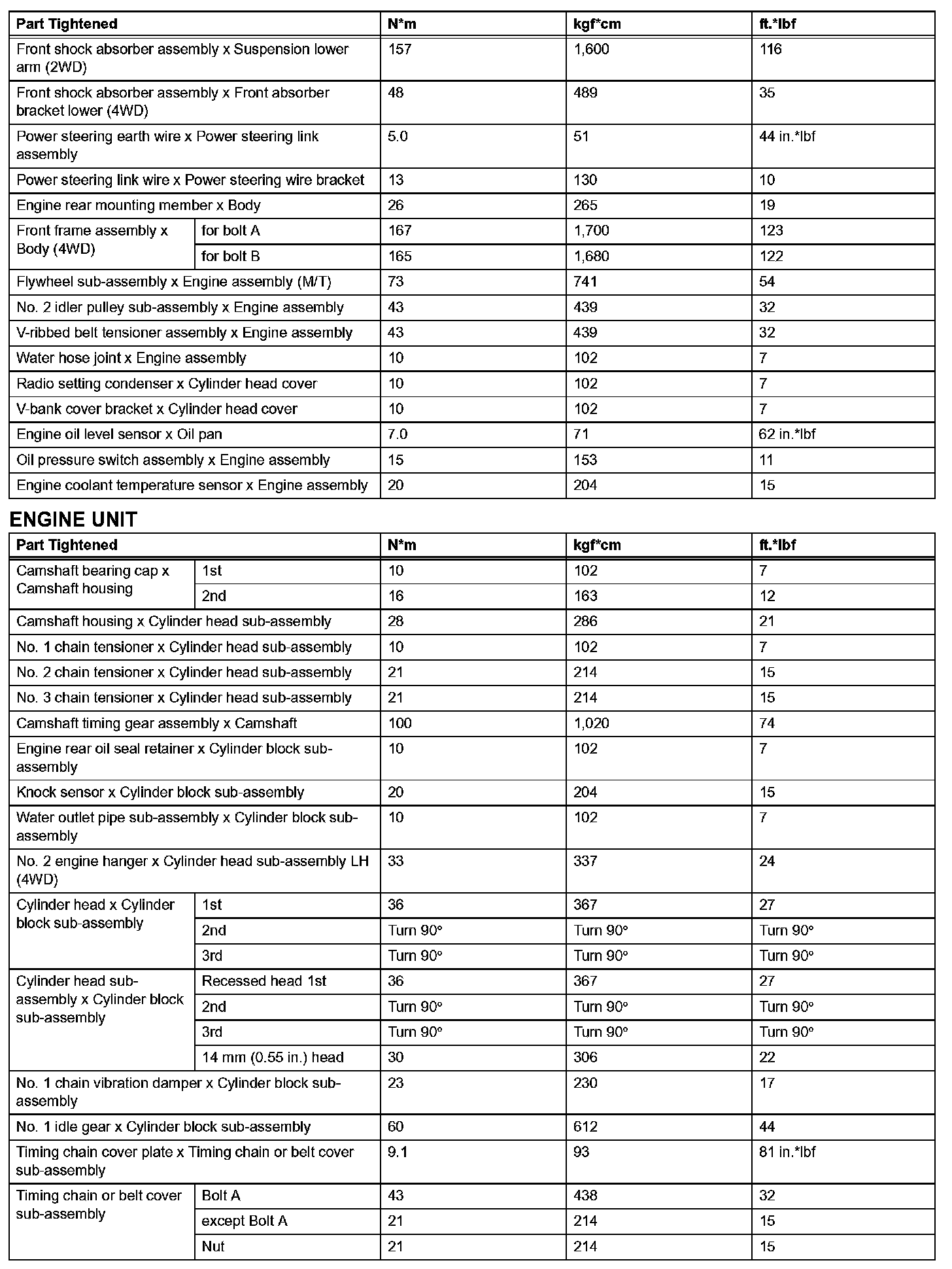

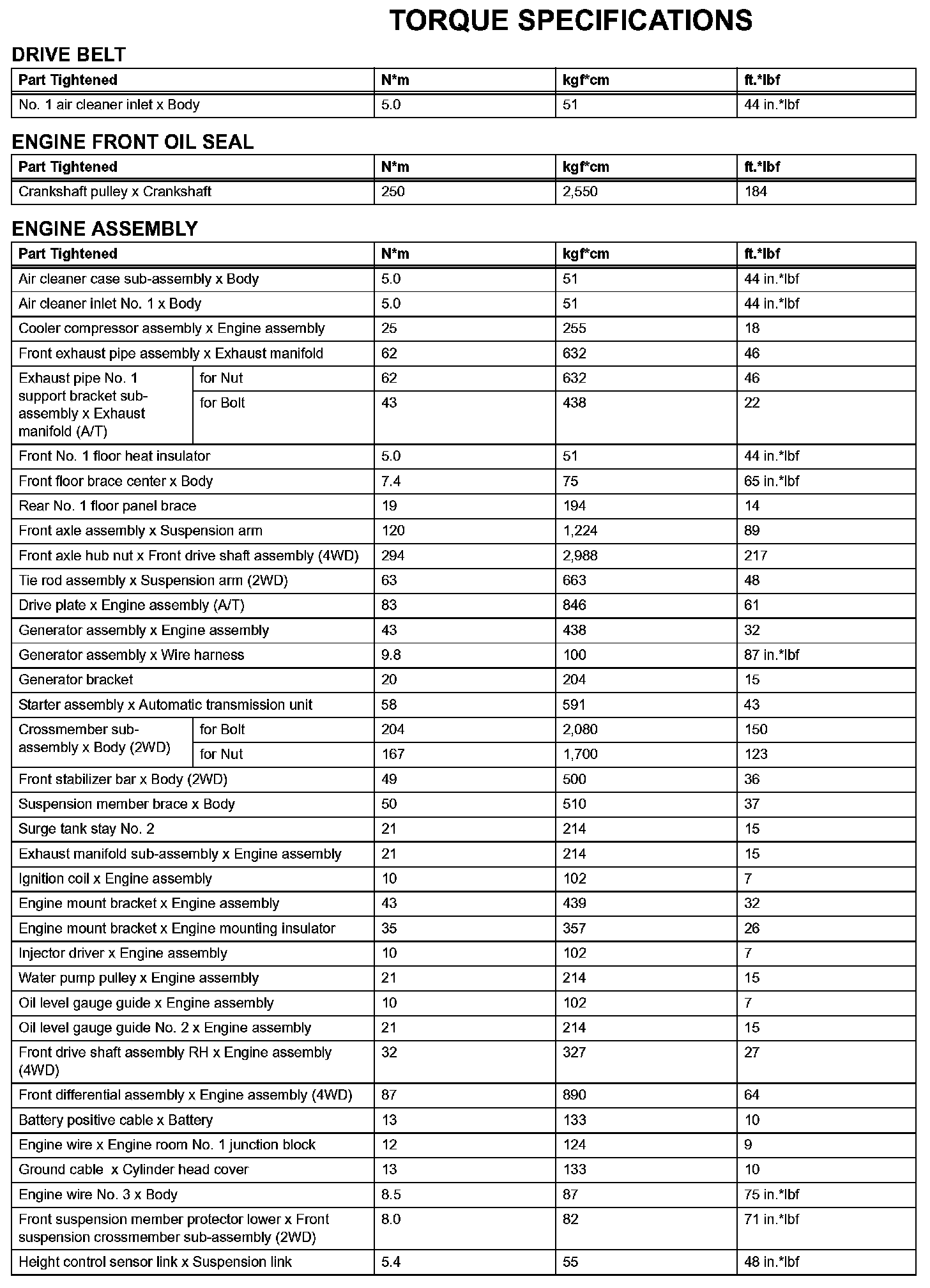

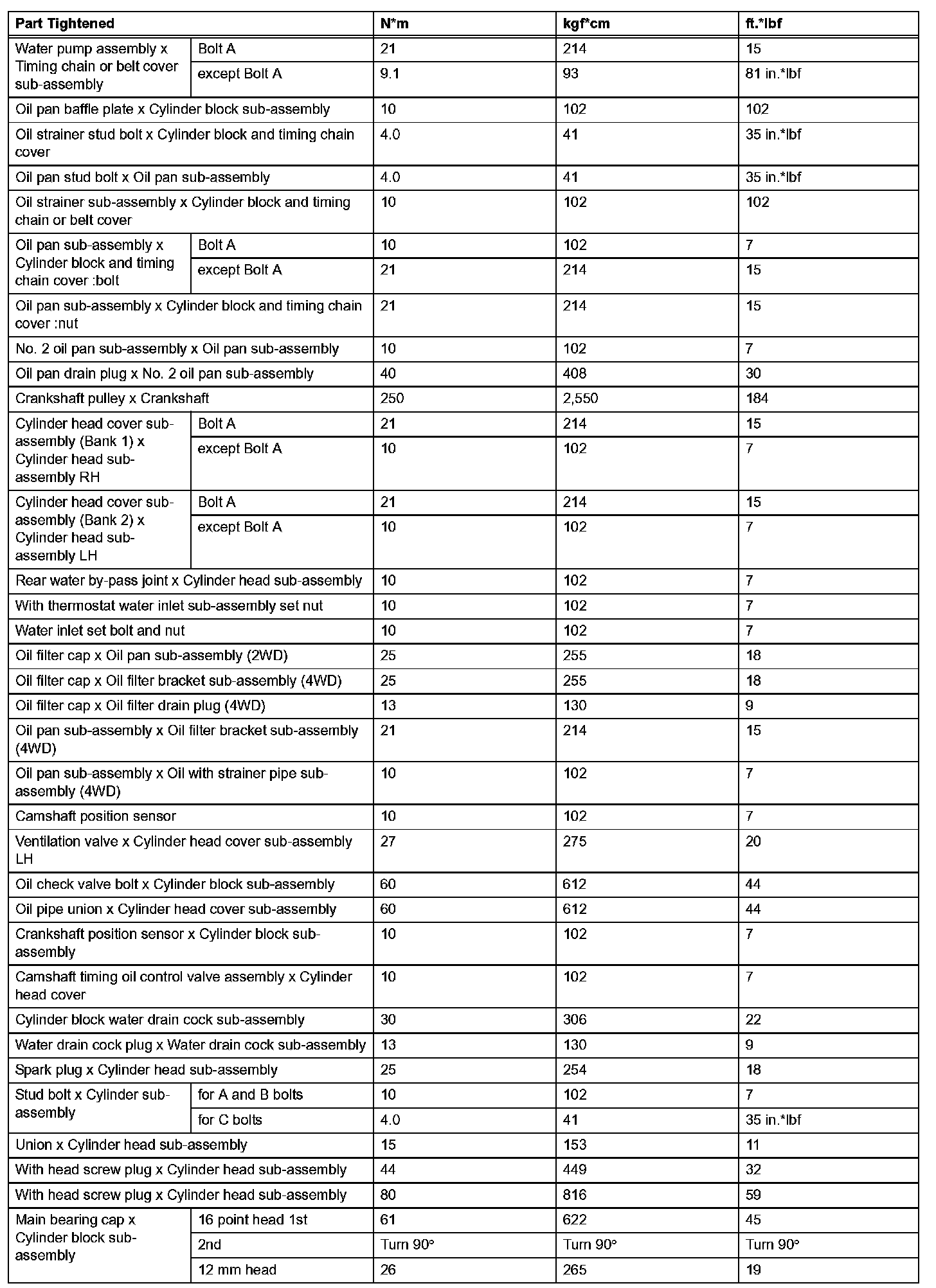

Engine Mechanical-Torque Specifications (Part 1):



Engine Mechanical-Torque Specifications (Part 2):



Engine Mechanical-Torque Specifications (Part 3):



Engine Mechanical-Torque Specifications (Part 4):
