Fuse Block: Locations

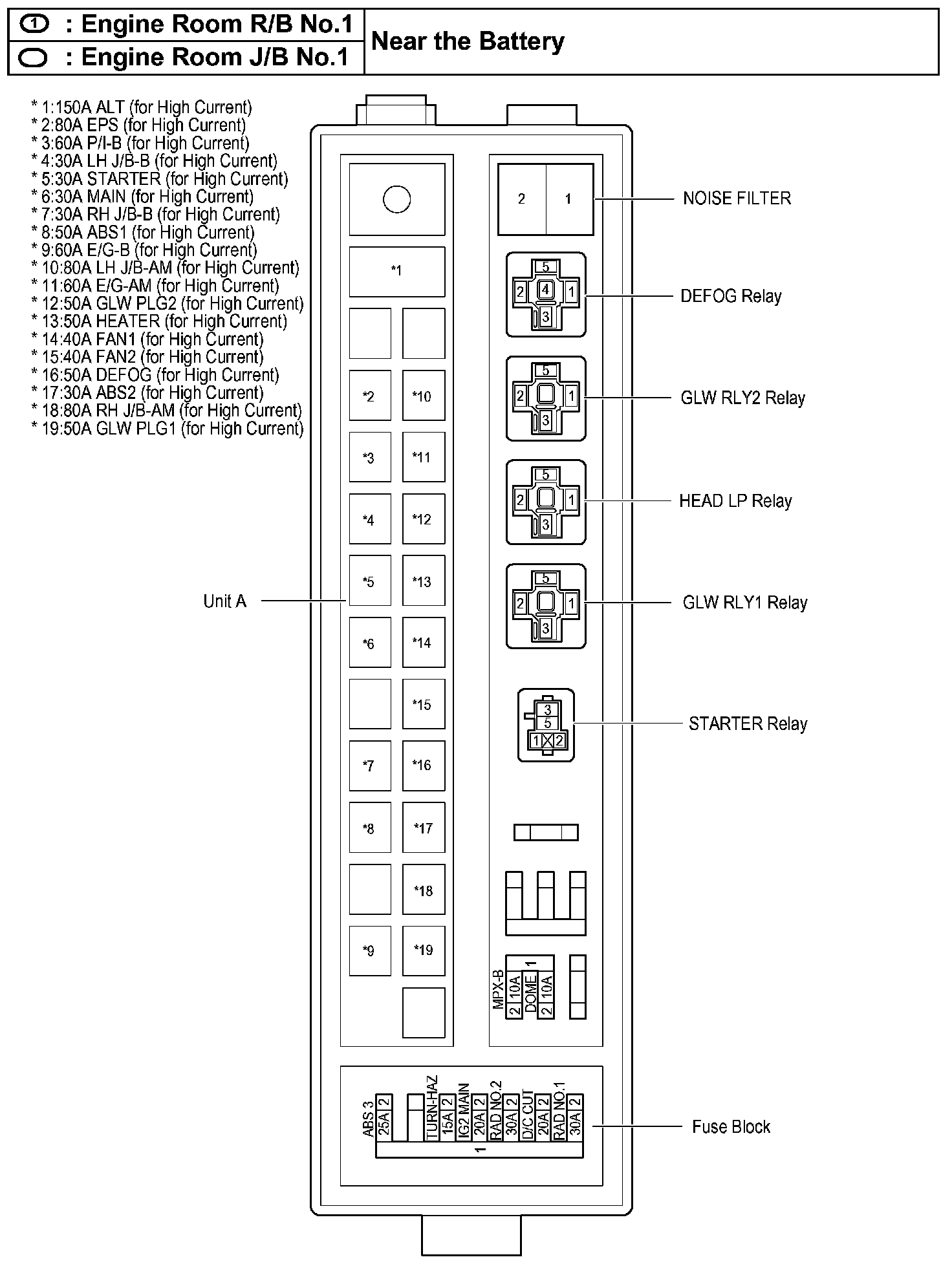

Engine Room R/B 1:

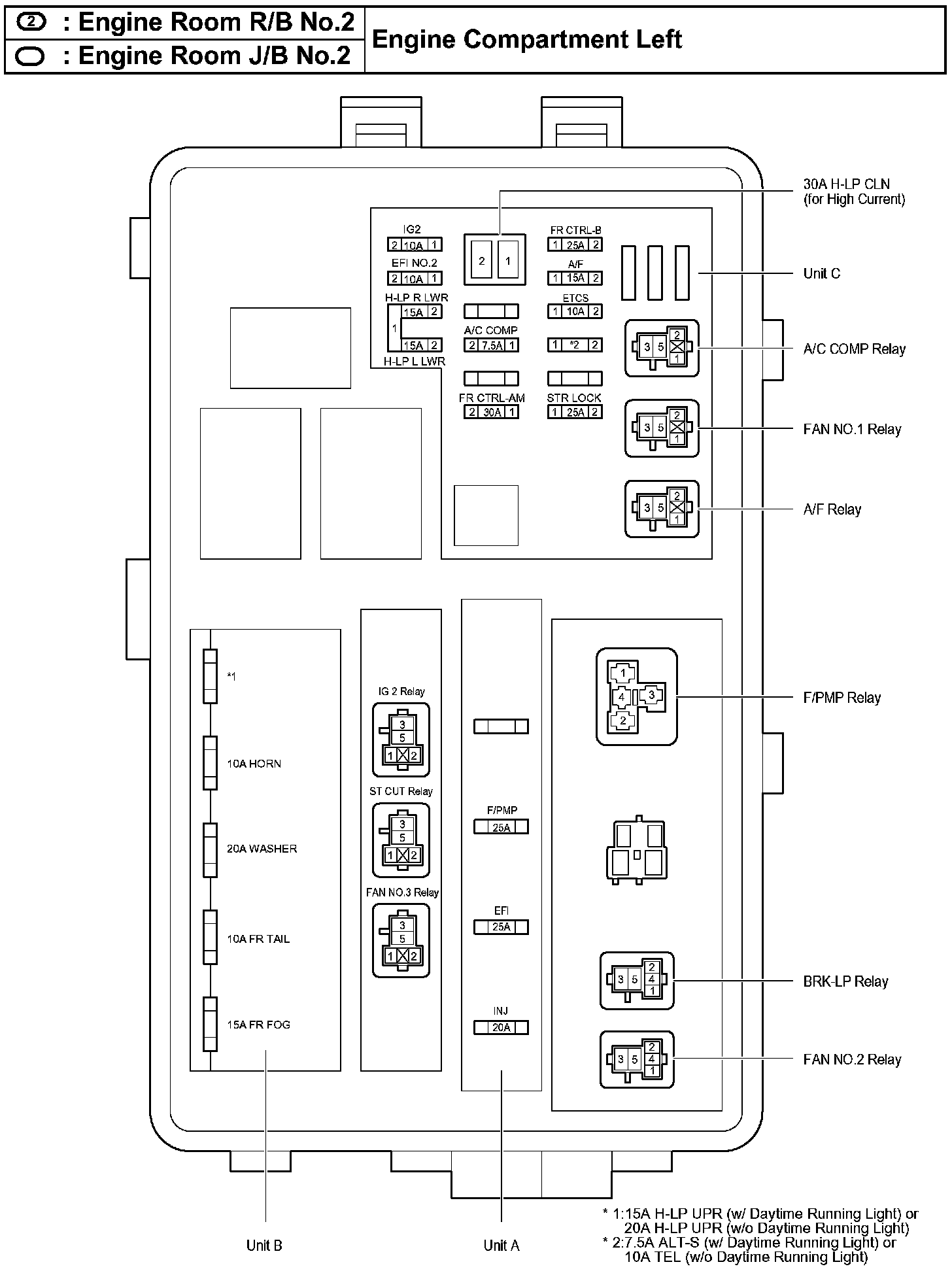

Engine Room R/B 2:

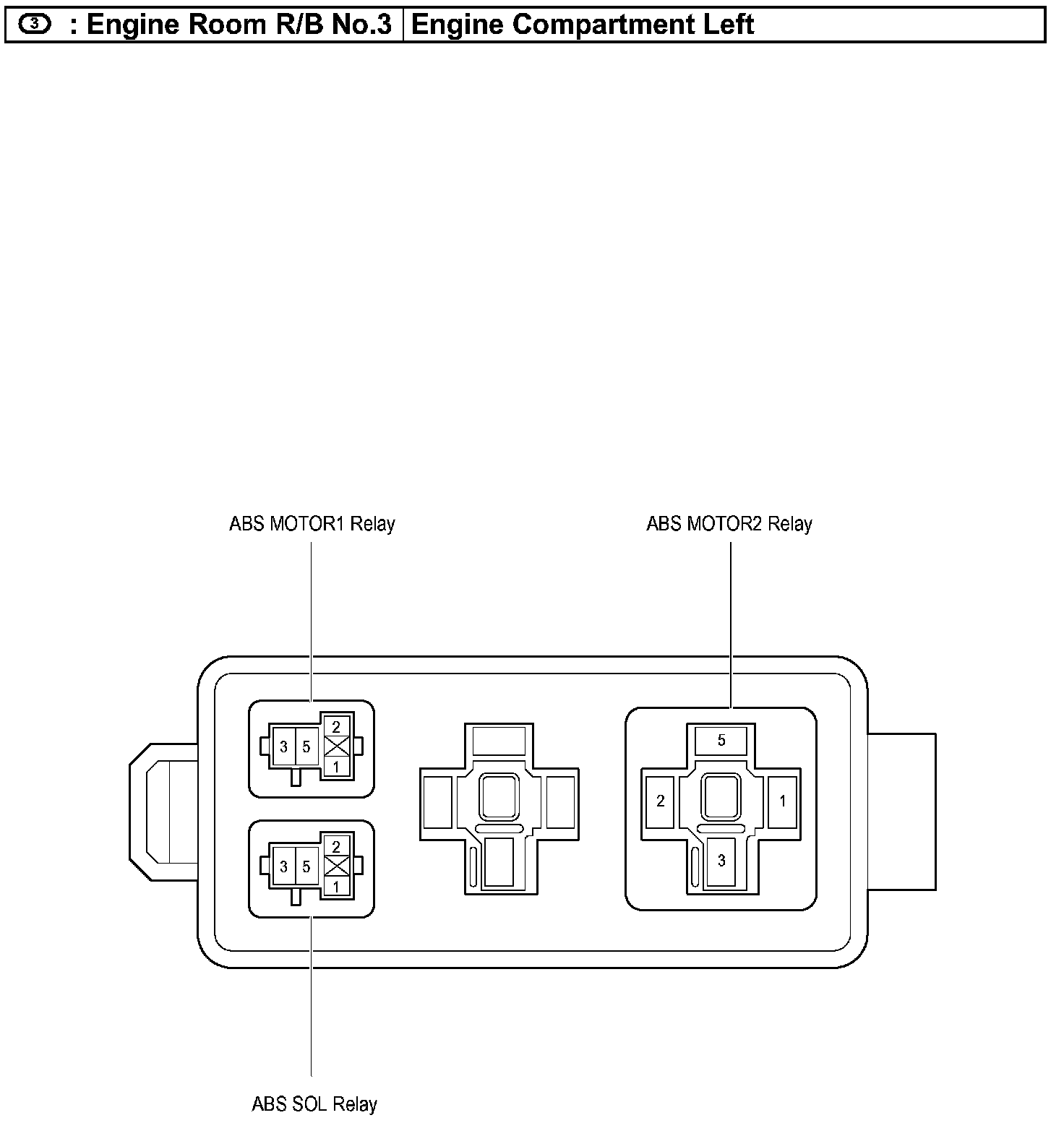

Engine Room R/B 3:

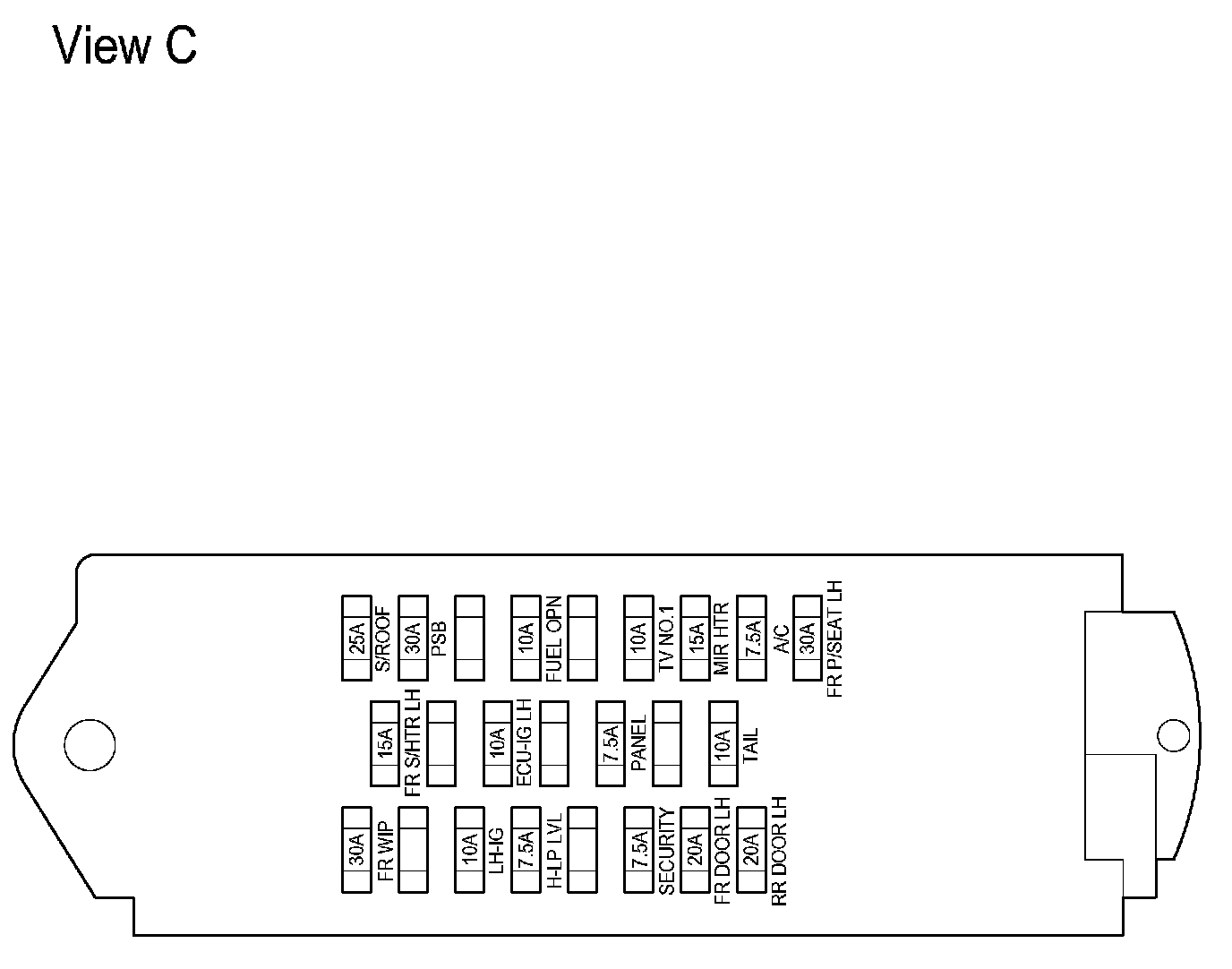

Cowl Side J/B - Left:

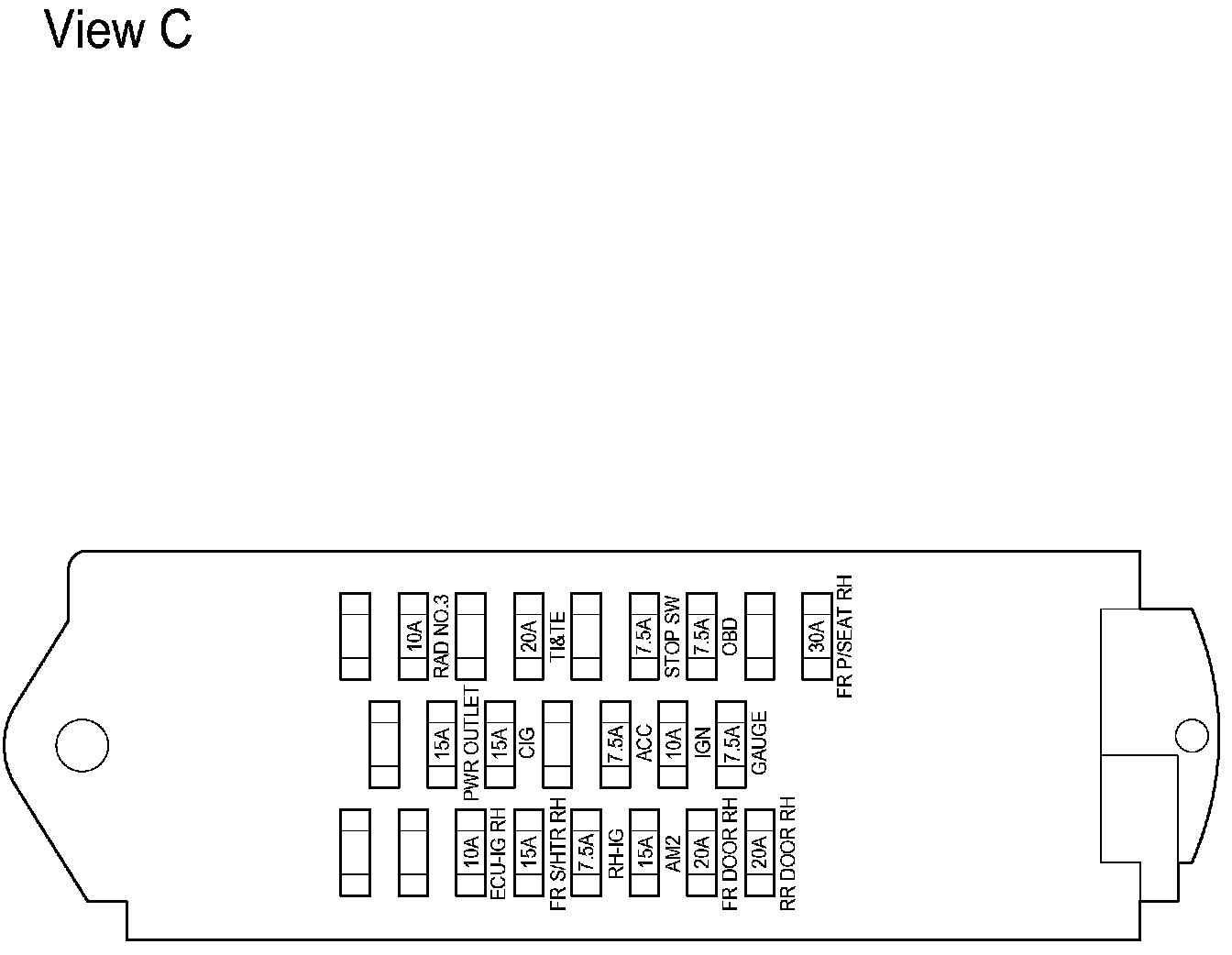

Cowl Side J/B - Right:

Fuse Details

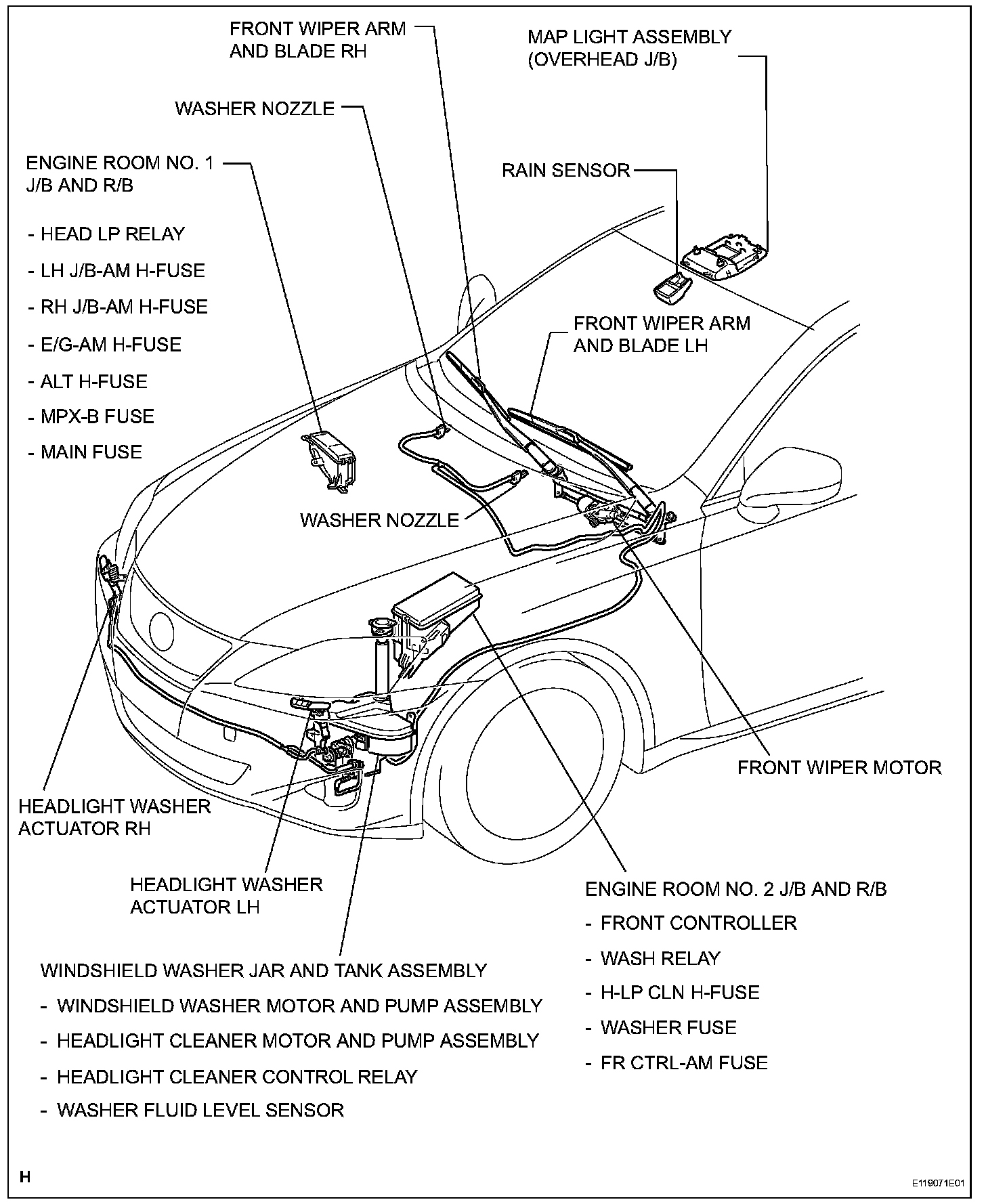

Wiper And Washer System:

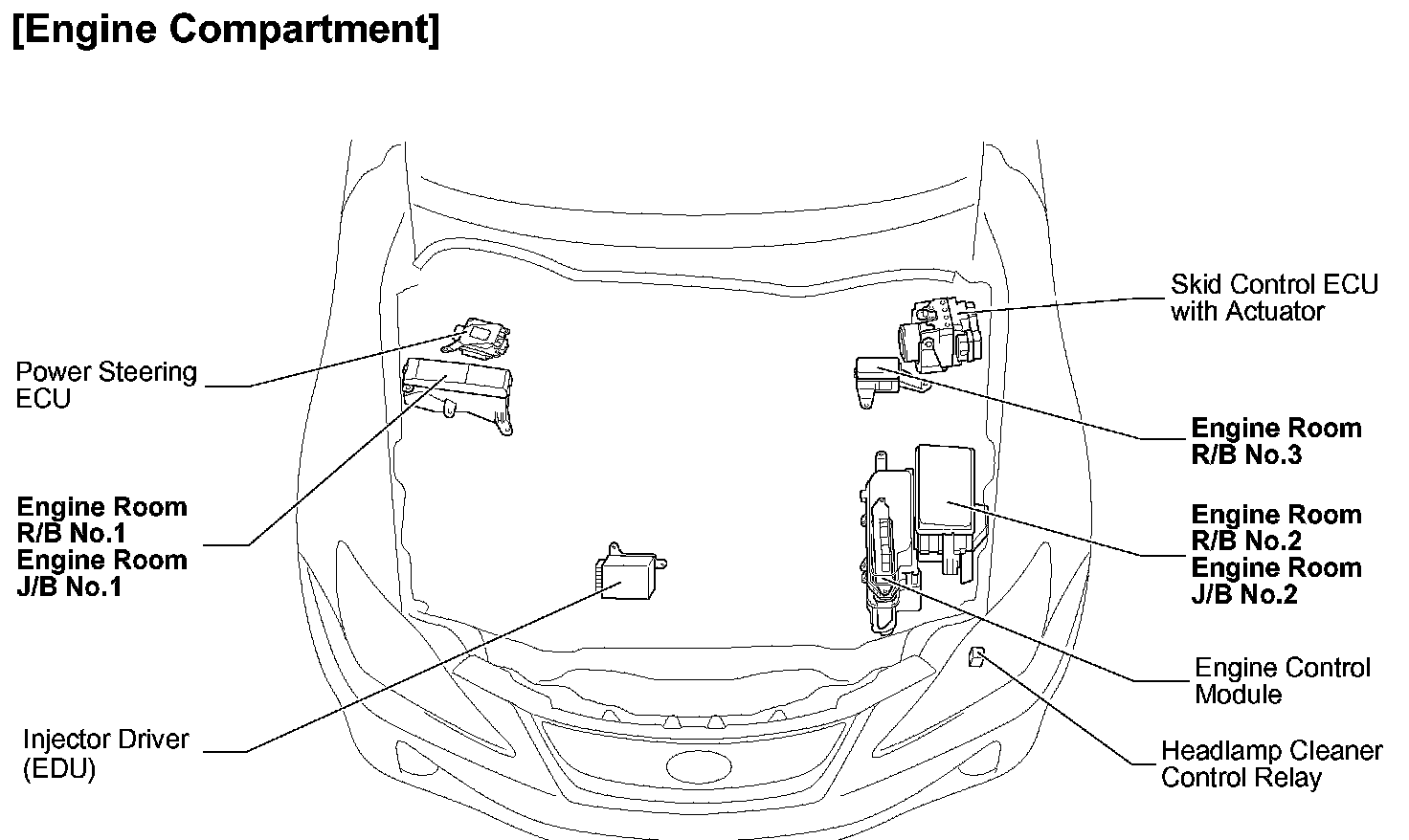

Engine Compartment:

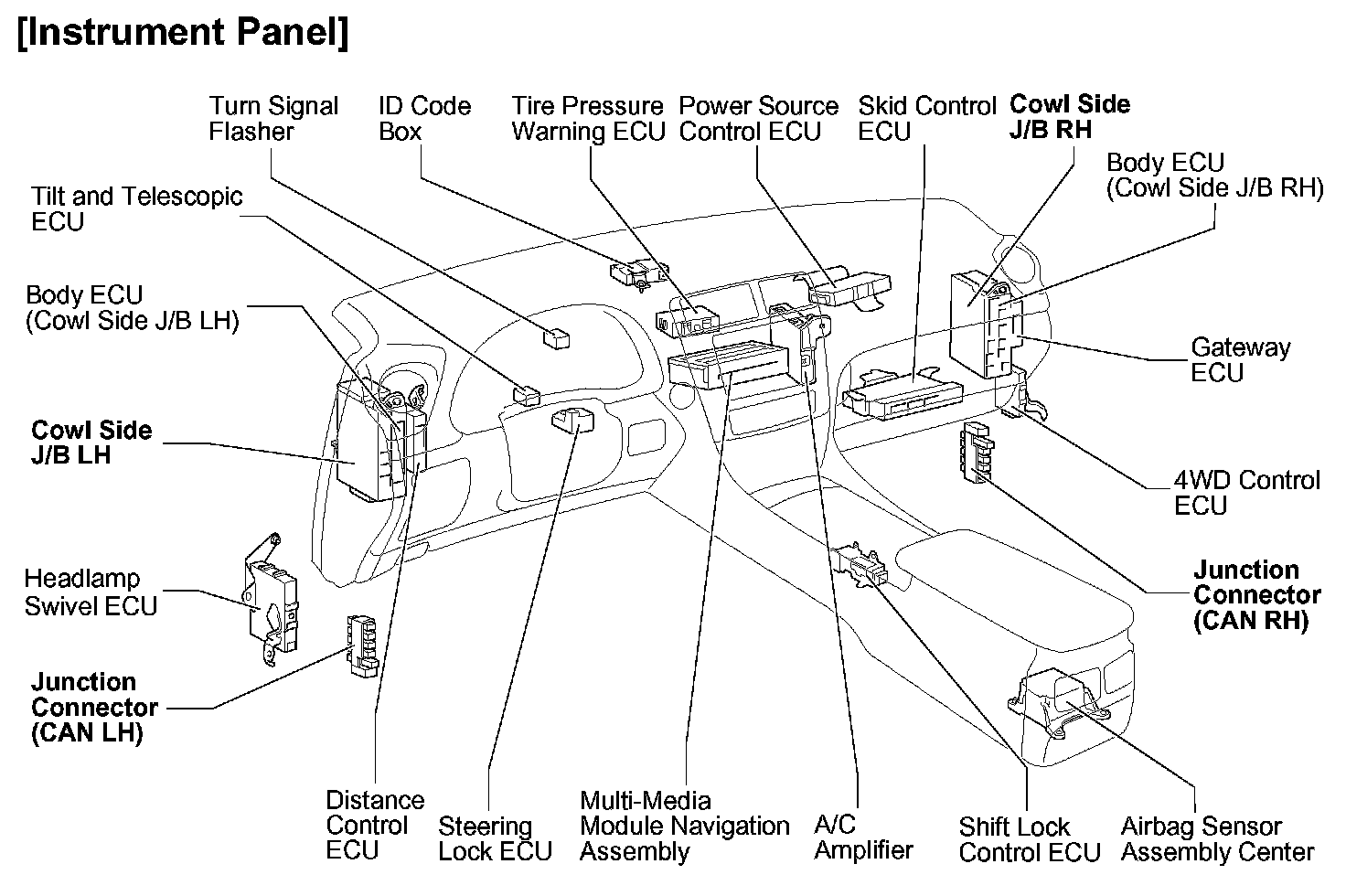

Instrument Panel:

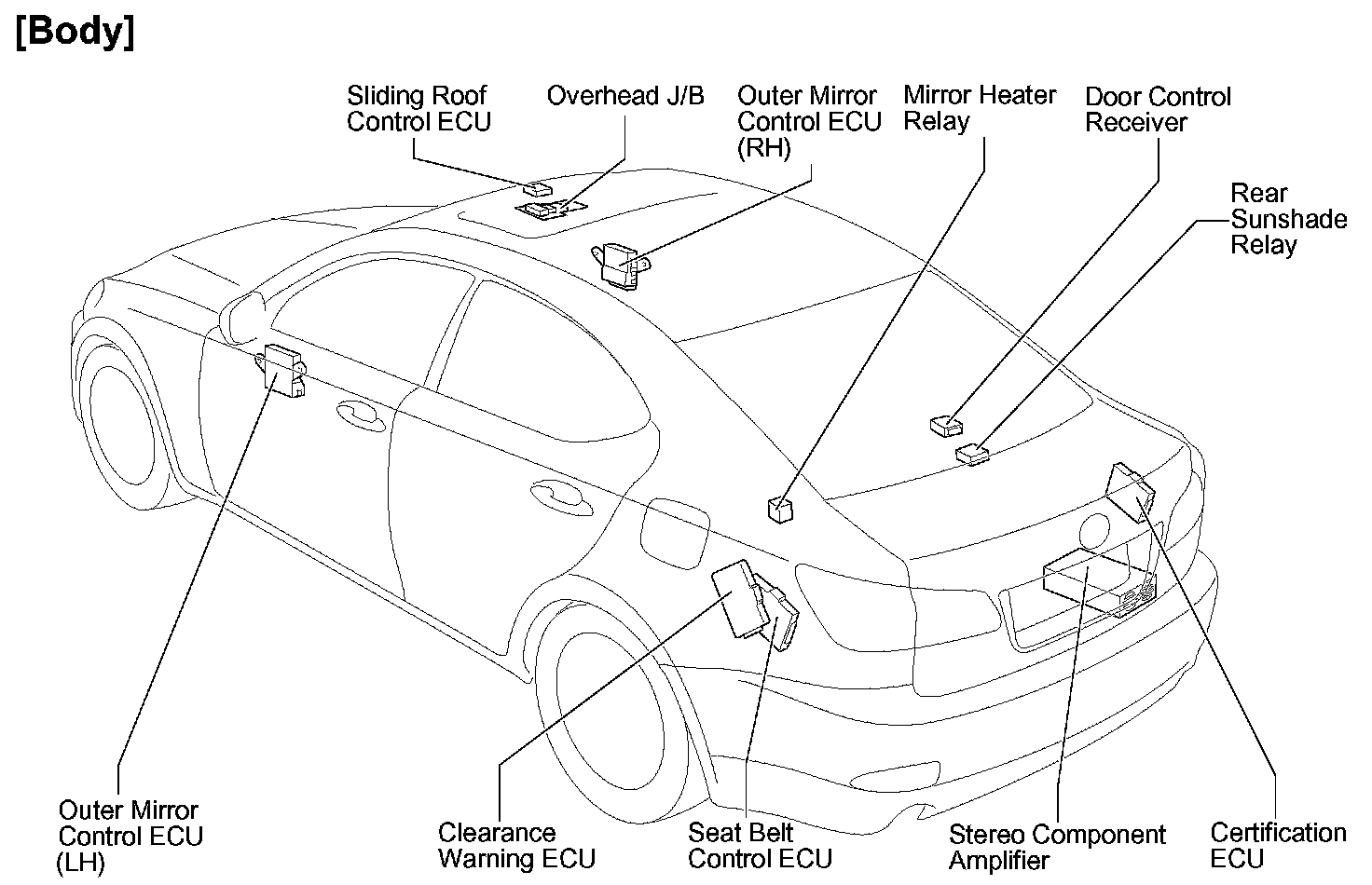

Body:

Locations
