System Diagram
System Diagram

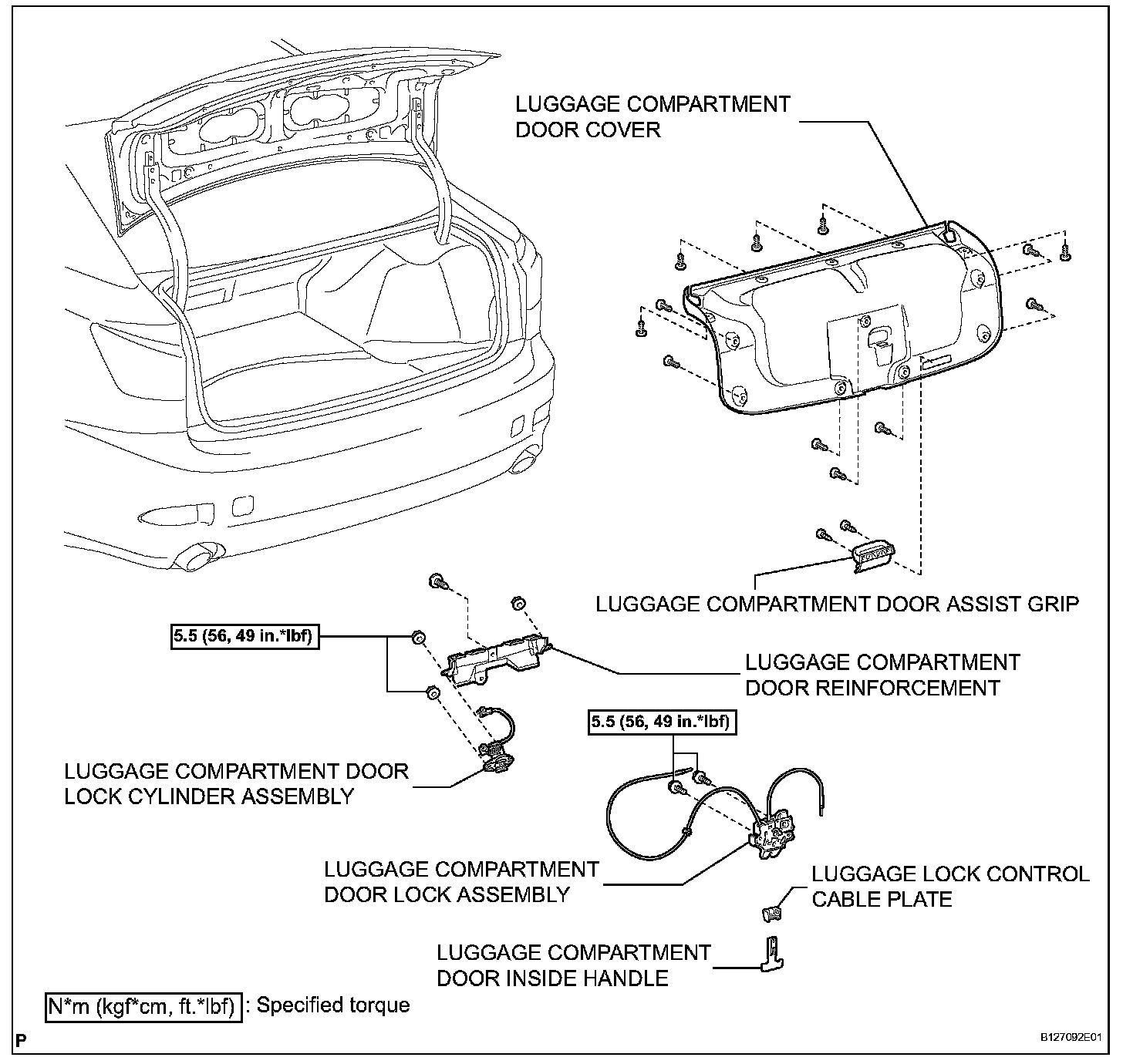

Luggage Compartment Door:

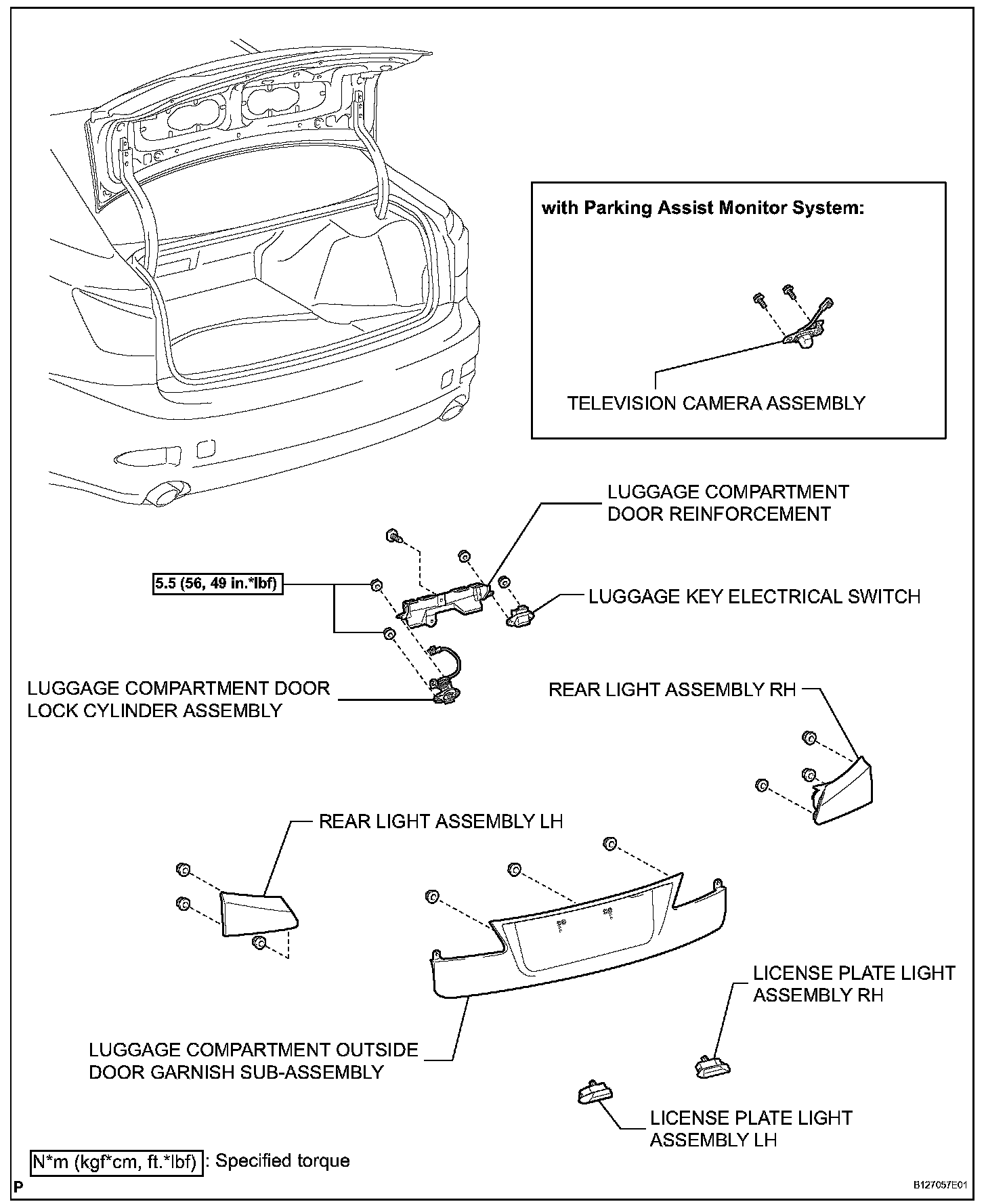

Luggage Compartment Door:

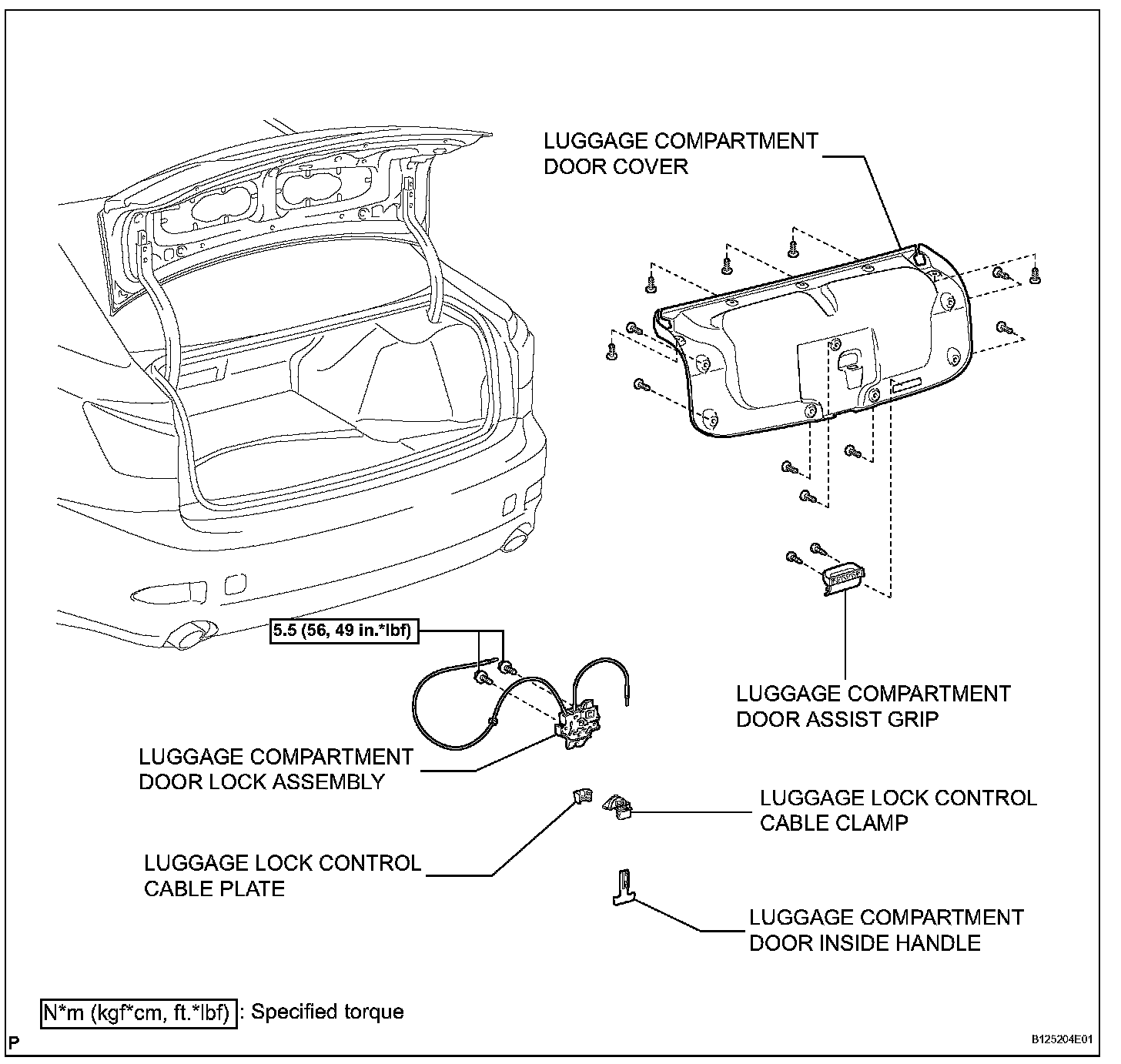

Luggage Compartment Door Lock:
