Home >> Lexus >> 2006 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seat Occupant Sensor

Seat Occupant Sensor

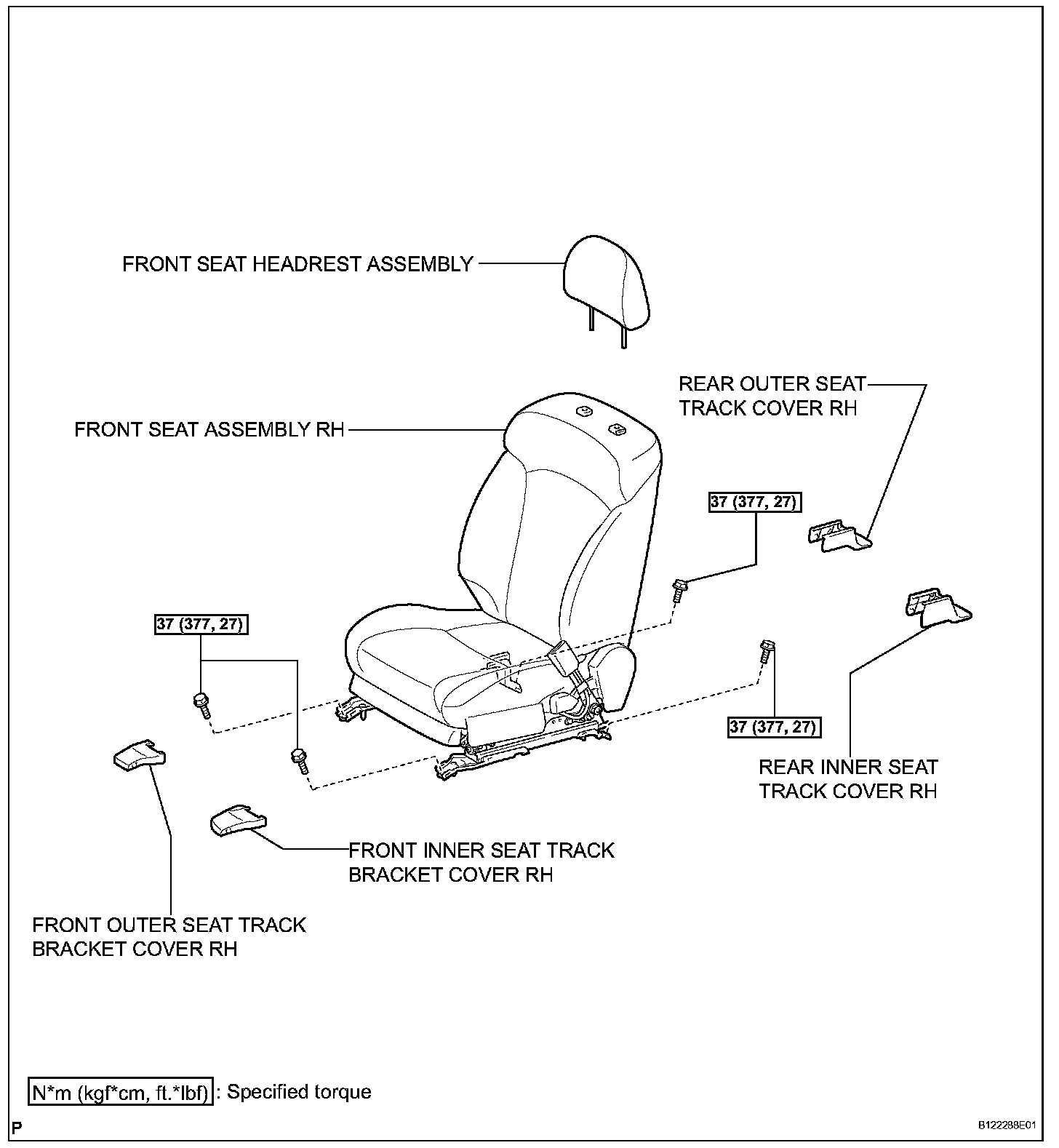

Occupant Detection Sensor (for Manual Seat):

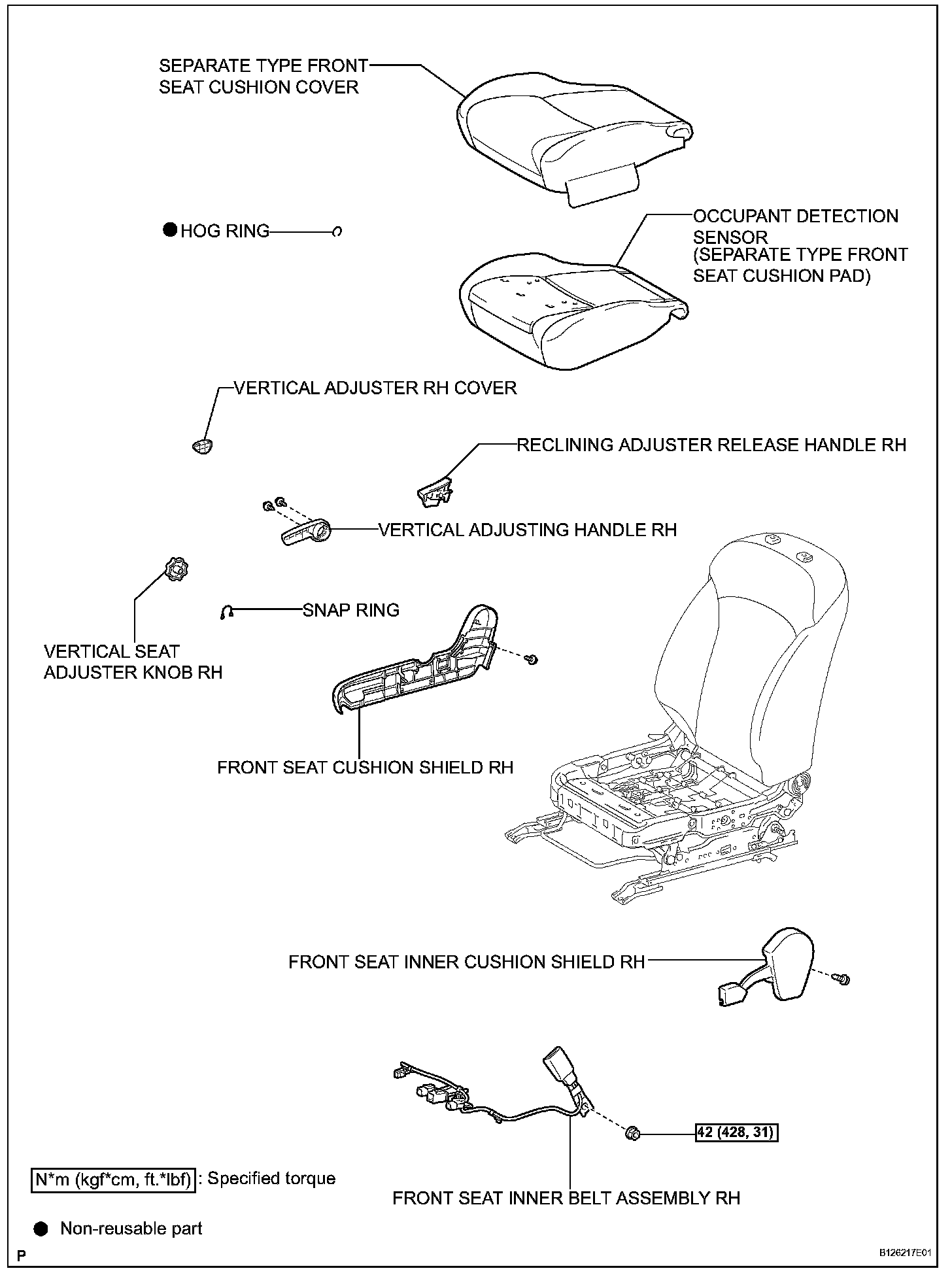

Occupant Detection Sensor (for Manual Seat):

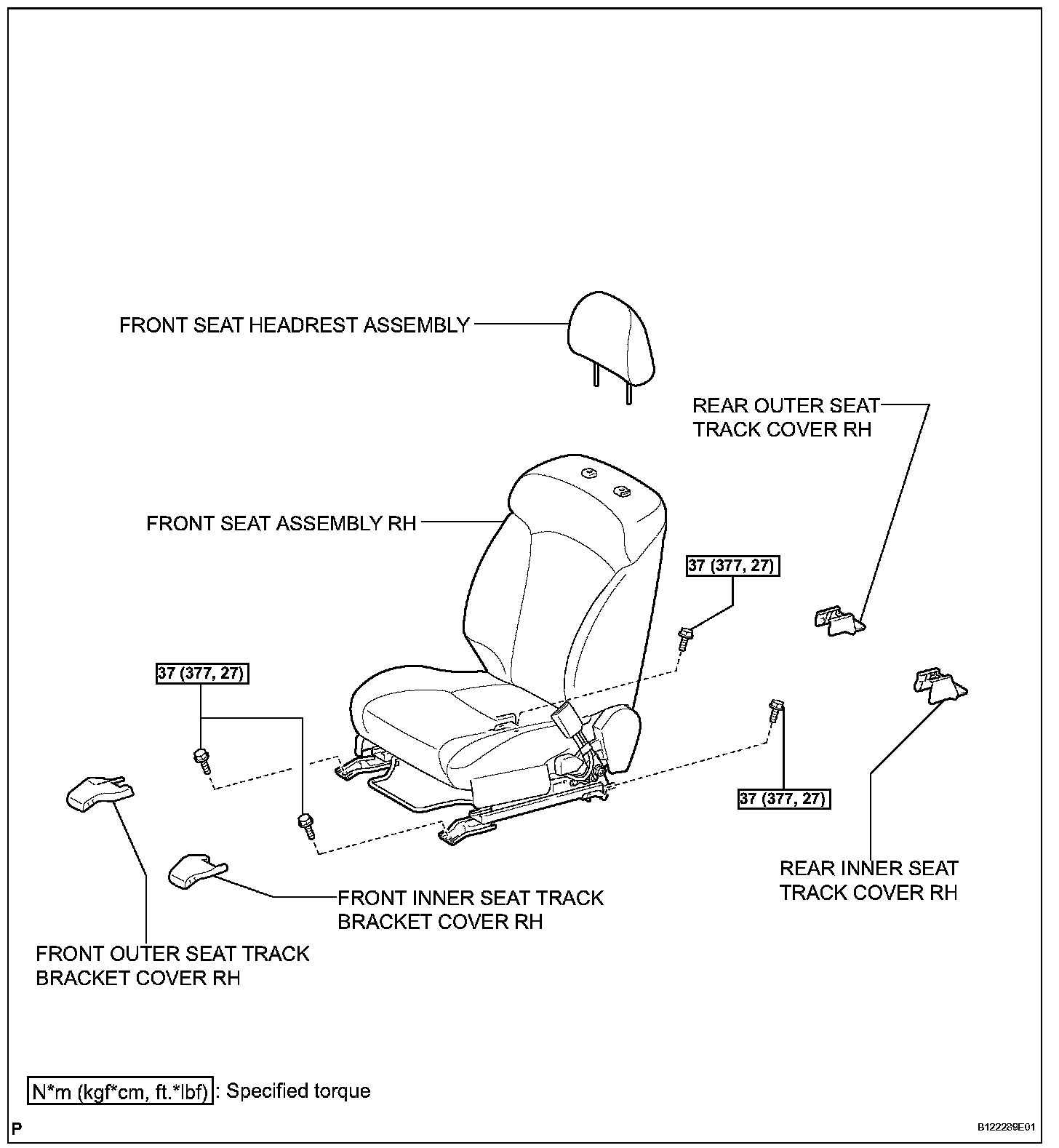

Occupant Detection Sensor (for Power Seat):

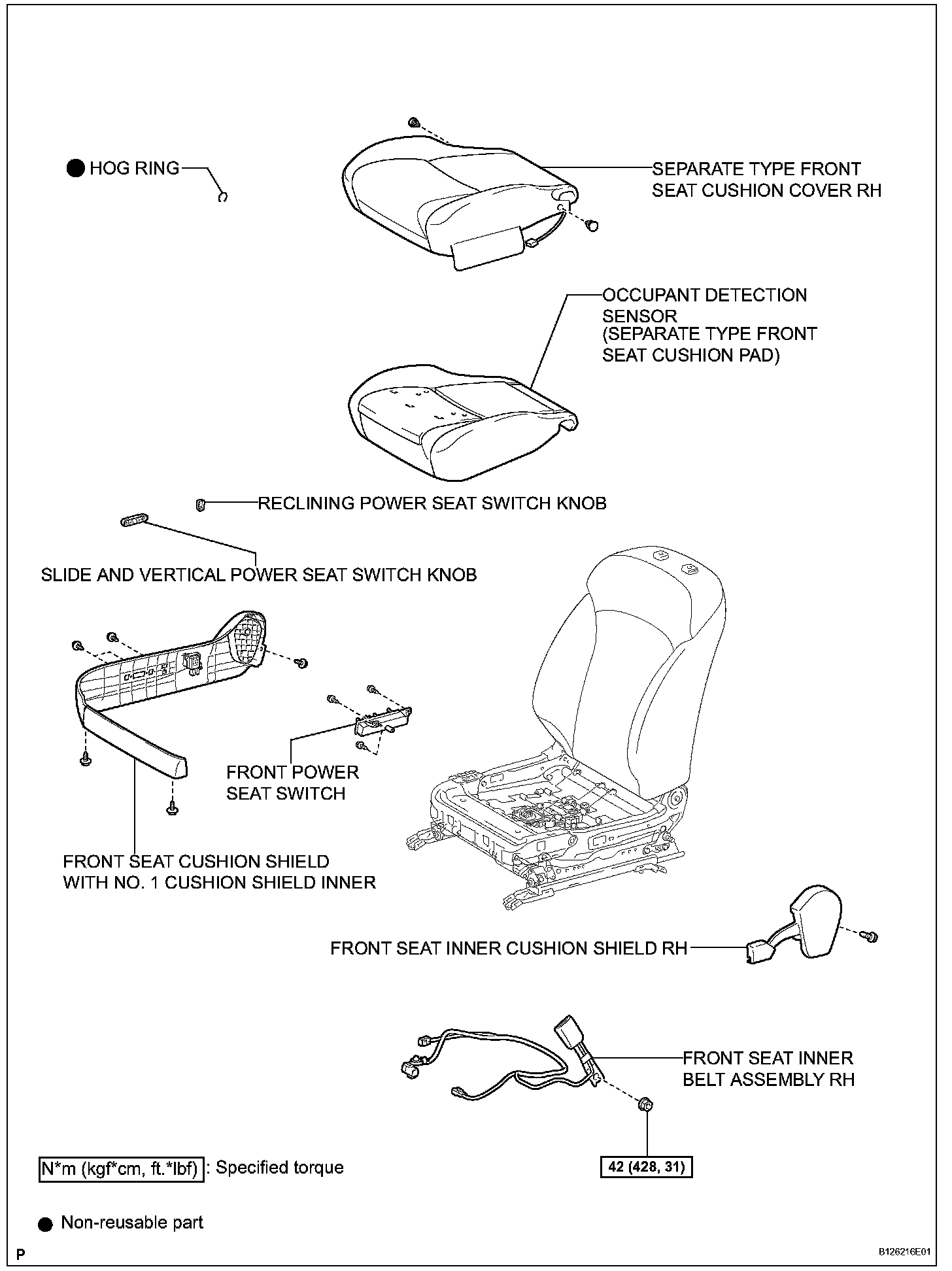

Occupant Detection Sensor (for Power Seat):
