Power Window Motor

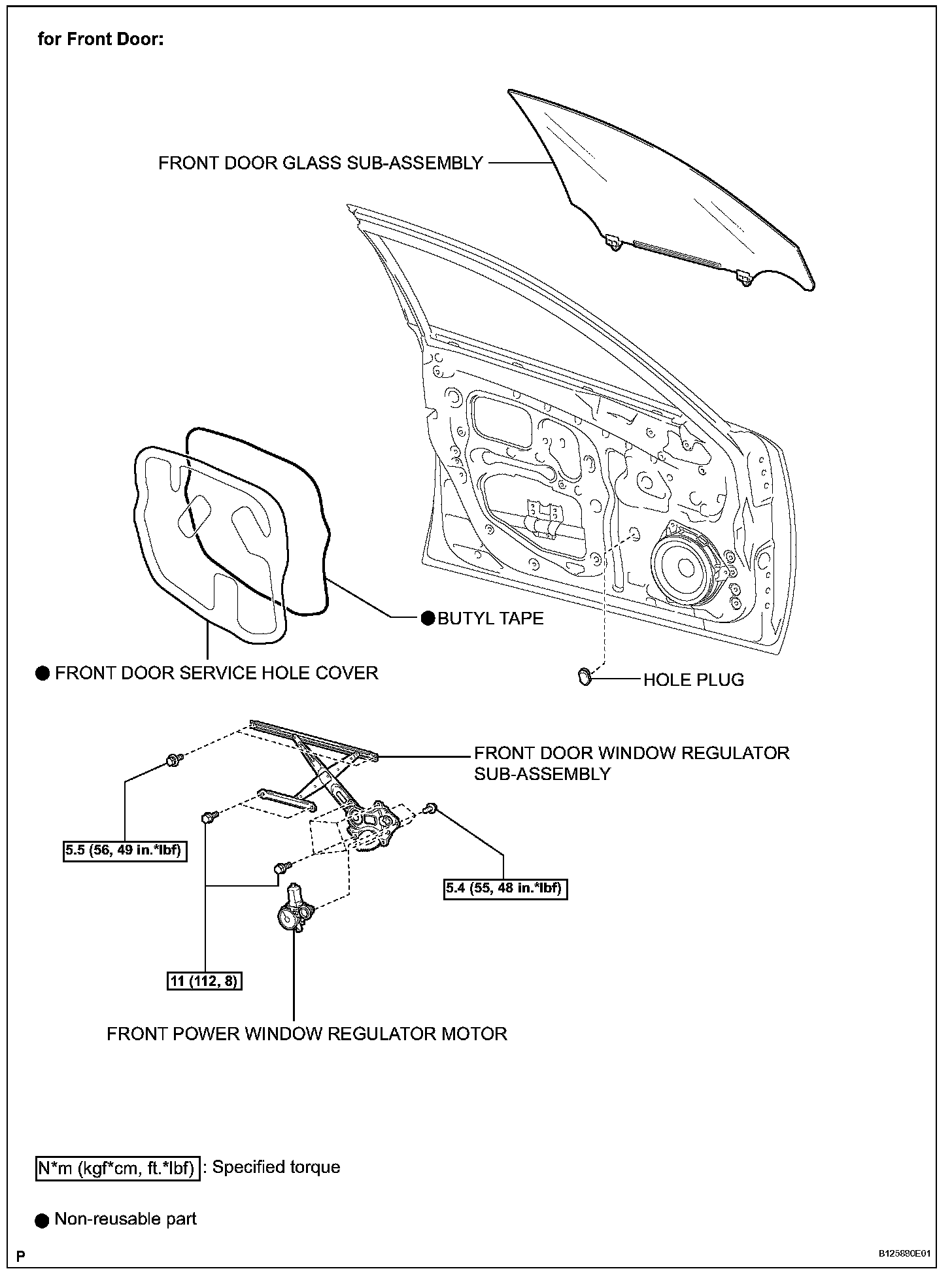

Power Window Regulator Motor:

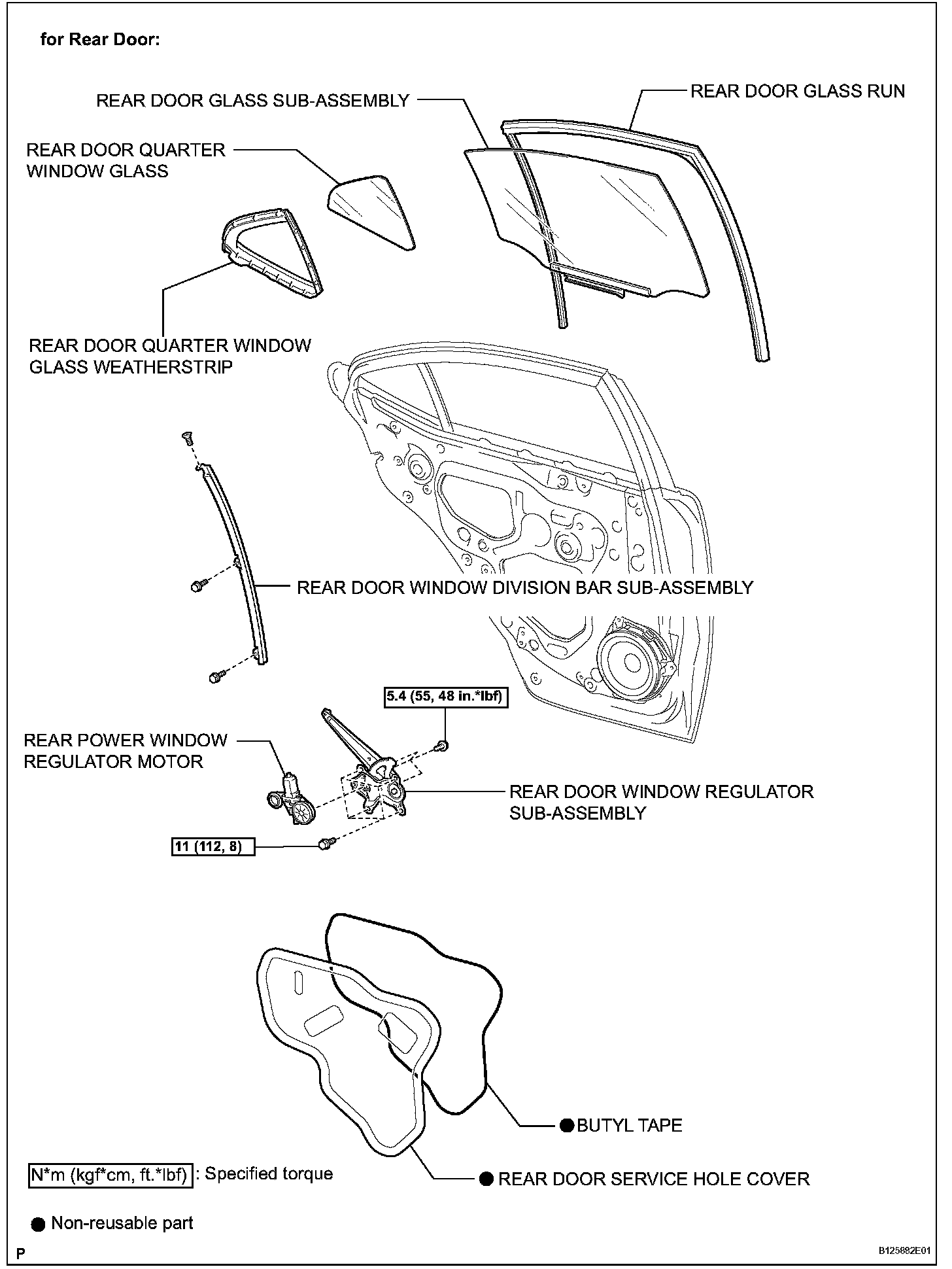

Power Window Regulator Motor:

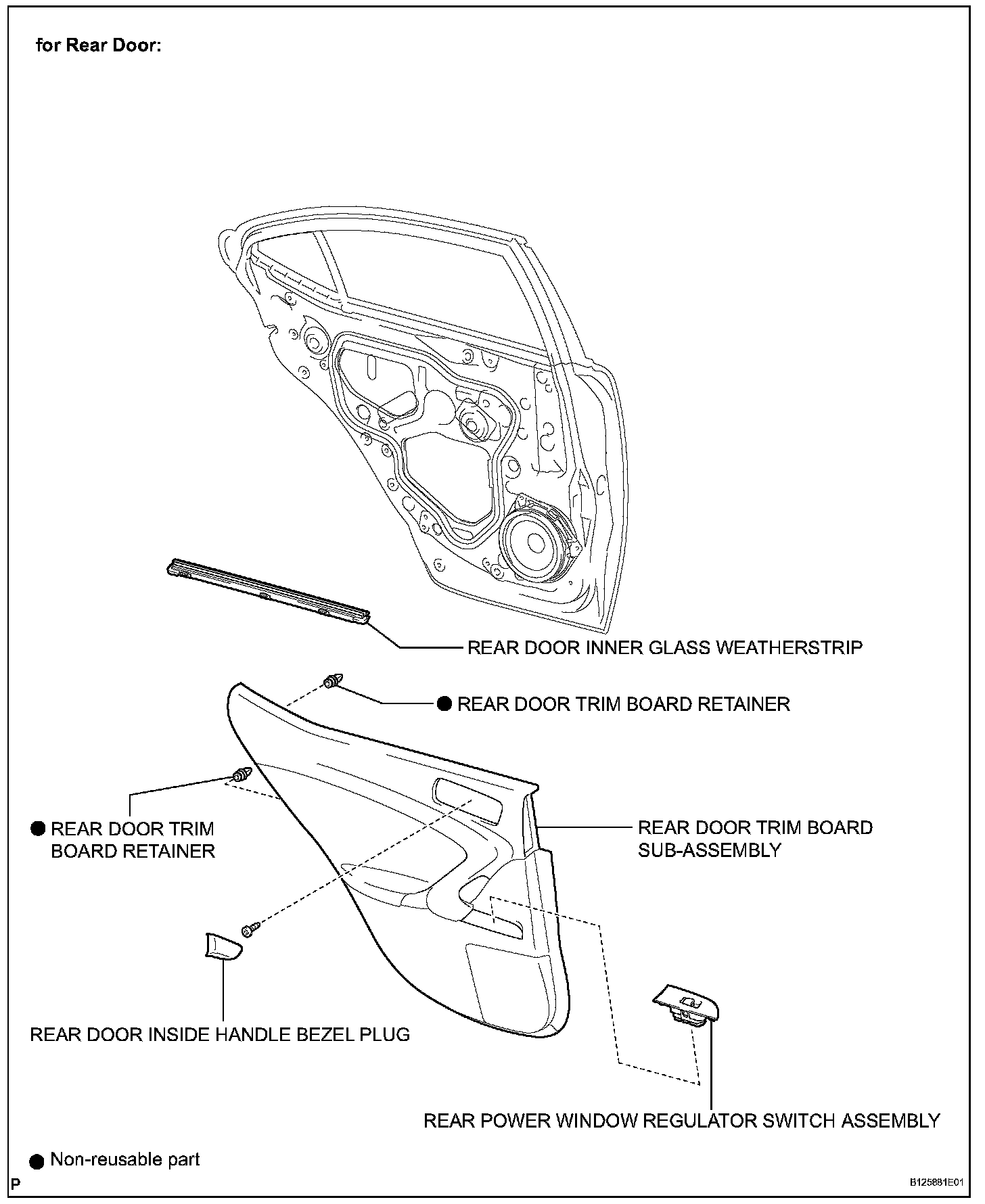

Power Window Regulator Motor:

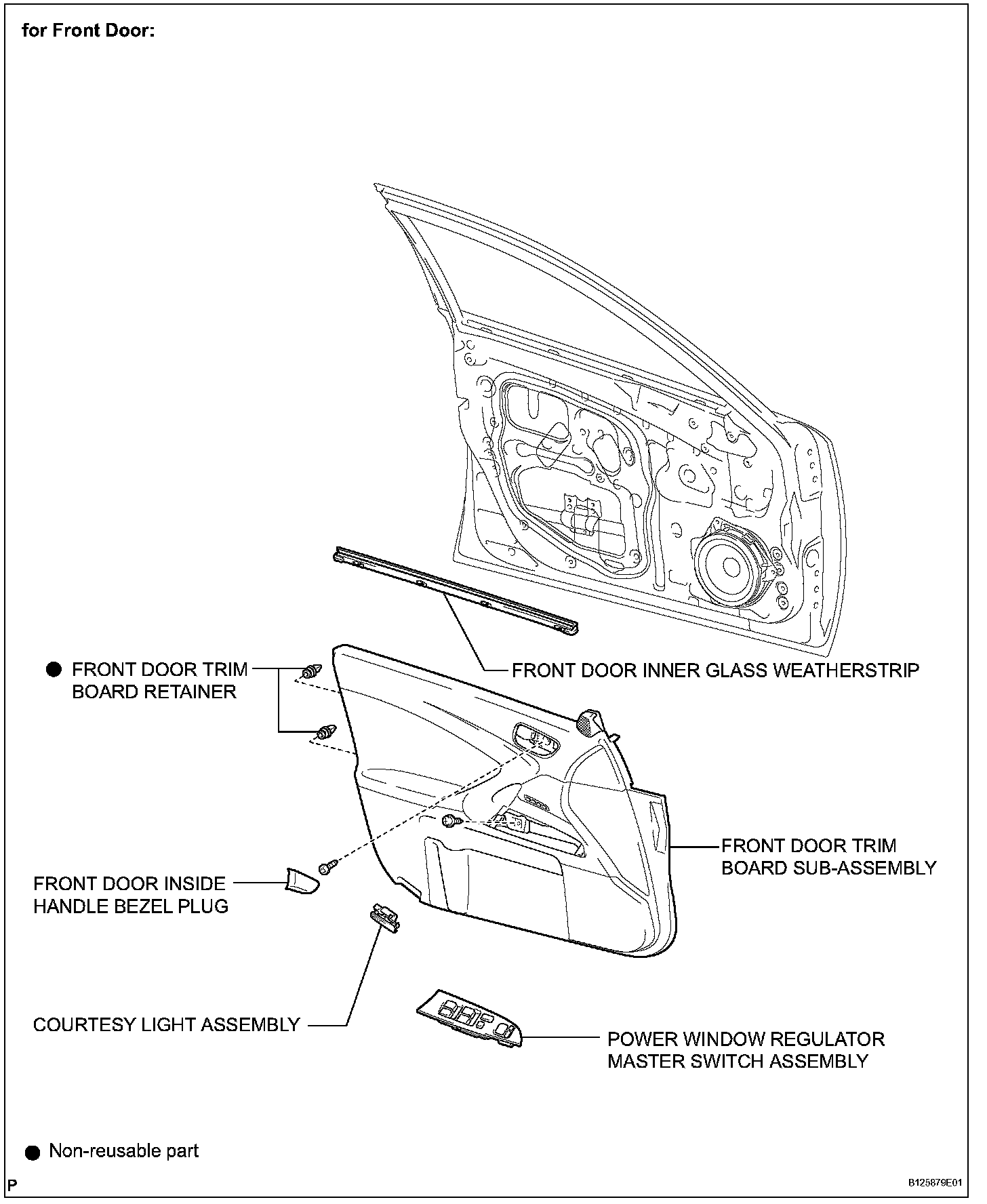

Power Window Regulator Motor:
