Control Assembly, HVAC

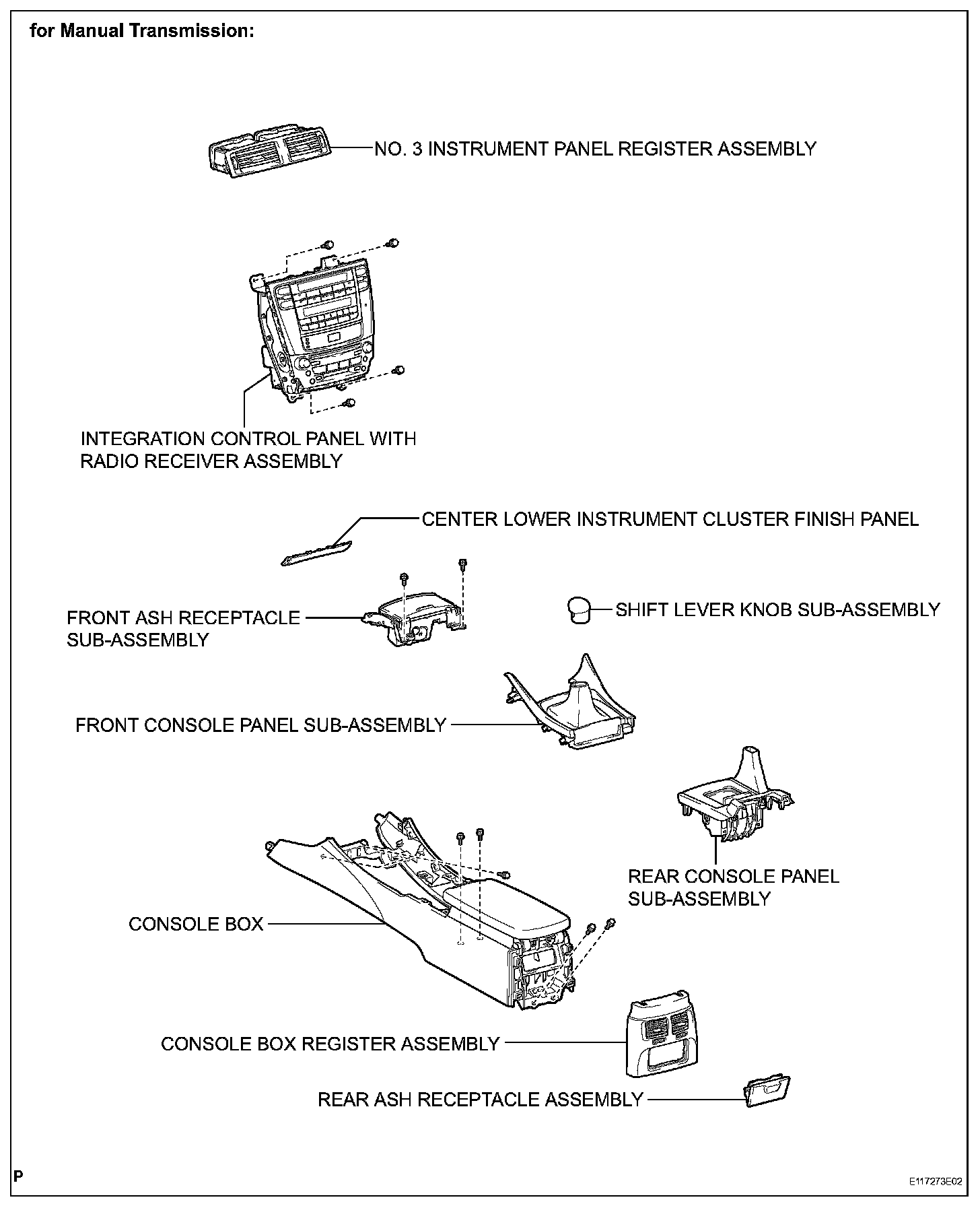

Integration Control And Panel:

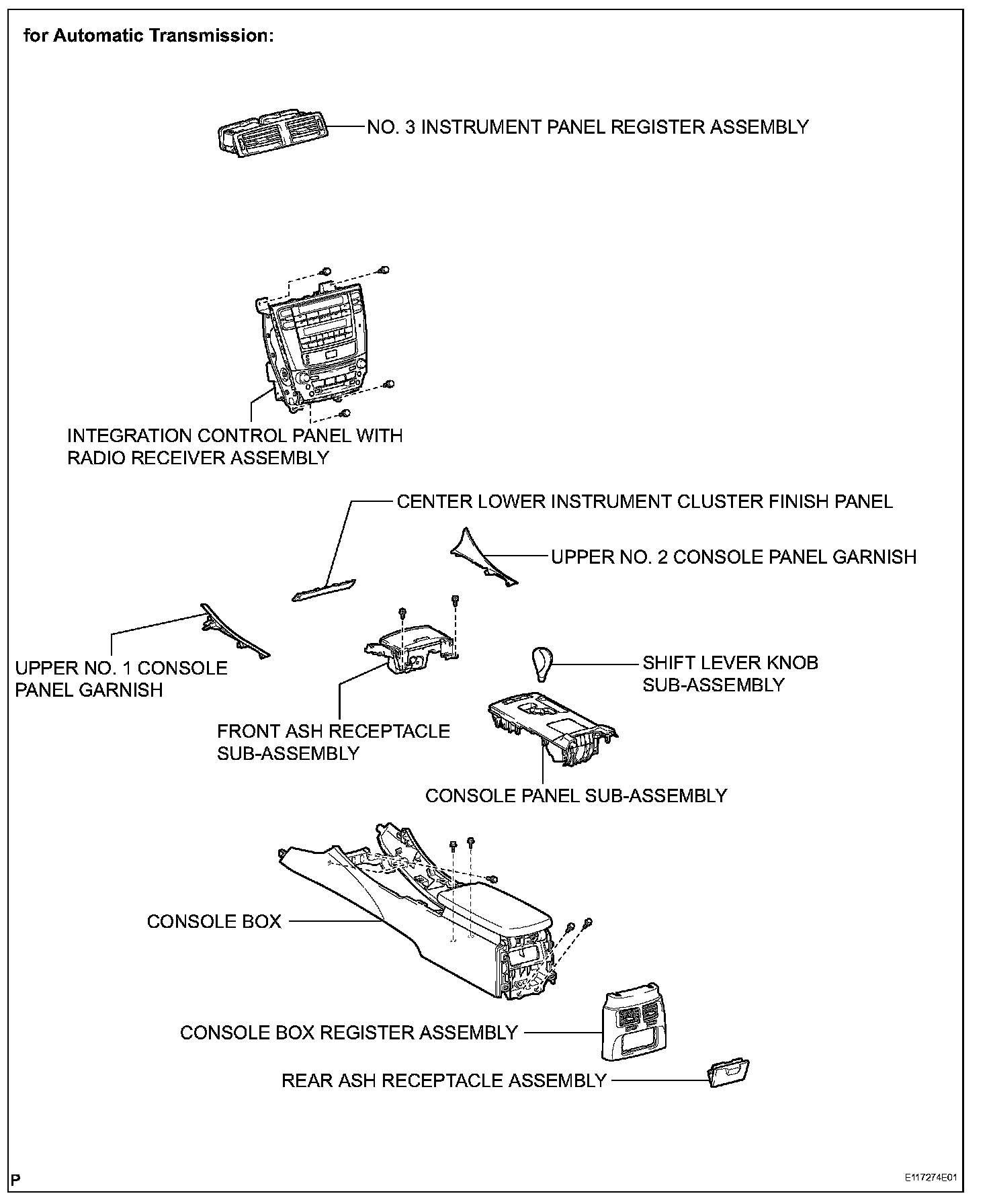

Integration Control And Panel:

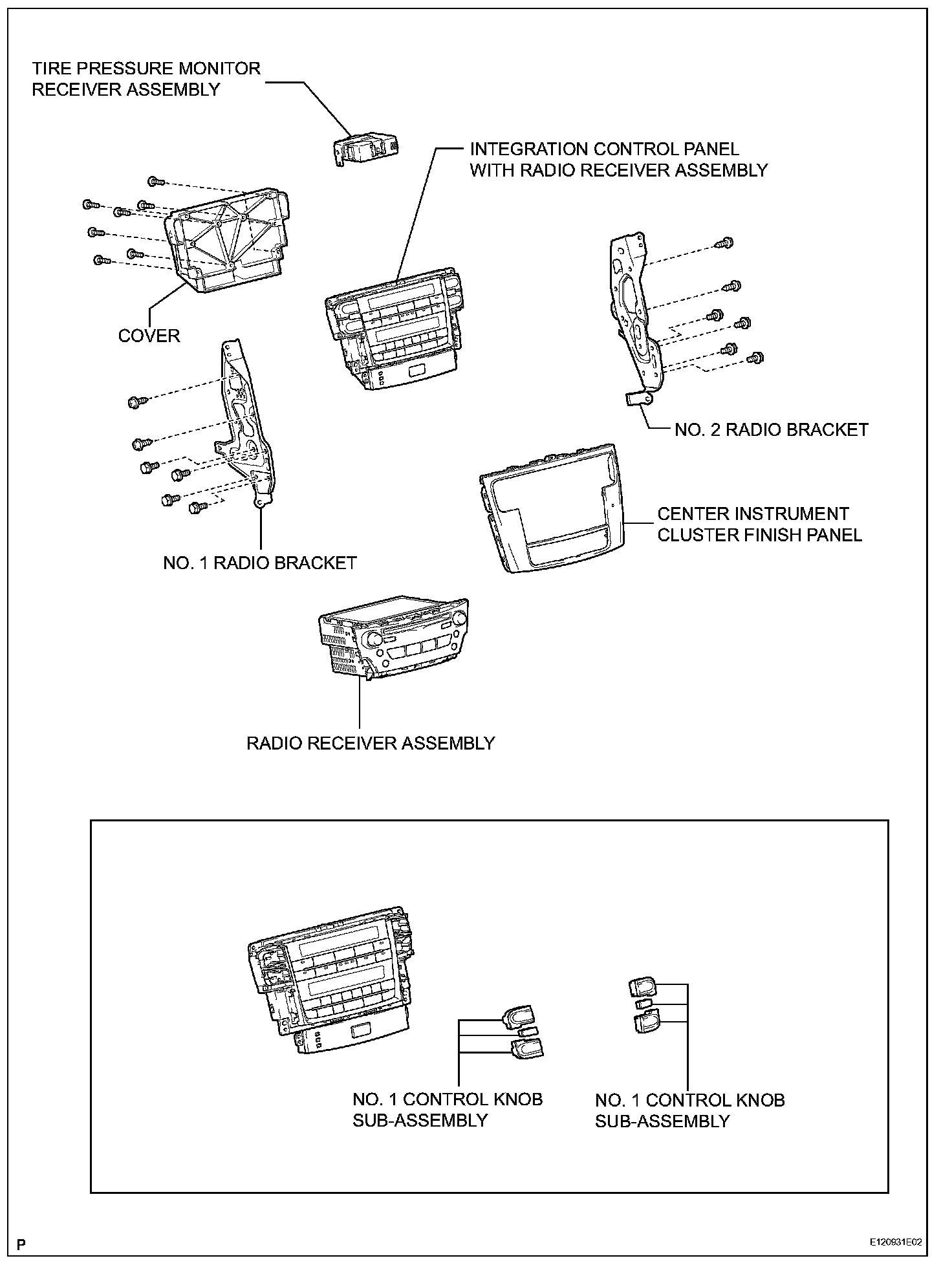

Integration Control And Panel:
