Differential Assembly
Differential Assembly

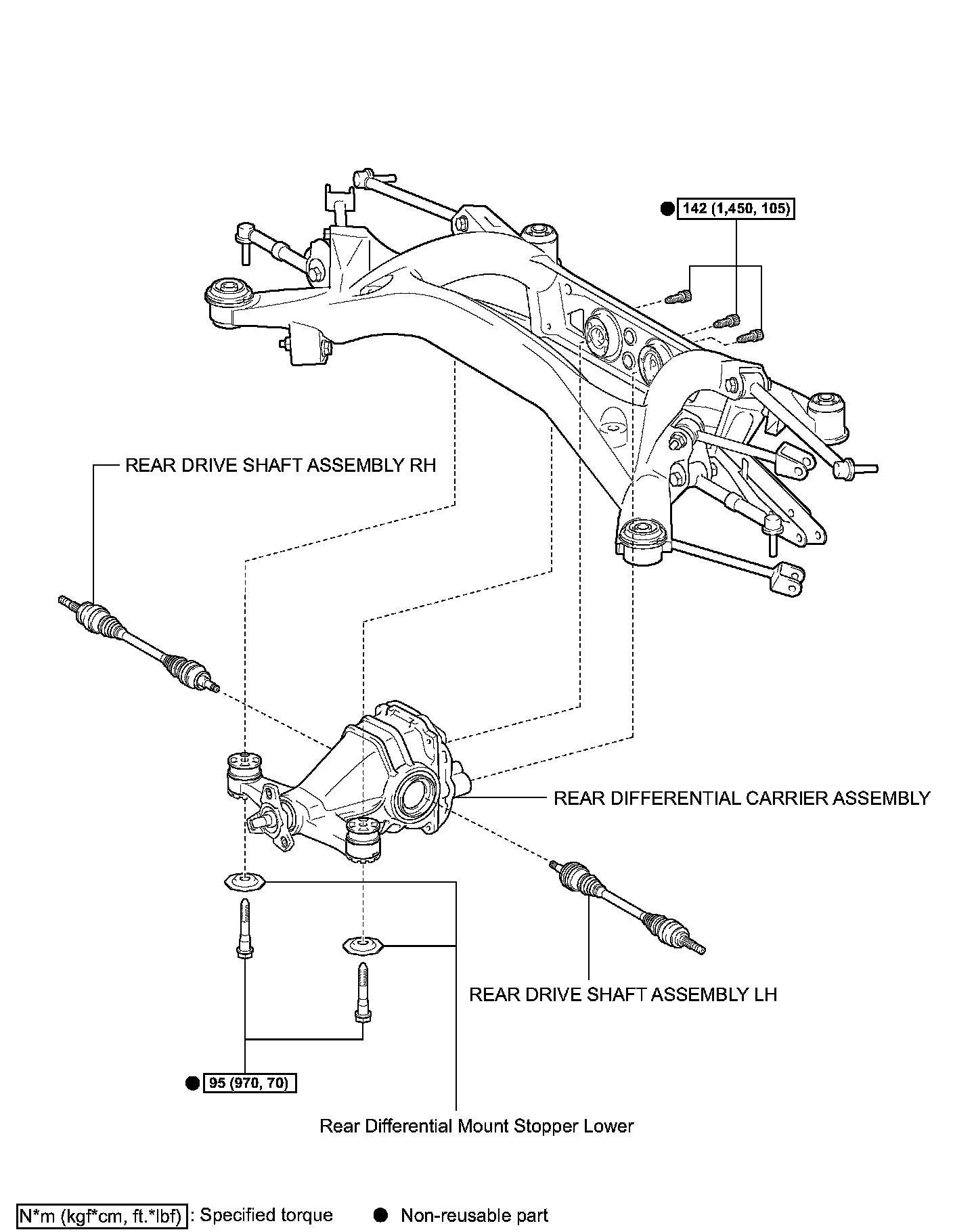

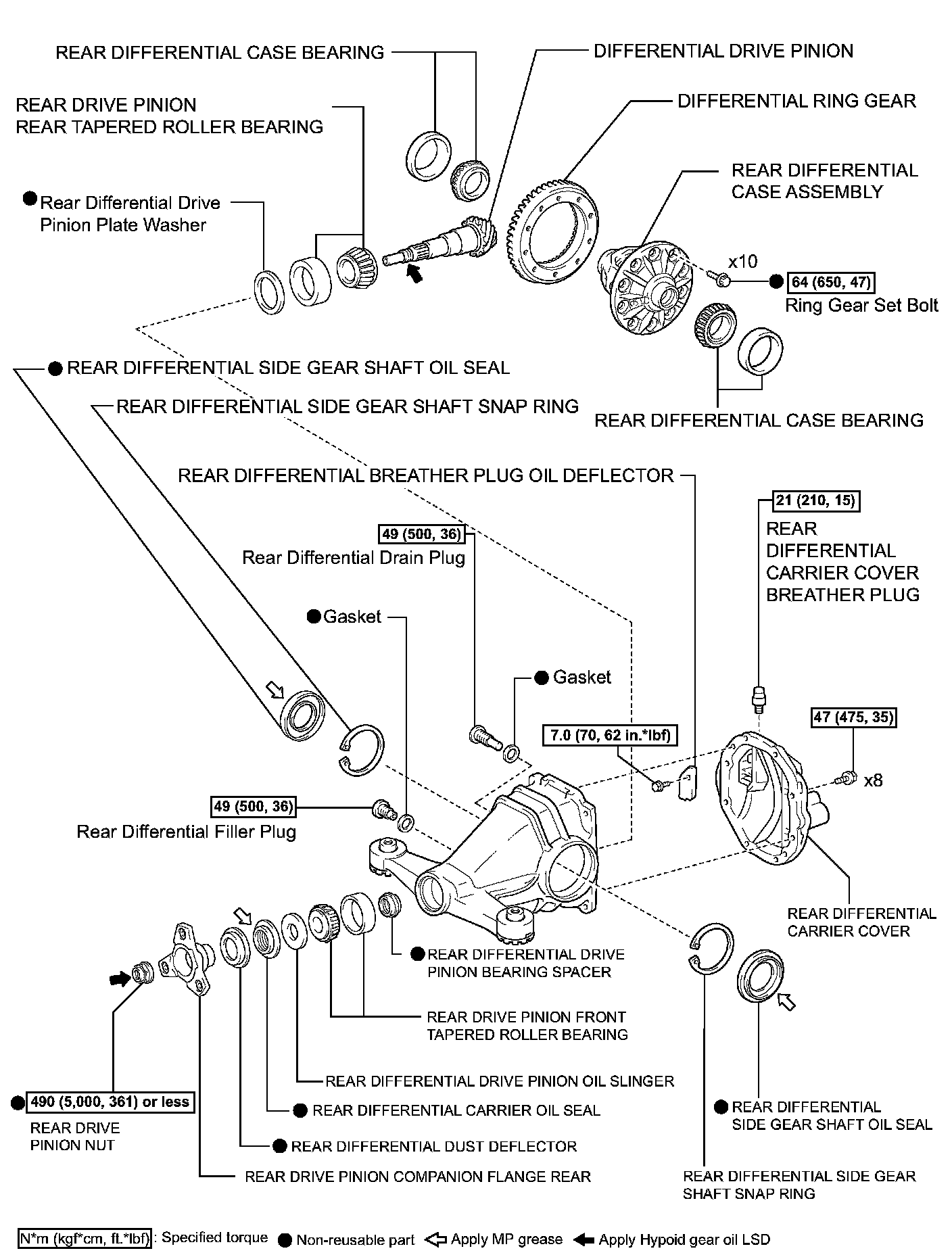

REAR DIFFERENTIAL CARRIER ASSEMBLY
COMPONENTS:
COMPONENTS:
COMPONENTS:
