Turn Signal and Hazard Warning Light: Notes

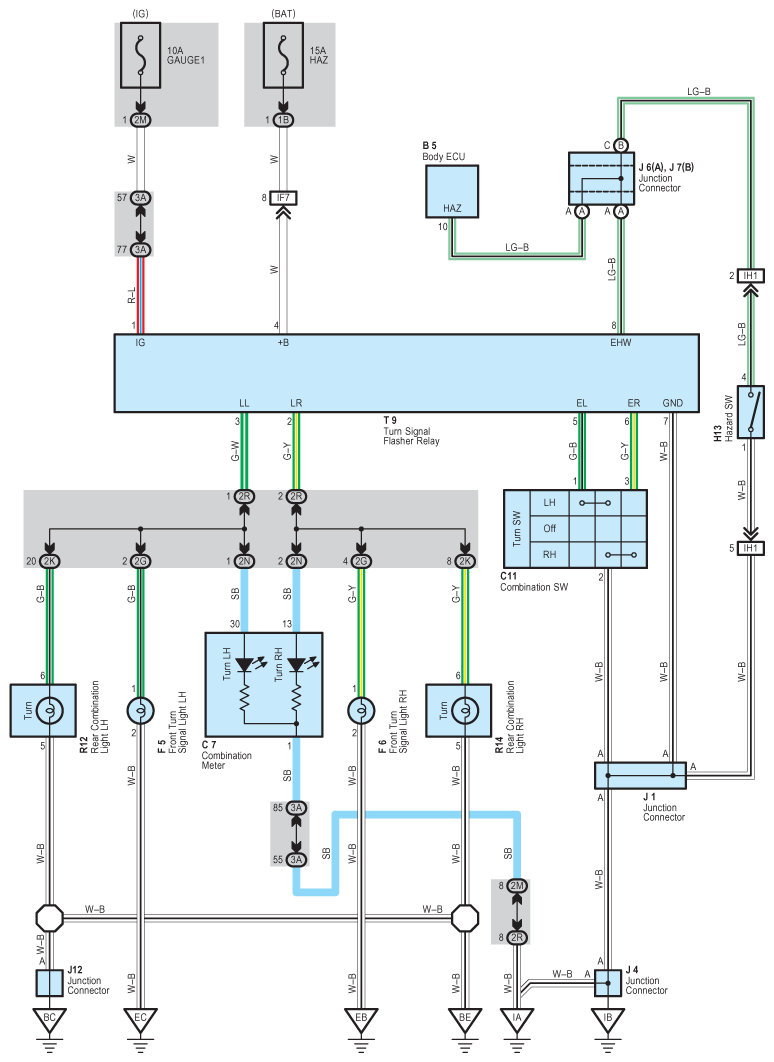

Fig 1: Turn Signal And Hazard Warning Light - Wiring Diagram

G08930052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
