Electronic Brake Control Module: Testing and Inspection

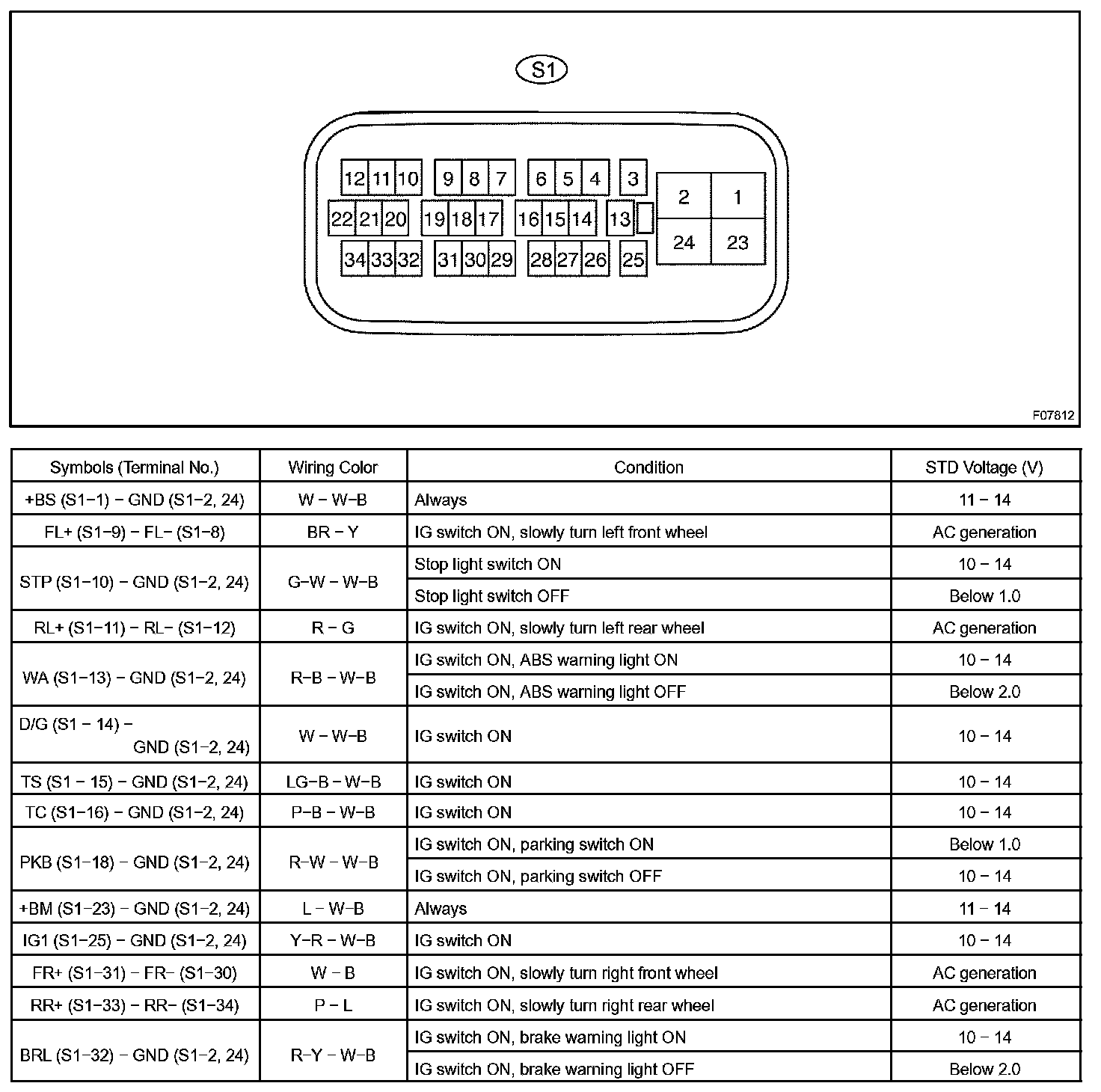

Terminals Of Control Module/Pinouts:

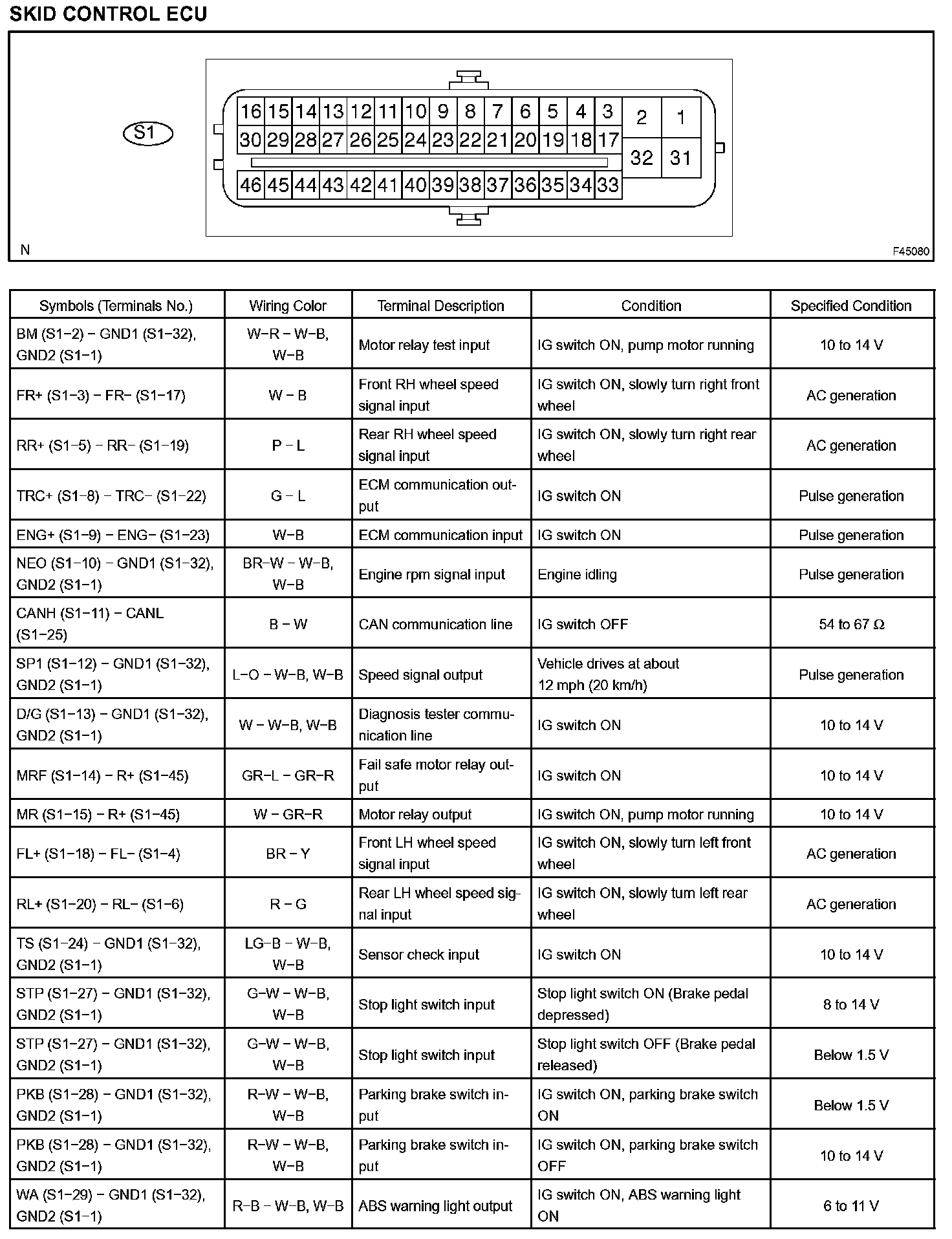

Terminals Of Control Module/Pinouts (Part 1):

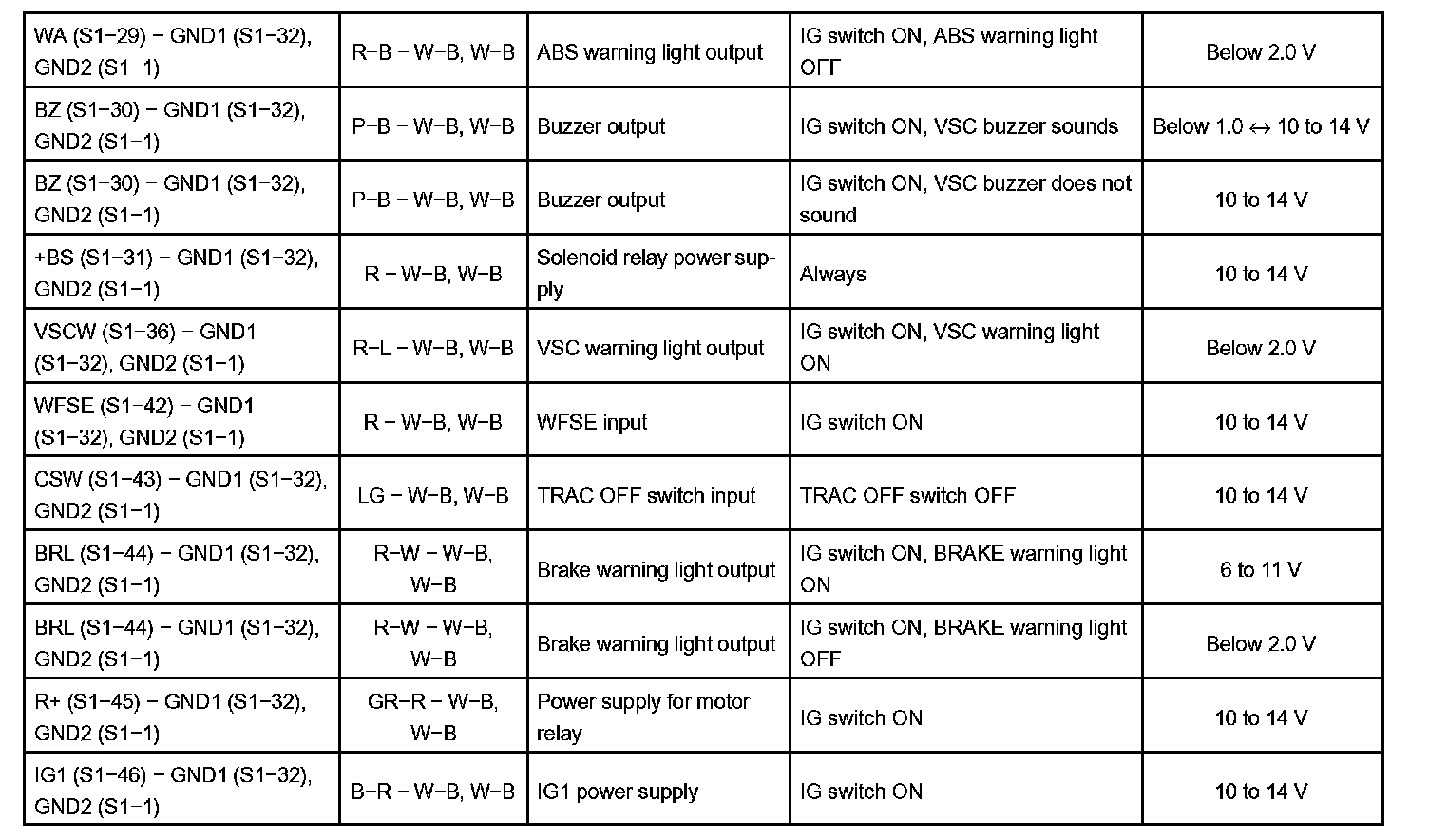

Terminals Of Control Module/Pinouts (Part 2):
