Fuse Block: Locations

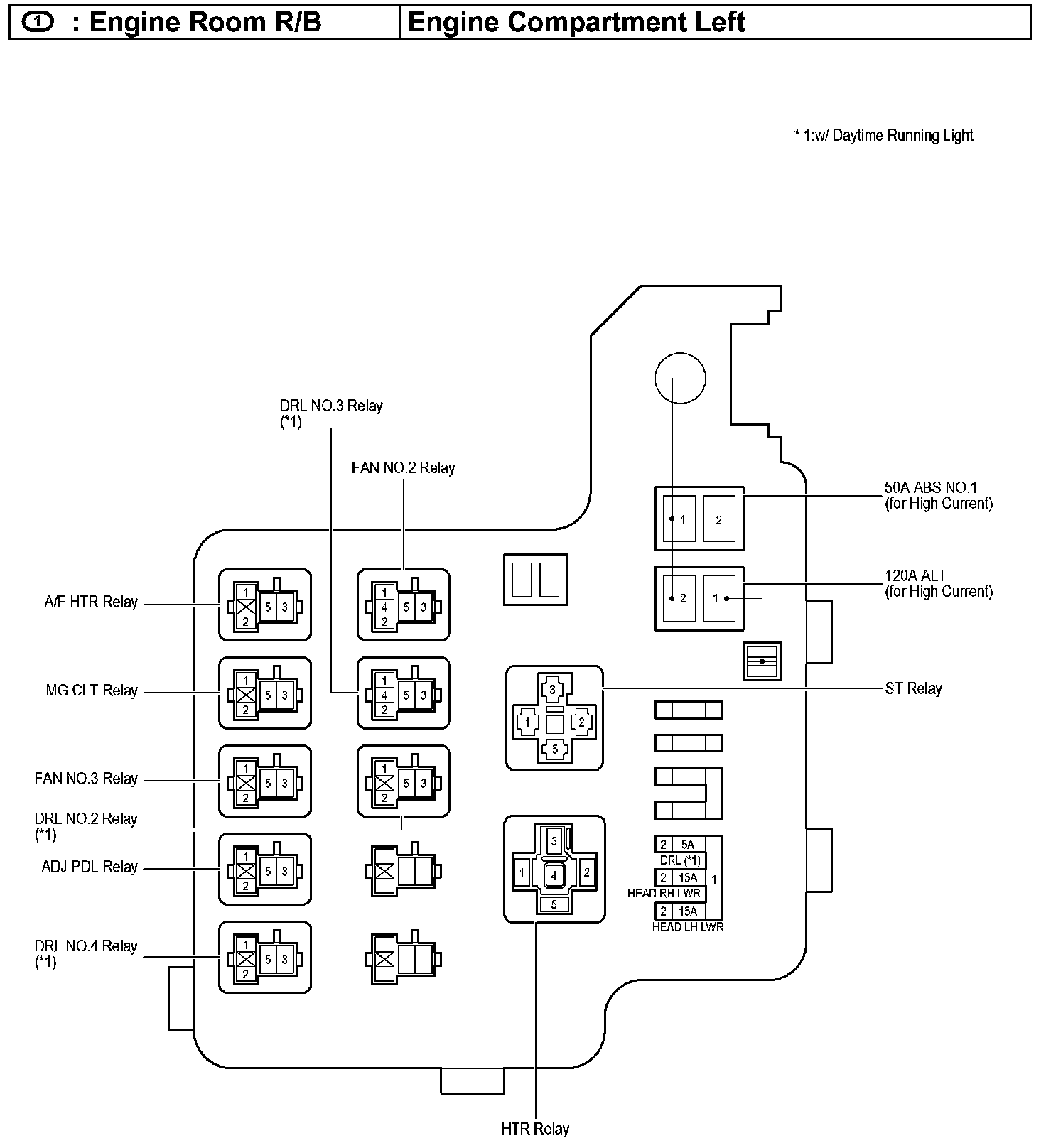

Engine Room R/B:
ABS R/B:

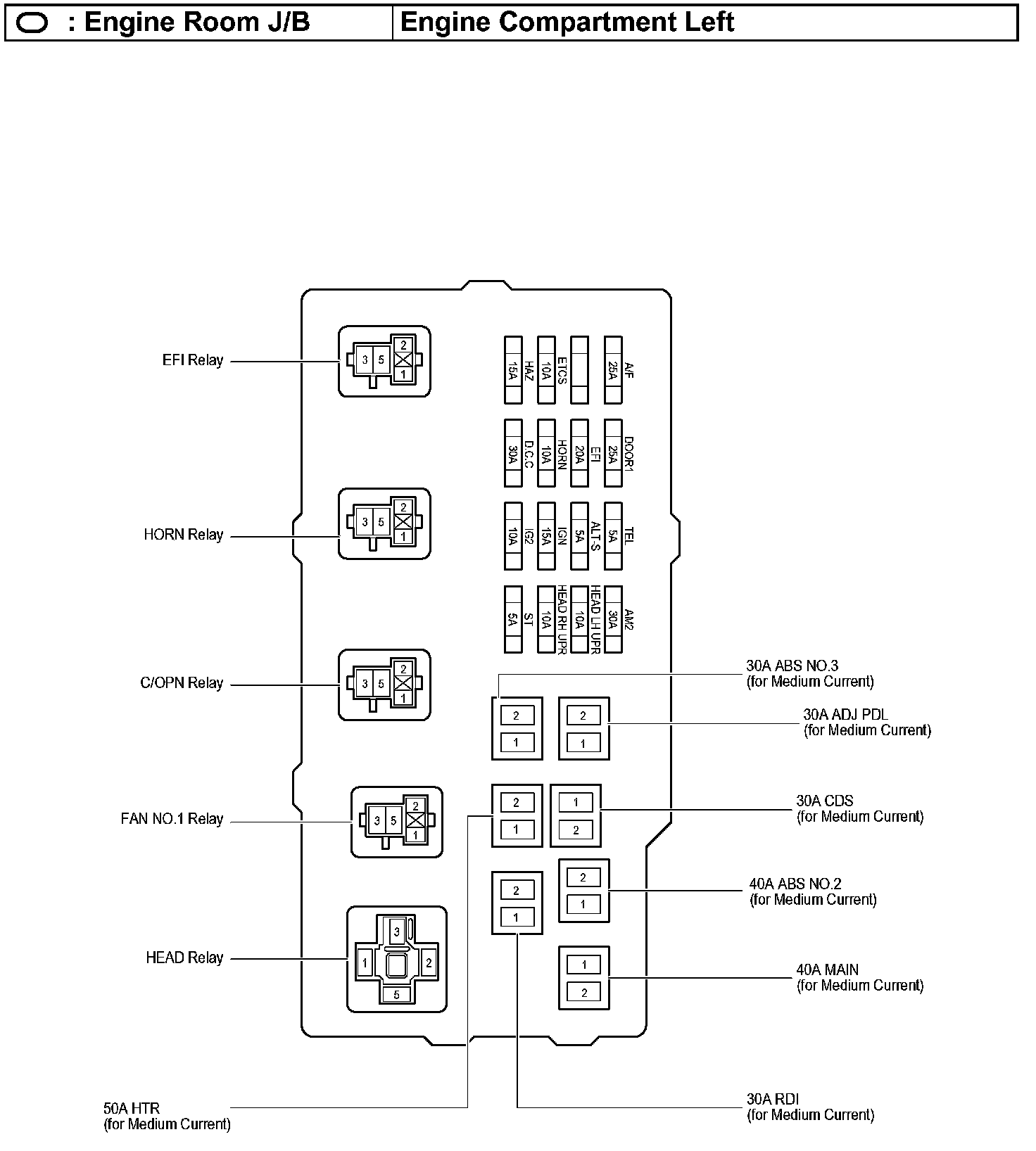

Engine Room R/B:

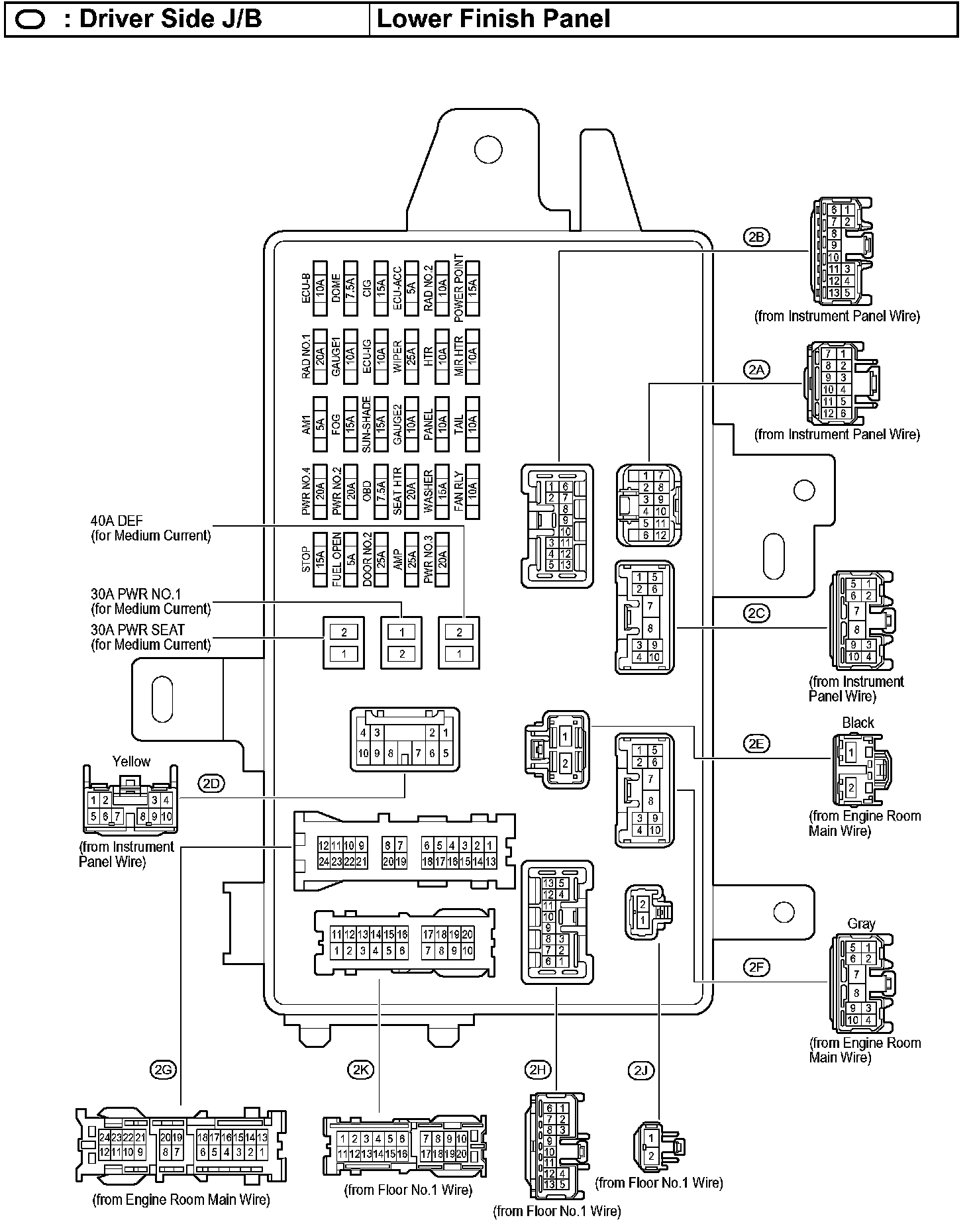

Driver Side J/B:
Driver Side J/B:
Fuse Details

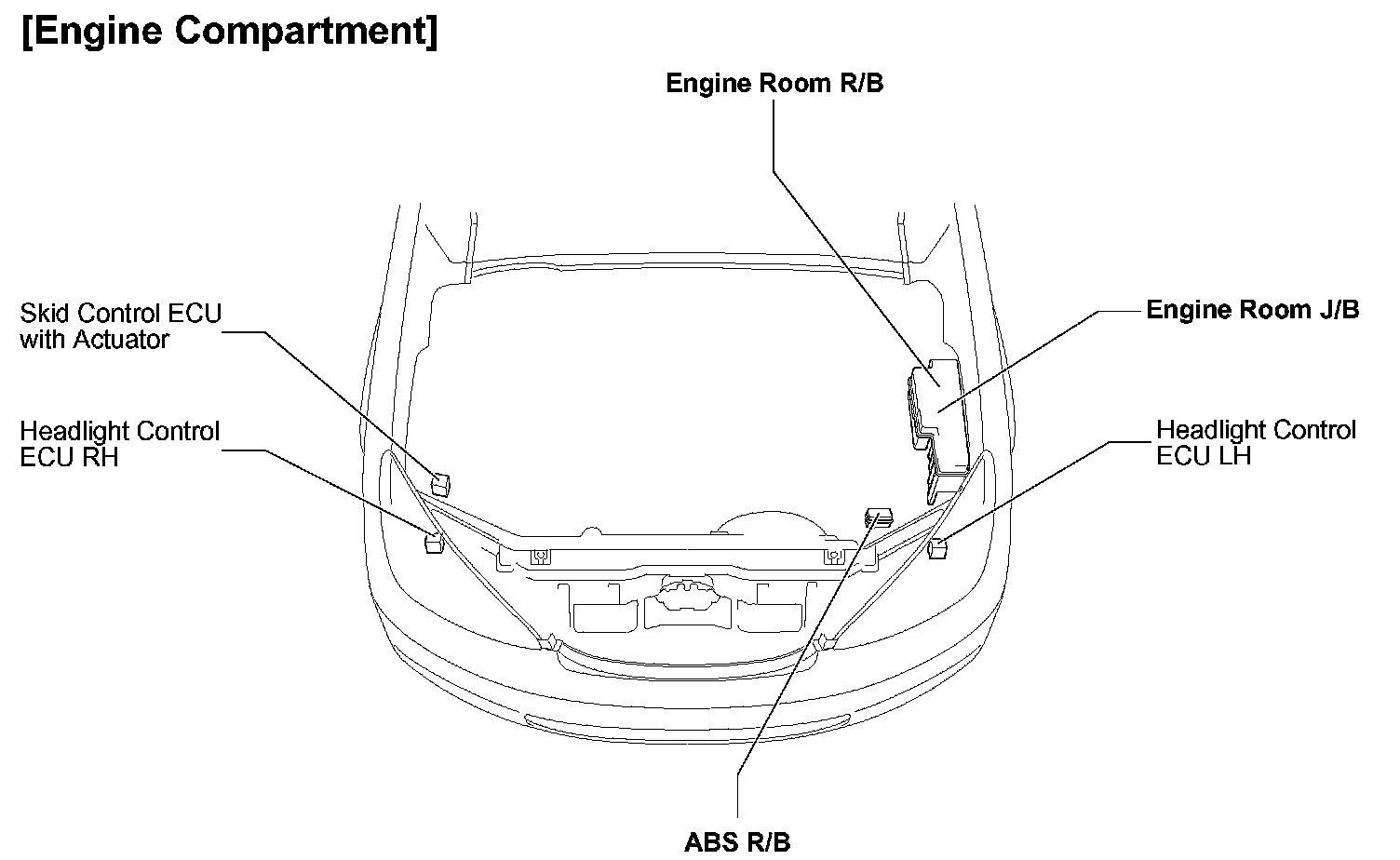

Engine Compartment:

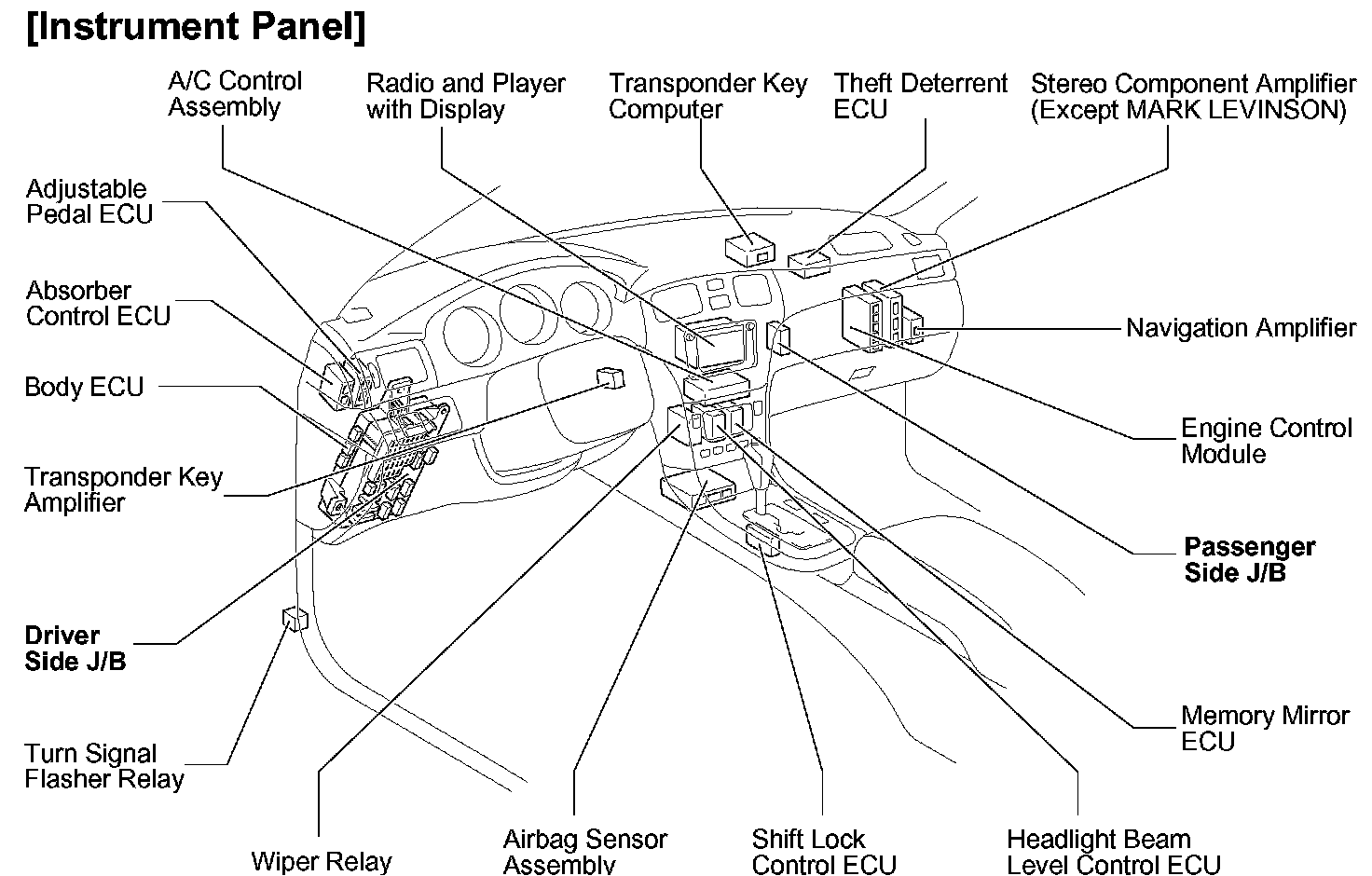

Instrument Panel:

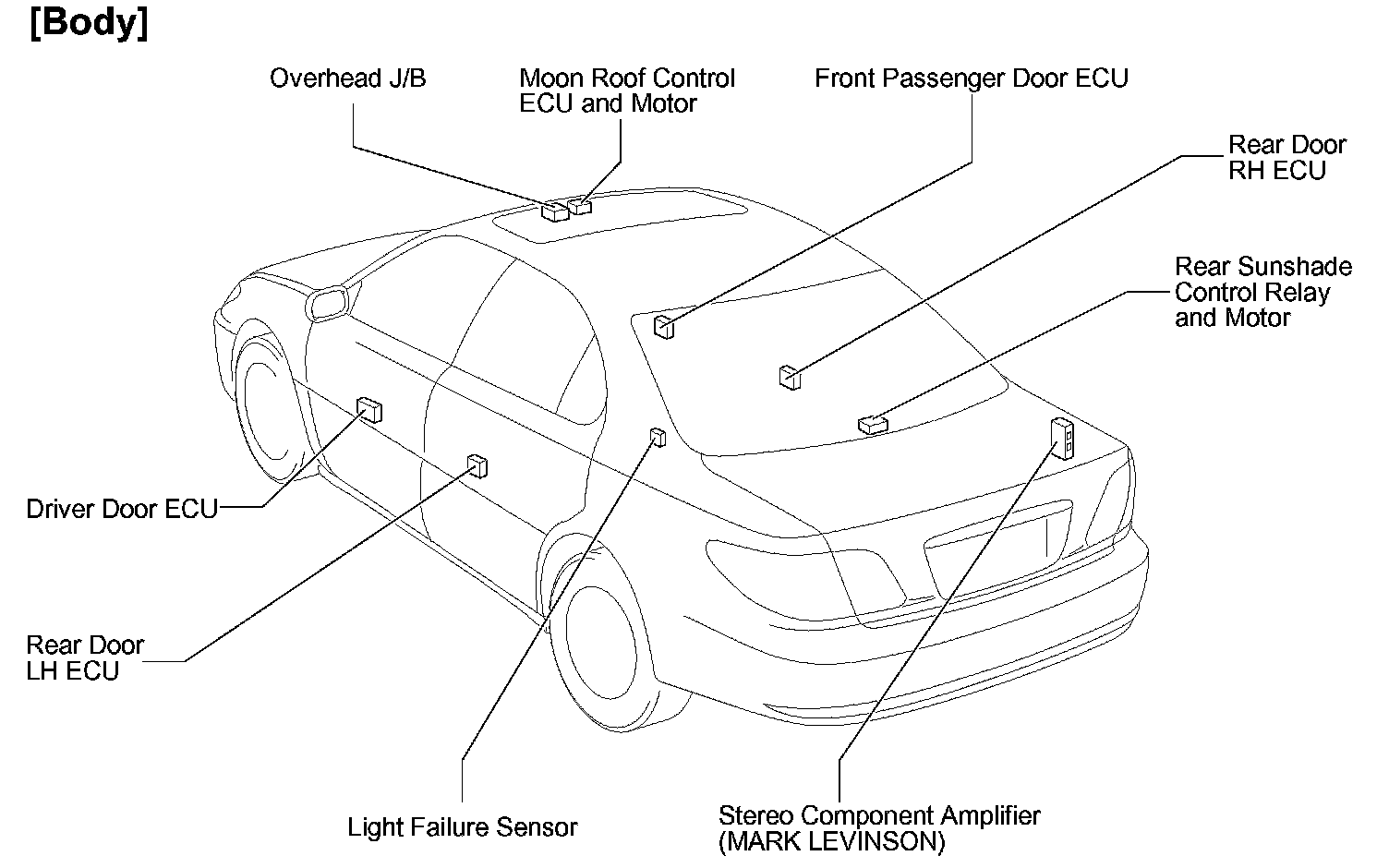

Body:
Locations
