System Diagram

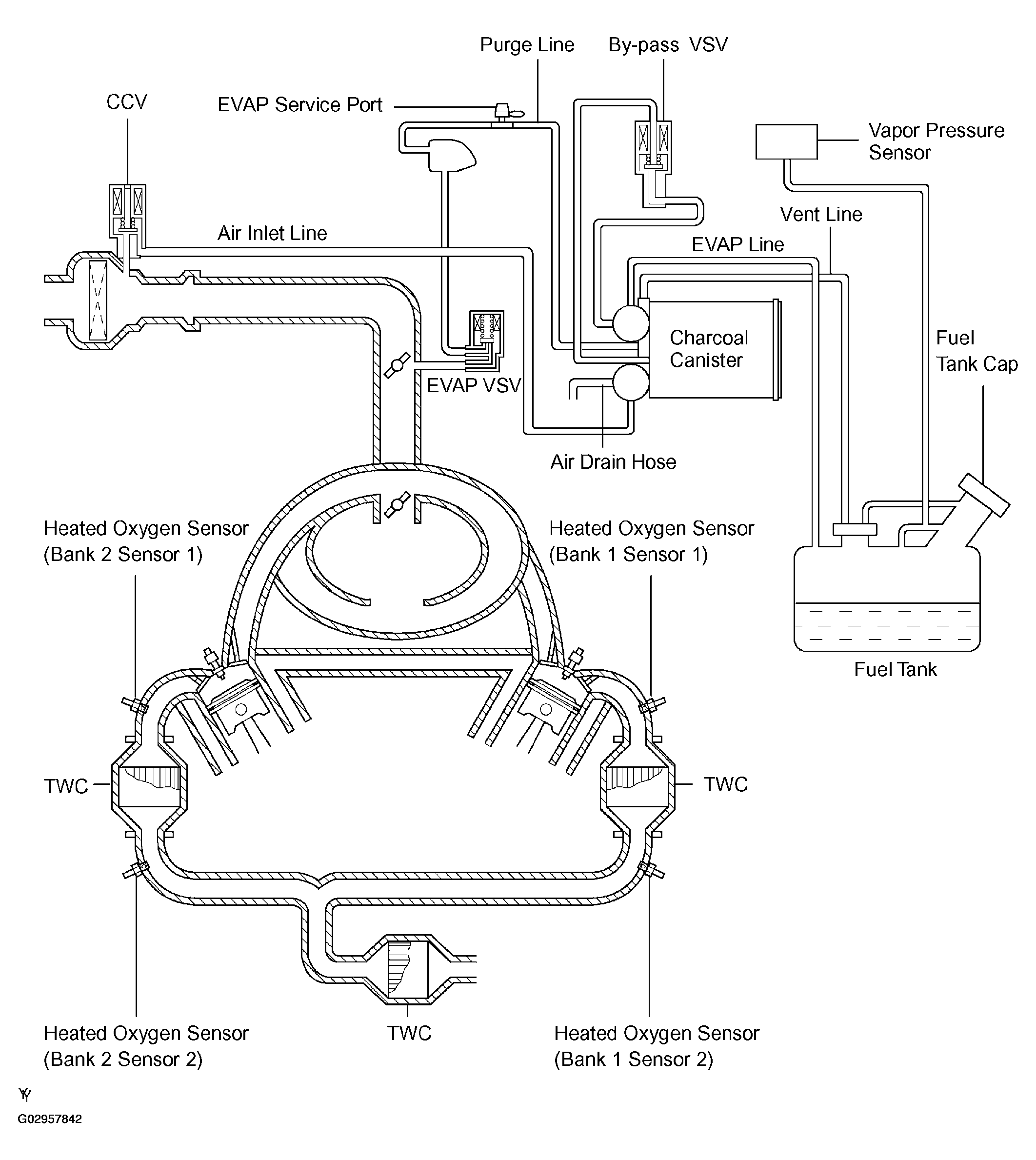

Fig 1: Emission Control System Diagram (1 Of 2)
G02957842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

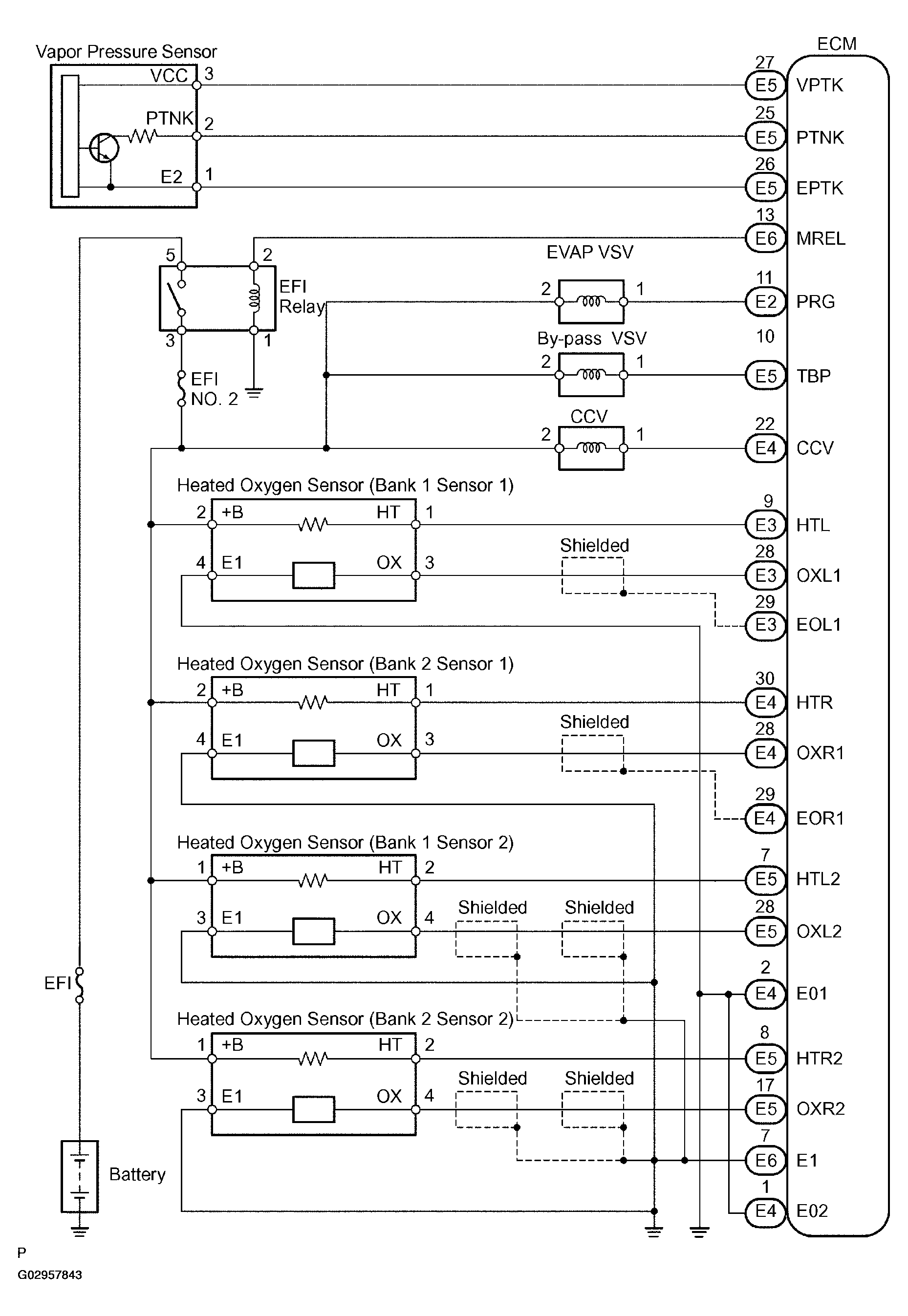

Fig 2: Emission Control System Diagram (2 Of 2)
G02957843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
