Home >> Lexus >> 2005 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Testing and Inspection

Wiper Control Module: Testing and Inspection

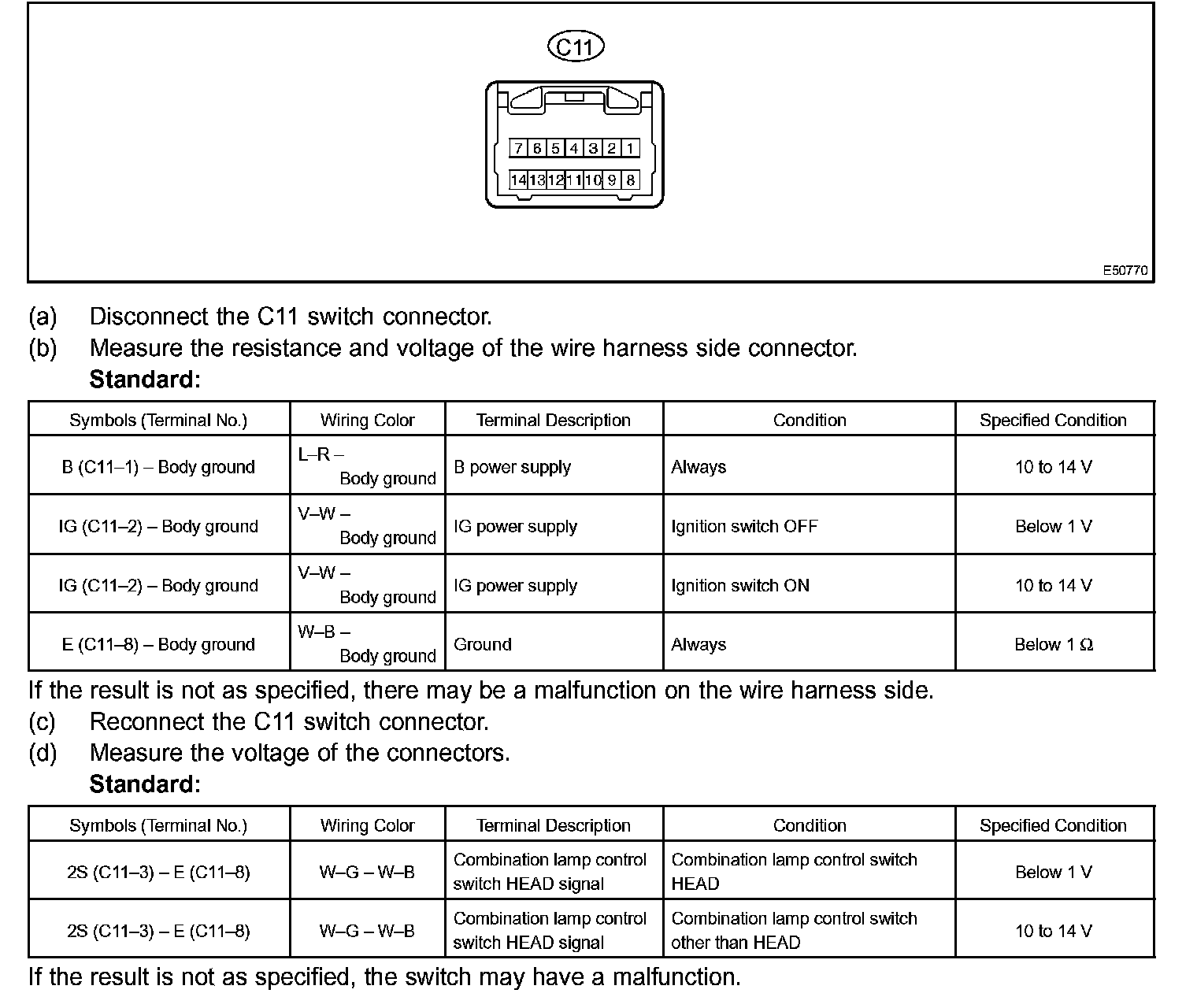

Terminals Of Control Module/Pinouts - Check Turn Signal Switch (Combination Switch):

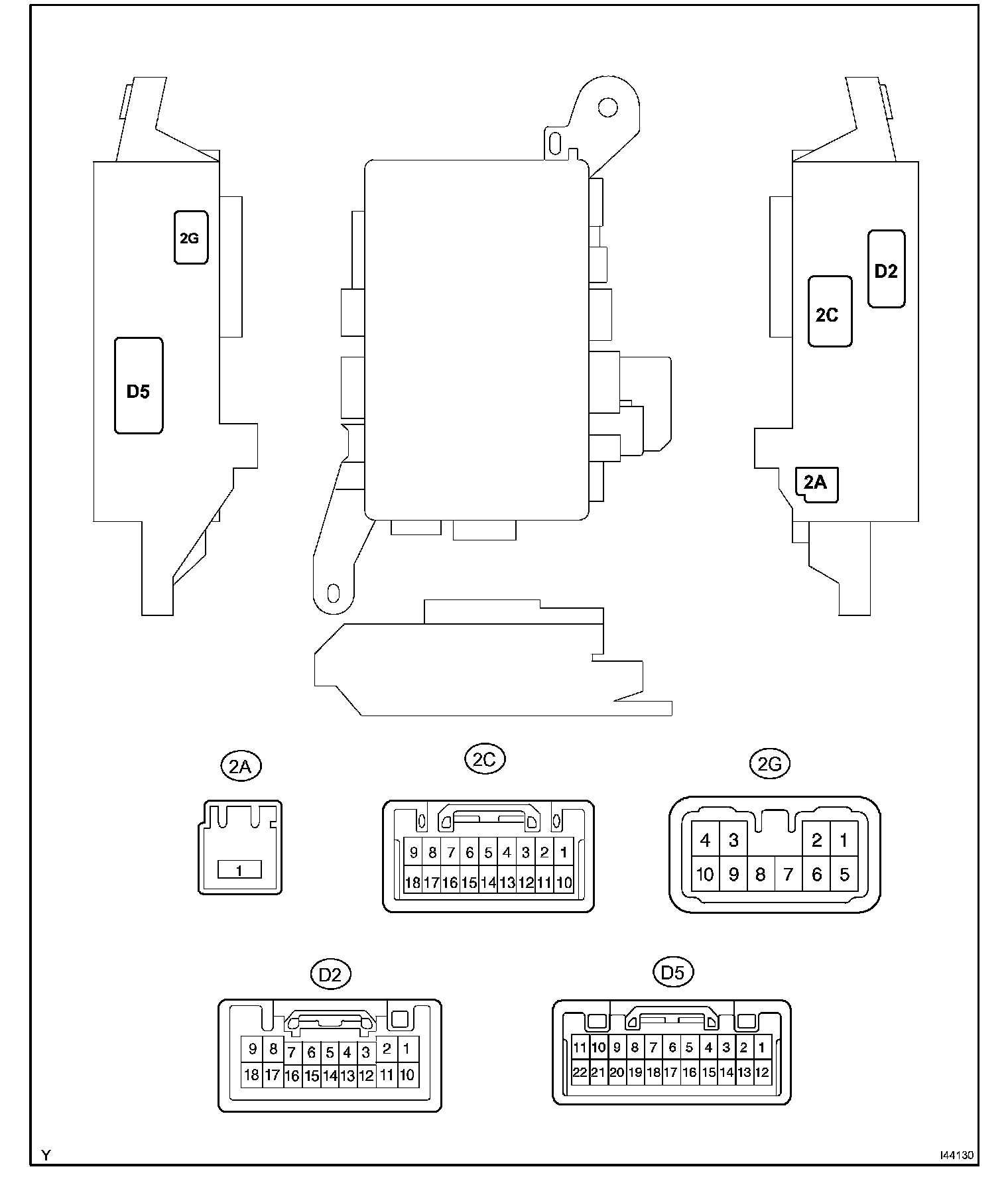

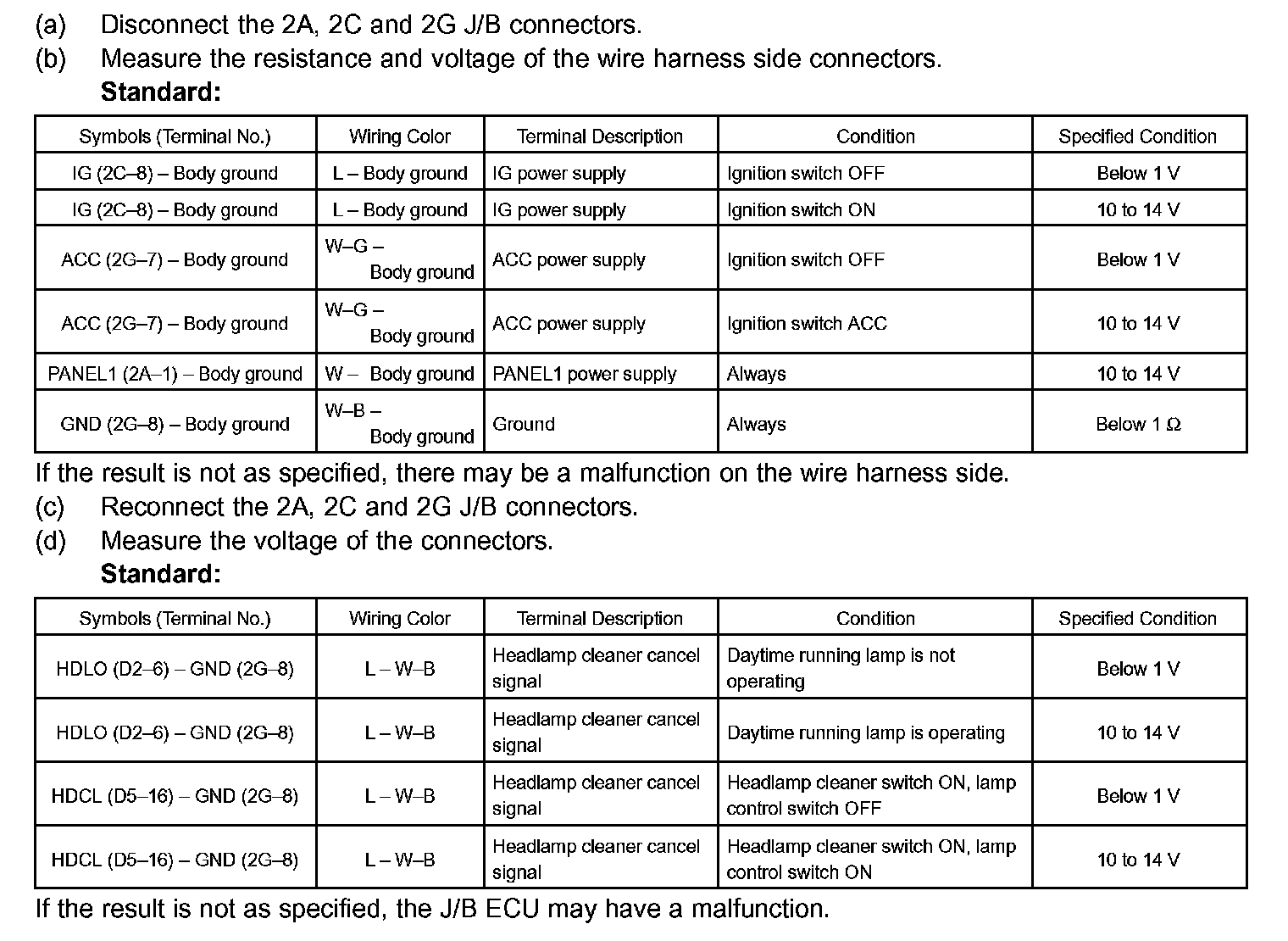

Terminals Of Control Module/Pinouts - Check Driver Side J/B (Driver Side J/B ECU) Part 1:



Terminals Of Control Module/Pinouts - Check Driver Side J/B (Driver Side J/B ECU) Part 2:

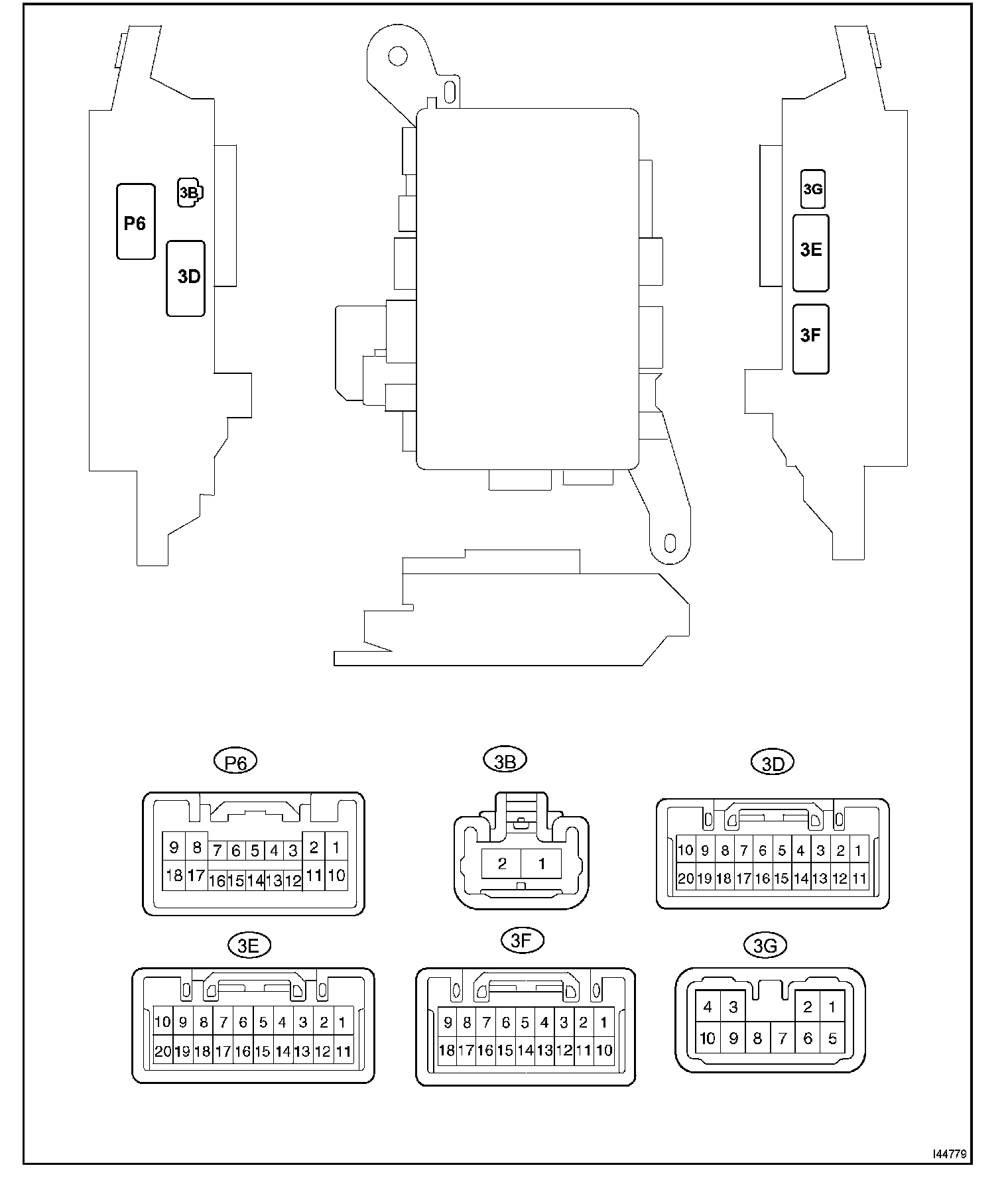

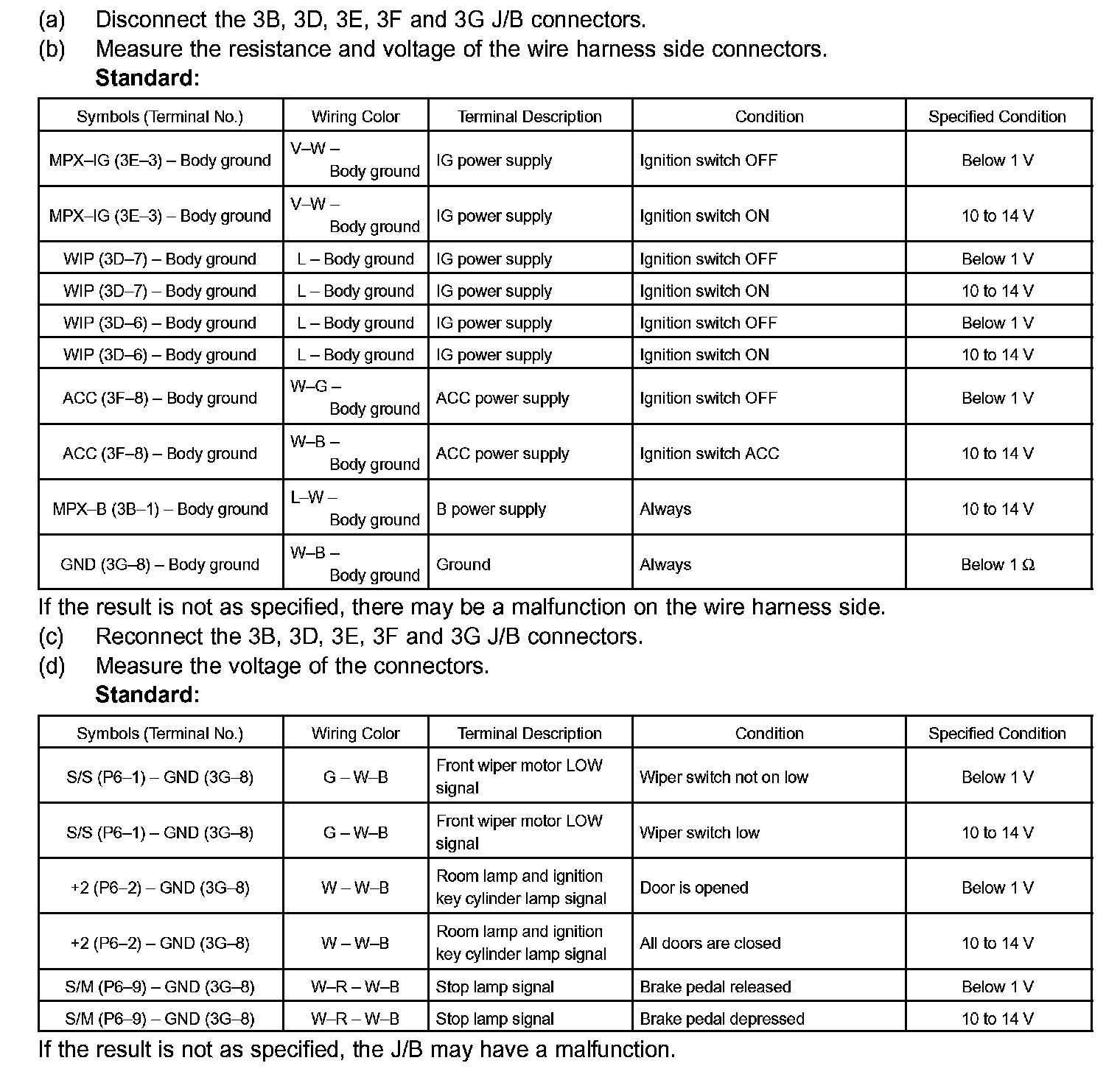

Terminals Of Control Module/Pinouts - Check Passenger Side J/B (Passenger Side J/B ECU) Part 1:



Terminals Of Control Module/Pinouts - Check Passenger Side J/B (Passenger Side J/B ECU) Part 2:

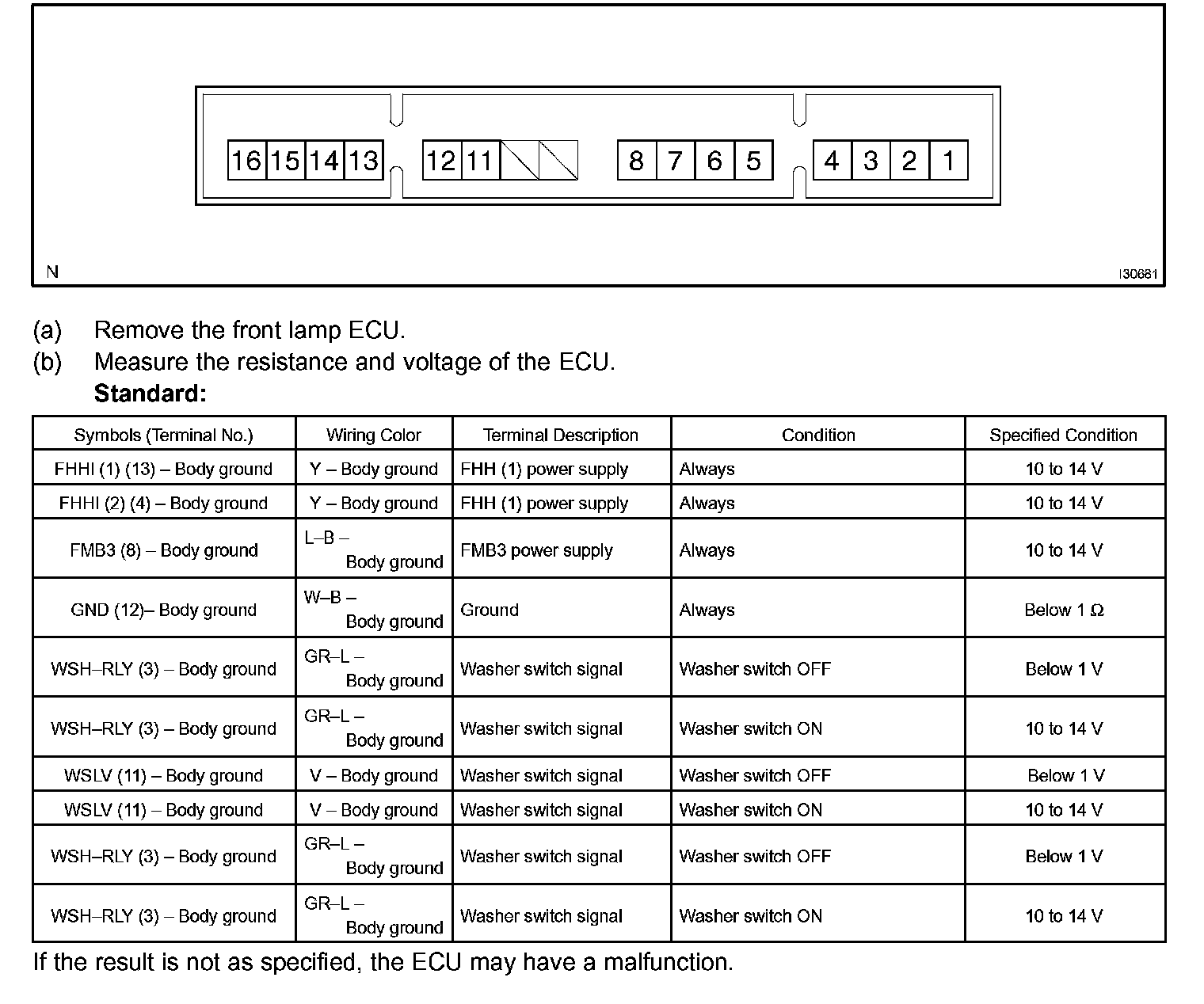

Terminals Of Control Module/Pinouts Check Front Lamp ECU (Front Controller):
