Power Window Switch: Testing and Inspection

INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

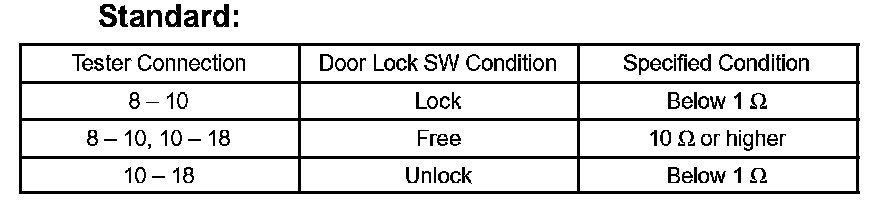

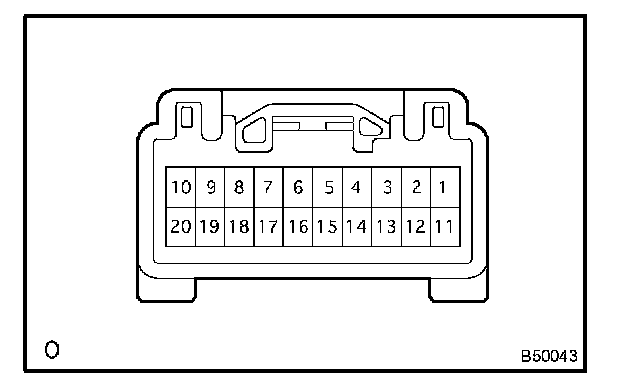

Measure the resistance of the switch.




If the result is not as specified, replace the switch assembly.
