Home >> Lexus >> 2005 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Service Data

Service Data

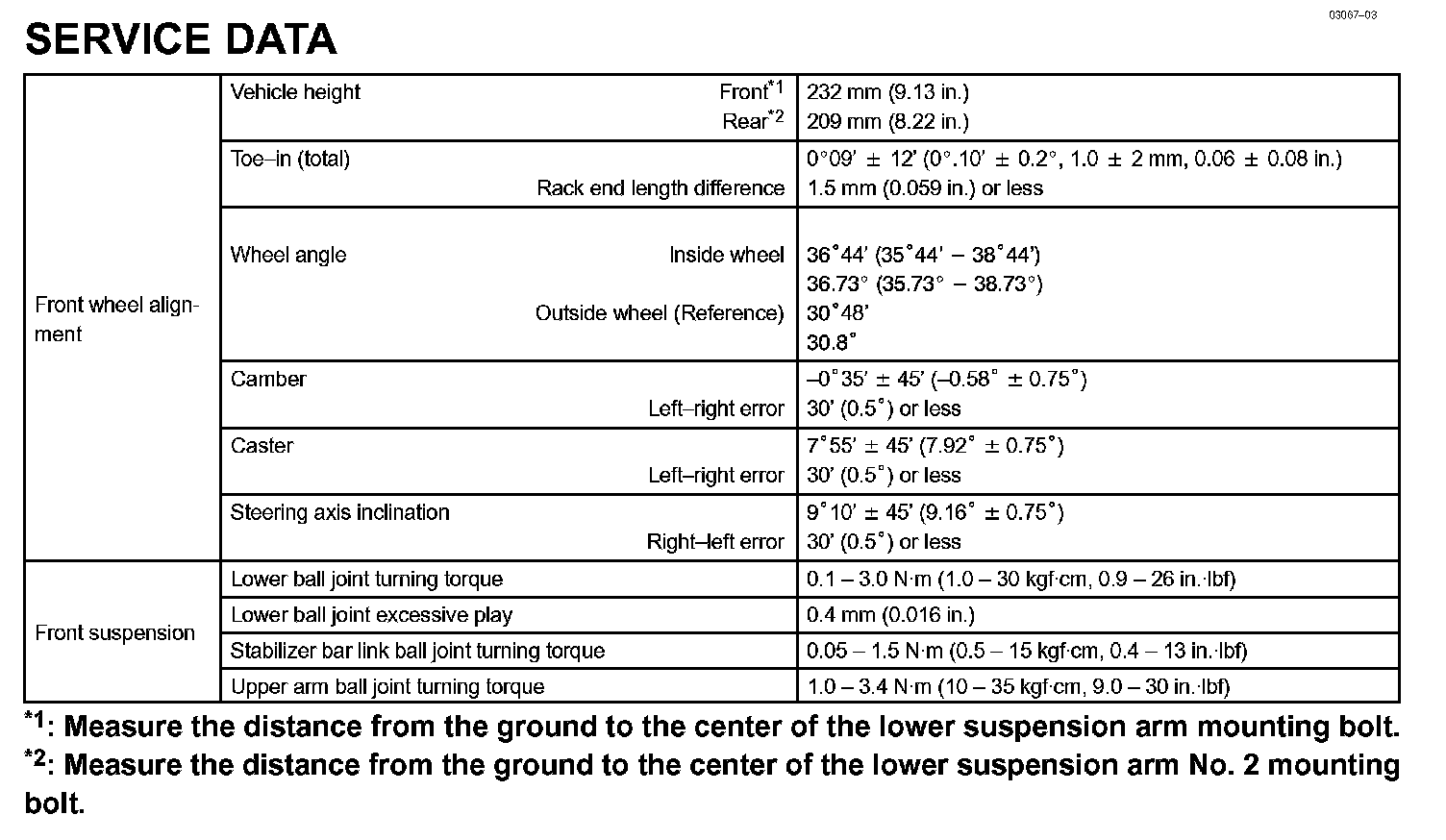

Front Suspension - Service Data:



Rear Suspension - Service Data:
