Power Distribution Relay: Locations
Driver Side J/B - Left Kick Panel:
Passenger Side J/B - Right Kick Panel:
Fuel System:

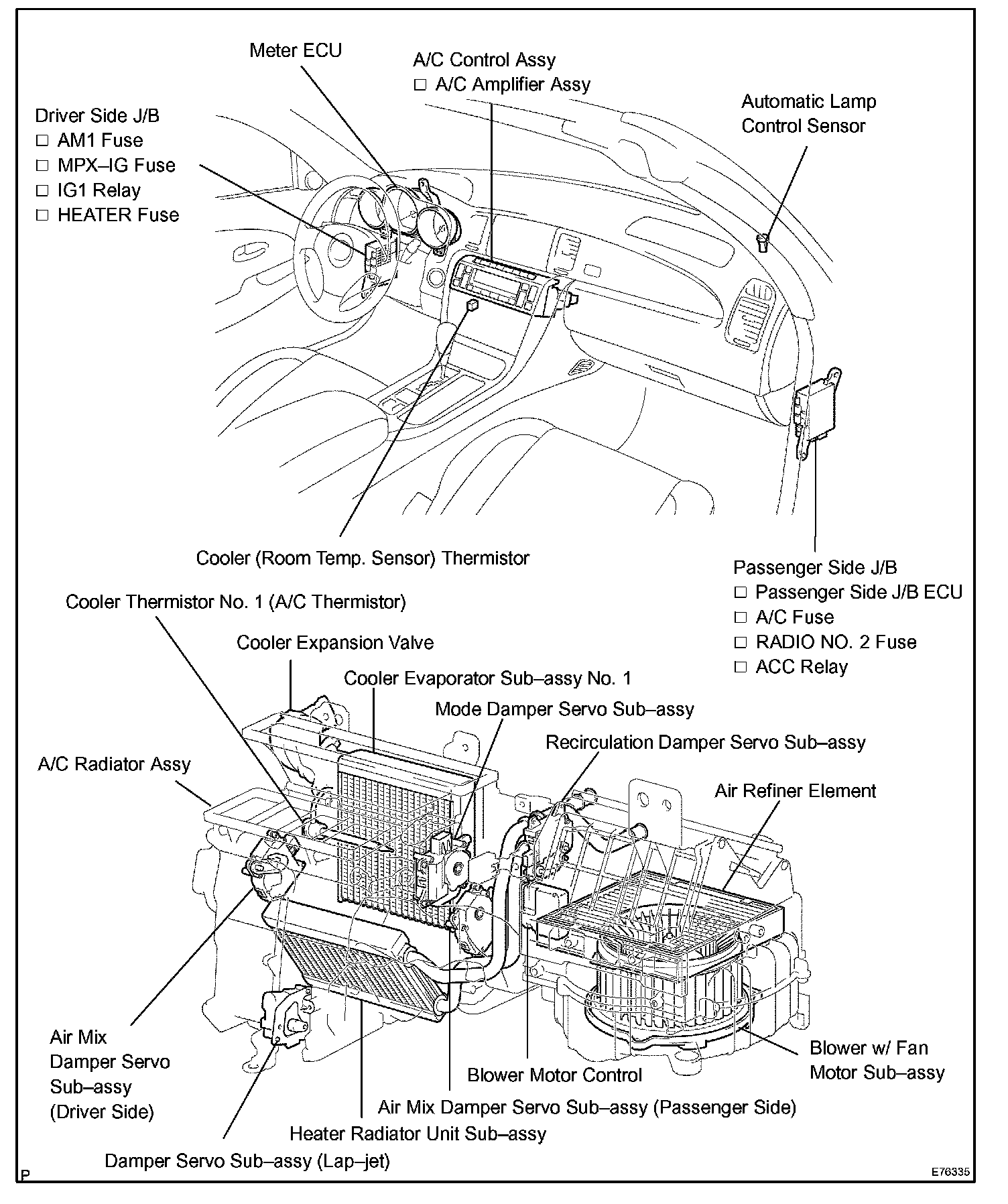

Air Conditioning System:

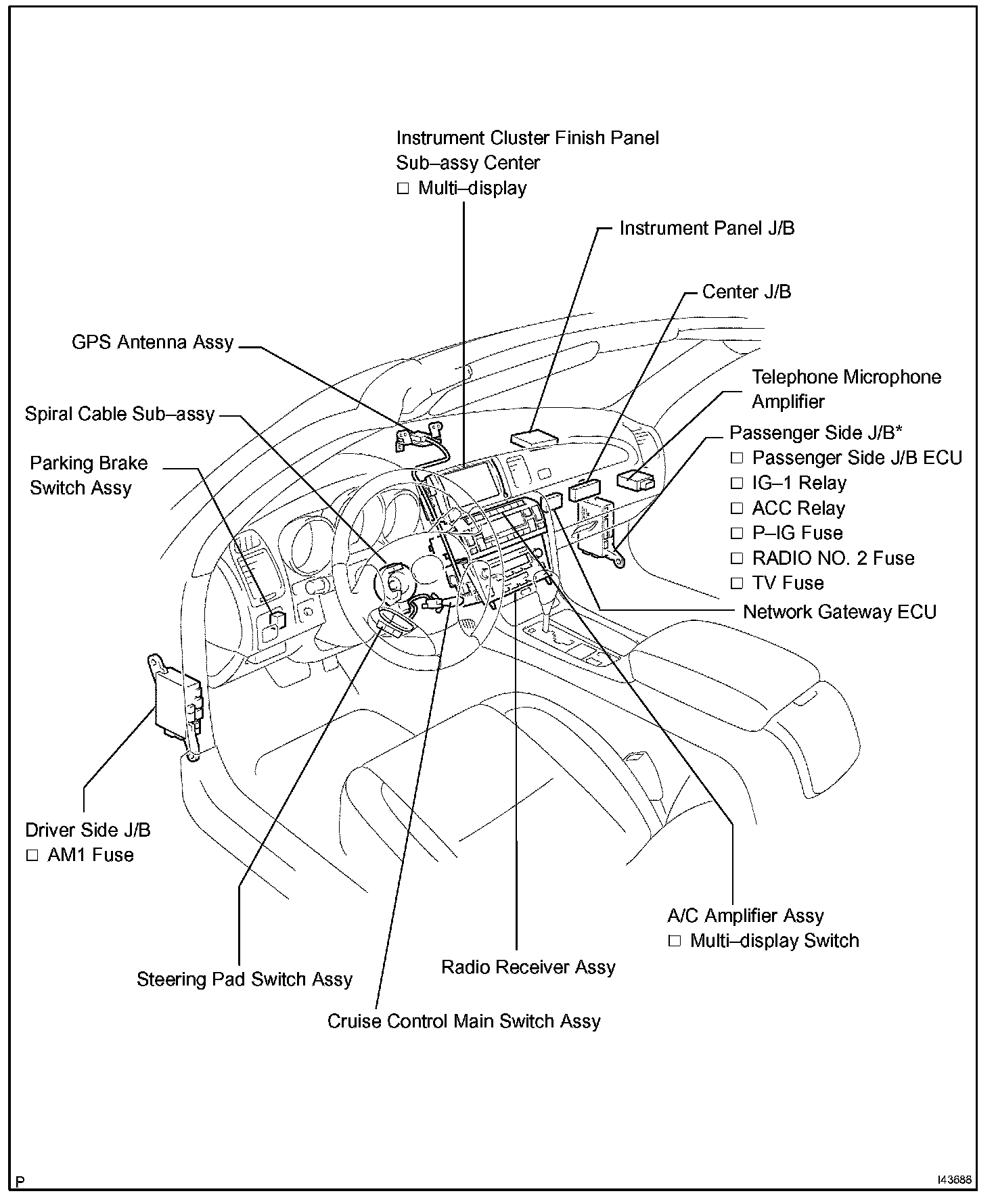

Lexus Navigation System:
