Electronic Brake Control Module: Testing and Inspection

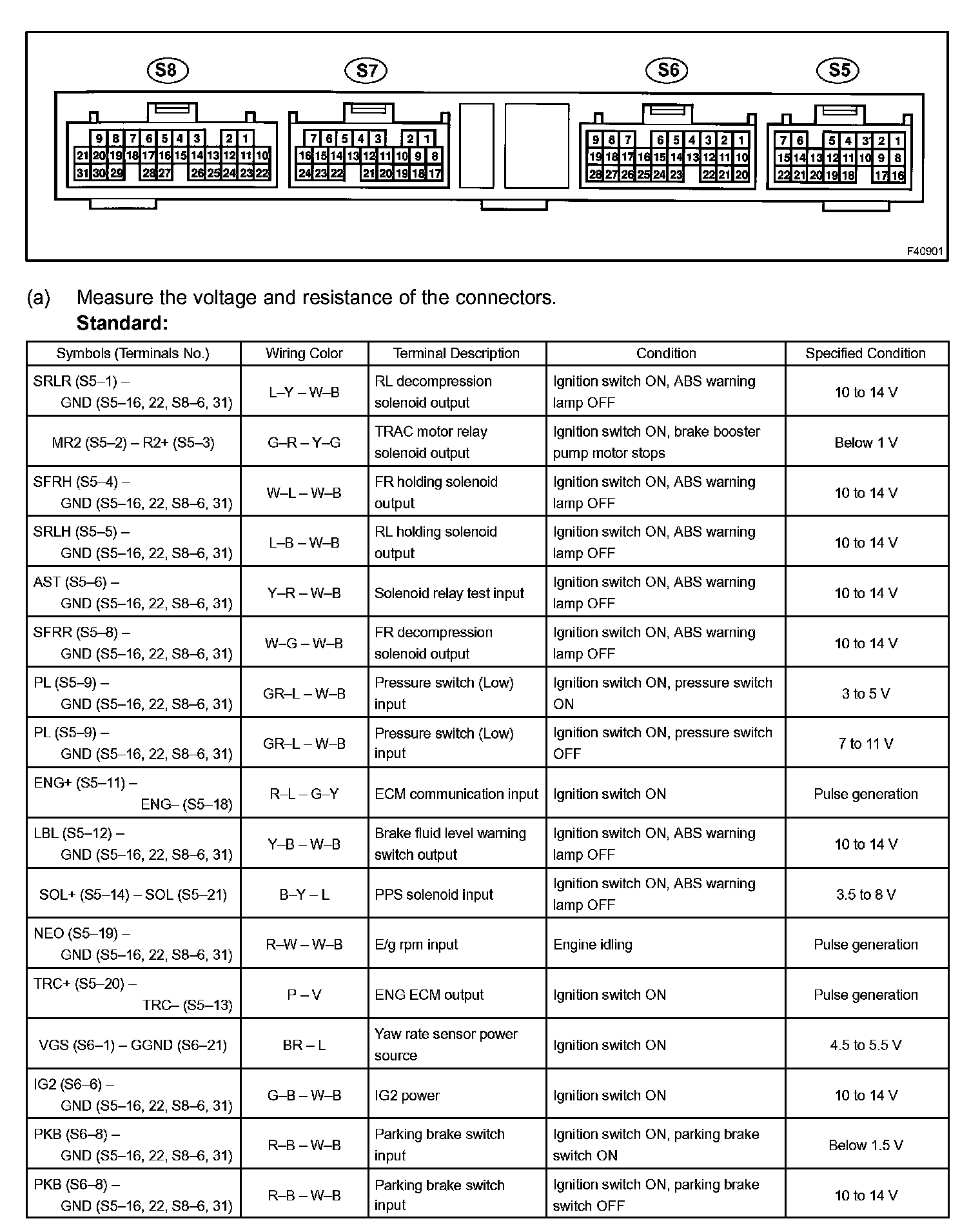

Terminals Of Control Module/Pinouts - Check ECM Part 1:

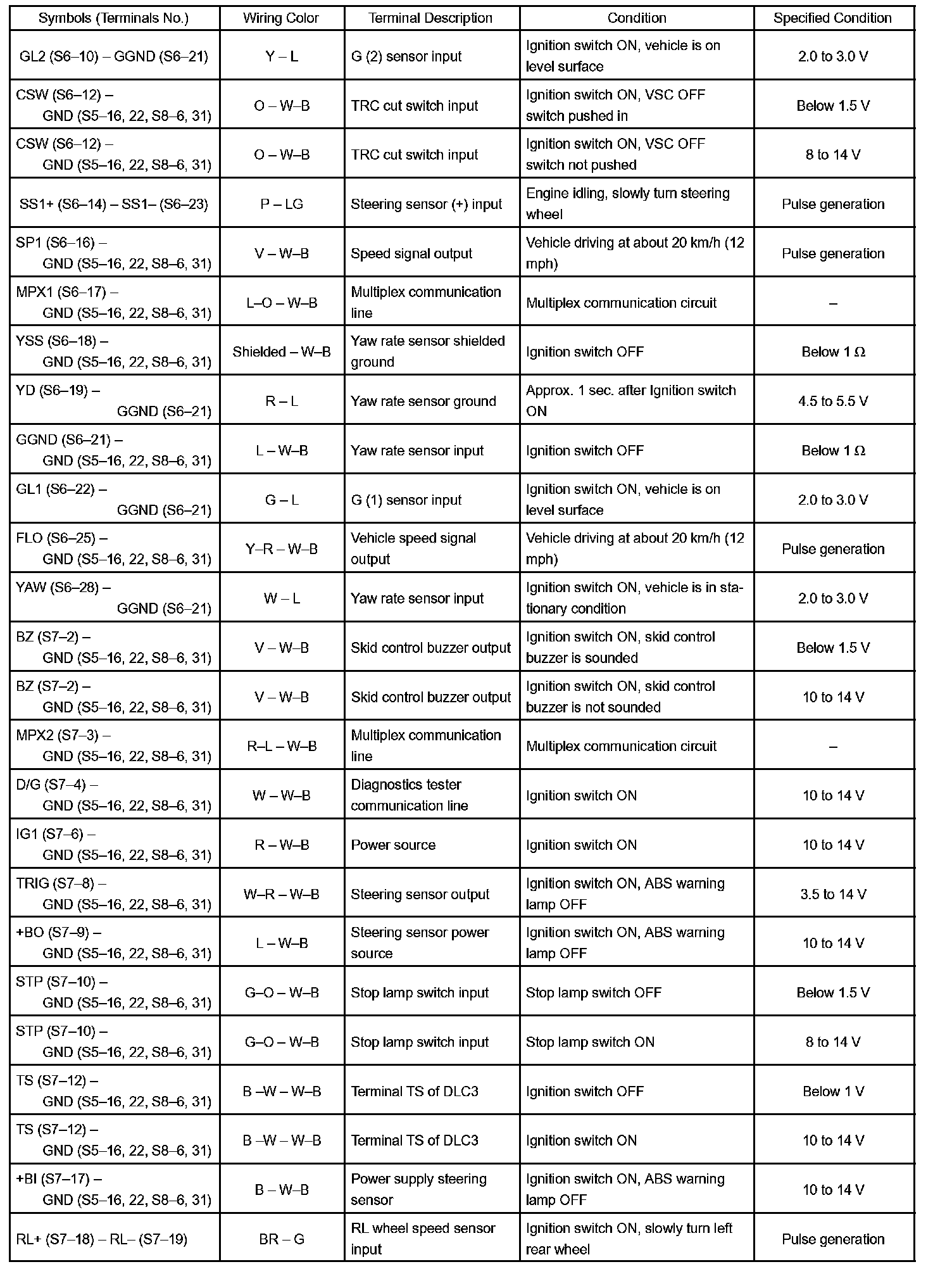

Terminals Of Control Module/Pinouts - Check ECM Part 2:

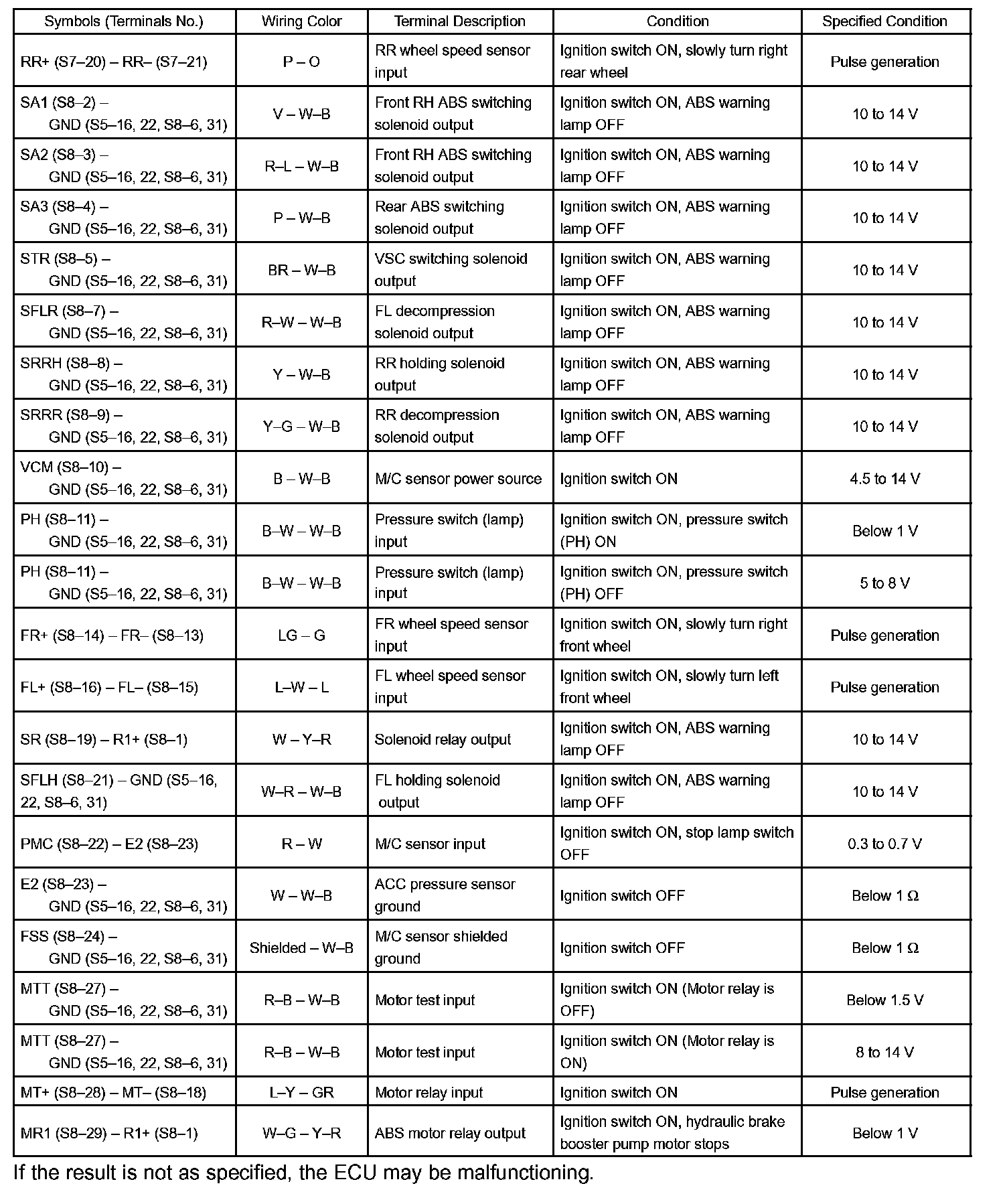

Terminals Of Control Module/Pinouts - Check ECM Part 3:
