Torque Specifications

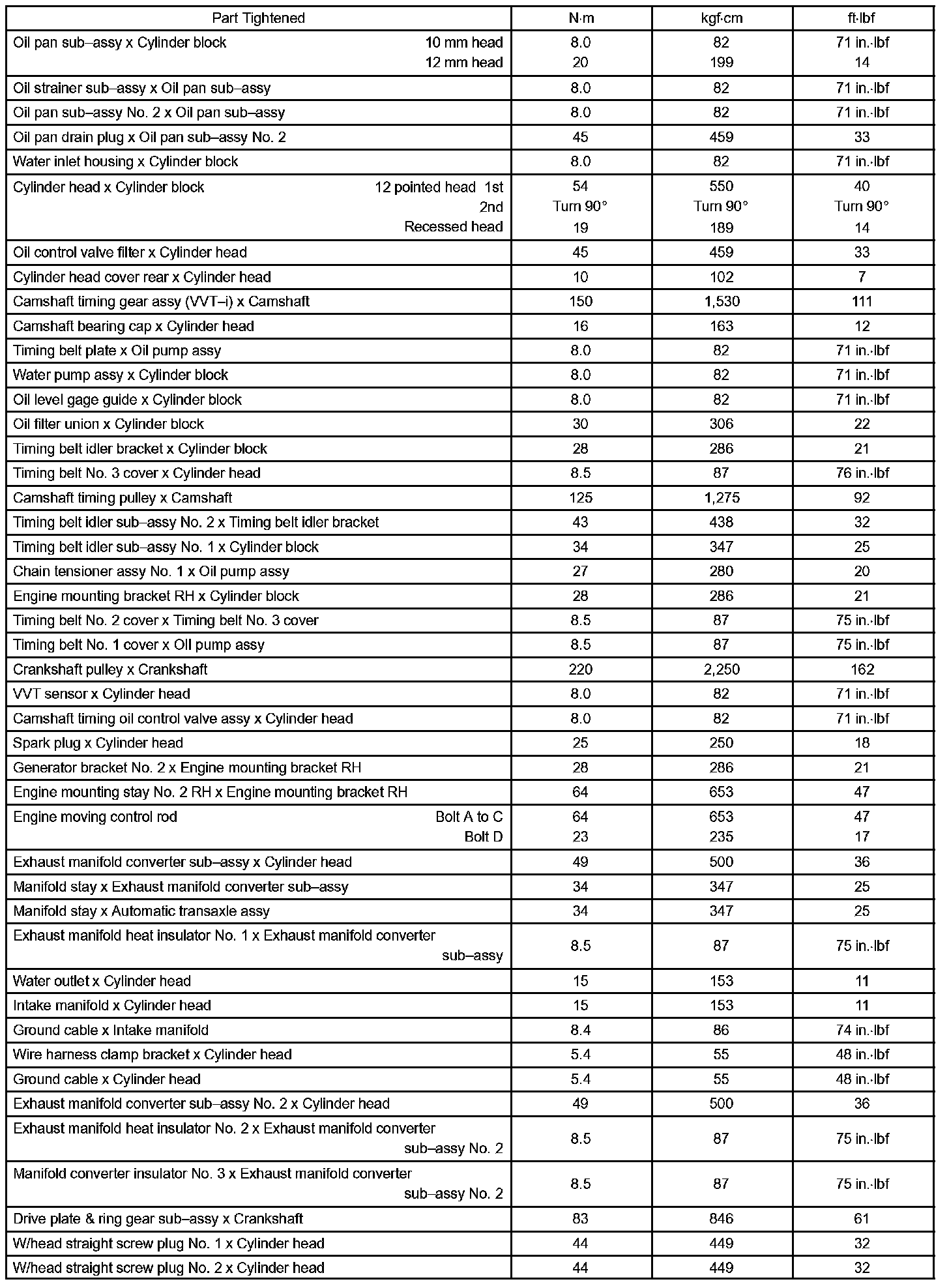

Engine Mechanical - Torque Specification:

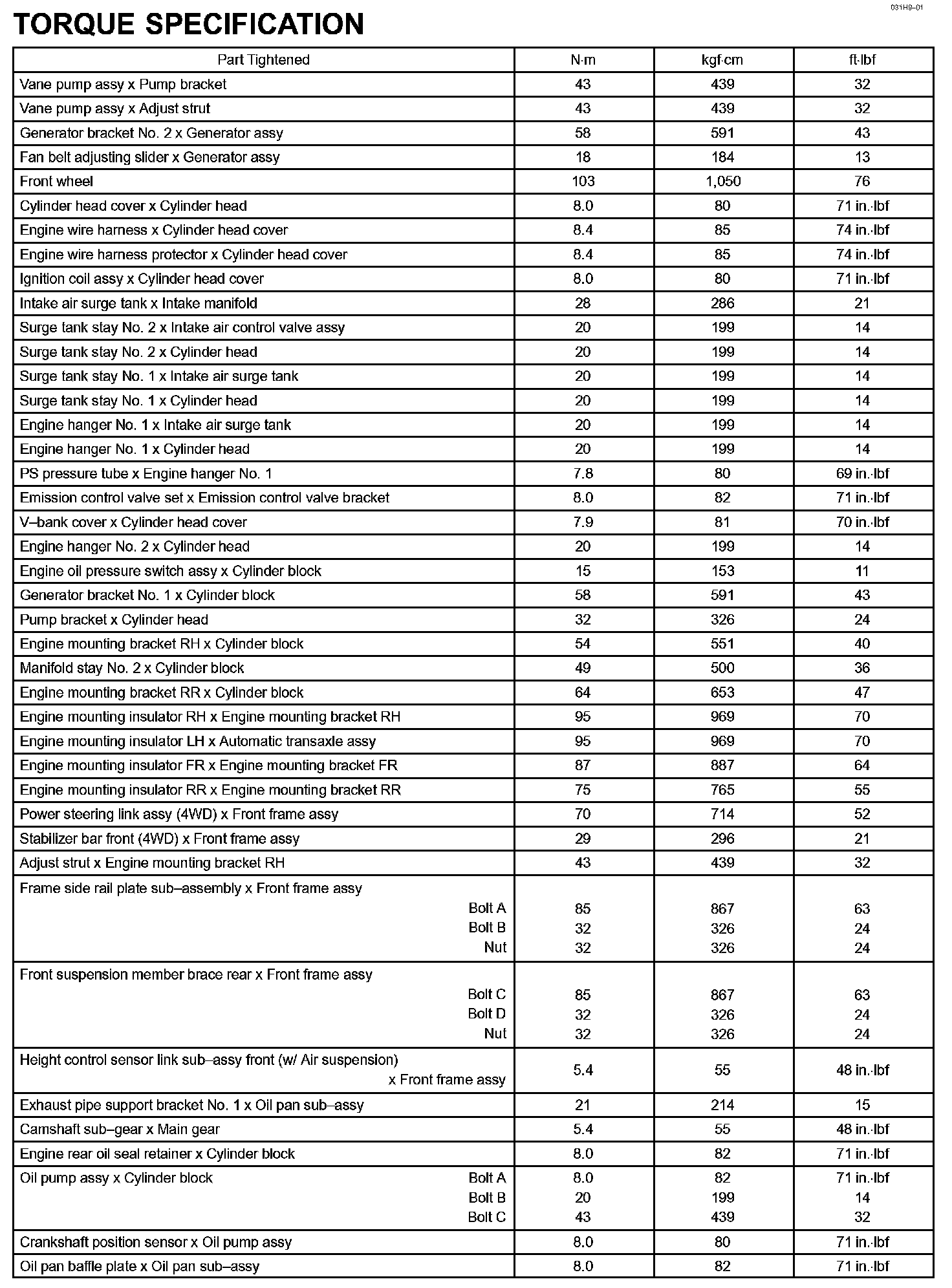

Engine Mechanical - Torque Specification Part 2:




Engine Mechanical - Torque Specification Part 3:





Engine Mechanical - Torque Specification
