Home >> Lexus >> 2005 >> LX 470 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock Control System >> Location

Power Door Lock Control System: Location

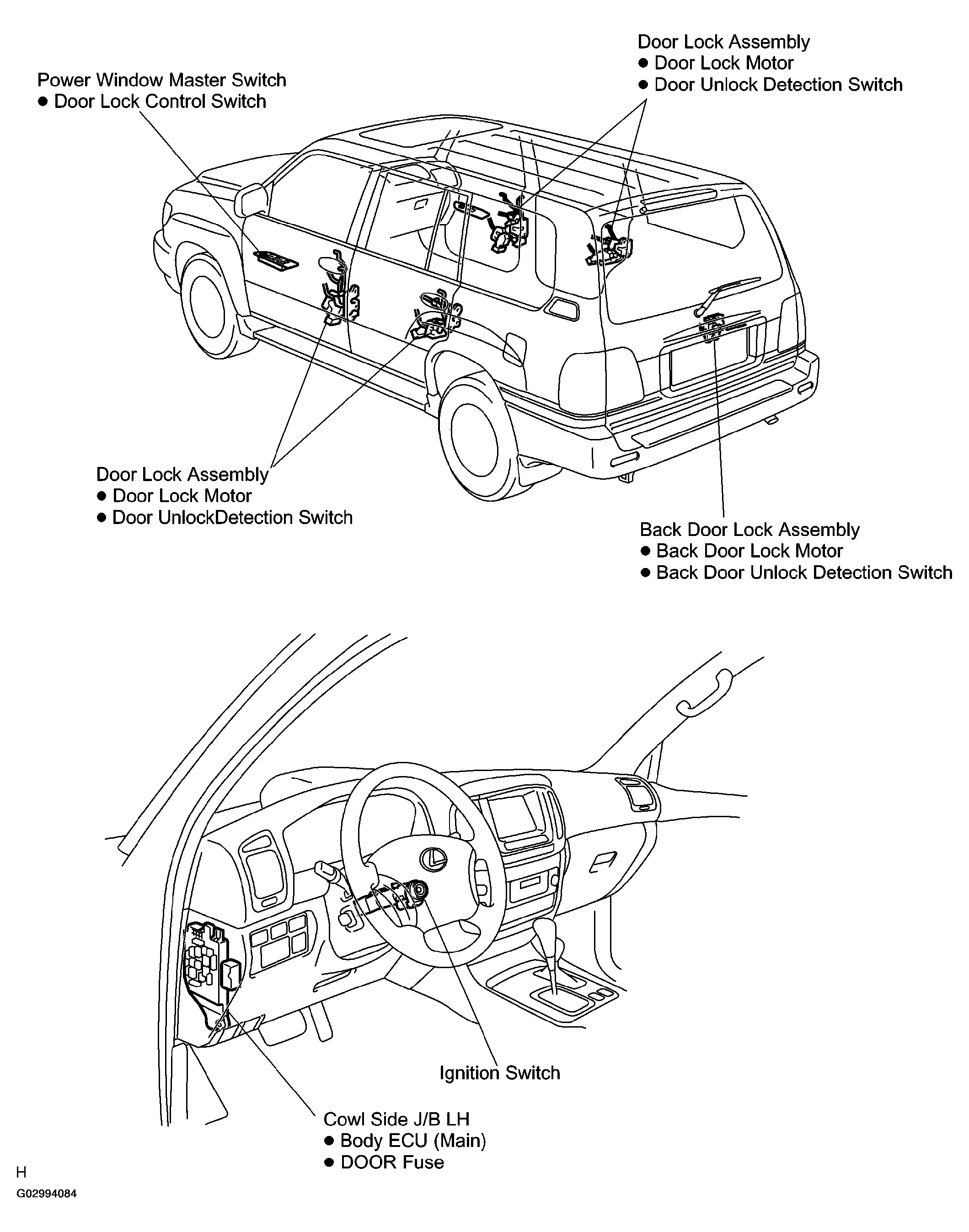

Fig 1: Identifying Component Location Of Power Door Lock Control System

G02994084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
