Engine Technical and Torque Data

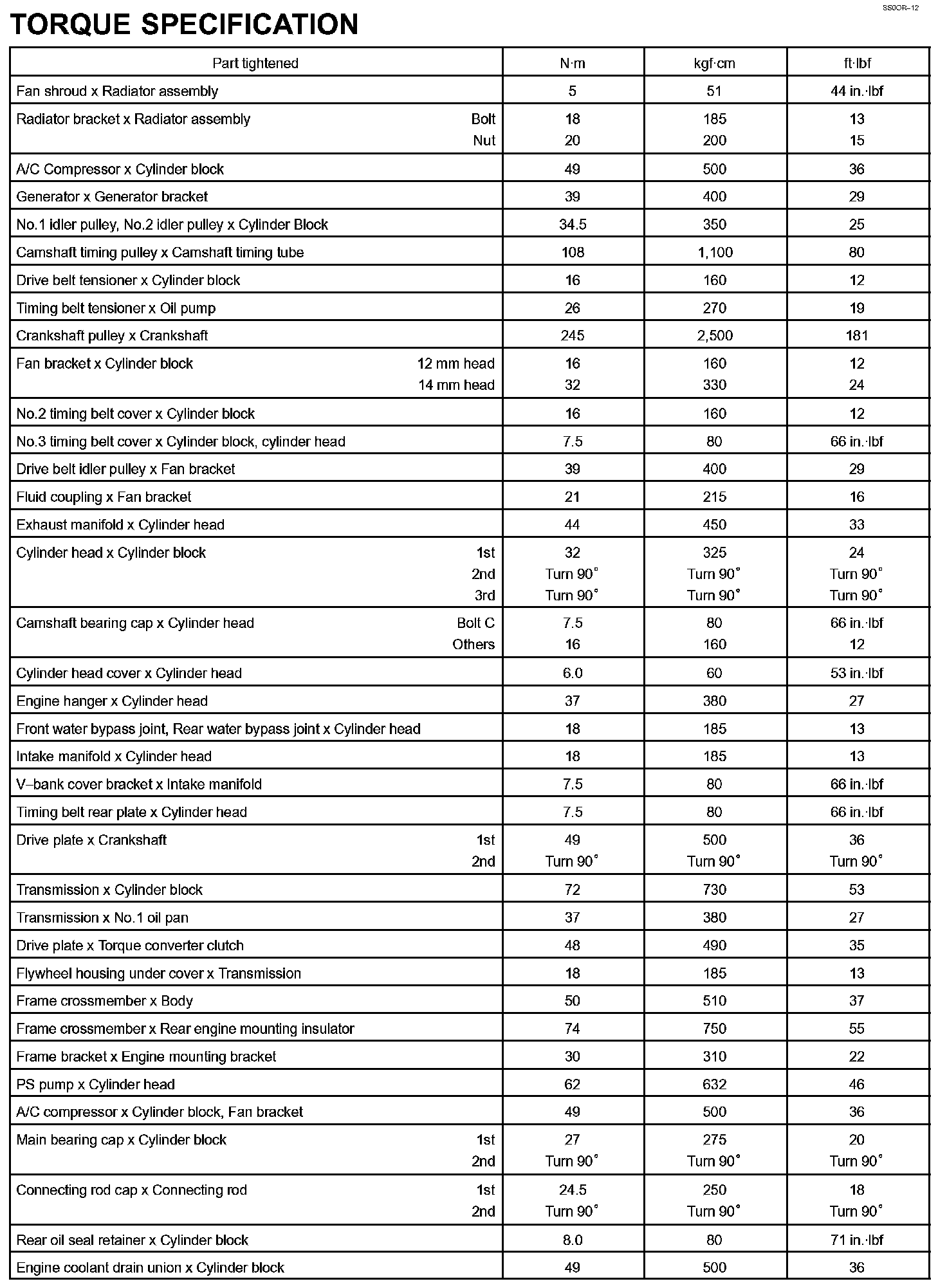

Engine Mechanical - Torque Specification Part 1:




Engine Mechanical - Torque Specification Part 2:





Engine Mechanical - Torque Specifications
