Repair and Diagnosis
>>
Engine Performance
>>
SFI System - Diagnostics
>>
SFI System
>>
Definition Of Terms
Definition Of Terms

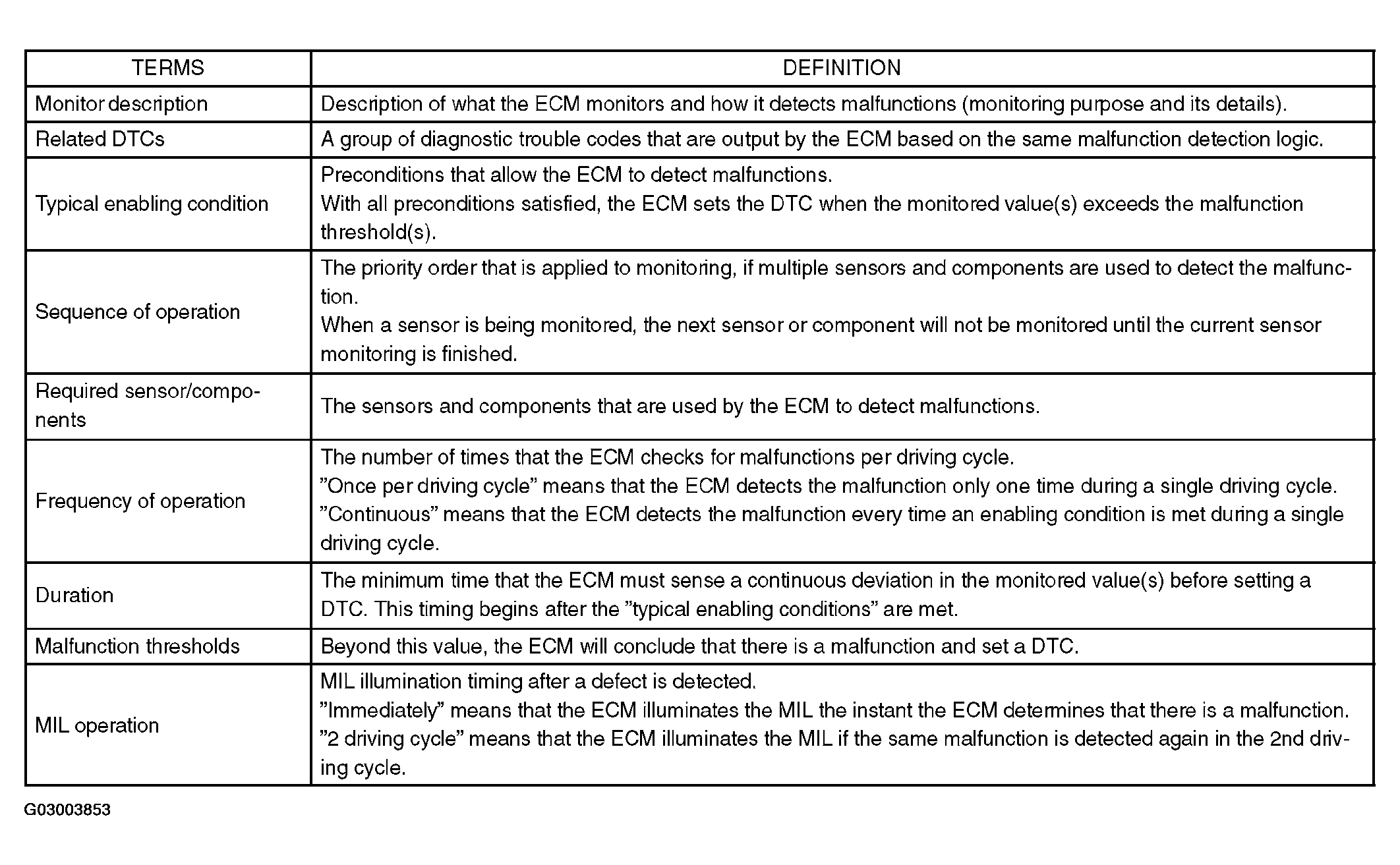

Fig 1: Definition Of Terms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
