System Diagram

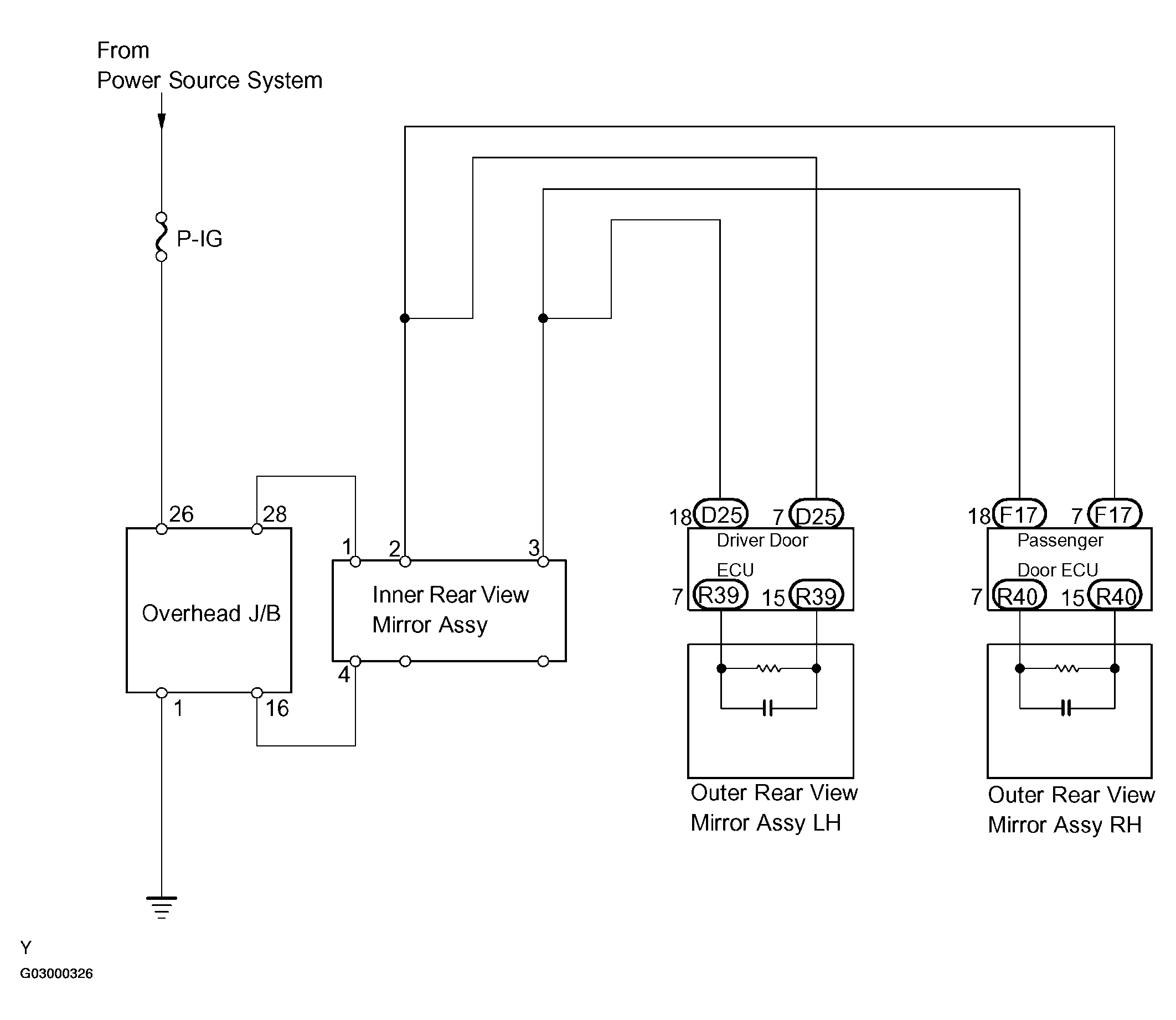

Fig 1: Inner Rear View Mirror Assy System Diagram

G03000326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
