System Diagram

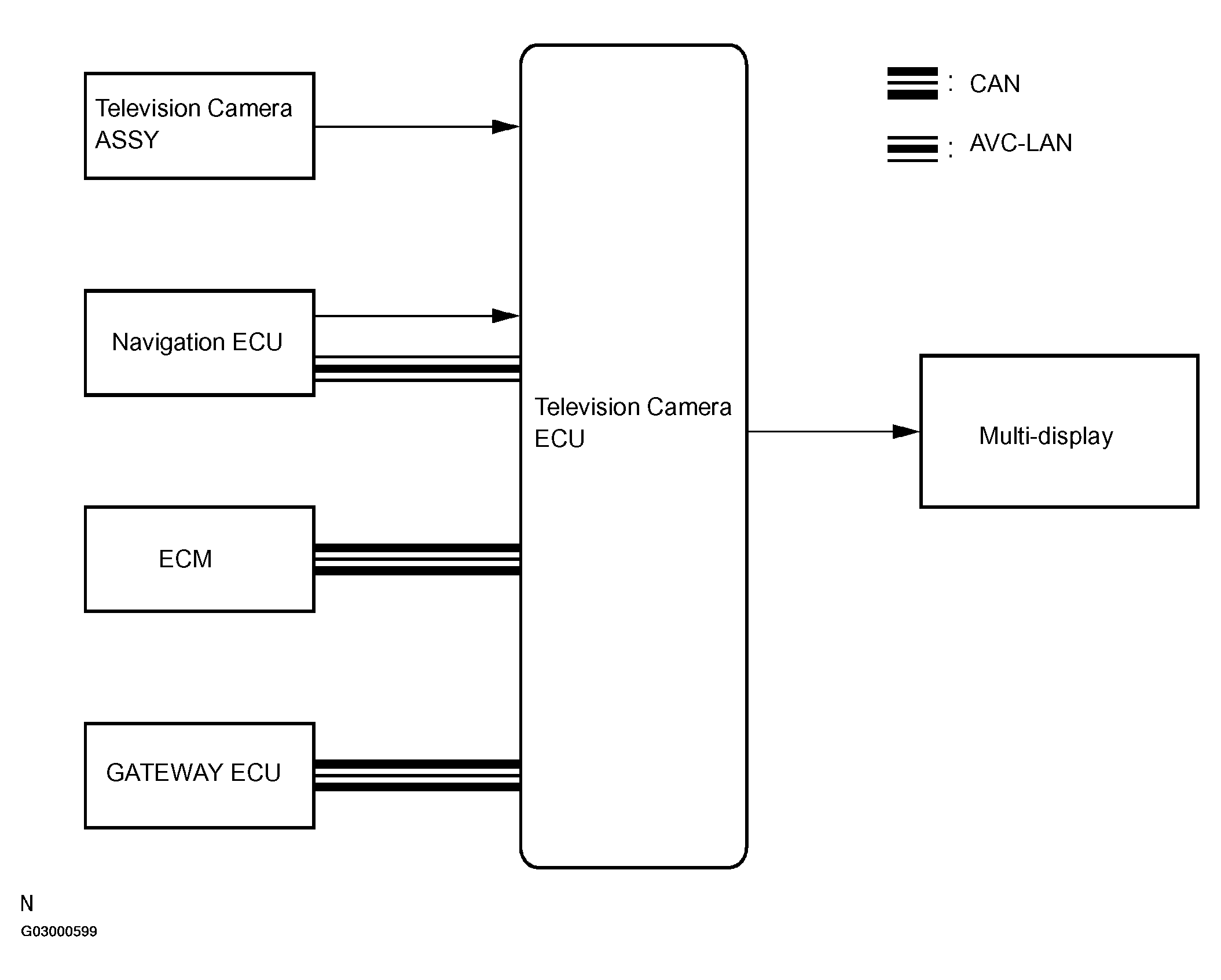

Fig 1: Rear View Monitor System Diagram

G03000599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Input and output signals of each ECU.

ECU INPUT AND OUTPUT SIGNALS - REFERENCE TABLE

Transmitting ECU (transmitter)	Receiving ECU	Signals	Communication method
ECM	Television Camera ECU	Shift R position signal	CAN
