Home >> Lexus >> 2005 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seats

Seats

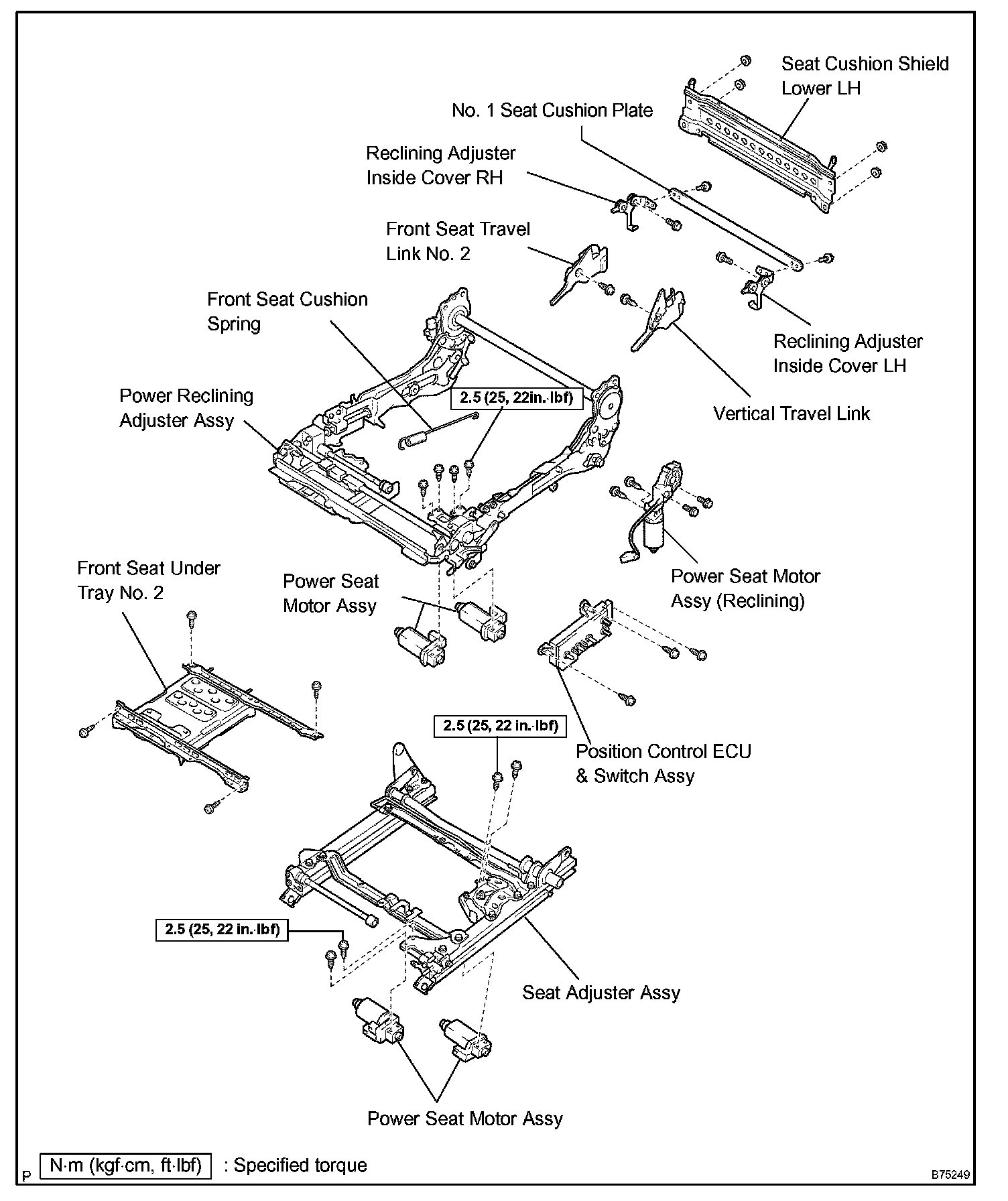

Front Seat Assy Part 1:

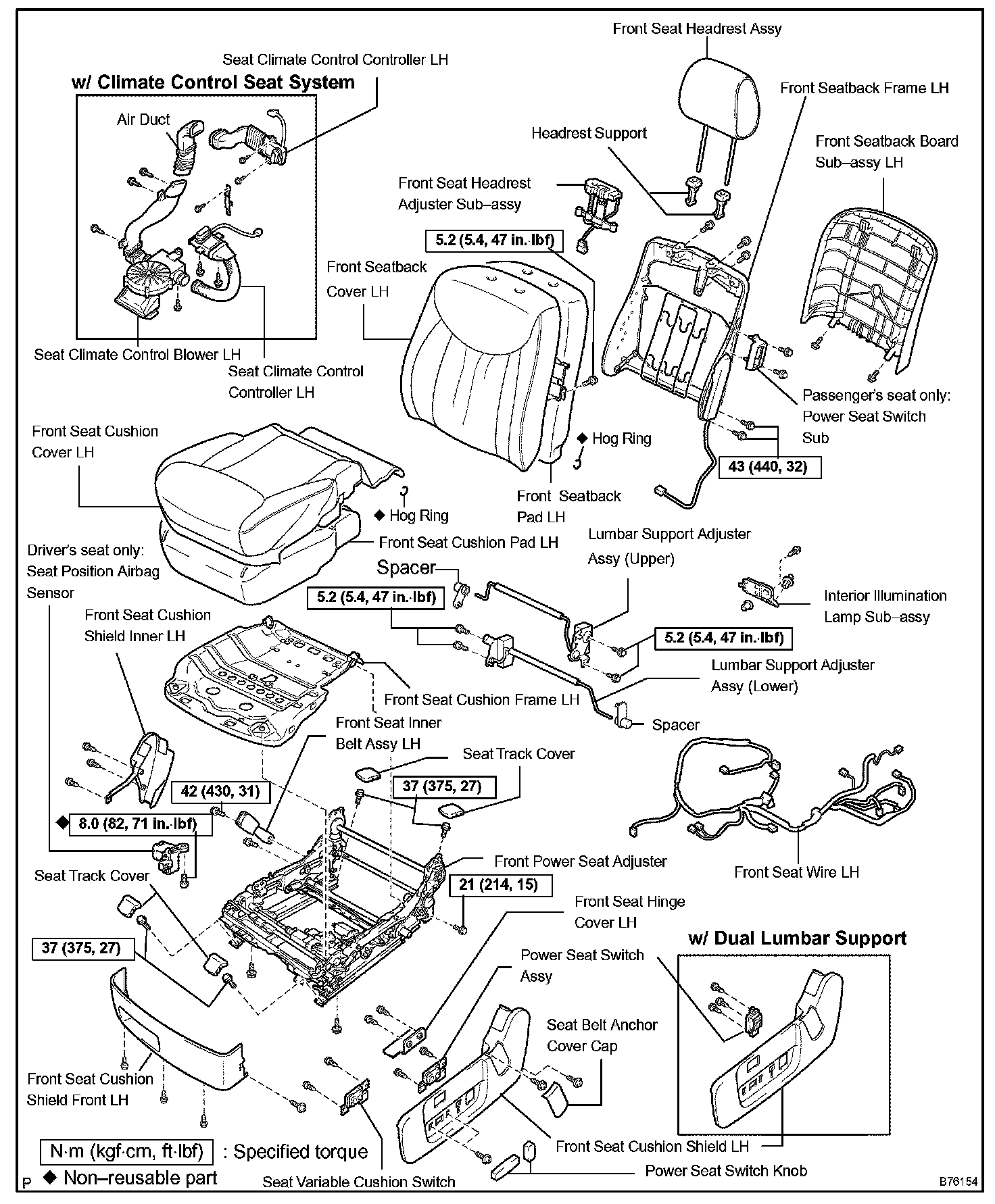

Front Seat Assy Part 2:

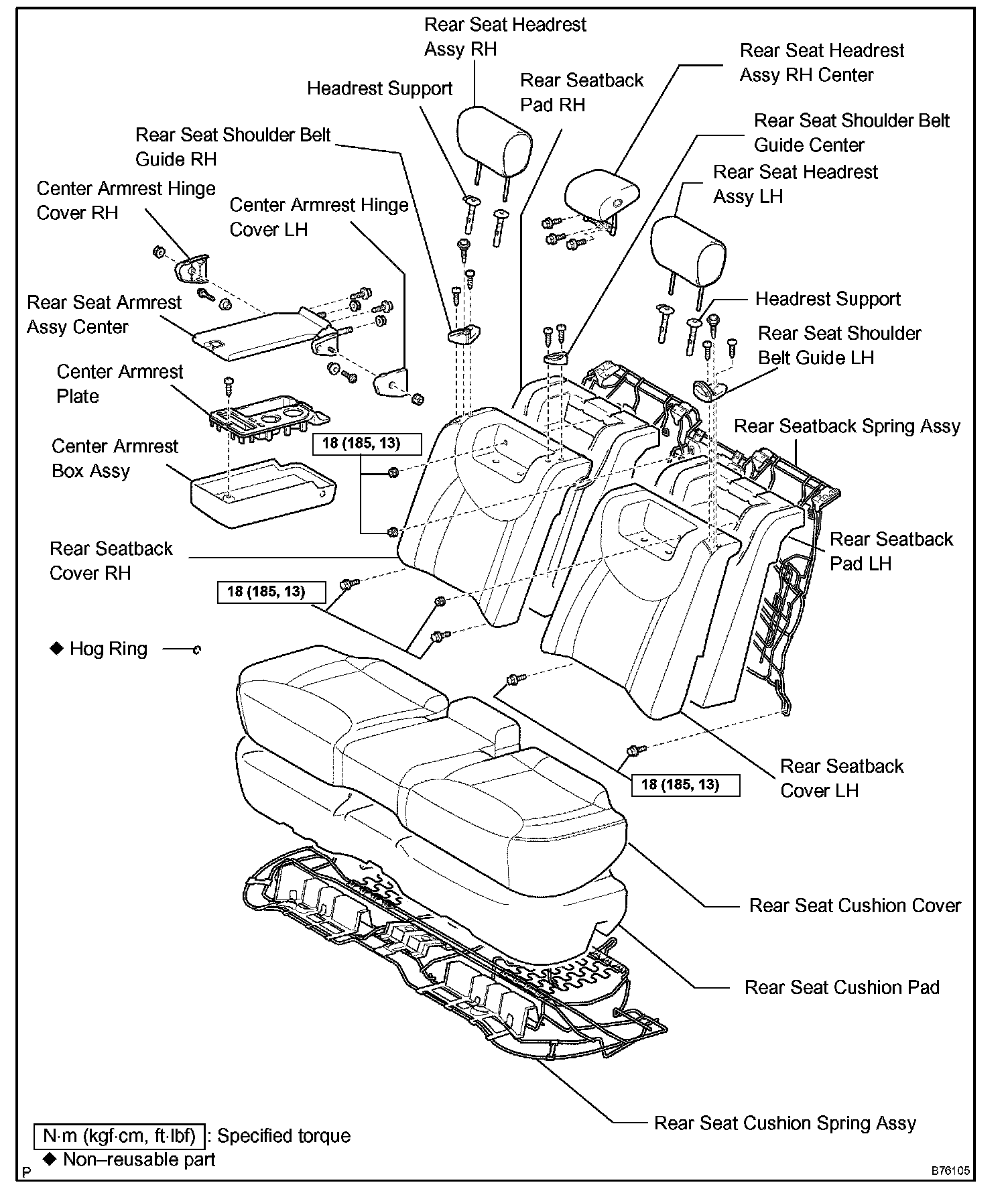

Rear Seat Assy (Fixed Type):

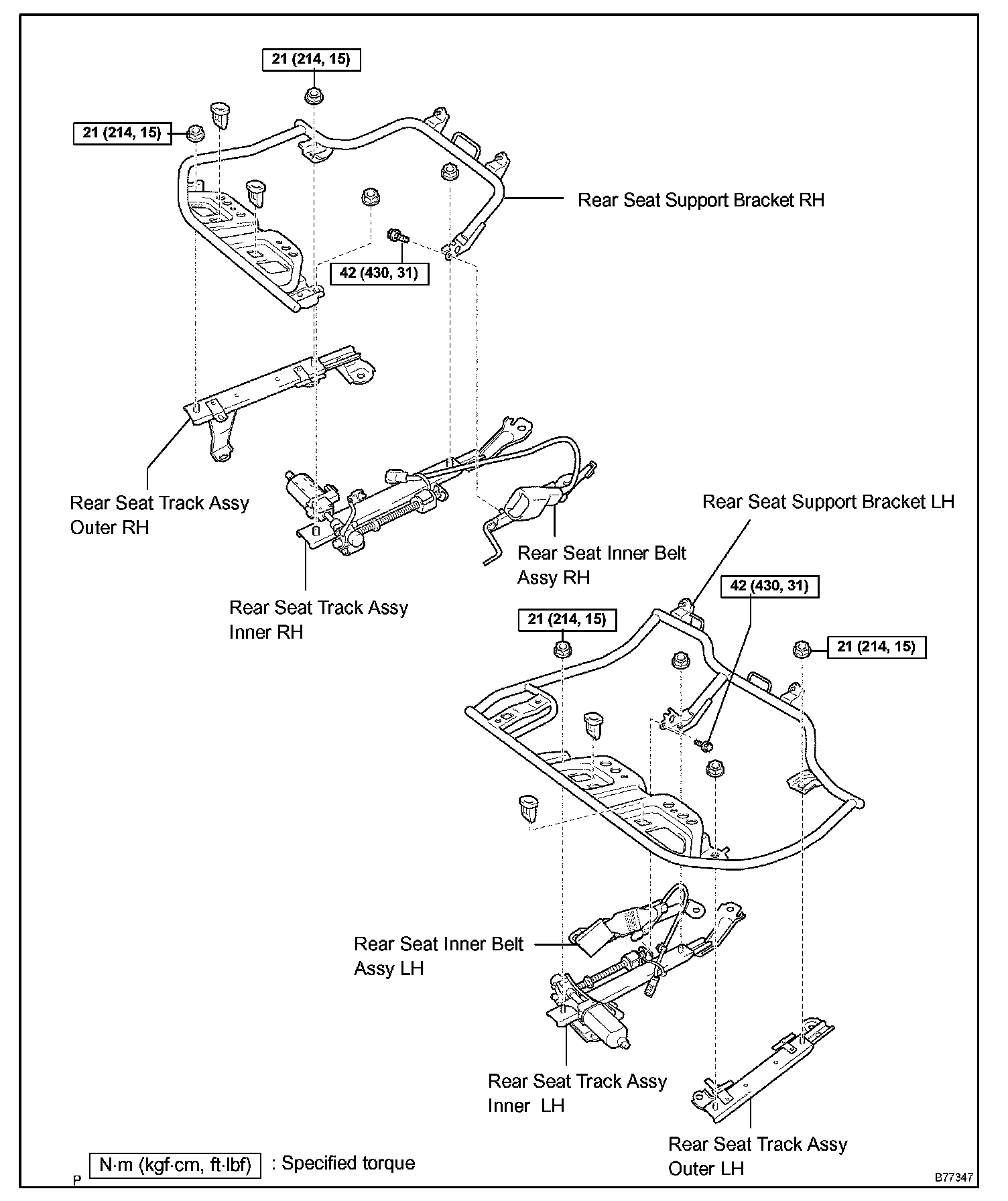

Rear Seat Assy(Power Adjuster Type) Part 1:

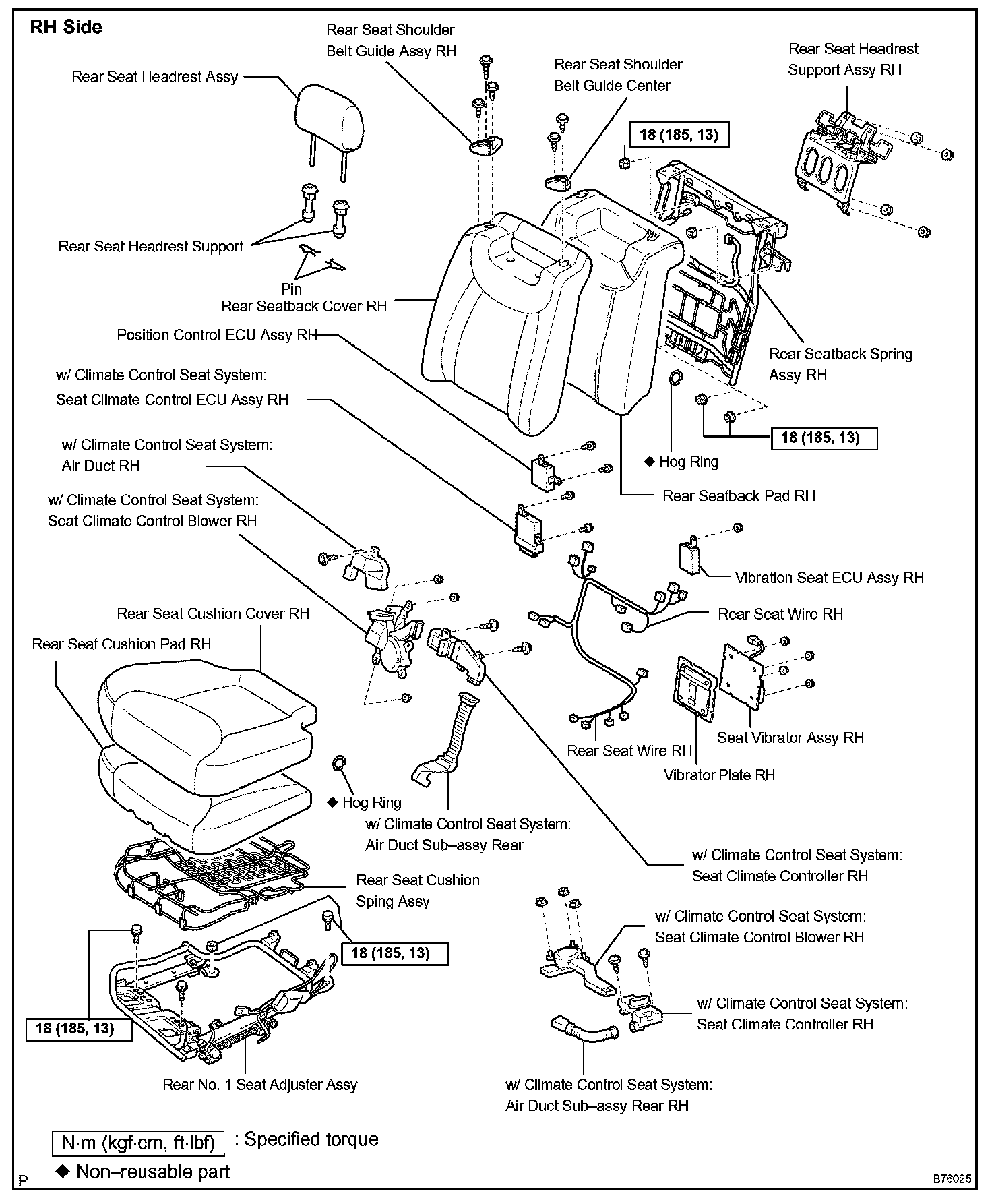

Rear Seat Assy(Power Adjuster Type) Part 2:

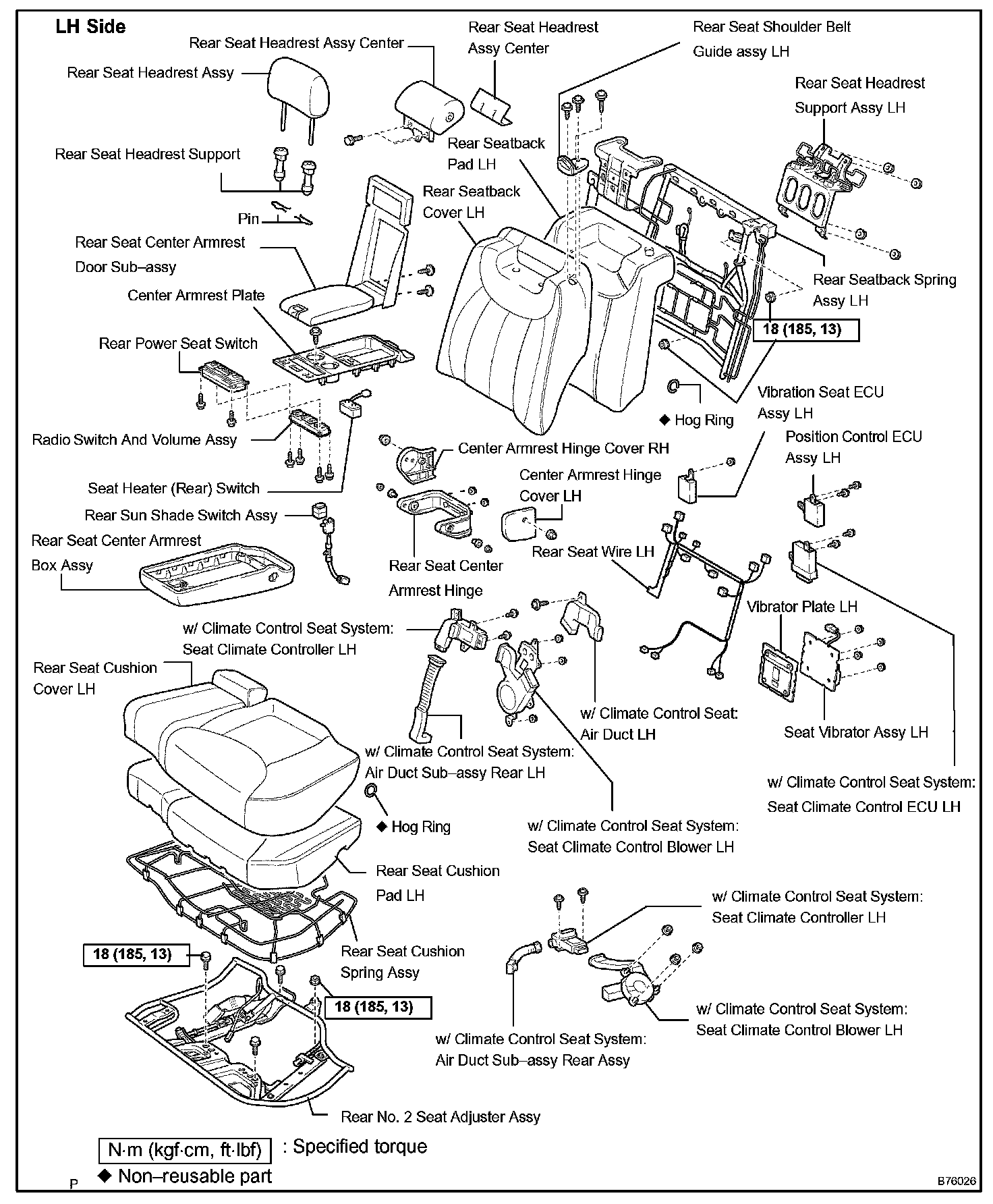

Rear Seat Assy(Power Adjuster Type) Part 3:
