Home >> Lexus >> 2005 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Diagrams >> Exploded Views

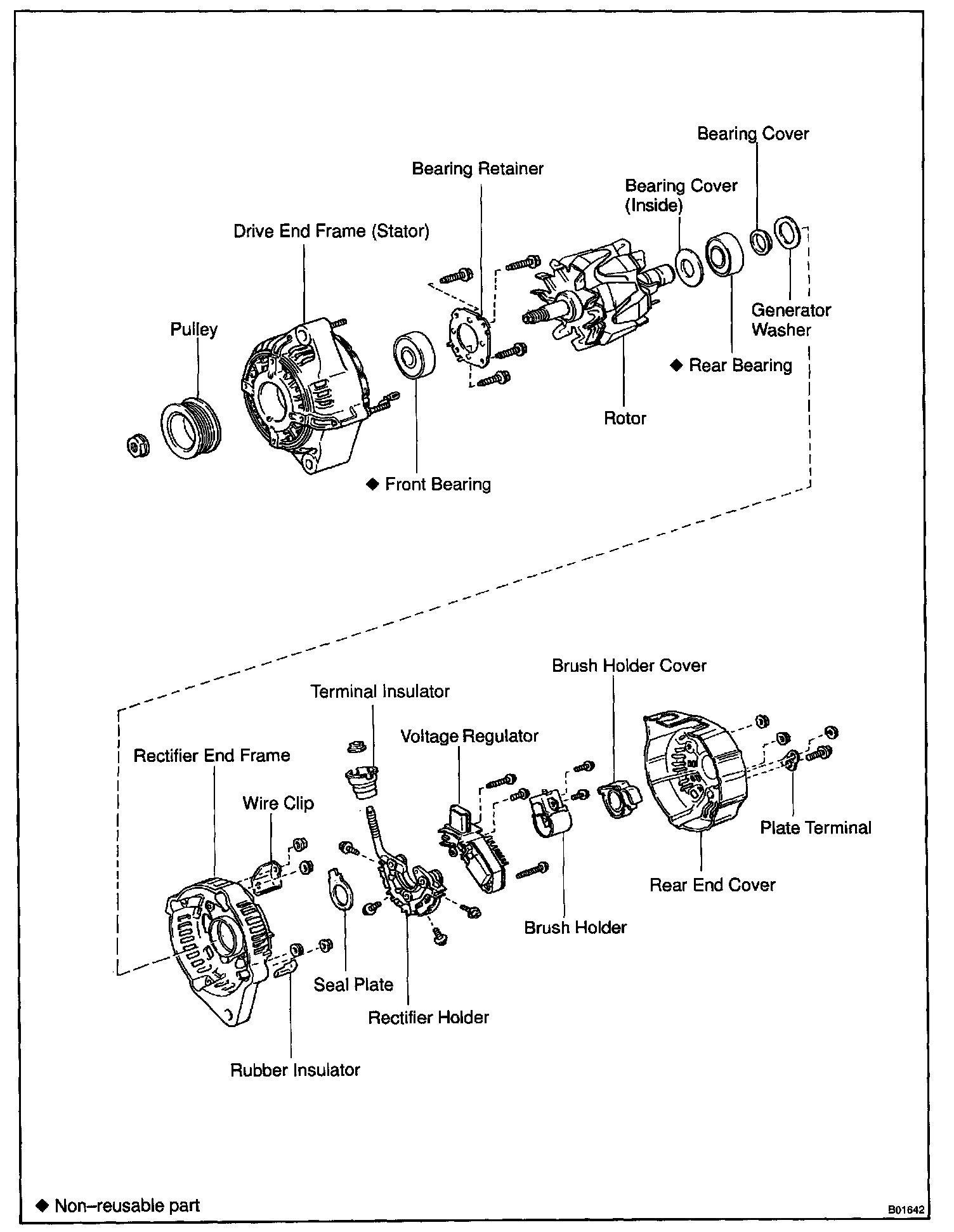

Exploded Views
