Lexus
>>
2005
>>
IS 300 Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Body Control System - Diagnostics
>>
Problem Symptoms Table
>>
Wireless Door Lock Control:
Wireless Door Lock Control:

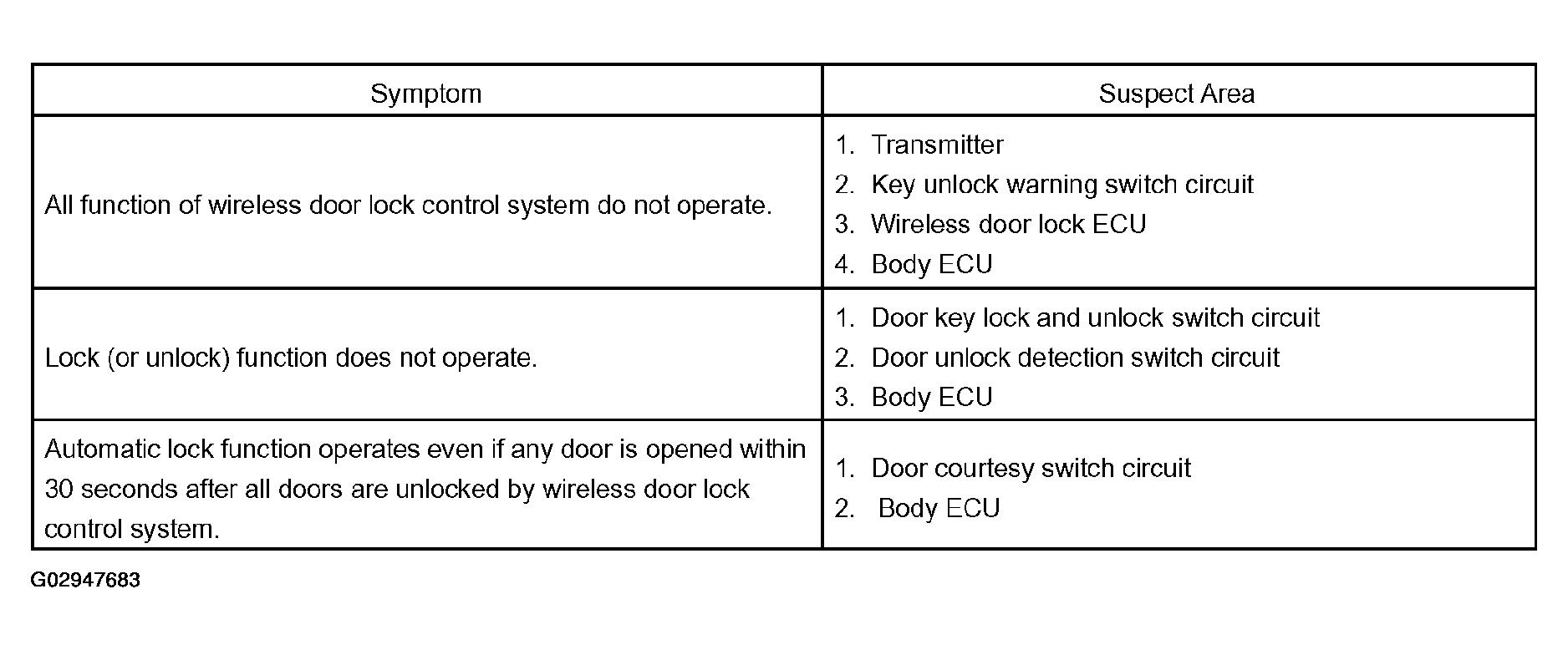

Fig 1: Wireless Door Lock Control Symptoms Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
