Chapter 2: On-Vehicle Repair

(*: See OVERHAUL - A650E article)

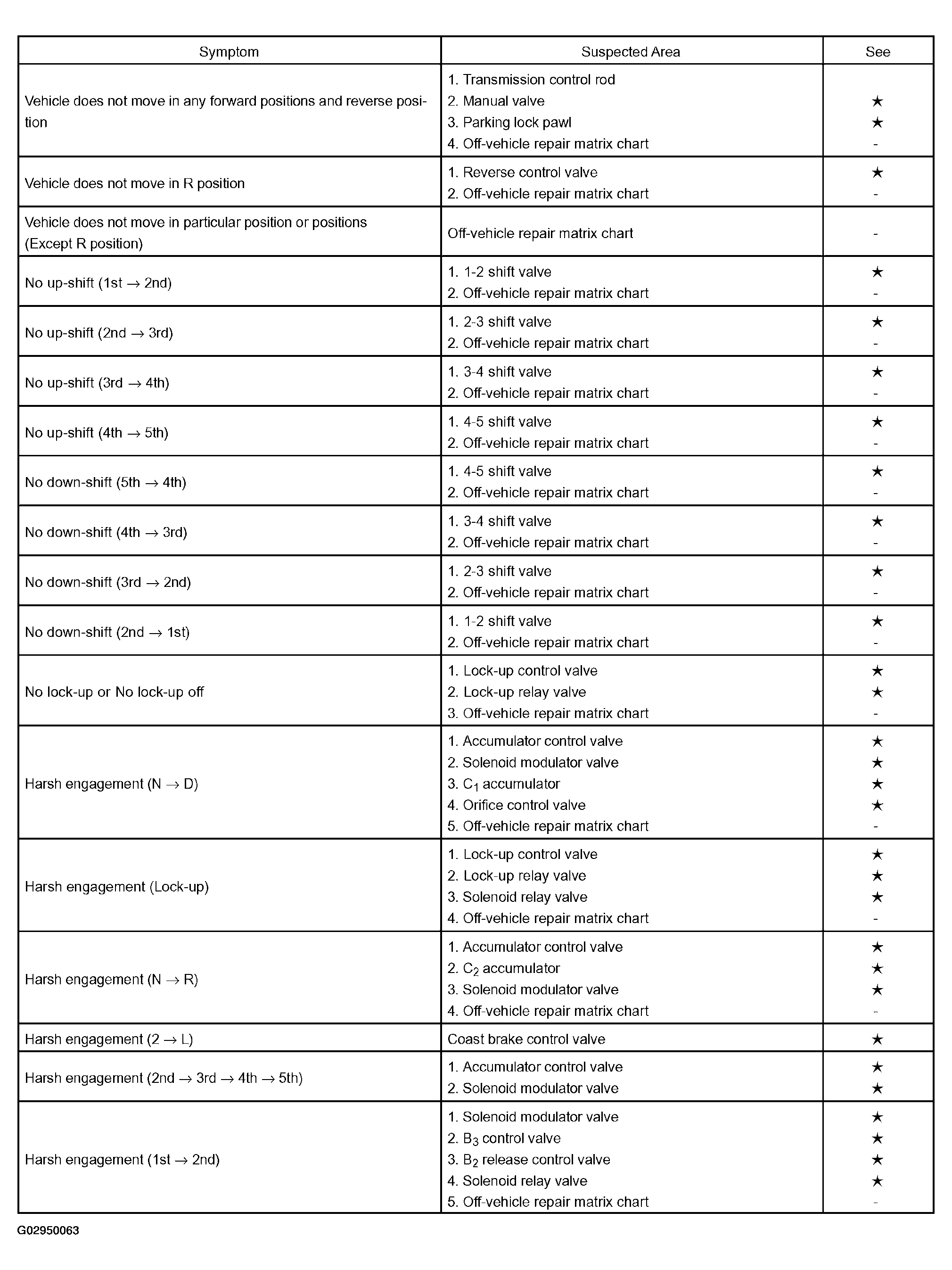

Fig 1: Chapter 2: On-Vehicle Repair (1 Of 2)
G02950063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

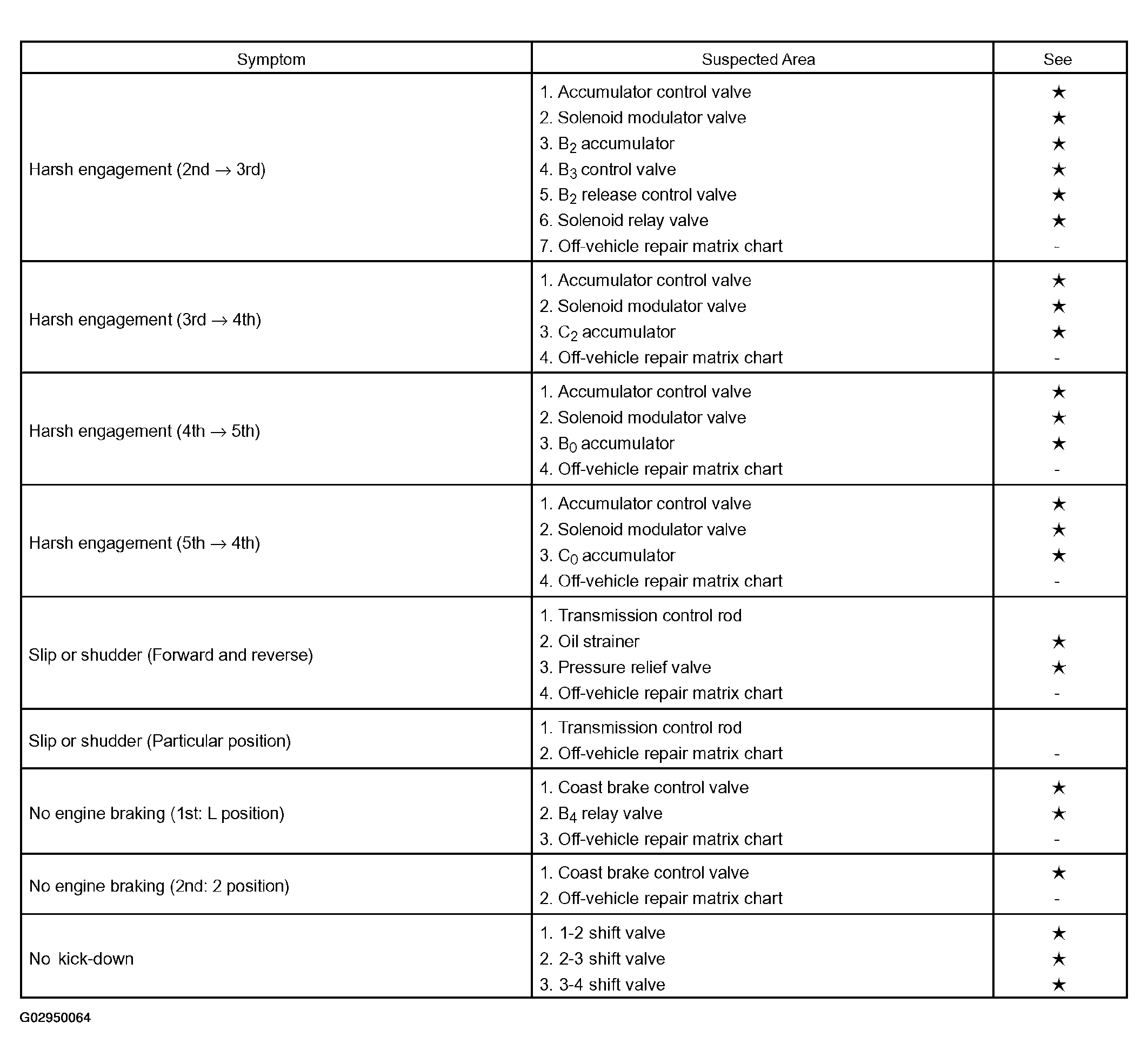

Fig 2: Chapter 2: On-Vehicle Repair (2 Of 2)
G02950064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
